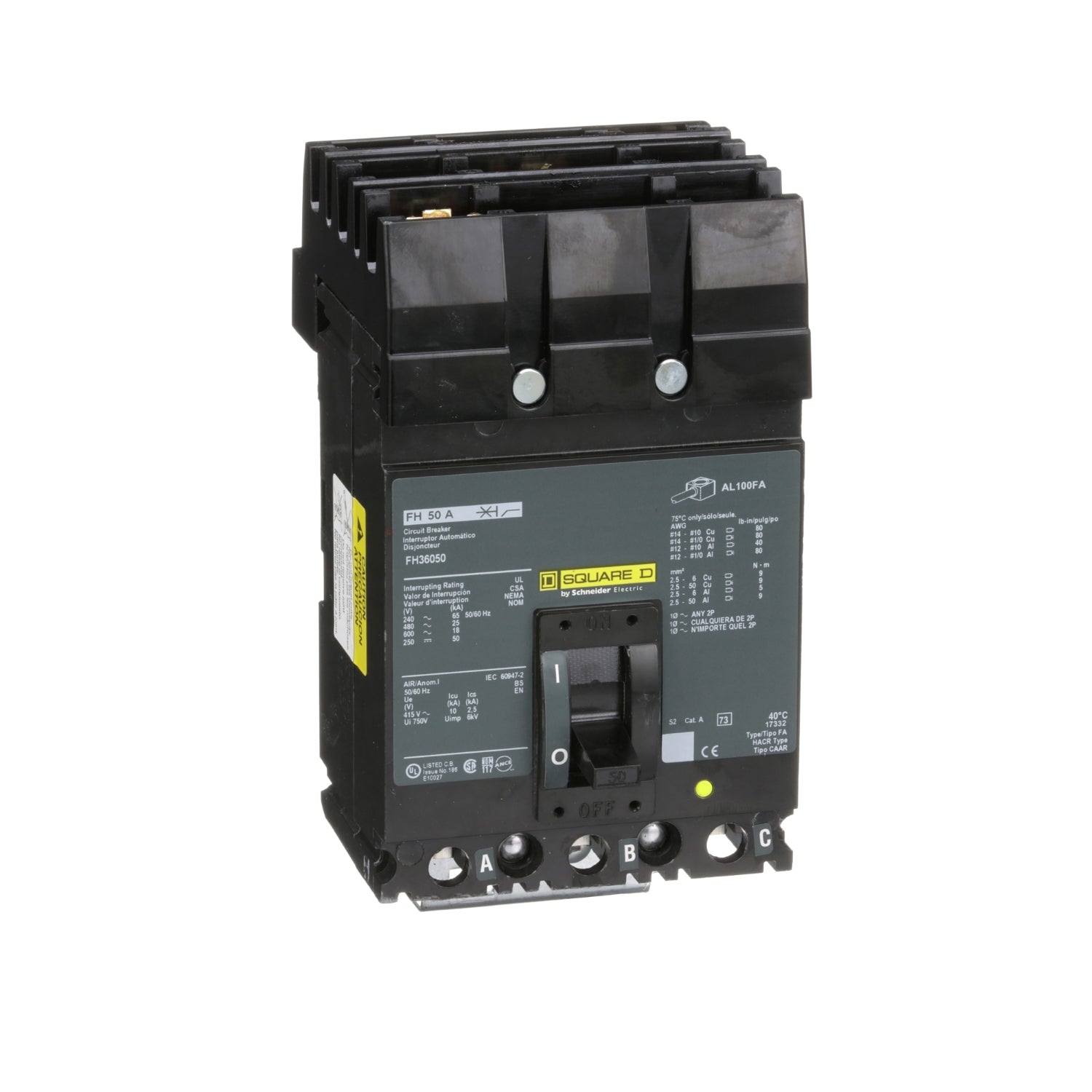

FH36050 | Schneider Electric Circuit Breaker
- Regular price
- $447.00
- Sale price
- $447.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FH36050
Description
FH36050, Square D, I-Line, type FH, 3P, 3PH, 50A, 600V, 25kA@480V, high interrupting rating, 40°C, I-Line Style Plug-In, Thermal Magnetic, molded case circuit breakers.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | FH36050 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | I-Line |
| Type | FH |
| Voltage | 600 |
| Amperage | 50 |
| Frame Type | F Frame |
| Phase | 3 |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Connection | I-Line Style Plug-In |
| Poles | 3 |
| AIC Rating | 25kA@480V |
Information About FH36050
The FH36050 by Schneider Electric is a robust circuit breaker designed to deliver reliable protection for electrical systems in industrial and commercial settings. As part of the I-Line family, this breaker integrates seamlessly into existing I-Line panelboards and switchboards, ensuring ease of installation and maintenance. It operates at a voltage of 600V and has an amperage rating of 50A, suitable for various electrical applications.
Built on the F Frame, the FH36050 ensures durability and structural integrity, making it capable of withstanding demanding operational environments. It supports a 3-phase configuration with 3 poles, providing balanced power distribution and stability within the electrical system. The breaker utilizes an I-Line style plug-in connection, which simplifies the installation process and enhances operational efficiency.
The FH36050 features a high Ampere Interrupting Capacity (AIC) of 25kA at 480V, indicating its ability to safely interrupt significant fault currents, thereby protecting the electrical system from potential damage. It employs thermal magnetic protection, combining thermal overload protection and magnetic short-circuit protection for comprehensive circuit safeguarding.
Equipped with LI (Long-Time and Instantaneous) functions, the breaker offers advanced protection features. The Long-Time protection addresses sustained overcurrent conditions to prevent overload, while the Instantaneous protection quickly responds to short-circuit events, ensuring immediate circuit interruption.
Overall, the FH36050 circuit breaker by Schneider Electric is engineered for high reliability and superior protection, making it an essential component for maintaining the safety and efficiency of electrical systems in demanding environments.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
