FH36060 | Schneider Electric Circuit Breaker
- Regular price
- $377.00
- Sale price
- $377.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FH36060
Description

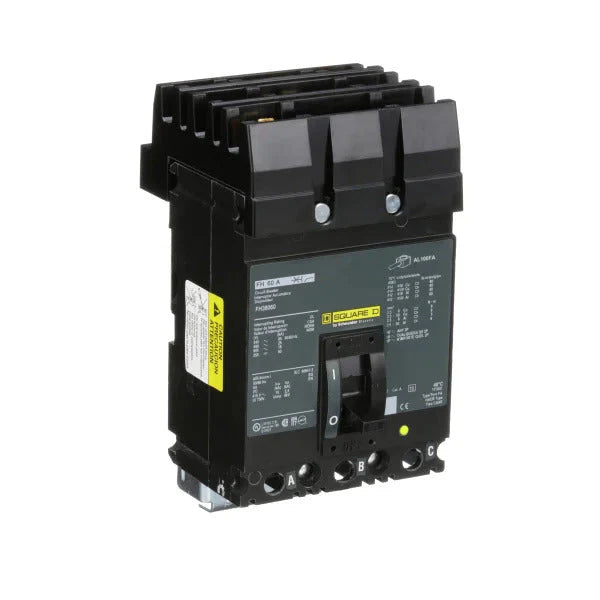

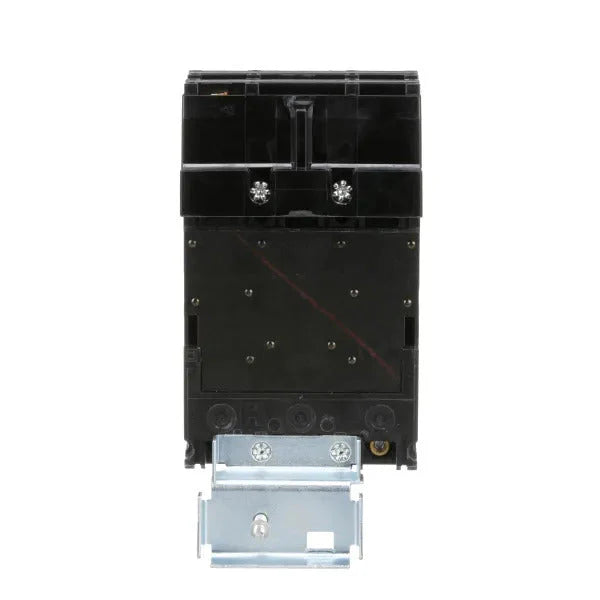

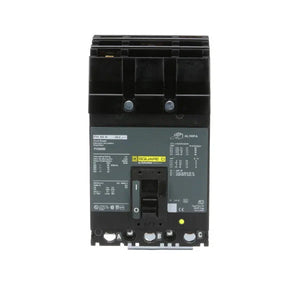

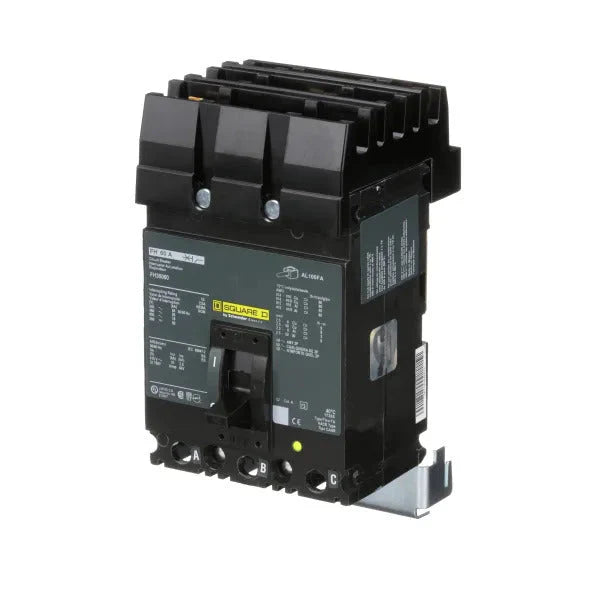

The FH36060 is a Square D circuit breaker designed in I-Line style, type FH, with specifications including 3 poles, 60A current rating, and an operational voltage of 600V. It features a high interrupting rating of 25kA at 480V, making it suitable for demanding industrial applications. This thermal magnetic breaker is configured for plug-in installation, adhering to standards for robust and reliable circuit protection in diverse electrical environments.
Technical Specifications
|
Part # |
FH36060 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product or Component Type |
Circuit breaker |
|
Trip Unit Technology |
Thermal-magnetic |
|
Line Rated Current |
60 A |
|
Number of Poles |
3P |
|
Breaking Capacity Code |
H |
|
Mounting Mode |
I-Line |
|
Magnetic Hold Current |
800 A |
|
Magnetic Tripping Current |
1450 A |
|
Terminal Identifier |
AL100FA |
|
Phase Connection |
ABC |
|
Height |
6.4 in (162.56 mm) |
|
Width |
4.5 in (114.30 mm) |
|
Depth |
4.13 in (104.90 mm) |
|
Circuit Breaker Application |
HACR rated |
Information About FH36060
The FH36060 circuit breaker, manufactured by Square D and designated for I-Line applications, is a robust solution designed to provide reliable circuit protection in industrial environments. Classified under the FH series, this breaker is configured as a 3-pole, 3-phase unit with a nominal current rating of 60A and an operational voltage of 600V. It features a high interrupting rating of 25kA at 480V, ensuring effective protection against short circuits and overloads.
Equipped with a thermal magnetic trip unit, the FH36060 operates efficiently by combining thermal protection against overcurrent conditions with magnetic tripping mechanisms for rapid response to short circuit faults. This dual-functionality ensures comprehensive protection for electrical circuits, safeguarding equipment and personnel from potential hazards.
The breaker is specifically designed for I-Line style plug-in installation, facilitating quick and convenient integration into I-Line panelboards. Its construction adheres to stringent industrial standards, reflecting its suitability for high-demand applications requiring reliable performance and durability.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
