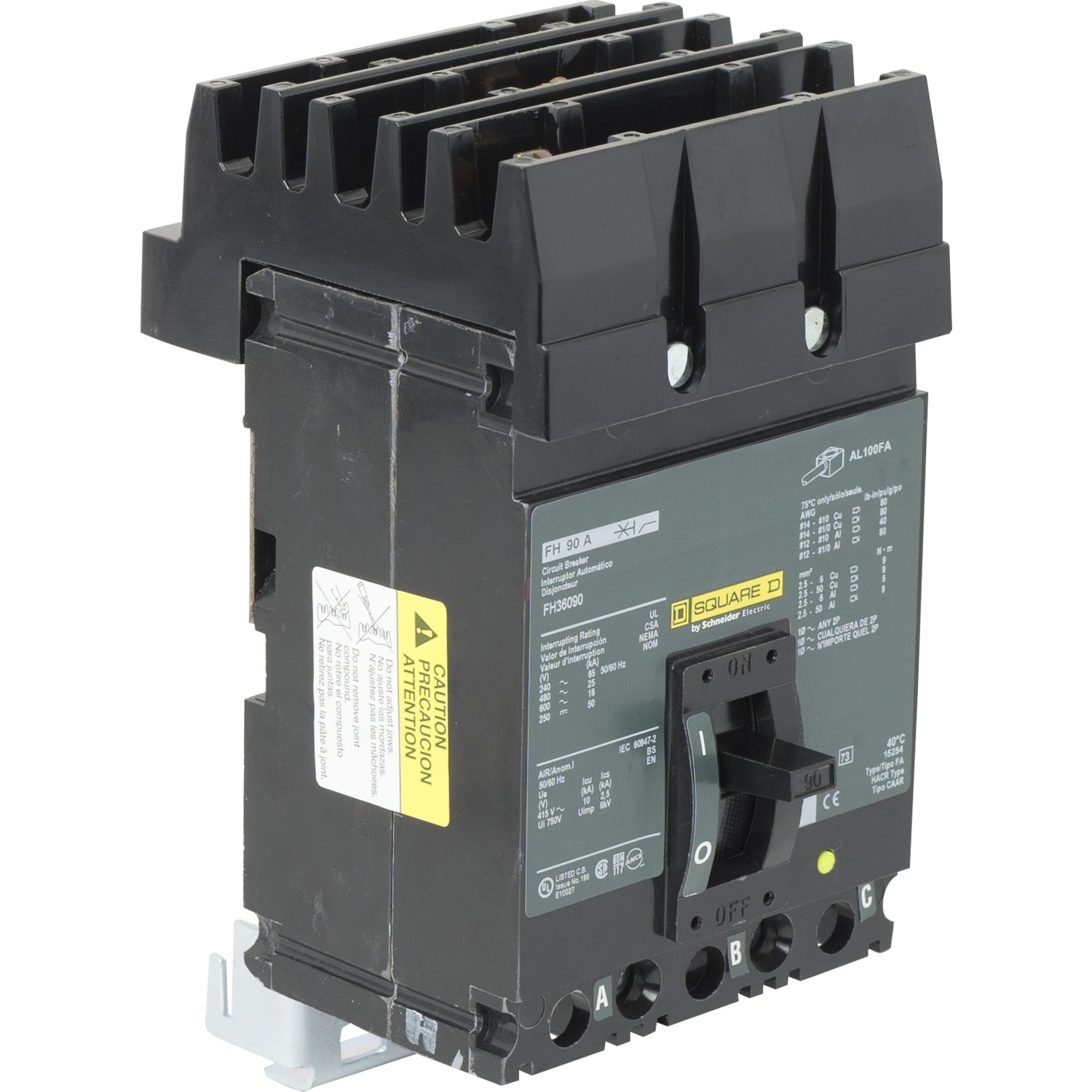

FH36090 | Schneider Electric Circuit Breaker
- Regular price
- $1,985.00
- Sale price
- $1,985.00
- Regular price
-
Do you need help?
Product Description P/N: FH36090
Description
FH36090, Square D, I-Line, type FH, 3P, 3PH, 90A, 600V, 25kA@480V, high interrupting rating, 40°C, I-Line Style Plug-In, Thermal Magnetic, molded case circuit breakers.
Technical Specifications
Brand | Schneider Electric |
Part Number | FH36090 |
Category | Circuit Breaker |
Subcategory | Molded Case Circuit Breaker |
Family | I-Line |
Type | FH |
Voltage | 600 |
Amperage | 90 |
AIC Rating | 25kA@480V |
Phase | 3 |
Frame Type | F Frame |
Functions | LI - Long-Time and Instantaneous |
Protection | Thermal Magnetic |
Poles | 3 |
Connection | I-Line Style Plug-In |
Information About FH36090
The FH36090 is a Schneider Electric Circuit Breaker from the I-Line family, designed to deliver reliable protection in industrial and commercial electrical systems. Operating at a voltage of 600V with an amperage rating of 90A, it is ideal for three-phase applications.
This circuit breaker features long-time and instantaneous trip functions (LI), providing comprehensive protection against overloads and short circuits. Its thermal-magnetic protection mechanism ensures consistent and effective performance.
With a three-pole configuration and an I-Line style plug-in connection, the FH36090 offers straightforward installation and integration into existing electrical panels. The F Frame type provides robust construction, ensuring durability and long-term reliability.
Its AIC (Available Interrupting Current) rating of 25kA at 480V offers substantial protection against high fault currents, enhancing the safety and integrity of the electrical system.
The FH36090 is an optimal choice for environments requiring dependable circuit protection, ensuring the safety and continuity of electrical operations.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
