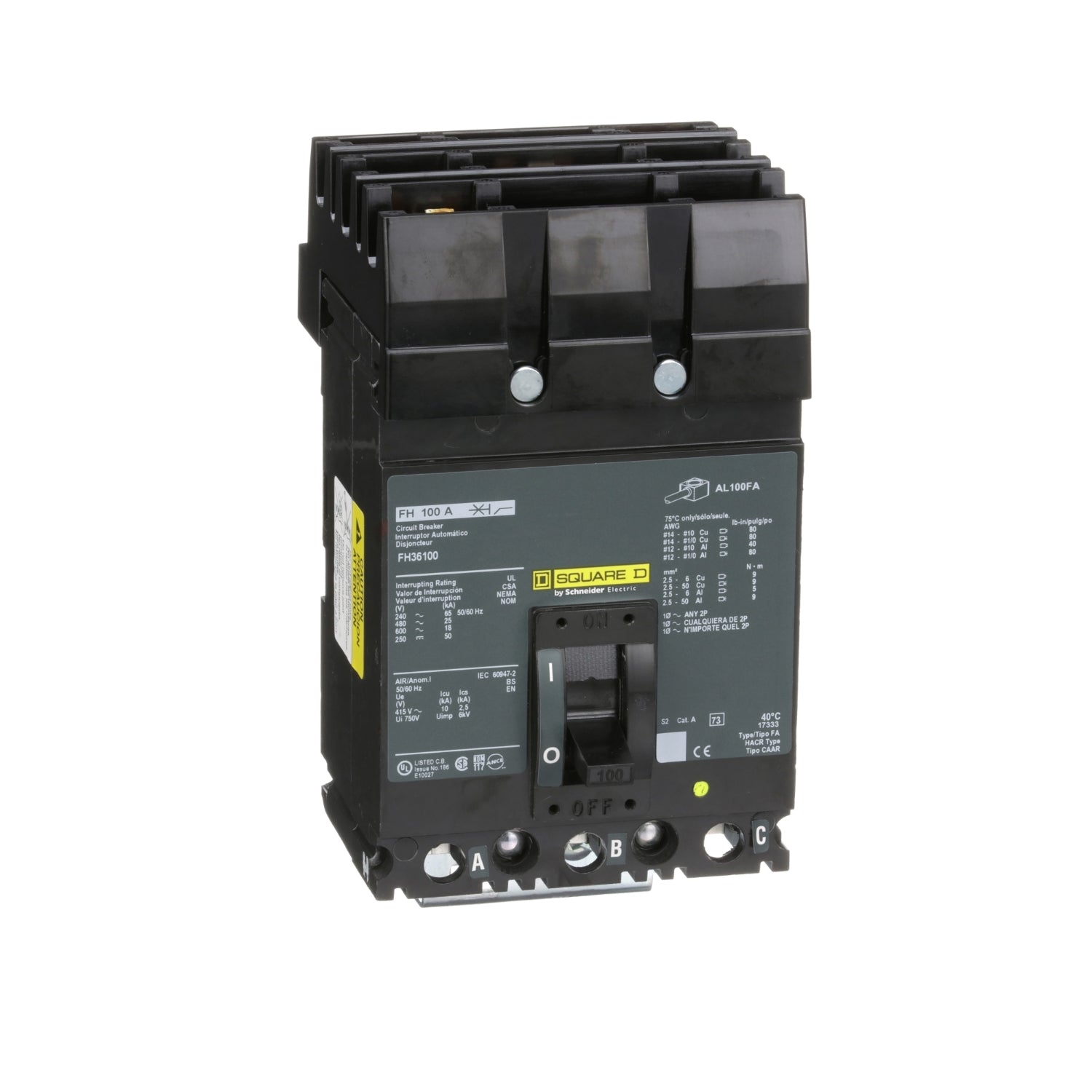

FH36100 | Schneider Electric Circuit Breaker
- Regular price
- $542.00
- Sale price
- $542.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FH36100
Description
FH36100, Square D, I-Line, type FH, 3P, 3PH, 100A, 600V, 25kA@480V, high interrupting rating, 40°C, I-Line Style Plug-In, Thermal Magnetic, molded case circuit breakers.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | FH36100 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | I-Line |
| Type | FH |
| Voltage | 600 |
| Amperage | 100 |
| Poles | 3 |
| Frame Type | F Frame |
| Functions | LI - Long-Time and Instantaneous |
| AIC Rating | 25kA@480V |
| Connection | I-Line Style Plug-In |
| Protection | Thermal Magnetic |
| Phase | 3 |
Information About FH36100
The Schneider Electric FH36100 is a high-performance circuit breaker from the I-Line family, designed for robust electrical protection in commercial and industrial applications. This 600V, 100A breaker is built on the F Frame, ensuring compatibility with a variety of power distribution setups.
Featuring a three-pole configuration, the FH36100 accommodates three-phase systems, providing comprehensive protection for complex electrical networks. The breaker utilizes thermal magnetic protection with long-time and instantaneous (LI) functions, ensuring reliable response to both sustained overcurrent and sudden short-circuit conditions.
With an impressive interrupting capacity (AIC) of 25 kA at 480V, this breaker can handle high fault currents, enhancing the safety and stability of the electrical system. The I-Line style plug-in connection simplifies installation and maintenance, allowing for quick and secure integration into I-Line panelboards and distribution systems.
The FH36100's thermal magnetic protection mechanism offers a balanced approach to managing overcurrent scenarios, making it a versatile and dependable choice for demanding environments.
Overall, the Schneider Electric FH36100 Circuit Breaker combines robust protection, ease of installation, and high fault-handling capacity, making it an essential component for ensuring safety and efficiency in industrial and commercial electrical applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
