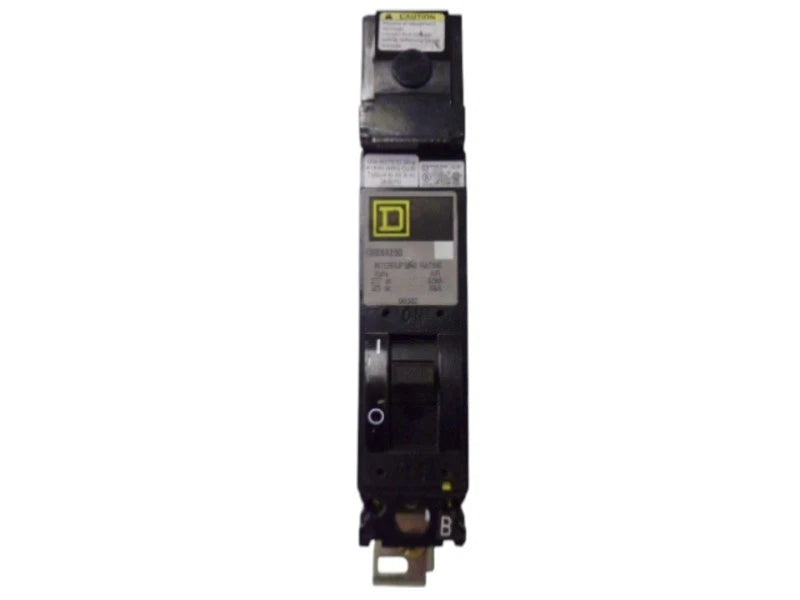

FHB16020B | Square D 20A 1-Pole 347V FHB Molded Case Circuit Breaker
- Regular price
- $254.00
- Sale price
- $254.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FHB16020B
Description
The Square D FHB16020B is a 1-pole molded case circuit breaker designed to provide dependable overcurrent protection in commercial and industrial electrical systems. Rated at 20 amps and up to 347 volts, this breaker features thermal-magnetic protection and I-Line bolt-on mounting for secure installation in power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Molded Case Circuit Breaker |
| Part Number | FHB16020B |
| Subcategory | 1-Pole |
| Series | FHB |
| Frame Type | FH |
| Circuit Breaker Type | Molded Case |
| Amperage | 20 Amp |
| Voltage Rating | 277 VAC / 347 V |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | I-Line Bolt-On |
| Connection Type | I-Line Style Plug-In |
| Protection Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Interrupting Rating | 25kA @ 240VAC; 25kA @ 277VAC |
| Temperature Rating | 40 °C |
| Dimensions (HxWxD) | 2.20 in x 7.70 in x 12.90 in |
| Weight | 6.0 lb |
Information About FHB16020B
The FHB16020B is part of Square D’s FHB series within the PowerPacT family, engineered for compact, high-performance circuit protection. Built on an FH frame, it is designed for compatibility with Square D I-Line panelboards and switchgear. This breaker supports single-phase systems and incorporates long-time and instantaneous trip functions to protect against overloads and short circuits. Its high interrupting rating makes it suitable for installations with elevated fault current levels.
Key Features:
- 20 Amp Current Rating: Provides precise protection for branch circuits.
- 1-Pole Configuration: Designed for single-phase electrical applications.
- 347V Voltage Rating: Suitable for lighting and commercial distribution systems.
- High Interrupting Capacity: Rated up to 25kA at 277VAC for robust fault protection.
- Thermal-Magnetic Protection: Ensures reliable overload and short-circuit response.
- LI Trip Functions: Long-time and instantaneous tripping enhances circuit safety.
- I-Line Bolt-On Mounting: Provides secure installation and reliable bus connection.
The FHB16020B delivers the reliability and precision required for PowerPacT I-Line branch circuit protection applications.
