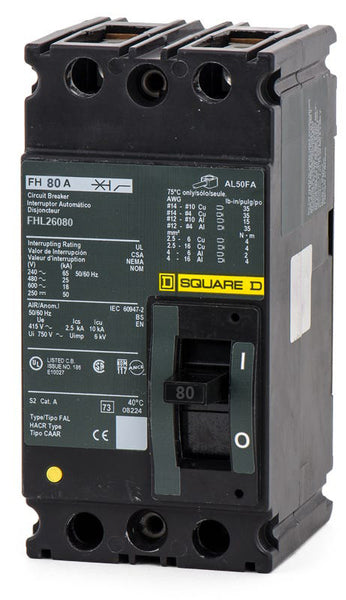

FHL26080 | Square D FHL Series 80A 2-Pole 600V Feed-Thru Circuit Breaker
- Regular price
- $1,247.00
- Sale price
- $1,247.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FHL26080
Description
The Square D FHL26080 is a two-pole molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection in high-voltage power distribution systems. Rated at 80 amps and 600 volts AC, this breaker utilizes thermal-magnetic trip technology for dependable fault response. It is engineered for single-phase applications requiring robust feed-thru circuit protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | FHL26080 |
| Subcategory | Circuit Breakers |
| Series | FHL |
| Product Type | Molded Case Circuit Breaker |
| Frame Type | FHL |
| Rated Current | 80 A |
| Number of Poles | 2 |
| Phase | Single Phase |
| Voltage Rating | 600 VAC |
| Protection Type | Thermal-Magnetic |
| Interrupting Rating | 25 kAIC @ 480 V |
| Connection Type | Feed-Thru |
| Terminal Connection | Line and Load Side Lugs |
| Functions | Long-Time and Instantaneous Trip |
| Compliance | RoHS, REACh |
| Weight | 4 lb (approx.) |
Information About FHL26080
The FHL26080 is part of Square D’s FHL series, developed for compact yet high-performance circuit protection in commercial and industrial environments. This circuit breaker incorporates a thermal-magnetic trip unit that delivers both long-time overload protection and instantaneous short-circuit interruption. It features a feed-thru connection design with line and load side lugs, allowing efficient power routing and secure conductor termination. Built to comply with RoHS and REACh standards, the breaker supports environmentally compliant electrical installations.
Key Features:
- 80 Amp Current Rating: Supports protection of higher-load single-phase branch circuits.
- Two-Pole Configuration: Designed for single-phase electrical distribution systems.
- 600V AC Voltage Rating: Suitable for high-voltage commercial and industrial applications.
- Thermal-Magnetic Protection: Combines long-time overload and instantaneous trip functions.
- Feed-Thru Connection Design: Enables streamlined power distribution and wiring flexibility.
- Line and Load Side Lugs: Provides secure conductor termination on both sides.
- FHL Series Construction: Compact molded case design optimized for panel installations.
The FHL26080 delivers the reliability and precision required for single-phase power distribution protection.
