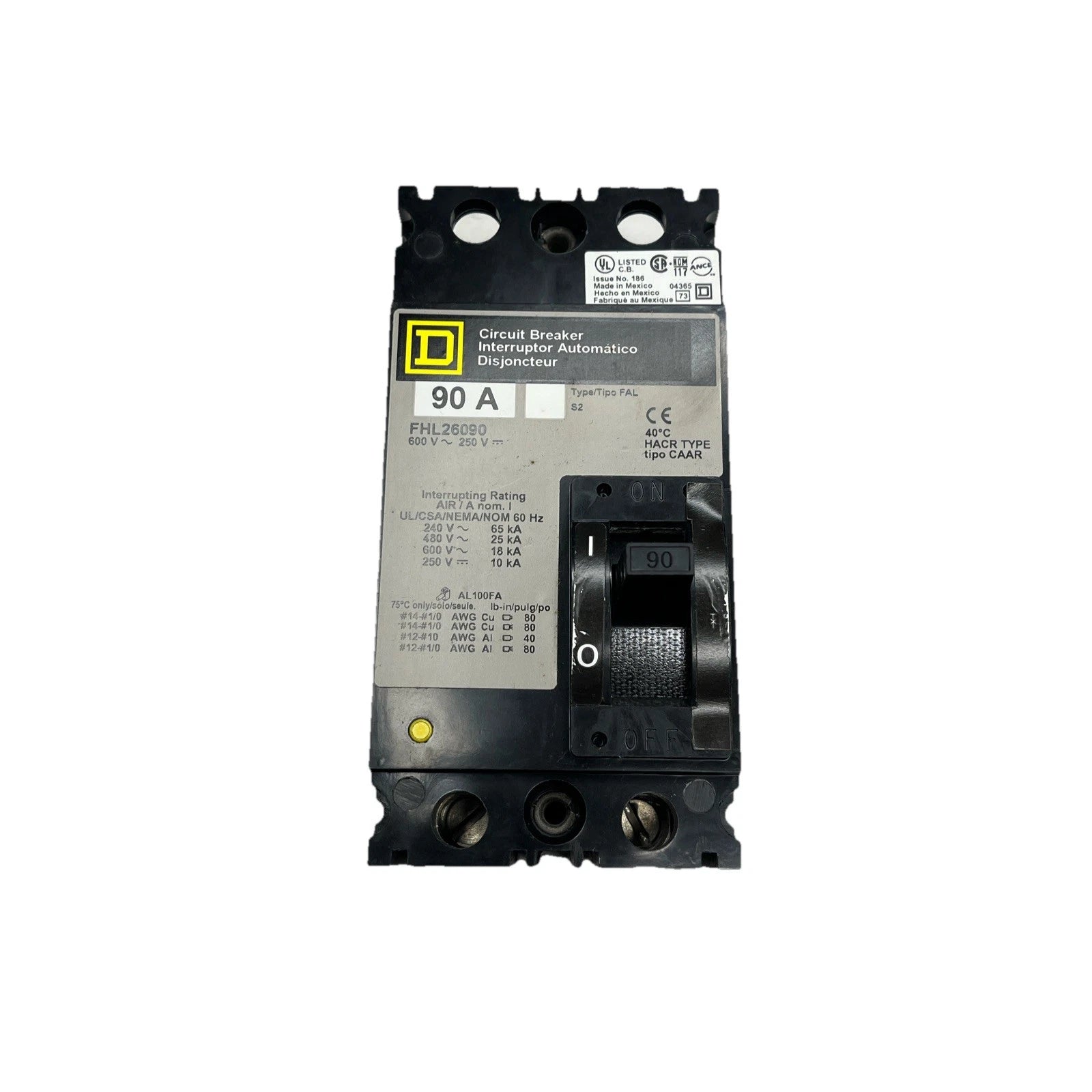

FHL26090 | Square D 2-Pole 90A 600VAC Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $955.00
- Sale price
- $955.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FHL26090
Description
The Square D FHL26090 is a molded case circuit breaker designed for reliable overcurrent protection in electrical distribution systems. This 2-pole breaker provides thermal-magnetic protection with long-time and instantaneous trip functions. It is rated for 600 VAC applications and is suitable for feed-thru installations in single-phase systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | FHL26090 |
| Subcategory | Molded Case Circuit Breaker |
| Series | FHL |
| Breaker Type | Thermal Magnetic |
| Number of Poles | 2 |
| Rated Current | 90 A |
| Rated Voltage | 600 VAC |
| Phase | Single Phase |
| Interrupting Rating | 25 kAIC @ 480 VAC |
| Trip Functions | Long-Time, Instantaneous |
| Connection Type | Feed-Thru |
| Frame Type | F Frame |
| Terminal Type | Line and Load Side Lugs |
| Weight | 3 lbs |
Information About FHL26090
The FHL26090 is a molded case circuit breaker from Square D’s FHL Series, built on an F-frame platform. It is engineered to protect electrical circuits against overloads and short circuits using a thermal-magnetic trip mechanism. The breaker is designed for feed-thru connection and includes line and load side lugs for secure termination. It is commonly used in commercial and industrial power distribution panels where dependable interruption capacity is required.
Key Features:
-
Thermal-Magnetic Protection: Combines overload and short-circuit protection in a single device.
-
2-Pole Configuration: Suitable for single-phase electrical systems.
-
High Voltage Rating: Supports circuit protection up to 600 VAC.
-
Interrupting Capacity: Rated at 25 kAIC at 480 VAC for fault protection.
-
Feed-Thru Connection: Allows power to pass directly through the breaker terminals.
-
Long-Time and Instantaneous Trip: Provides both sustained overload and immediate fault response.
-
F-Frame Design: Ensures compatibility with Square D FHL series panels.
The FHL26090 delivers the reliability and precision required for protecting electrical distribution circuits in commercial and industrial installations.
