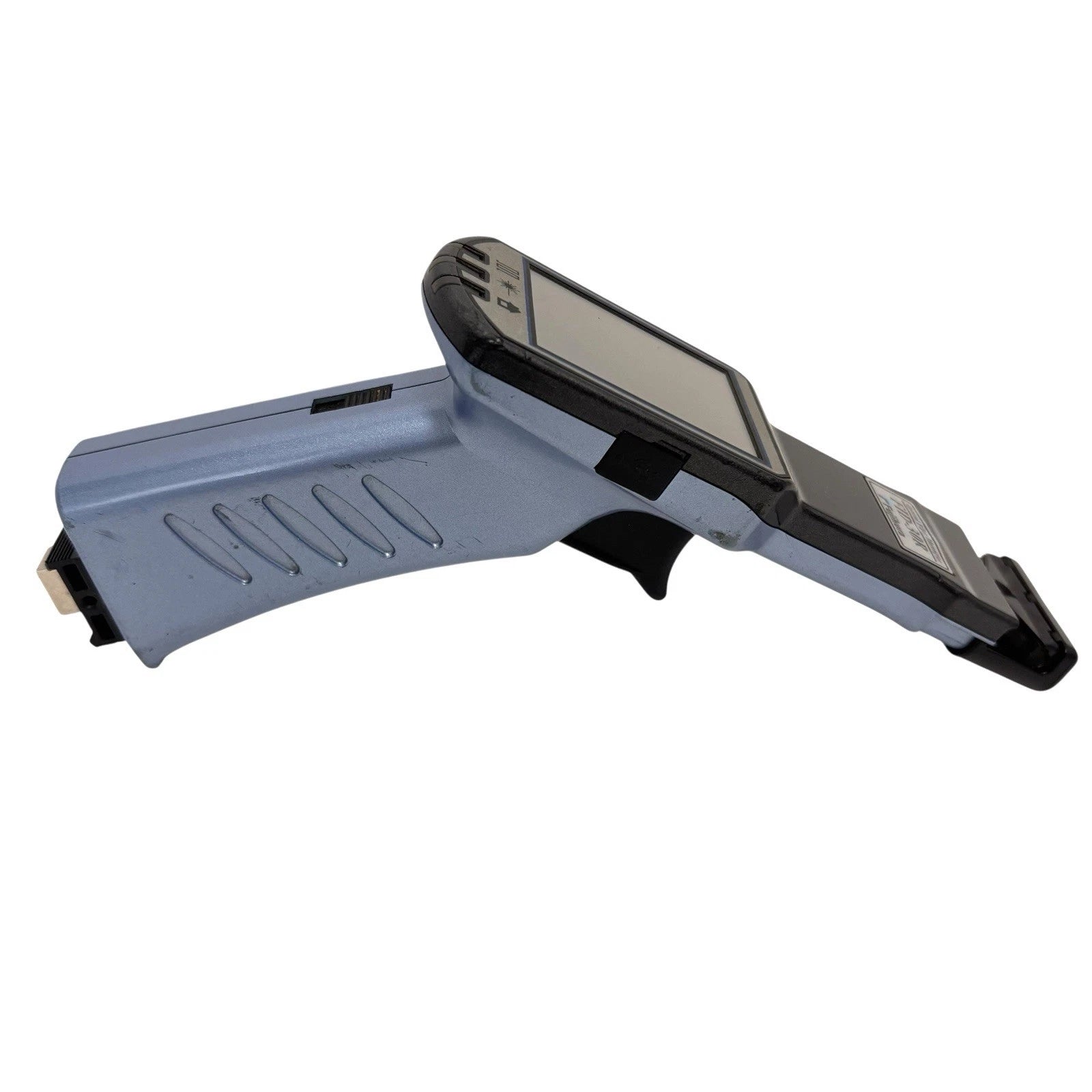

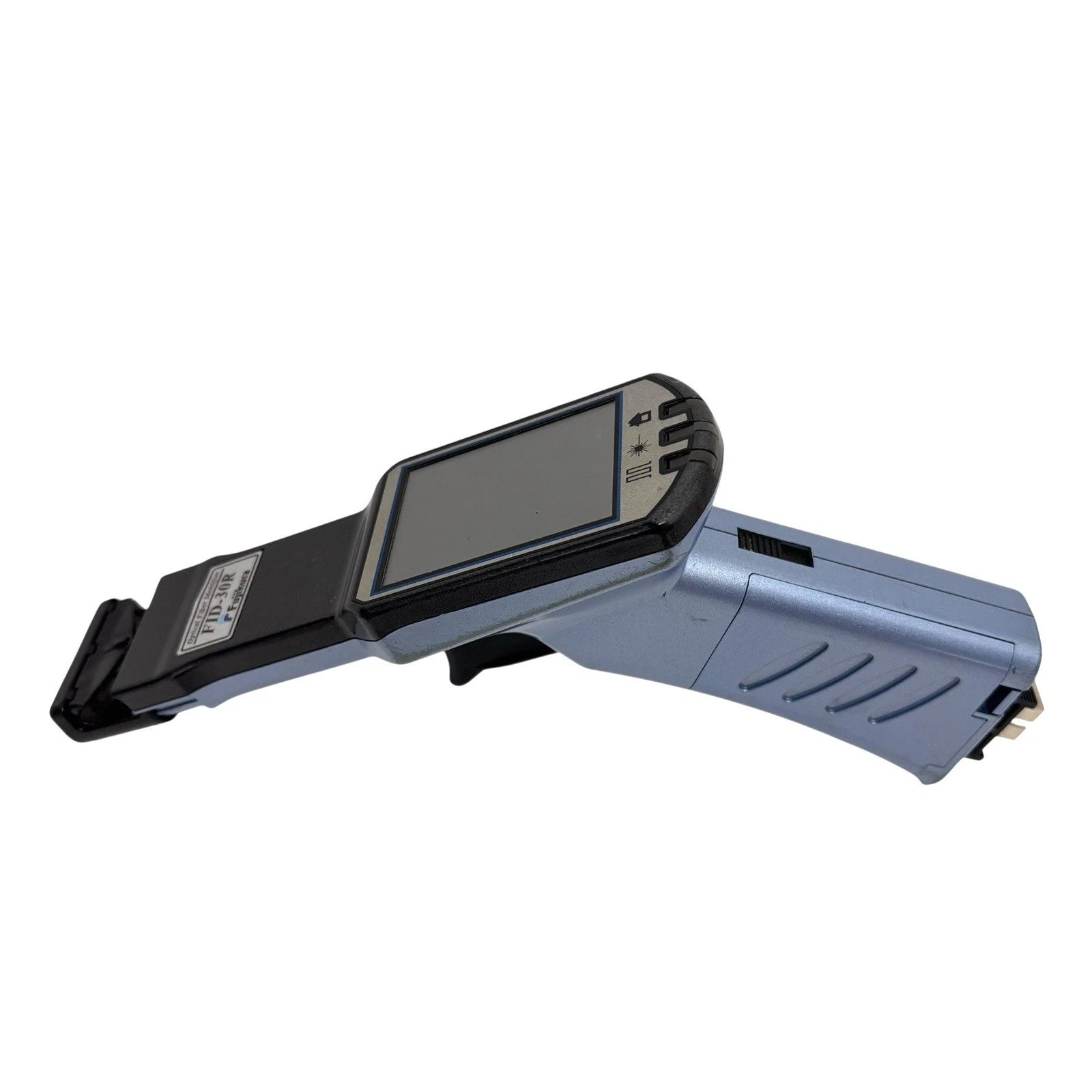

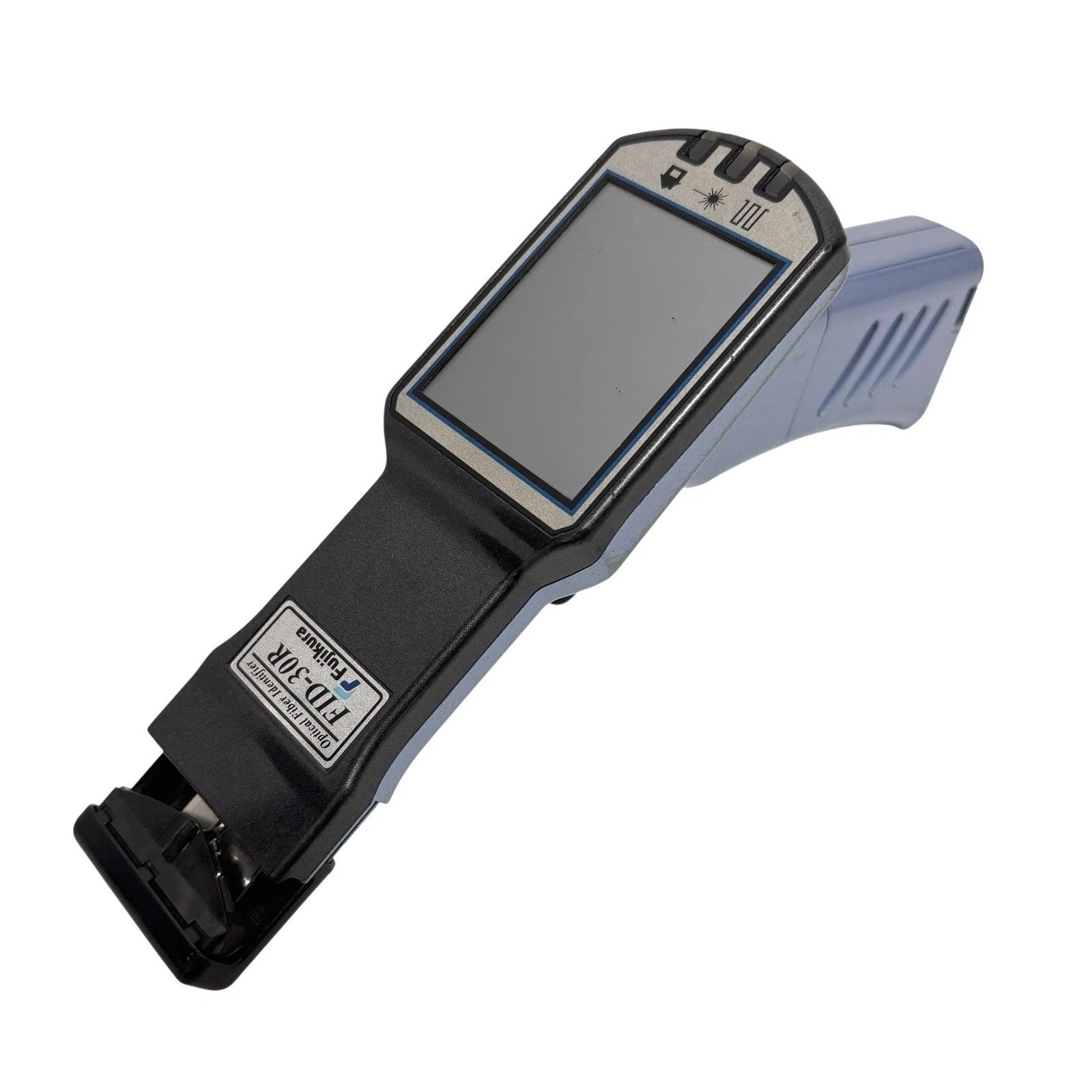

FID-30R | Fujikura Fibre Identifier with Optical Power Meter
- Regular price
- $997.00
- Sale price
- $997.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FID-30R
Description
The Fujikura FID-30R is a handheld fibre identifier with an integrated optical power meter designed for single-mode fibre networks. It enables precise detection of live traffic, tone, and ONU signals, ensuring safe and efficient fibre identification without service interruption.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fujikura |
| Category | Fibre Test Equipment |
| Part Number | FID-30R |
| Subcategory | Fibre Identifier with Power Meter |
| Fibre Type | Single-mode |
| Sheath / Count | 0.25 mm coating, ribbon fibre up to 12-fibre, fibre cords 1.1–3 mm |
| Wavelength Range | 900–1700 nm |
| Detectable Light Signals | CW traffic, modulated tones at 270 Hz, 1 kHz, 2 kHz |
| Power Meter Wavelength Response | 1310 nm, 1490 nm, 1550 nm |
| Power Meter Sensitivity | +10 to -60 dBm (tone), +1 to -40 dBm (CW) |
| Power Meter Accuracy | ±0.3 dB at room temperature |
| Display | 2.4″ color touch screen |
| Detection Modes | Normal, Fast, Fine |
| Operating Conditions | -10°C to 50°C, 0–95% RH |
| Storage Conditions | -20°C to 60°C, 0–95% RH |
| Shock Resistance | Withstands 76 cm drop |
| Power Supply | 2 × AA batteries (approx. 8 hours runtime) |
| Dimensions | 50 mm (W) × 115 mm (H) × 212 mm (D) |
| Weight | 230 g including batteries |
Information About FID-30R
The FID-30R is the successor to the FID-25R, enhanced with a built-in optical power meter for expanded functionality. It supports detection of continuous traffic signals and modulated tones at 270 Hz, 1 kHz, and 2 kHz, while also indicating signal direction for accurate fibre identification. With a lightweight and ergonomic design, the tool ensures reliable use in narrow spaces and includes a color LCD for clear visibility. Designed for field technicians, it offers shock resistance, battery portability, and interchangeable connector heads compatible with SC, FC, ST, and LC connectors.
Key Features:
- High Sensitivity: Accurately detects live traffic and tone signals, including on bend-insensitive fibre.
- Integrated Power Meter: Interchangeable connector head supports SC, FC, ST, and LC types.
- Multiple Detection Functions: Identifies TONE, TRAFFIC, and ONU signals with clear direction indicators.
- Wide Wavelength Range: Detects optical power between 900 nm and 1700 nm.
- Color Touch Screen: 2.4″ backlit display for easy navigation and clear results.
- Ergonomic Design: Slim, lightweight body with trigger clamp for simple fibre handling.
- Adjustable Settings: Includes result retention, buzzer control, and backlight brightness.
- Shock Resistant: Withstands drops up to 76 cm for reliable field use.
- Battery Powered: Operates on two AA batteries with up to 8 hours of use.
- Portable and Compact: Weighs only 230 g, making it convenient for technicians on the go.
The FID-30R delivers the precision, portability, and reliability required for professional fibre optic identification and power measurement.
