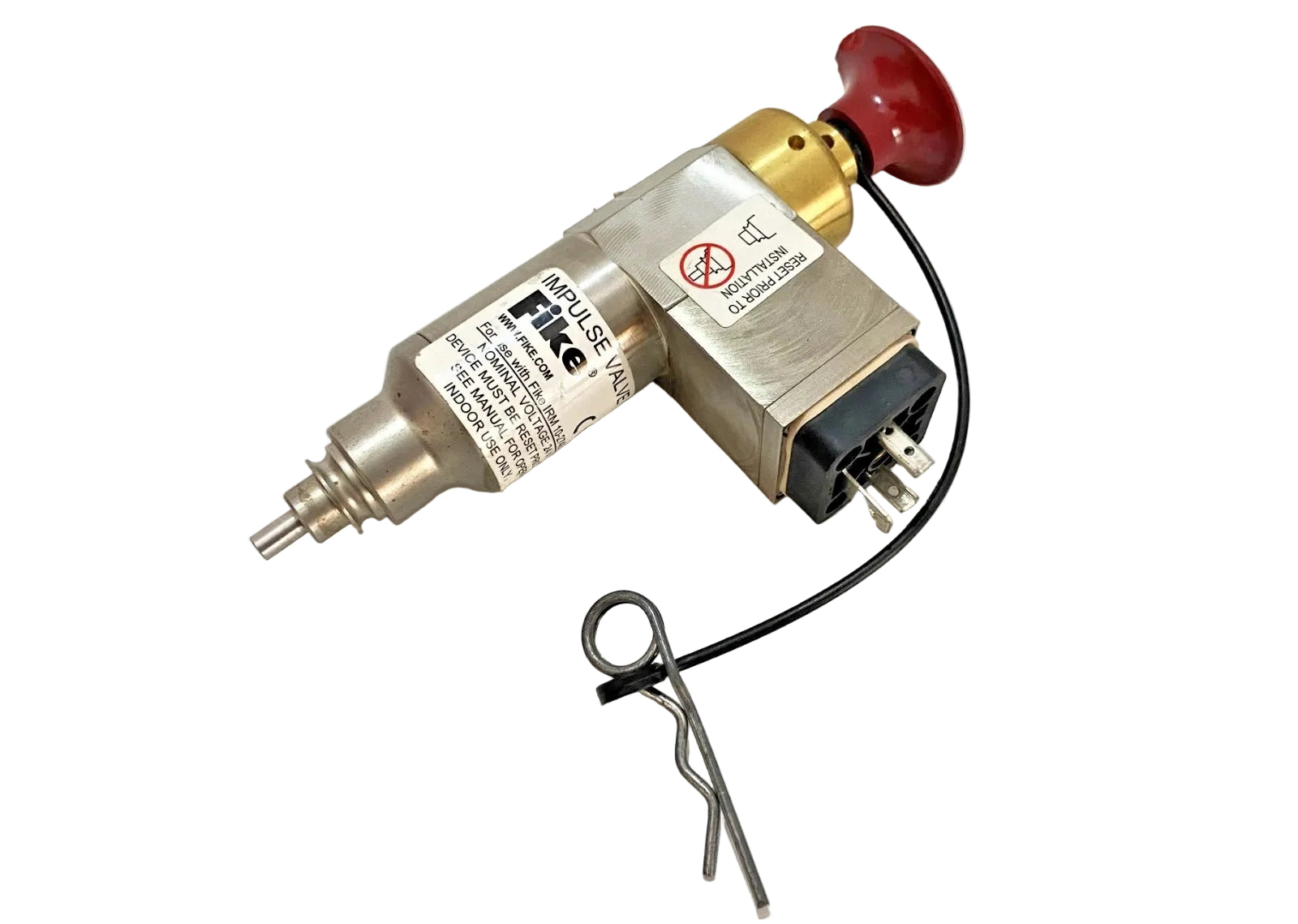

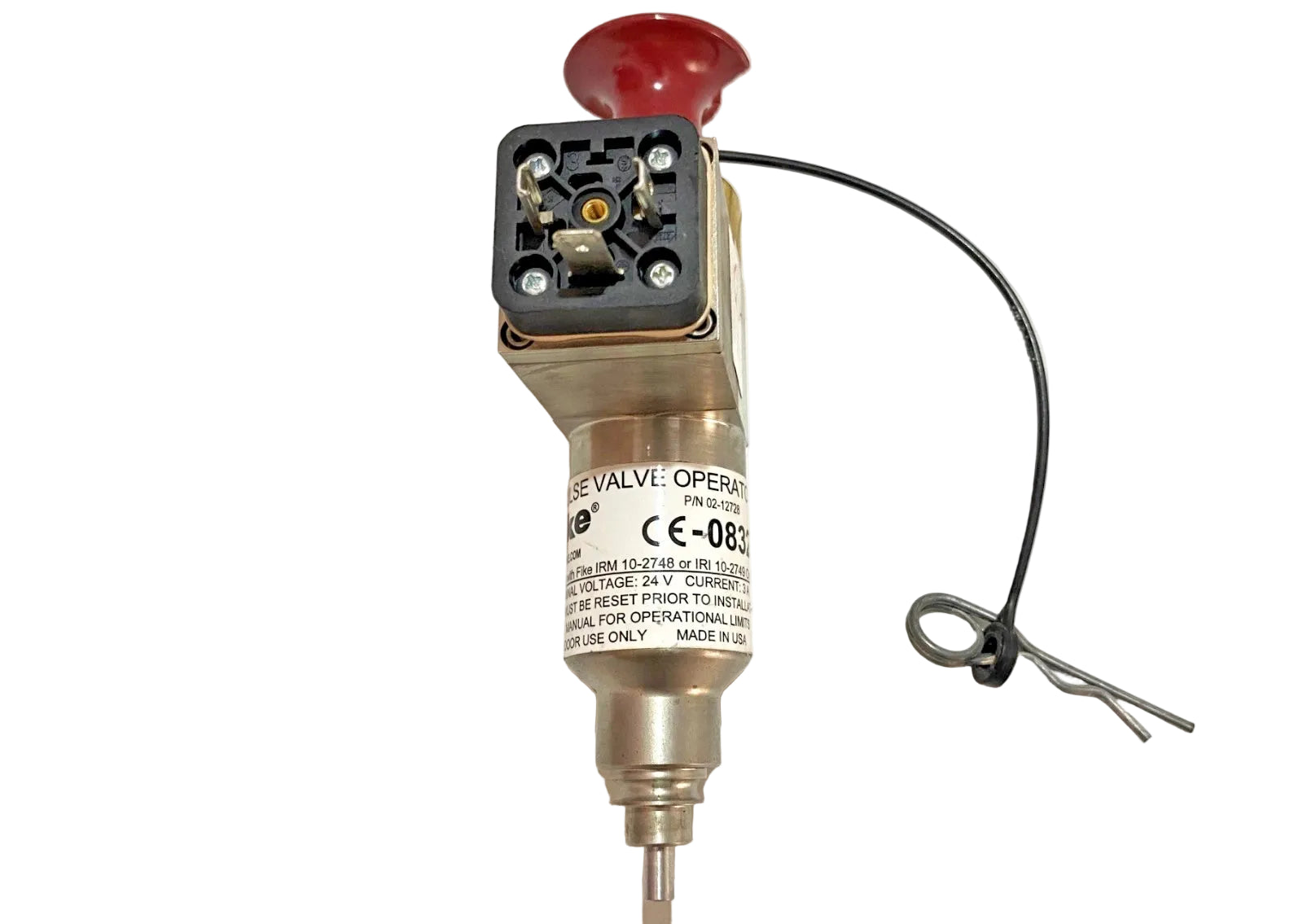

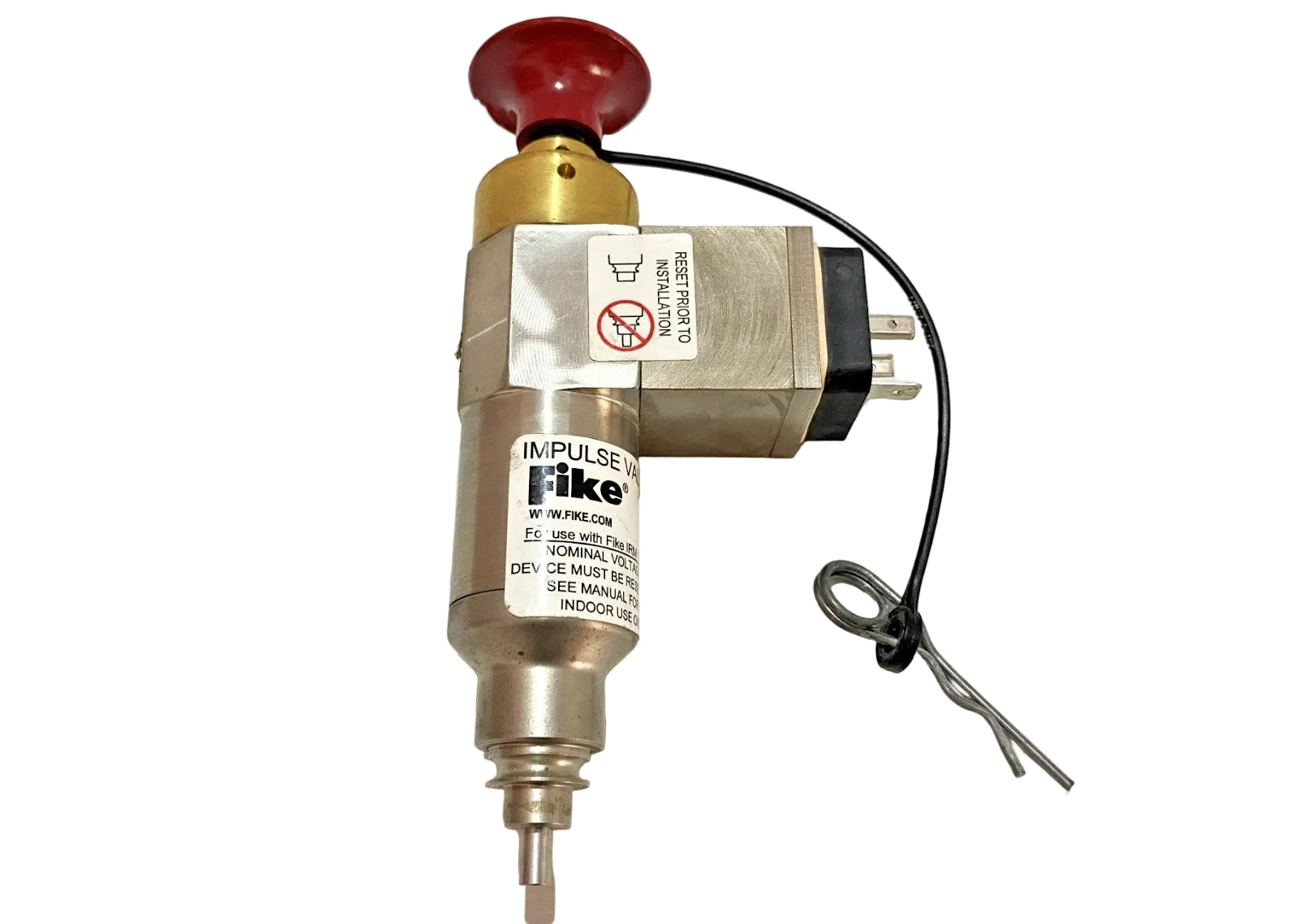

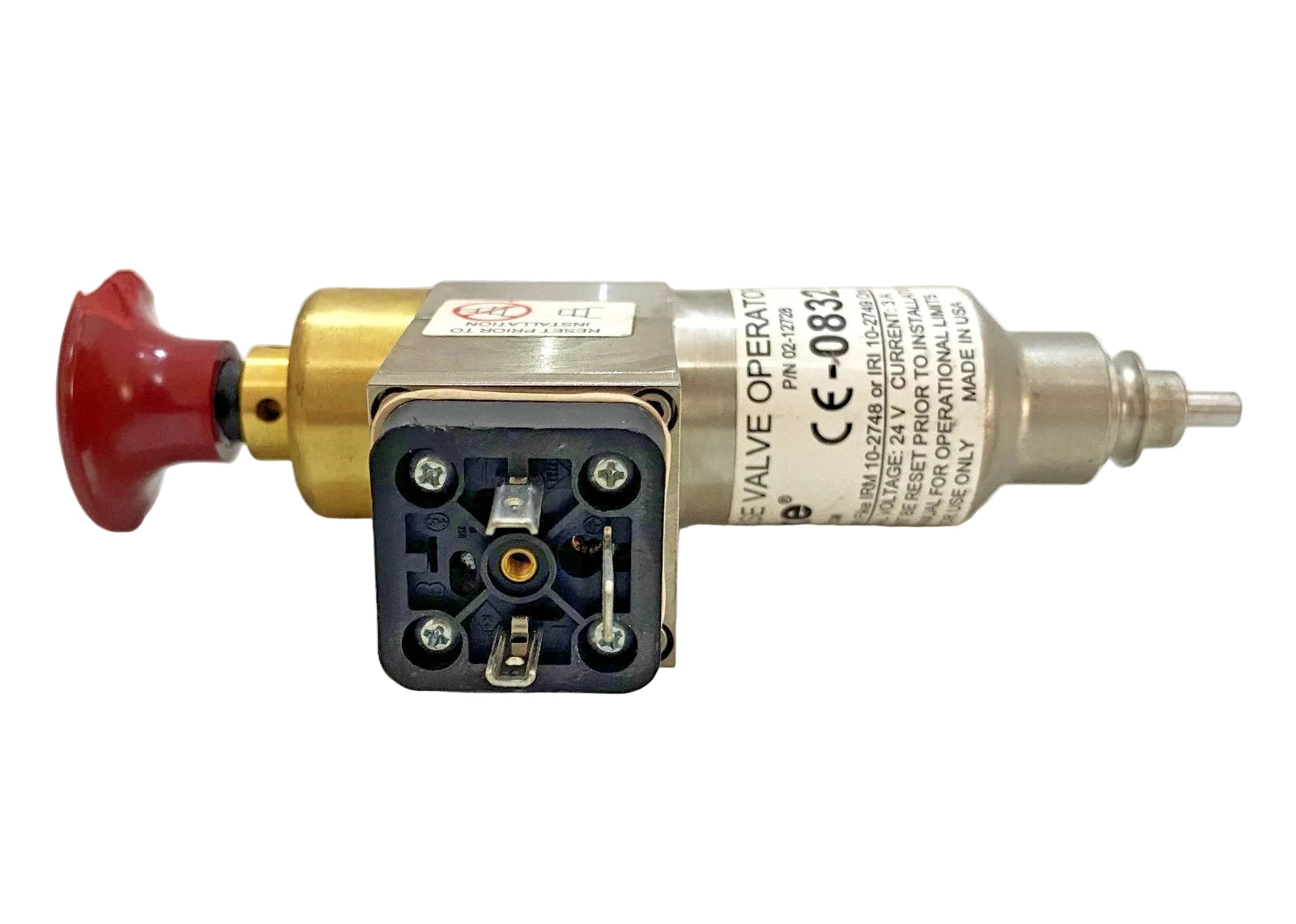

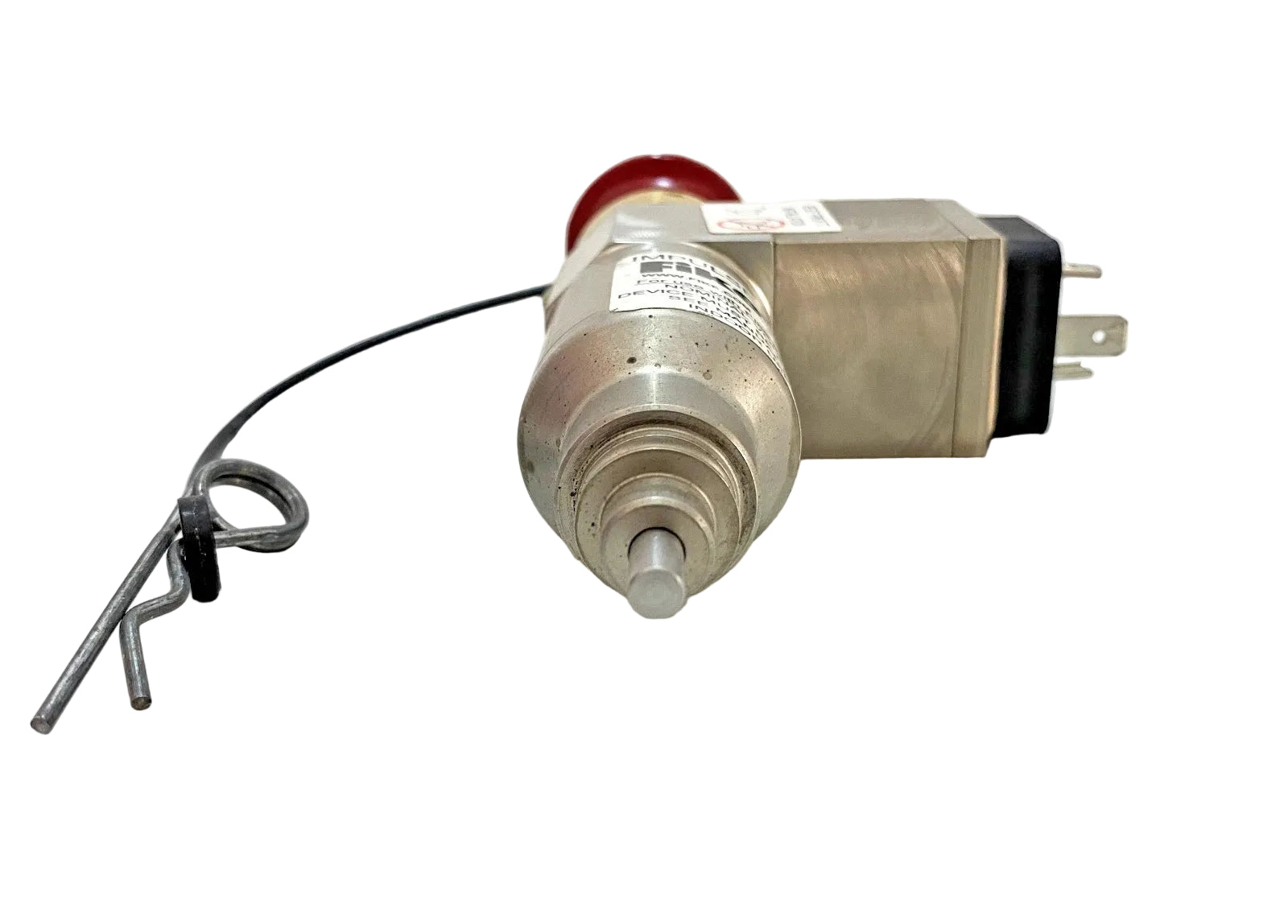

Fike 02-12728 Impulse Valve Operator for Clean Agent Fire Suppression Systems
- Regular price
- $589.00
- Sale price
- $589.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 02-12728
Description
The Fike 02-12728 is an Impulse Valve Operator (IVO) designed to actuate compatible Fike clean agent fire suppression containers using either electrical or manual activation. It provides the mechanical force necessary to open the container's impulse valve, ensuring rapid discharge of the extinguishing agent in special hazard fire protection systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fike |
| Category | Fire Suppression Systems |
| Part Number | 02-12728 |
| Subcategory | Impulse Valve Operators |
| Product Type | Impulse Valve Operator (IVO) |
| Supply Voltage | 24 VDC |
| Current Consumption | 0 A standby; 3 A momentary pulse from IRM capacitors |
| Construction | Stainless steel body, brass end cap, stainless steel piston |
| Electrical Connection | 1/2 in. NPT conduit connection |
| Wire Leads | Two 20 AWG black wires, 36 in. (914 mm) long |
| Operating Temperature | 32°F to 130°F (0°C to 54.4°C) |
| Maximum Humidity | 93% RH |
| Activation Method | Electrical and manual |
| Compatible Module | Fike Impulse Releasing Module (IRM) P/N 10-2748 |
| Approvals | UL, ULC, FM |
| Weight | 2 lb (0.9 kg) |
Information About 02-12728
The 02-12728 is a critical component of Fike impulse valve fire suppression systems used to release clean agent extinguishing media during fire events. Constructed with a stainless steel body, brass end cap, and stainless steel piston, it is engineered for durability and dependable operation in demanding environments. The operator is activated by a 24 VDC electrical signal through a compatible Fike Impulse Releasing Module (IRM) or manually by removing the safety cotter pin and pressing the integrated strike button. Following activation, the device can be reset and returned to service, simplifying maintenance and system restoration.
Key Features:
- Electrical Actuation: Operates from a compatible 24 VDC Fike releasing circuit.
- Manual Activation: Includes a strike button for manual release after removing the safety cotter pin.
- Durable Construction: Features a stainless steel body, brass end cap, and stainless steel piston.
- Resettable Mechanism: Can be reset after operation for continued service.
- IRM Compatibility: Designed for use with the Fike Impulse Releasing Module (P/N 10-2748).
- Supervised Installation: Supports continuous supervision when used with the Impulse Valve Operator Supervisor (IVOS).
- Industrial Wiring: Equipped with a 1/2-inch NPT conduit connection and 20 AWG wire leads.
- Certified Performance: UL, ULC, and FM approved for fire suppression applications.
The 02-12728 delivers the reliability and precision required for dependable activation of clean agent fire suppression containers in critical fire protection systems.
