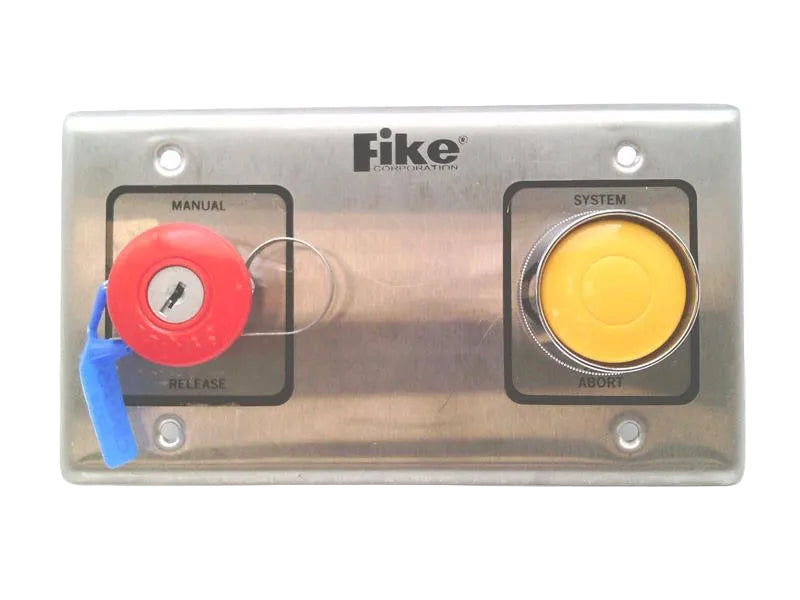

Fike 10-1643 Manual Release and System Abort Switch Assembly
- Regular price
- $407.00
- Sale price
- $407.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 10-1643
Description
The Fike 10-1643 is a Manual Release/System Abort switch assembly designed for fire suppression control applications. It combines a latching manual release switch and momentary abort switch on a common stainless steel faceplate, allowing operators to manually initiate or temporarily interrupt a suppression-system release sequence.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fike |
| Category | Fire Suppression Systems |
| Part Number | 10-1643 |
| Subcategory | Manual Release & Abort Switches |
| Product Type | Manual Release/System Abort Switch Assembly |
| Control Functions | Manual Release and System Abort |
| Manual Release Type | Latching, Dual-Action |
| Manual Release Reset | Keyed Reset |
| Abort Switch Type | Momentary Push Button |
| Mounting | 4-Gang Masonry Box, RACO 693 or Equivalent |
| Minimum Box Depth | 2.5 in (64 mm) |
| Installation Environment | Indoor |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Operating Humidity | Up to 93% RH, Non-Condensing |
| Faceplate Material | Stainless Steel |
| Weight | 0.95 lb (0.43 kg) |
Information About 10-1643
The 10-1643 is a Fike fire suppression control accessory that combines manual release and system abort functions in a single assembly. Its manual release section uses a latching dual-action switch with keyed reset, while the abort section uses a momentary push-button arrangement for temporary release-circuit interruption. The assembly is designed for indoor installation using a four-gang masonry box such as the RACO 693 or equivalent with a minimum depth of 2.5 inches. Its operation interfaces with compatible Fike suppression control panels, with specific abort behavior determined by the programming of the associated control unit.
Key Features:
- Combined Control Assembly: Integrates manual release and system abort controls at a single operator location.
- Manual Release Function: Provides a latching dual-action control for manually initiating suppression-system release.
- Keyed Reset: Manual release control requires a key to return the switch to its normal position after activation.
- Momentary Abort Control: Provides a push-button function for temporarily interrupting the suppression release circuit according to panel programming.
- Stainless Steel Faceplate: Switch components are installed on a durable common faceplate for fixed indoor mounting.
- Four-Gang Installation: Designed for installation with a RACO 693 four-gang masonry box or equivalent.
- Environmental Rating: Specified for operation from 32°F to 120°F (0°C to 49°C) at up to 93% non-condensing relative humidity.
- Suppression System Application: Designed as an accessory for compatible Fike fire suppression control panels.
The 10-1643 delivers the reliability and precision required for manual suppression release and system abort control applications.
