Fike 10-1832 ARM III Agent Release Module for Clean Agent Systems
- Regular price
- $345.00
- Sale price
- $345.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 10-1832
Description

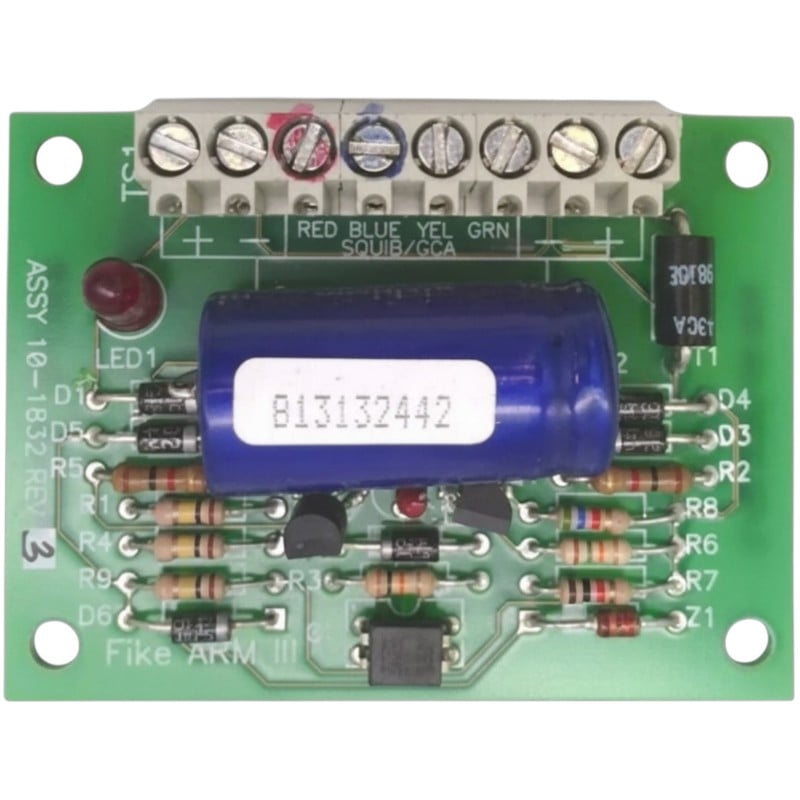

The Fike 10-1832 is an Agent Release Module (ARM III) designed for clean agent fire suppression systems. It serves as the interface between a compatible Fike releasing control panel and the gas cartridge actuator, allowing multiple actuators to be connected in parallel for improved system reliability and supervised release circuit operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fike |
| Category | Fire Suppression Systems |
| Part Number | 10-1832 |
| Subcategory | Agent Release Modules |
| Product Type | Agent Release Module (ARM III) |
| Compatible Systems | SHP Pro®, Cheetah® Xi, Cheetah® Xi 50 |
| Compatible Actuator | Fike 70-1651 Gas Cartridge Actuator (GCA) |
| Wiring Configuration | Class A or Class B |
| Supervisory Current | 21 mA (charging), 2 mA (charged) @ 24 VDC |
| Activated Current | 8 mA LED active |
| Operating Temperature | 32 to 120°F (0 to 49°C) |
| Maximum Humidity | 93% RH, non-condensing |
| Mounting | 4 in. square × 2.125 in. deep electrical box |
| Approvals | UL Listed, FM Approved |
| Weight | 0.2 lbs |
Information About 10-1832
The 10-1832 is used with Fike clean agent suppression systems, including SHP Pro®, Cheetah® Xi, and Cheetah® Xi 50 releasing panels. It stores the electrical energy required to actuate the gas cartridge actuator (GCA) while continuously supervising the releasing circuit for open and ground faults. The module supports both Class A and Class B wiring configurations and is mounted in a standard 4-inch square electrical junction box adjacent to the suppression container. Parallel wiring through the ARM III ensures that a fault in one actuator does not disable the entire releasing system.
Key Features:
- Parallel Actuator Wiring: Allows multiple gas cartridge actuators to be connected in parallel.
- Supervised Release Circuit: Monitors wiring for open and ground fault conditions.
- Energy Storage Circuit: Stores the energy required to activate the gas cartridge actuator.
- Class A & Class B Compatible: Supports both supervised wiring configurations.
- Polarity Indicator: Integrated LED indicates reversed field wiring polarity.
- Solid-State Design: Provides dependable long-term operation with minimal maintenance.
- Compatible with Fike Panels: Designed for SHP Pro®, Cheetah® Xi, and Cheetah® Xi 50 releasing systems.
- Certified Performance: UL Listed and FM Approved for clean agent fire suppression applications.
The 10-1832 delivers the reliability and precision required for supervised clean agent release circuits in critical fire suppression systems.
