Fike 10-2321 Remote Display Unit Old Version RDU
- Regular price
- $992.00
- Sale price
- $992.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 10-2321
Description

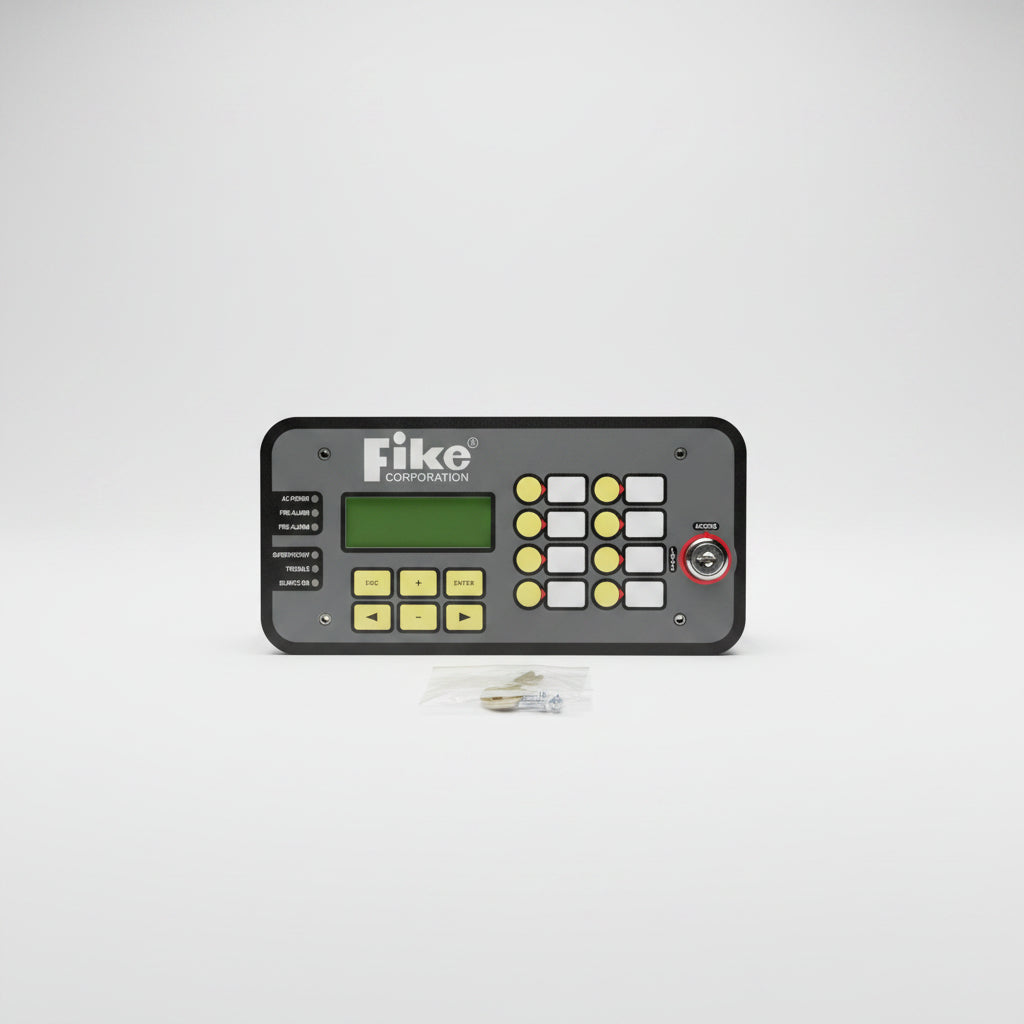

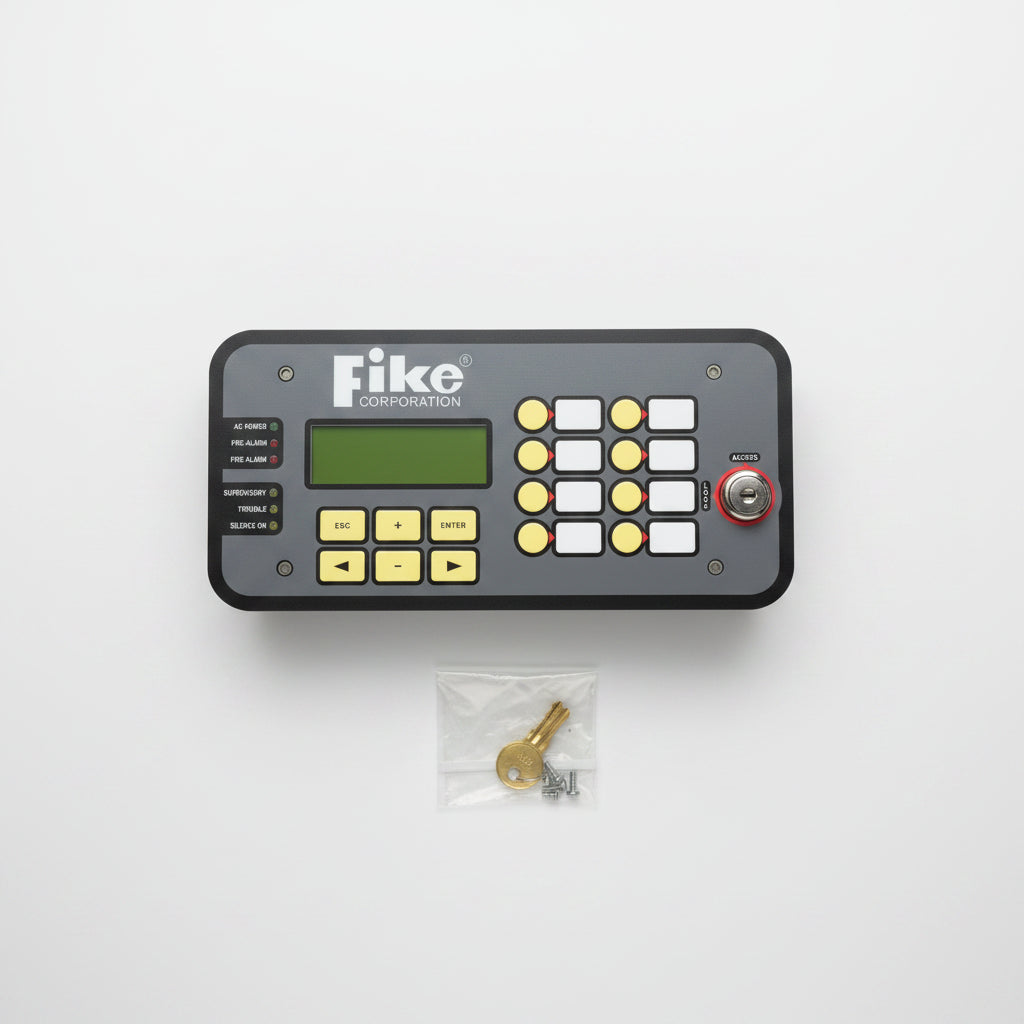

The Fike 10-2321 is an older-version Remote Display Unit (RDU) designed to provide remote annunciation and system status indication for compatible Fike intelligent fire alarm control panels. It duplicates key panel information on a backlit LCD display, allowing operators to monitor system conditions from a convenient remote location. The backbox is not included.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fike |
| Category | Fire Alarm Systems |
| Part Number | 10-2321 |
| Subcategory | Remote Annunciators |
| Product Type | Remote Display Unit (Old Version RDU) |
| Display | Backlit LCD |
| Communication Interface | RS-485 serial bus |
| Operating Voltage | 24 VDC regulated (15–30 VDC) |
| Standby Current | 36 mA |
| Maximum Current | 139 mA (backlight, LEDs, and piezo active) |
| Operating Temperature | 32 to 120°F (0 to 49°C) |
| Relative Humidity | Up to 93% RH, non-condensing |
| Compatible Systems | Fike CyberCat and Cheetah intelligent fire alarm control panels |
| Mounting | Surface or flush mount (backbox not included) |
| Weight | 0.01 kg |
Information About 10-2321
The 10-2321 is a remote display module developed for legacy Fike intelligent fire alarm systems, including compatible CyberCat and Cheetah control panels. It communicates with the host panel through a supervised RS-485 serial communication bus, providing real-time display of alarm, supervisory, and trouble events. The remote display features an illuminated LCD, integrated status LEDs, and operator navigation controls for reviewing active system events. Designed for indoor commercial installations, the unit offers reliable remote monitoring without requiring installation at the main fire alarm control panel.
Key Features:
- Remote System Annunciation: Displays real-time fire alarm system status at a remote location.
- Legacy RDU Design: Older-version Remote Display Unit for compatible Fike systems.
- Backlit LCD Display: Provides clear viewing of alarms, supervisory, and trouble events.
- RS-485 Communication: Connects to the host control panel through a supervised two-wire RS-485 bus.
- Status LED Indicators: Includes LEDs for Power, Alarm, Trouble, Supervisory, and Silenced conditions.
- Event Navigation: Allows operators to review current system events using onboard controls.
- Compatible Fire Panels: Designed for selected Fike CyberCat and Cheetah intelligent control panels.
- Backbox Not Included: Supplied without a mounting backbox.
The 10-2321 delivers the reliability and precision required for remote monitoring and annunciation in compatible Fike fire alarm systems.
