Fike 10-2542 Cheetah Xi 1016 System Controller
- Regular price
- $3,612.00
- Sale price
- $3,612.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 10-2542
Description

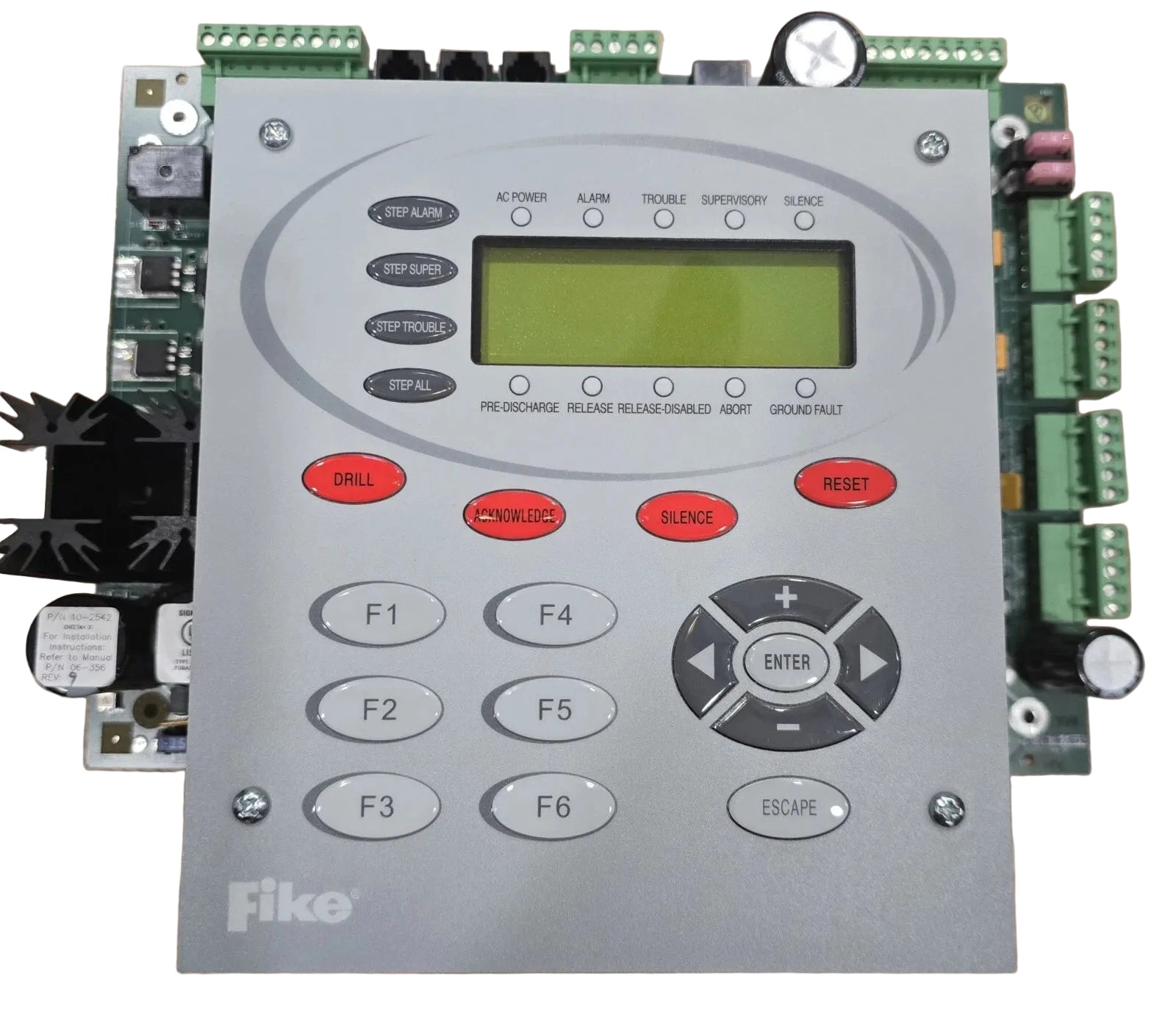

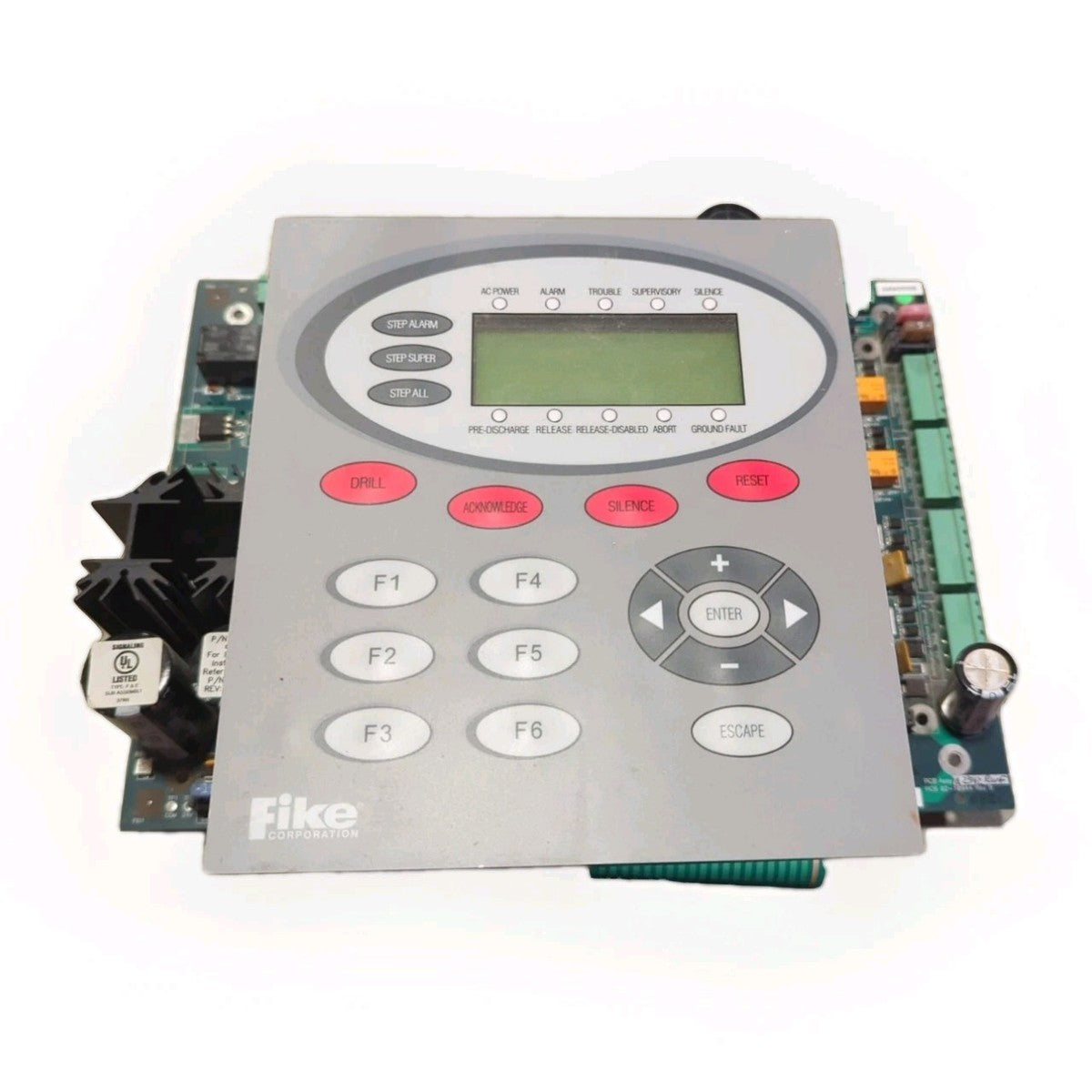

The Fike 10-2542 is the Cheetah Xi 1016 System Controller, serving as the primary control board for the Cheetah Xi intelligent fire suppression control panel. It integrates the system power supply, microprocessor, display, keypad, and communication interfaces to provide centralized monitoring, releasing control, and intelligent device management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fike |
| Category | Fire Suppression Systems |
| Part Number | 10-2542 |
| Subcategory | Fire Suppression System Controllers |
| Product Type | Cheetah Xi 1016 System Controller |
| Compatible System | Fike Cheetah Xi 1016 |
| Included With | Fike 10-068-C-P System Package |
| Power Supply | 6 A usable alarm power, expandable to 12 A |
| Input Power | 120 VAC or 240 VAC transformer |
| Auxiliary Outputs | Two 24 VDC, 2 A continuous outputs; one 24 VDC, 2 A resettable output |
| SLC Loops | 2 standard, expandable to 4 |
| Maximum Devices | Up to 1,016 intelligent addressable devices |
| Communication Protocol | Peer-to-peer digital protocol |
| Display | Integrated LCD display with keypad |
| Battery Support | Up to 75 Ah, expandable to 150 Ah with SPS |
| Application | Intelligent fire suppression control systems |
| Weight | 4 lb (1.8 kg) |
Information About 10-2542
The 10-2542 is included as the standard controller in the Fike 10-068-C-P Cheetah Xi system package and forms the core of the Cheetah Xi 1016 intelligent suppression control system. It incorporates a 6 A primary power supply with battery charger, system processors, hardware interface terminals, LCD display, and user keypad on a single printed circuit board. The controller supervises intelligent addressable field devices through two signaling line circuits (SLCs), expandable to four loops supporting up to 1,016 devices. Designed for clean agent, CO₂, water mist, and other special hazard suppression systems, it provides dependable communication, event processing, releasing control, and system history storage.
Key Features:
- Integrated System Controller: Combines processor, display, keypad, and power supply on one controller board.
- Cheetah Xi 1016 Compatibility: Designed specifically for the Fike Cheetah Xi intelligent suppression platform.
- 6-Amp Power Supply: Provides 6 A of alarm power, expandable to 12 A with supplemental power supplies.
- Expandable SLC Capacity: Supports two SLC loops standard and up to four loops with an optional Supplemental Loop Module.
- Up to 1,016 Devices: Supervises a maximum of 1,016 intelligent addressable devices.
- Built-In User Interface: Integrated LCD display and navigation keypad simplify programming and diagnostics.
- Intelligent Communication: Uses peer-to-peer digital communication for fast and reliable device supervision.
- System History Archive: Stores events and system activity for maintenance and troubleshooting.
The 10-2542 delivers the reliability and precision required for intelligent fire suppression control in commercial and industrial special hazard applications.
