Fike 10-2627 Rev C Ethernet Communication Module Without Enclosure
- Regular price
- $767.00
- Sale price
- $767.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 10-2627
Description
The Fike 10-2627 is an Ethernet communication module designed to provide network connectivity for compatible Fike fire alarm control panels without requiring a dedicated enclosure. The module enables secure Ethernet communication between fire alarm systems, allowing remote event transmission, system monitoring, and network integration for proprietary supervising station applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fike |
| Category | Fire Alarm Systems |
| Part Number | 10-2627 |
| Subcategory | Ethernet Communication Modules |
| Product Type | Ethernet communication module (without enclosure) |
| Revision | Rev C signaling board |
| Power Input | 15–30 VDC |
| Current Consumption | 97 mA standby, 134 mA alarm |
| Ethernet Interface | RJ45, 10Base-T LAN |
| Panel Communication | RS485 peripheral bus |
| Maximum RS485 Distance | 4,000 ft (1,219 m) |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Mounting | Inside compatible FACU or optional remote enclosure |
| Compatible Panels | Fike Cheetah Xi, CyberCat 254, CyberCat 1016 |
| Status Indicator | Panel communication LED |
| Weight | 0.8 lb (0.36 kg) |
Information About 10-2627

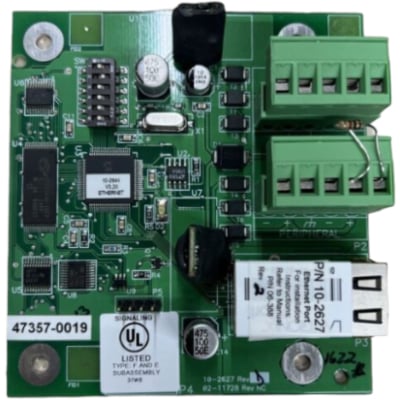

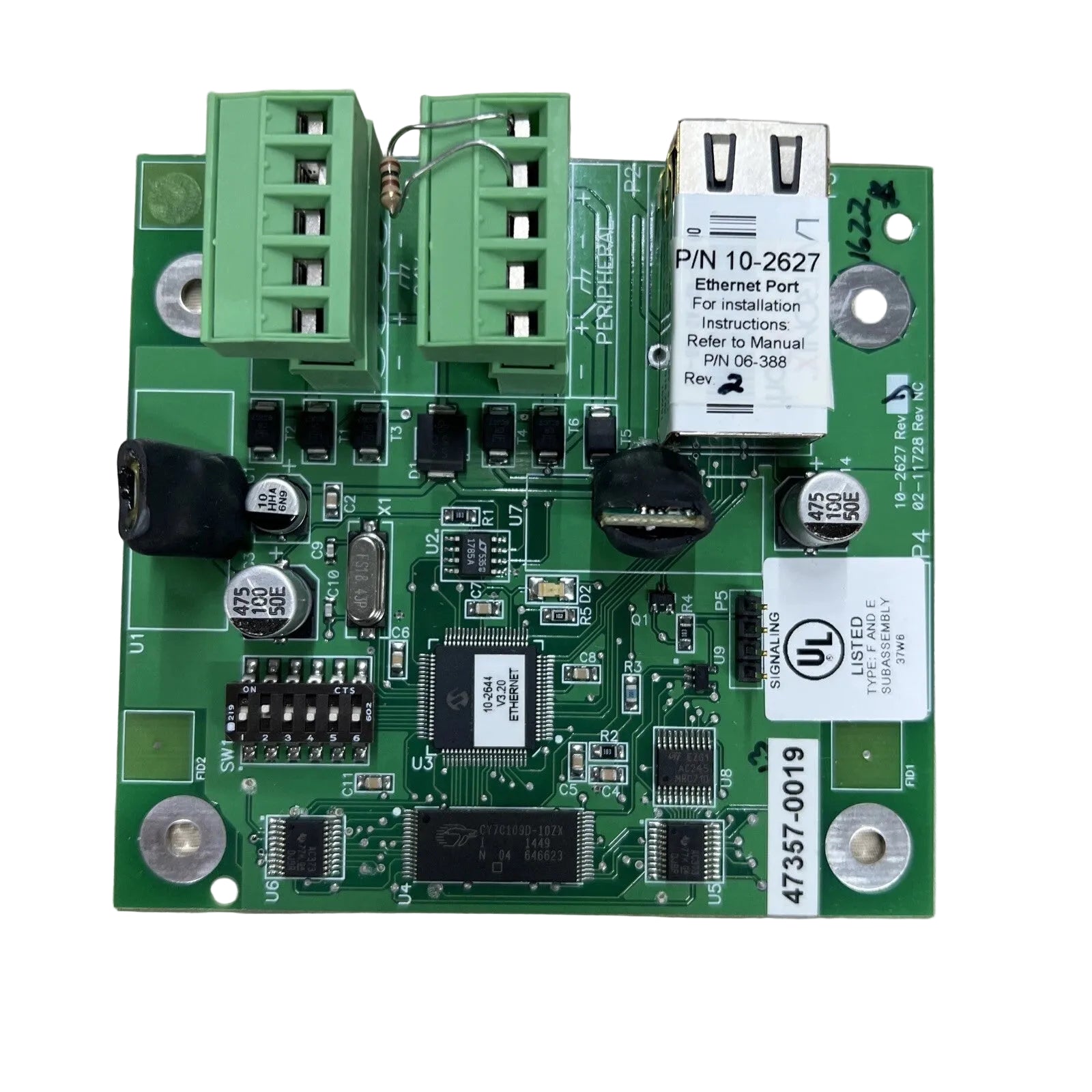

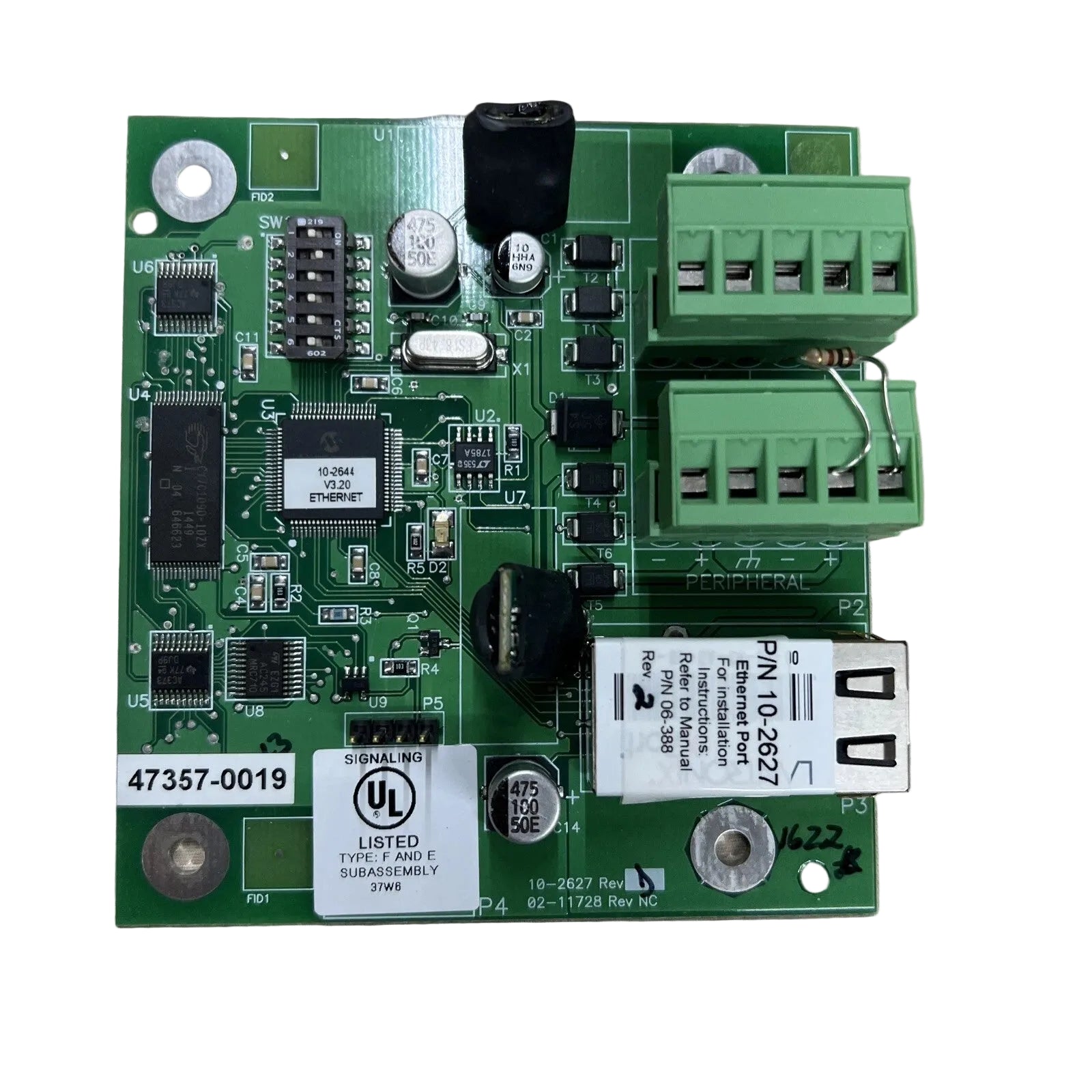

The 10-2627 is a Rev C signaling board that interfaces compatible Fike CyberCat and Cheetah Xi fire alarm control panels with a standard Ethernet LAN or WAN network. It communicates with the host panel through an RS485 peripheral bus while providing a 10Base-T Ethernet connection via an RJ45 port. The module supports remote monitoring by transmitting system history and event information between geographically separated fire alarm control panels. Designed as the circuit board version of the Ethernet assembly, it is supplied without an enclosure for installation inside a compatible panel or mounting assembly.
Key Features:
- Ethernet Network Interface: Provides 10Base-T Ethernet connectivity through an RJ45 port.
- Remote Panel Communication: Supports transmission of fire alarm events between remote compatible panels.
- RS485 Host Interface: Connects to the fire alarm control panel through the RS485 peripheral bus.
- Enclosure-Free Design: Supplied as a standalone circuit board for compatible mounting assemblies.
- Long Communication Distance: Supports RS485 connections up to 4,000 ft (1,219 m) from the host panel.
- LED Status Indicator: Displays module communication status with the connected control panel.
- Flexible Power Input: Operates from the host panel or a regulated 15–30 VDC fire alarm power supply.
- Compatible Fire Panels: Designed for Fike CyberCat 254/1016 and Cheetah Xi control panels.
The 10-2627 delivers the reliability and precision required for Ethernet communication and remote event reporting in networked fire alarm systems.
