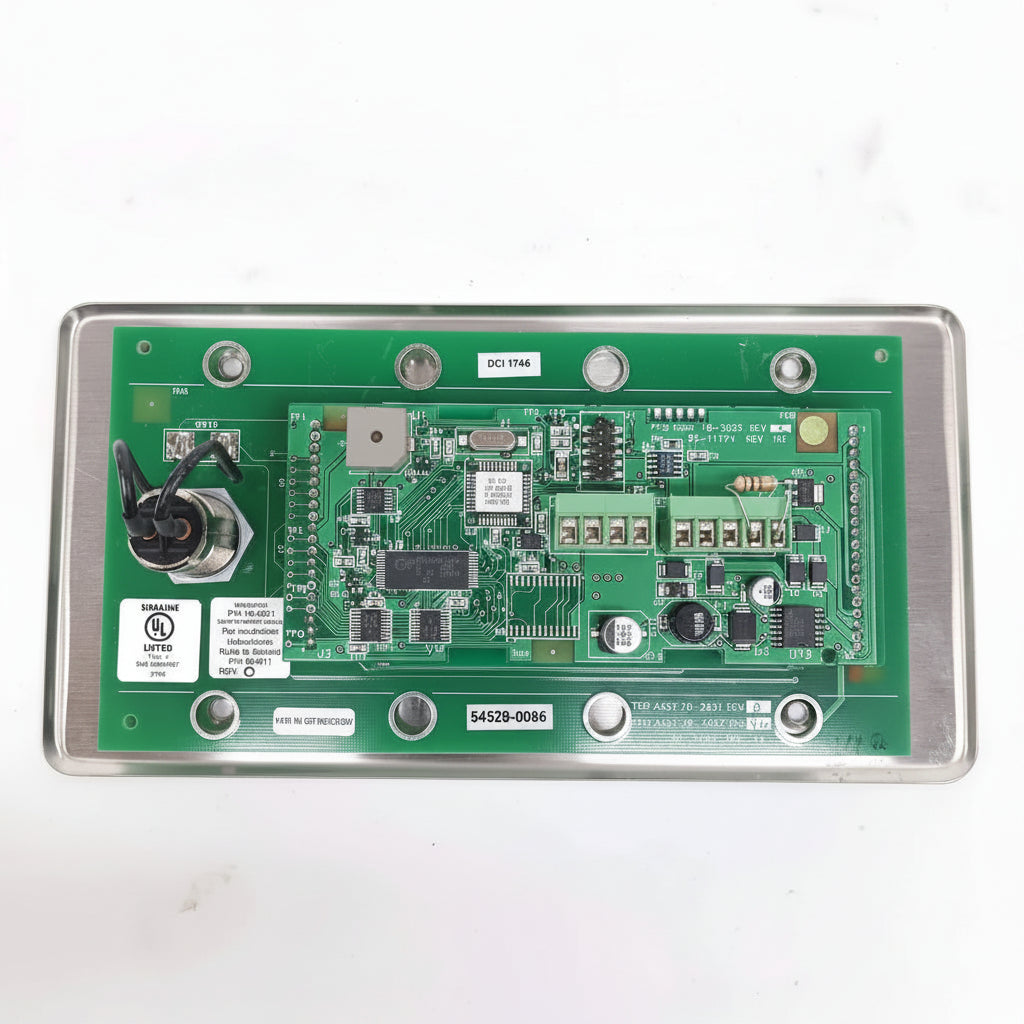

Fike 10-2631 10-Button Remote Display Unit for Intelligent Fire Alarm Panels
- Regular price
- $707.00
- Sale price
- $707.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 10-2631
Description
The Fike 10-2631 is a 10-button remote display unit designed to provide remote annunciation and system control for compatible Fike intelligent fire alarm control panels. Featuring a backlit 80-character LCD, status LEDs, and operator control buttons, the Fike 10-2631 enables users to monitor system conditions and perform authorized control functions from a remote location.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fike |
| Category | Fire Alarm Systems |
| Part Number | 10-2631 |
| Subcategory | Remote Display Units |
| Product Type | 10-button remote display (RDU-10) |
| Display | 4 × 20 character (80-character) backlit LCD |
| Communication Interface | Two-wire RS485 serial interface |
| Operating Voltage | 24 VDC regulated (15–30 VDC) |
| Current Consumption | 36 mA standby; 139 mA maximum |
| Status Indicators | 5 LEDs (Power, Alarm, Trouble, Supervisory, Silenced) |
| Control Functions | Enter, Escape, Reset, Acknowledge, Silence, Drill, navigation keys |
| Maximum Devices | Up to 31 remote displays per RS485 circuit |
| Maximum Cable Distance | 4,000 ft (1,219 m) |
| Compatible Cable | Belden 9841 or equivalent twisted shielded cable |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Operating Humidity | 93% RH, non-condensing |
| Compatible Firmware | Version 3.0 or higher |
| Weight | 0.5 lb (0.23 kg) |
Information About 10-2631

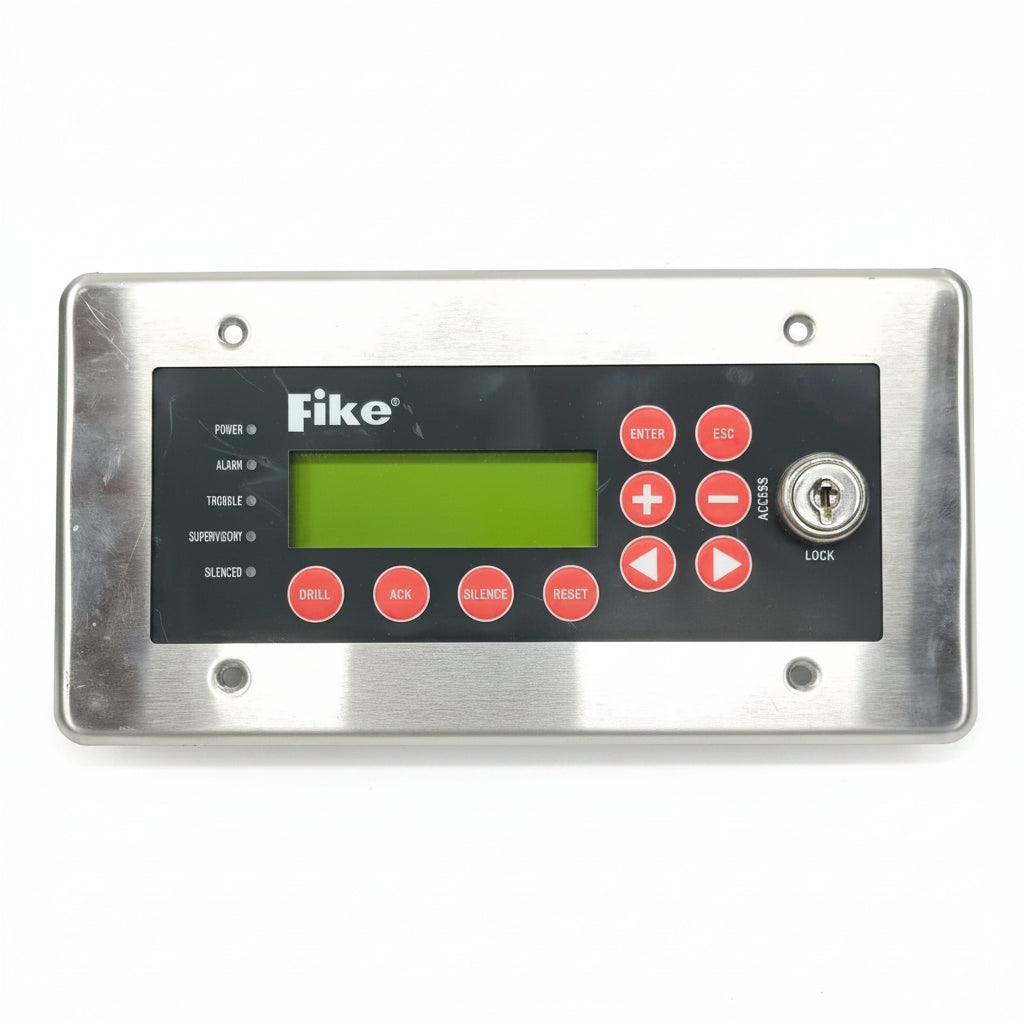

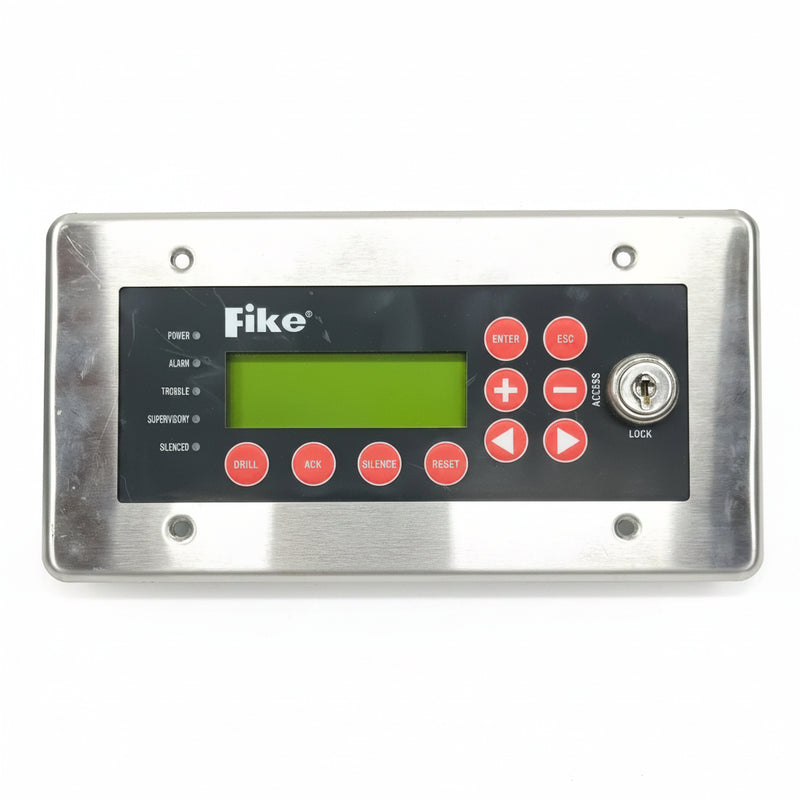

The 10-2631, also known as the RDU-10, is a remote annunciator compatible with Fike CyberCat and Cheetah Xi intelligent fire alarm control panels operating with Version 3.0 or higher firmware. It communicates with the host panel through a two-wire RS485 serial interface and mirrors the panel's system status, alarms, troubles, and supervisory events on a 4-line by 20-character backlit LCD display. The unit incorporates five dedicated status LEDs, ten navigation and control buttons, and a key-operated security switch that restricts unauthorized operation of critical system functions. It supports up to 31 remote display units on a single RS485 circuit, making it suitable for large distributed fire alarm installations.
Key Features:
- 80-Character LCD Display: Four-line backlit display duplicates host panel status information.
- Ten Control Buttons: Includes Enter, Escape, navigation, Reset, Acknowledge, Silence, and Drill functions.
- Five Status LEDs: Provides visual indication of Power, Alarm, Trouble, Supervisory, and Silenced conditions.
- RS485 Communication: Connects to compatible fire alarm panels using a supervised two-wire RS485 interface.
- Event History Buffer: Stores up to 800 system events for operator review.
- Key-Switch Security: Restricts access to critical control functions for authorized personnel.
- Multiple Device Support: Allows up to 31 remote displays on a single RS485 communication circuit.
- Firmware Compatibility: Requires Version 3.0 or higher firmware on compatible Fike control panels.
The 10-2631 delivers the reliability and precision required for remote monitoring and operator control of intelligent fire alarm systems.
