Fike 10-2646 14-Button Remote Fire Alarm Display Unit
- Regular price
- $1,435.00
- Sale price
- $1,435.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 10-2646
Description

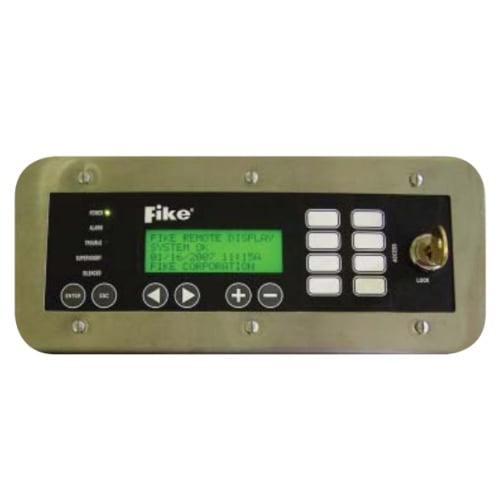

The Fike 10-2646 is a 14-button Remote Display Unit designed to provide remote annunciation and control for compatible Fike intelligent fire alarm and suppression control panels. It features an 80-character backlit LCD, status LEDs, navigation controls, and programmable switches while communicating with the host panel over a two-wire RS485 interface.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fike |
| Category | Fire Alarm Systems |
| Part Number | 10-2646 |
| Subcategory | Remote Annunciator Displays |
| Product Type | 14-Button Remote Display Unit |
| Display | 80-Character Backlit LCD, 4 × 20 |
| Navigation Controls | 6 |
| Programmable Switches | 8 |
| Status LEDs | 5 |
| Operating Voltage | 24 VDC Regulated (15–30 VDC) |
| Standby Current | 36 mA |
| Maximum Current | 139 mA |
| Communication Interface | 2-Wire RS485 |
| RS485 Capacity | Up to 31 Devices |
| Maximum Bus Distance | 4,000 ft (1,219 m) |
| Compatible Firmware | Version 3.0+ |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Operating Humidity | Up to 93% RH |
| Dimensions | Approx. 9.5 × 4 × 2.25 in |
| Weight | 0.5 lb |
Information About 10-2646
The 10-2646 is a Fike 14-button Remote Display Unit designed for systems operating with compatible firmware Version 3.0 or higher. Its 4 × 20-character LCD reproduces system status information from the host control panel and can display alarm, trouble, supervisory, and other system events at a remote location. The interface includes six navigation controls, eight programmable switches, five system-status LEDs, an internal piezo, and a security key switch for restricting control access. Communication is provided through a supervised two-wire RS485 peripheral bus supporting up to 31 devices and cable distances up to 4,000 feet.
Key Features:
- 80-Character LCD: Provides a backlit 4 × 20-character display for remote system status information.
- 14-Button Interface: Combines six navigation controls with eight programmable system-function switches.
- Programmable Controls: Supports functions such as reset, silence, acknowledge, drill, process, walk test, and zone disable.
- Five Status LEDs: Provides dedicated Power, Alarm, Trouble, Supervisory, and Silenced indications.
- RS485 Communication: Uses a supervised two-wire serial interface for communication with the host control panel.
- Extended Bus Capacity: Supports up to 31 peripheral devices with a maximum bus distance of 4,000 feet.
- Security Key Switch: Restricts access to most control functions when placed in the locked position.
- V3.0+ Compatibility: Designed for compatible Fike control systems operating with firmware Version 3.0 or later.
The 10-2646 delivers the reliability and precision required for remote fire alarm system annunciation, event monitoring, and operator control.
