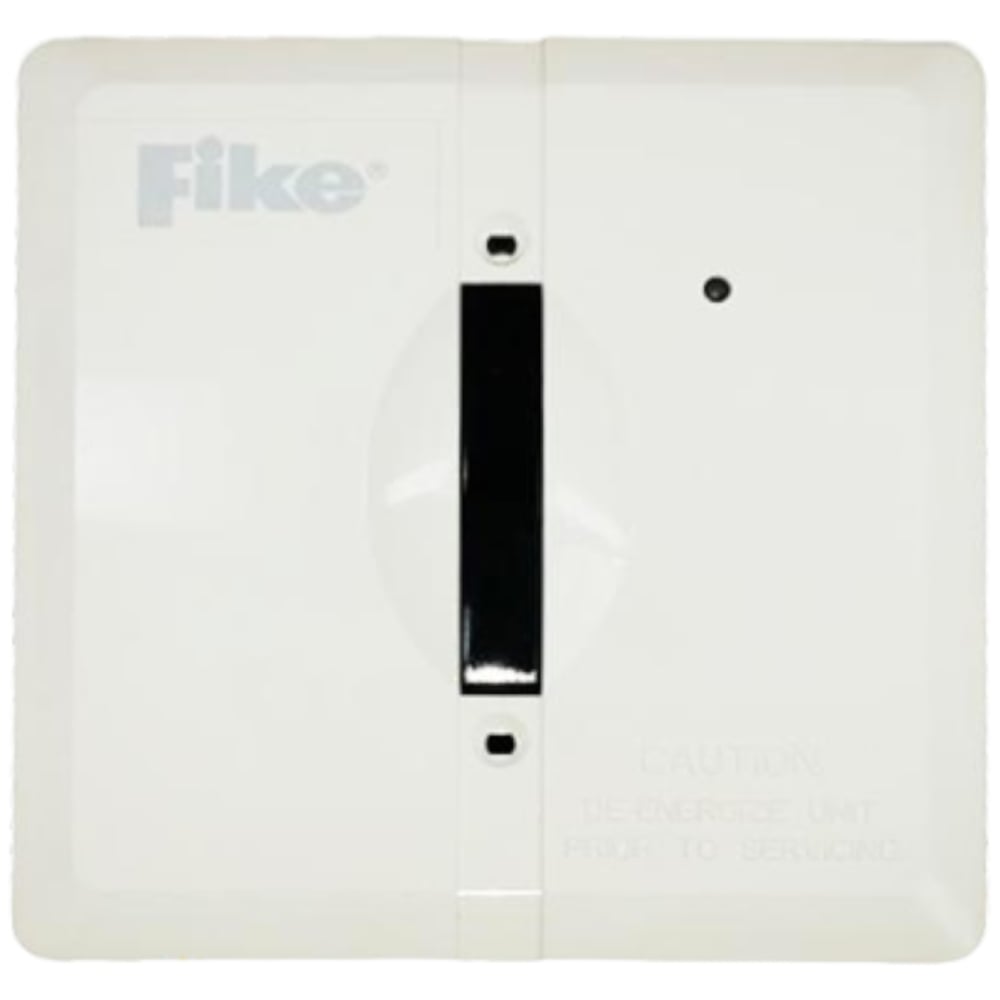

Fike 55-052 Cheetah Xi Non-Isolator Releasing Control Module
- Regular price
- $329.00
- Sale price
- $329.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 55-052
Description
The Fike 55-052 is a Releasing Control Module designed exclusively for the Cheetah Xi intelligent suppression control system. It supervises and controls either agent/impulse release modules or a compatible releasing solenoid, providing reliable activation of fire suppression systems while continuously monitoring release circuit integrity.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fike |
| Category | Fire Suppression Systems |
| Part Number | 55-052 |
| Subcategory | Releasing Control Modules |
| Product Type | Intelligent Releasing Control Module (Non-Isolator) |
| Compatible System | Fike Cheetah Xi |
| Isolation | Non-Isolator |
| SLC Operating Voltage | 24 VDC nominal |
| SLC Standby Current | 450 µA maximum |
| SLC Activation Current | 6 mA |
| External Supply Voltage | 24 VDC nominal |
| External Standby Current | 6.4 mA |
| External Activation Current | 10 mA |
| Agent Release Supervisory Voltage | 20–28 VDC |
| Agent Release Supervisory Current | 13 mA |
| Solenoid Supervisory Voltage | 3.3 V |
| Maximum Solenoid Output | 2 A @ 24 VDC |
| Operating Temperature | 32 to 120°F (0 to 49°C) |
| Humidity | 10–93% RH, non-condensing |
| Dimensions | 4.17 × 4.26 × 1.22 in. (106 × 108 × 31 mm) |
| Mounting | 4 × 4 × 2-1/8 in. junction box |
| Approvals | UL Listed, FM Approved, CSFM, New York City MEA |
| Weight | 2 lbs |
Information About 55-052
The 55-052 is a non-isolator intelligent releasing module that communicates directly with the Fike Cheetah Xi addressable loop. It can supervise up to six Agent Release Modules (ARM) or Impulse Release Modules (IRM), or a single compatible 24 VDC releasing solenoid, but only one output type may be used at a time. The module continuously supervises the external 24 VDC power supply and features onboard non-volatile memory to retain configuration settings. A tri-color LED provides visual indication of normal, active, and trouble conditions for simplified diagnostics.
Key Features:
- Cheetah Xi Compatibility: Designed exclusively for Fike Cheetah Xi intelligent suppression systems.
- Intelligent Release Control: Supervises and controls releasing devices through the addressable SLC loop.
- Multiple ARM/IRM Support: Controls up to six Agent Release Modules or Impulse Release Modules.
- Solenoid Control: Supports one compatible 24 VDC releasing solenoid.
- Continuous Power Supervision: Monitors external 24 VDC power for loss or fault conditions.
- Tri-Color LED Indicator: Displays normal (green), active (red), and trouble (yellow) status.
- Onboard Memory: Stores configuration data in non-volatile RAM.
- Addressable Communication: Peer-to-peer digital protocol enables fast and reliable system communication.
The 55-052 delivers the reliability and precision required for supervised releasing control in Cheetah Xi fire suppression systems.
