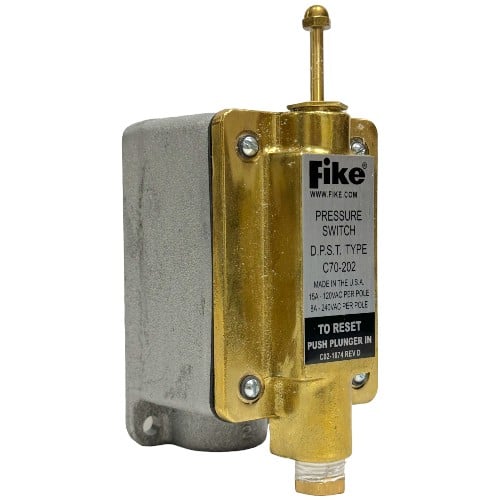

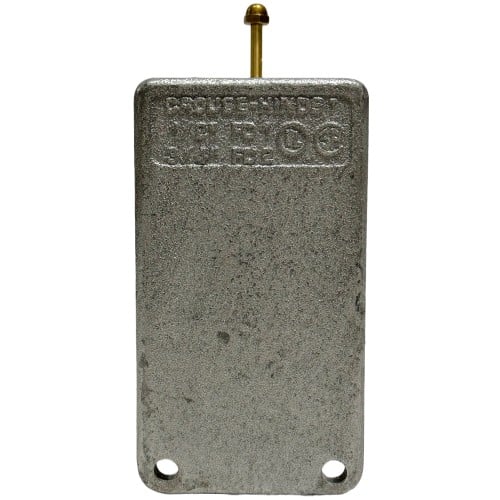

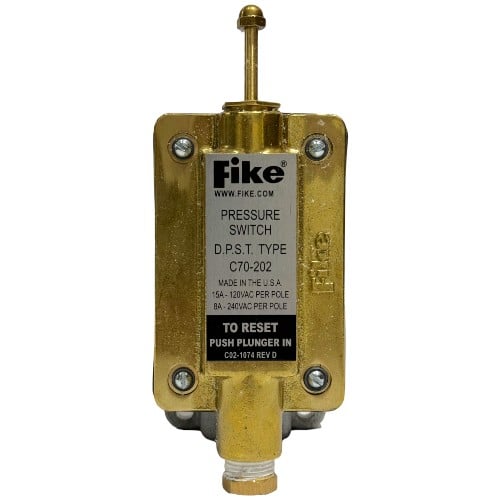

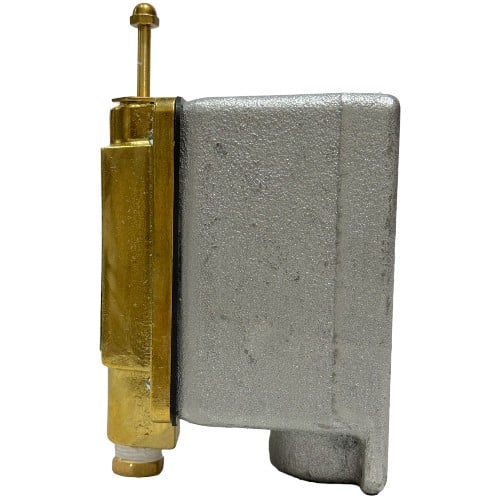

Fike C70-202 DPST Pressure Switch Assembly for Fire Suppression Systems
- Regular price
- $1,042.00
- Sale price
- $1,042.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C70-202
Description
The Fike C70-202 is a pressure switch assembly designed to provide pneumatic confirmation that a fire suppression system has discharged. Featuring a double-pole, single-throw (DPST) switch with a weather-resistant enclosure, the Fike C70-202 interfaces with compatible control panels to activate notification devices, auxiliary equipment, and monitoring circuits during system discharge.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fike |
| Category | Fire Suppression Systems |
| Part Number | C70-202 |
| Subcategory | Pressure Switches |
| Product Type | Pressure switch assembly |
| Switch Type | Double-Pole, Single-Throw (DPST) |
| Electrical Rating | 15 A @ 120 VAC; 8 A @ 240 VAC (per pole) |
| Activation Pressure | 100 psi (6.9 bar) minimum |
| Piping Connection | 1/4 in. NPT |
| Conduit Connection | 1/2 in. NPT |
| Enclosure | Weather-proof backbox |
| Operation | Pneumatically actuated |
| Application | Fire suppression discharge confirmation |
| Approvals | UL Listed, FM Approved, CEx, USCG |
| Weight | 4.7 lb (2.13 kg) |
Information About C70-202
The C70-202 is used in Fike clean agent and CO₂ fire suppression systems to provide an electrical signal when discharge pressure is detected in the piping network. The switch is pneumatically actuated at a minimum pressure of 100 psi (6.9 bar) and is designed for wall mounting adjacent to the suppression cylinders or manifold. Its DPST contacts allow multiple control circuits to be activated simultaneously, making it suitable for alarm notification, equipment shutdown, and auxiliary control functions. The assembly is housed in a weather-proof enclosure and carries UL Listed, FM Approved, CEx, and USCG approvals for fire protection applications.
Key Features:
- Double-Pole Single-Throw Switch: Provides two simultaneous switching circuits upon activation.
- Pneumatic Operation: Activated by discharge pressure from the suppression piping network.
- 100 PSI Activation: Operates at a minimum pressure of 100 psi (6.9 bar).
- High Electrical Rating: Rated for 15 A at 120 VAC or 8 A at 240 VAC per pole.
- Weather-Proof Enclosure: Designed for reliable operation in demanding installation environments.
- Control Panel Interface: Sends discharge confirmation to compatible fire suppression control panels.
- Standard NPT Connections: Includes 1/4 in. NPT piping connection and 1/2 in. NPT conduit inlet.
- Certified Design: UL Listed, FM Approved, CEx, and USCG approved.
The C70-202 delivers the reliability and precision required for discharge confirmation and control signaling in clean agent and CO₂ fire suppression systems.
