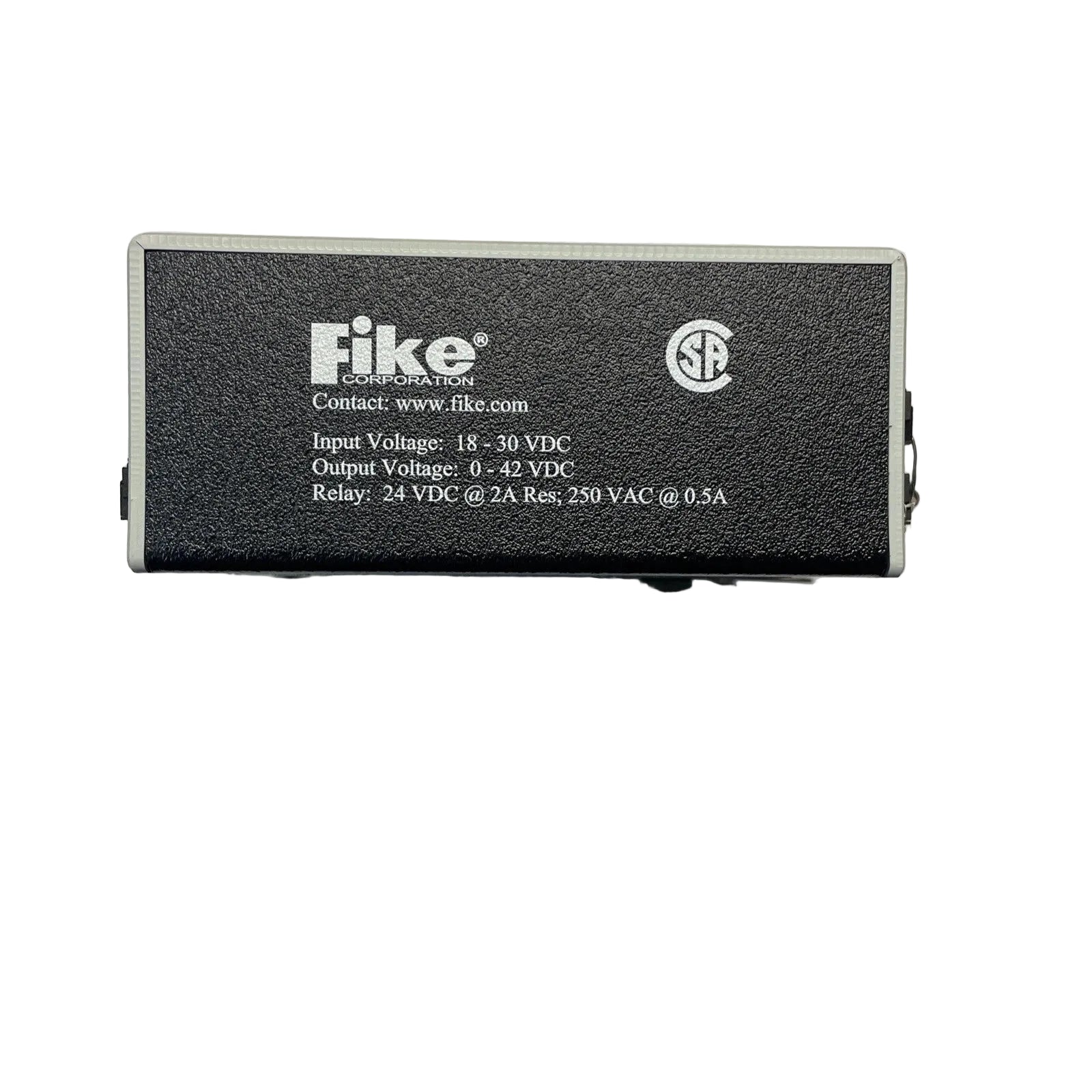

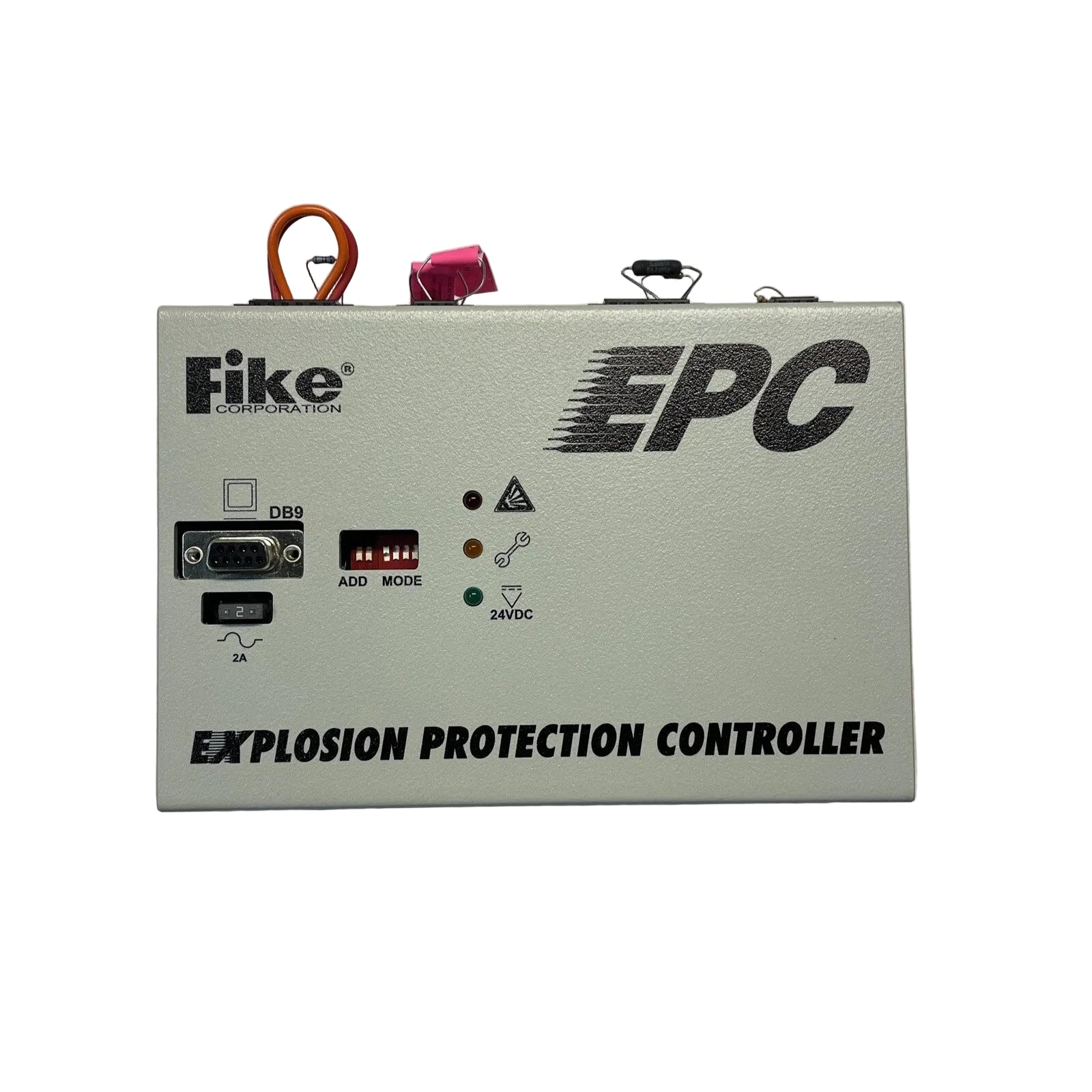

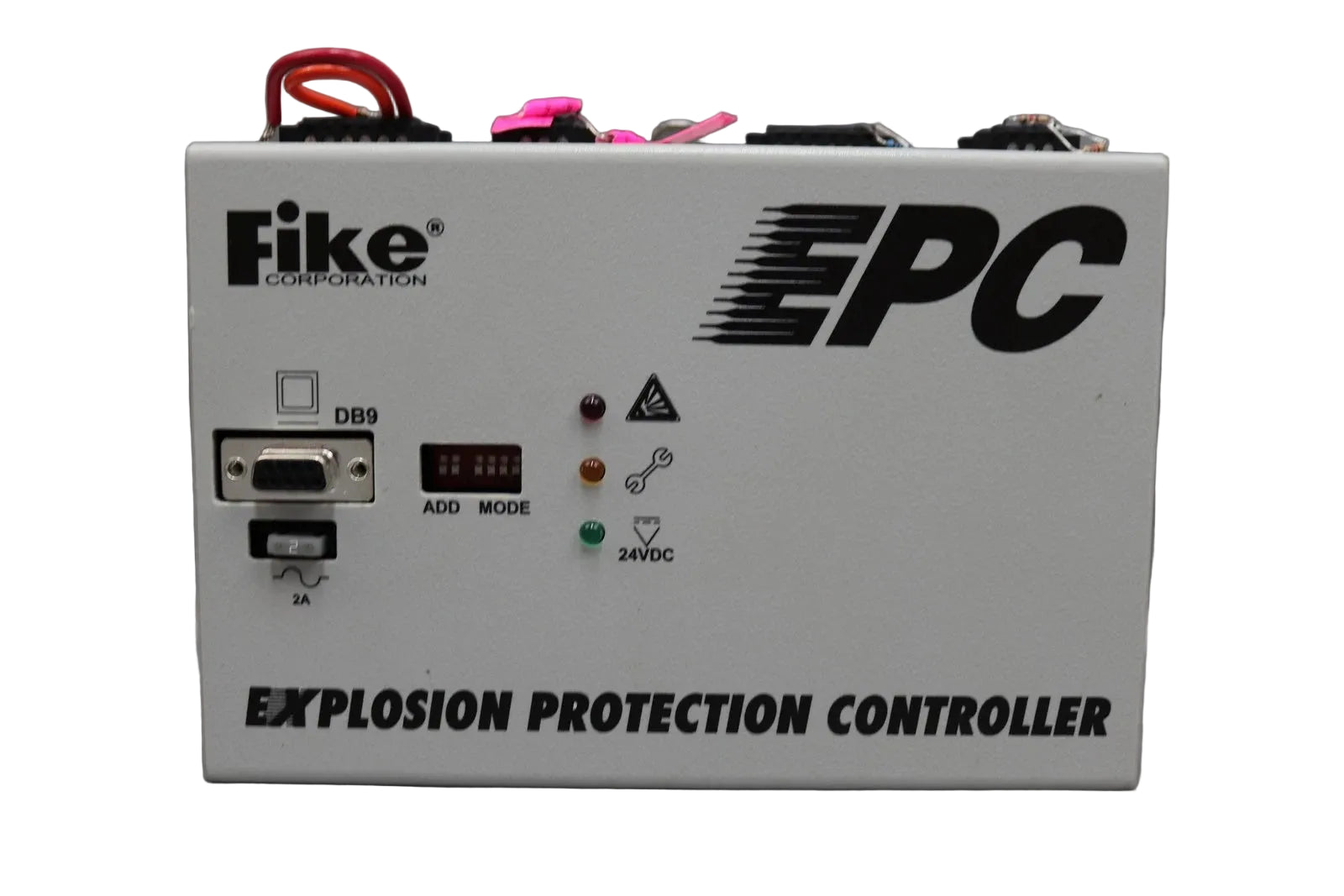

Fike E10-0066 Explosion Protection Controller 24 VDC EPC
- Regular price
- $1,197.00
- Sale price
- $1,197.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E10-0066
Description
The Fike E10-0066 is an Explosion Protection Controller (EPC) designed to monitor explosion detection devices and activate suppression equipment in industrial explosion protection systems. Operating from a 24 VDC supply, the controller supervises detection circuits, controls releasing outputs, and provides alarm and trouble relay functions for hazardous process environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fike |
| Category | Explosion Protection Systems |
| Part Number | E10-0066 |
| Subcategory | Explosion Protection Controllers |
| Product Type | Explosion Protection Controller (EPC) |
| Input Voltage | 18–30 VDC (24 VDC nominal) |
| Fuse | 2 A Mini Automotive |
| Power Consumption | 275 mA (normal), 300 mA (trouble), 200 mA (alarm) |

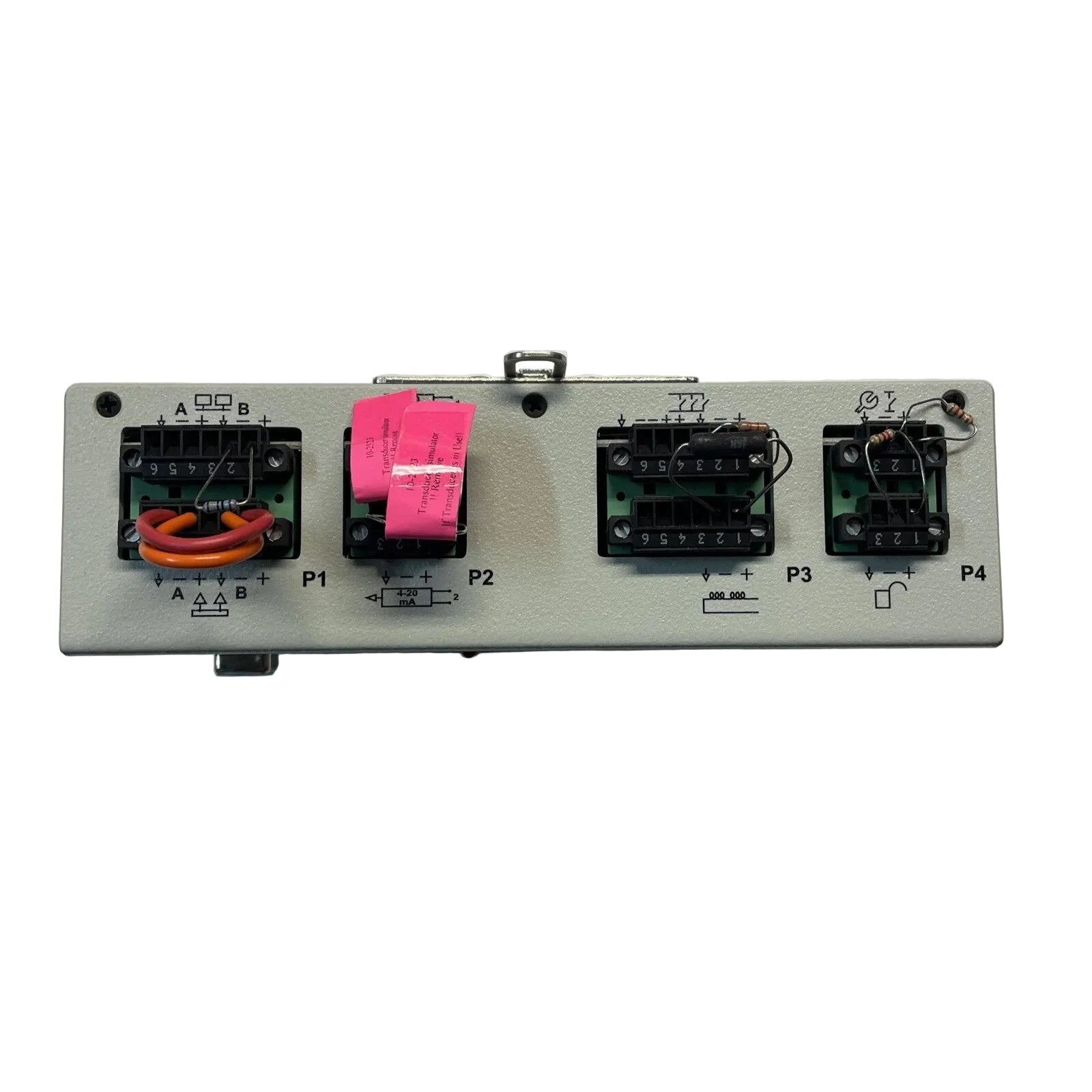

| Detection Inputs | Two 4–20 mA circuits and one switch-closure detection circuit |
| Supervisory Input | One switch-closure input |
| Disable Input | One switch-closure input |
| Release Output | 50 VDC, 3.5 A maximum |
| Relay Outputs | SPDT Form C; 2 A @ 30 VDC, 0.5 A @ 250 VAC |
| Operating Temperature | 0°F to 140°F (-18°C to 60°C) |
| Operating Humidity | 80% RH maximum, non-condensing |
| Dimensions | 7.7 × 5.2 × 2.3 in. (200 × 130 × 60 mm) |
| Weight | 1.5 lb (0.68 kg) |
Information About E10-0066
The E10-0066 is part of Fike's explosion protection product line and is engineered for combustible dust and industrial process safety applications. It supports both 4–20 mA pressure detectors and switch-closure detection circuits while providing supervised inputs for system monitoring and control. The controller incorporates programmable alarm logic, event history storage, and relay outputs for integration with auxiliary equipment and plant monitoring systems. Its compact design and 24 VDC operation make it suitable for protecting dust collectors, conveyors, process vessels, and other explosion-prone equipment.
Key Features:
- Explosion Protection Controller: Monitors explosion detection devices and activates suppression equipment.
- 24 VDC Operation: Operates from an 18–30 VDC power source with low power consumption.
- Multiple Detection Inputs: Supports both 4–20 mA sensors and switch-closure detection circuits.
- High-Current Release Output: Provides a supervised releasing circuit rated up to 3.5 A at 50 VDC.
- Alarm and Trouble Relays: Includes independent SPDT Form C relay outputs for system status indication.
- Event History Memory: Stores recent system events for maintenance and diagnostics.
- Industrial Communication: Supports Fire Bus and Status Bus connections for compatible Fike equipment.
- Hazardous Area Protection: Designed specifically for industrial explosion protection applications.
The E10-0066 delivers the reliability and precision required for monitoring and controlling industrial explosion suppression systems.
