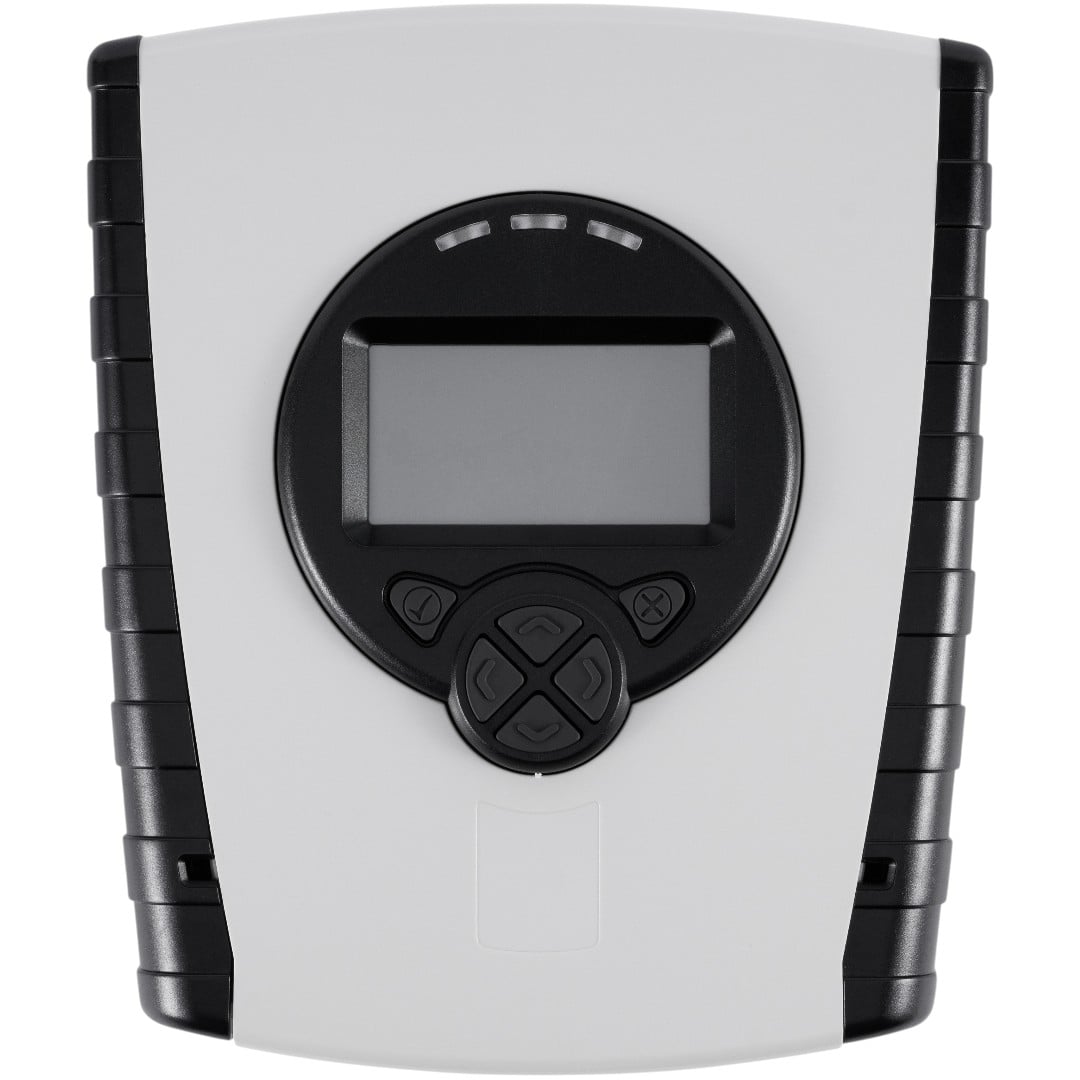

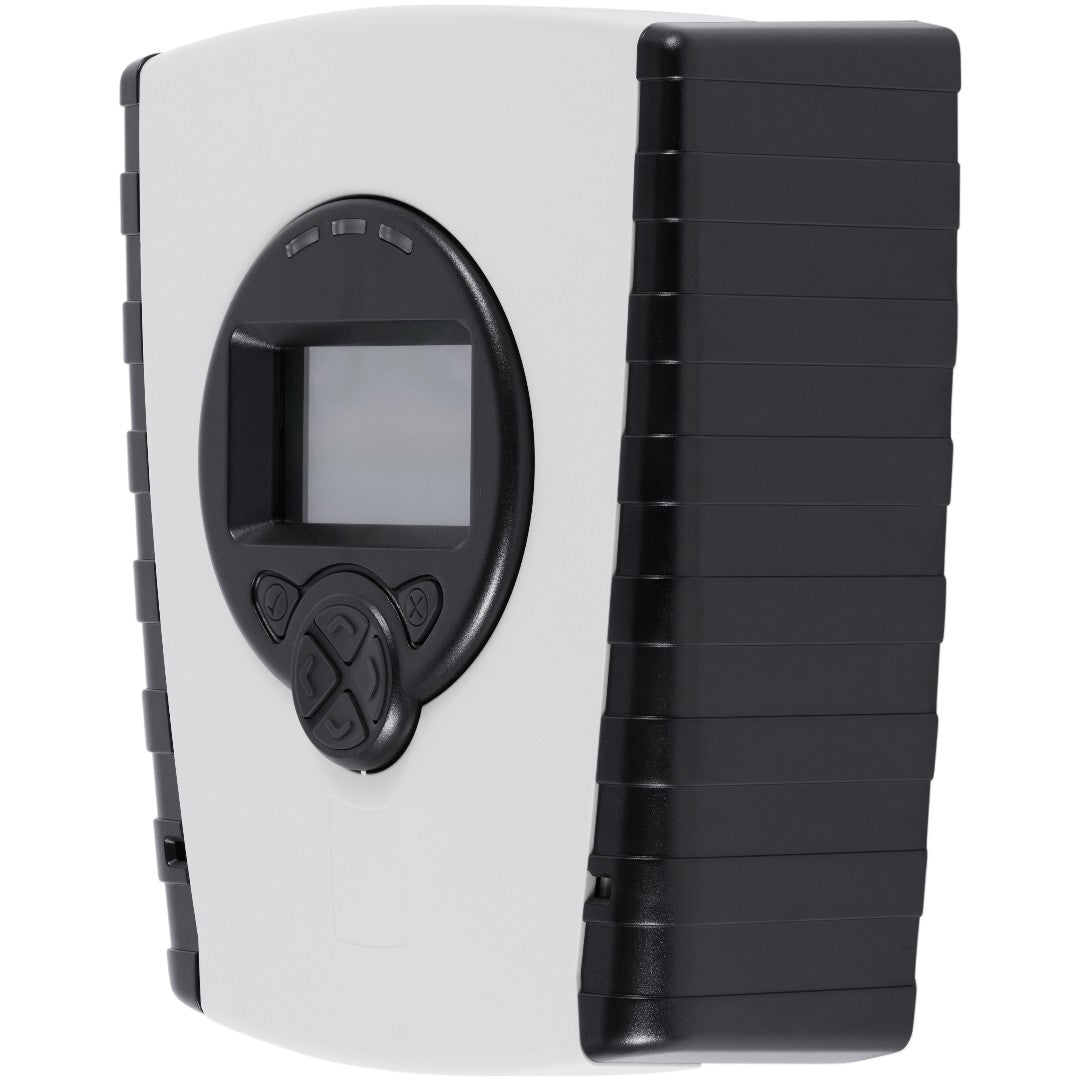

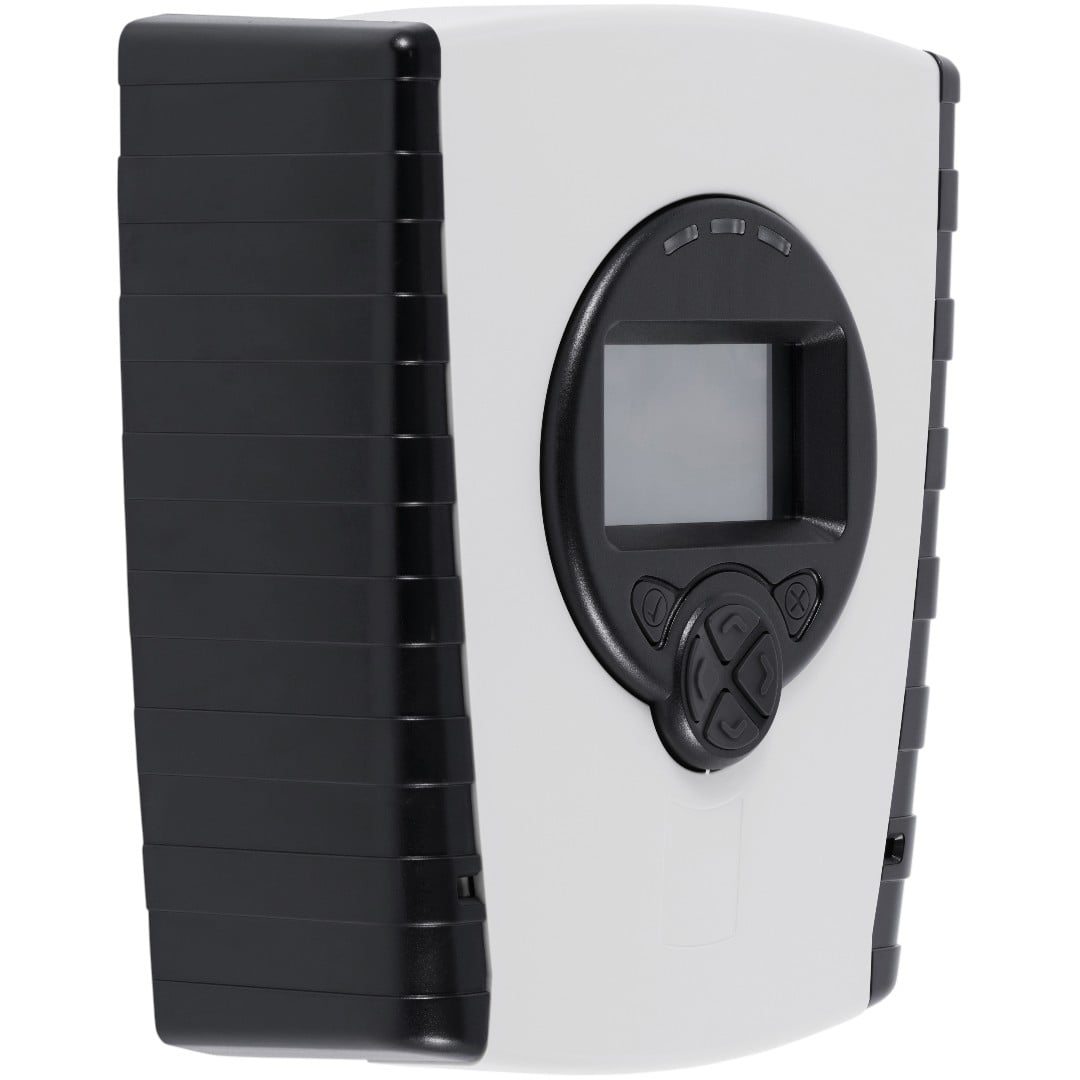

Fire Fighting Enterprises 5000-003 Fireray 5000 Auto-Aligning Infrared Optical Beam Smoke Detector
- Regular price
- $857.00
- Sale price
- $857.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5000-003
Description
The Fire Fighting Enterprises 5000-003 is a Fireray 5000 auto-aligning infrared optical beam smoke detector designed for reliable smoke detection in large open spaces. It uses a motorized reflective beam system to detect smoke across long distances where conventional point detectors are less practical. The detector is suitable for warehouses, atriums, industrial facilities, and other large commercial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire Fighting Enterprises |
| Category | Fire Alarm Systems |
| Part Number | 5000-003 |
| Subcategory | Optical Beam Smoke Detectors |
| Series | Fireray 5000 |
| Detector Type | Auto-Aligning Infrared Optical Beam Smoke Detector |
| Detection Principle | Reflective Infrared Optical Beam |
| Detection Range | 8 to 100 m (26 to 328 ft) |
| Maximum Detector Heads | Up to 2 per System Controller |
| Alignment Method | Automatic Motorized Alignment |
| Laser Alignment | Integral Built-In Laser |
| Compensation Features | Building Movement and Contamination Compensation |
| Event Log | Stores Up to 50 Recent Events per Detector |
| Application | Large Open Areas, Warehouses, Atriums, Industrial Facilities |
| Weight | 3.3 lb (1.5 kg) |
Information About 5000-003
The 5000-003 is a member of the Fireray 5000 Series developed by Fire Fighting Enterprises for long-range beam smoke detection. It combines an infrared transmitter and receiver within a single detector head that projects a beam toward a reflective prism for continuous monitoring. The system features automatic beam alignment, building movement compensation, and contamination compensation to maintain reliable operation over time. It is designed for integration with compatible fire alarm control panels and can support up to two detector heads through a single system controller.
Key Features:
- Auto-Align Technology: Automatically aligns the infrared beam for fast commissioning.
- Infrared Optical Detection: Detects smoke by monitoring beam obscuration across the protected area.
- Long-Range Coverage: Supports detection distances from 8 m to 100 m depending on reflector configuration.
- Motorized Beam Control: Continuously compensates for building movement to maintain alignment.
- Dual Detector Support: One controller can monitor up to two detector heads.
- Contamination Compensation: Automatically adjusts for gradual dust accumulation on optical surfaces.
- Integral Laser Alignment: Built-in laser simplifies reflector positioning during installation.
- Event Logging: Stores recent operating events to assist with diagnostics and maintenance.
The 5000-003 delivers the reliability and precision required for long-range smoke detection in large commercial and industrial fire protection systems.
