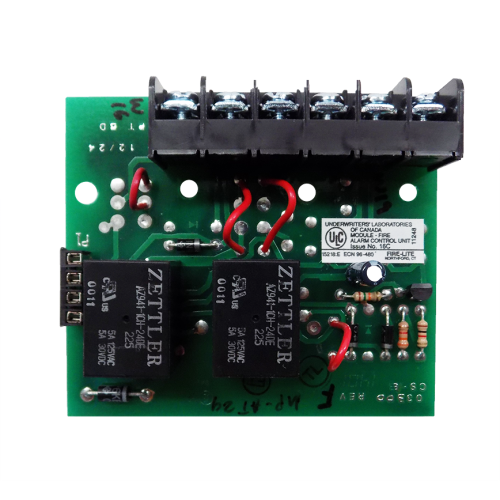

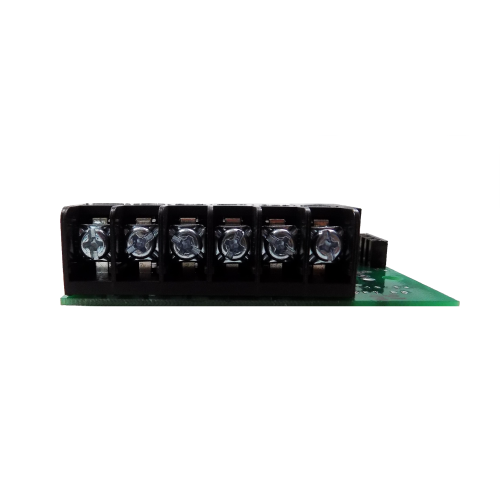

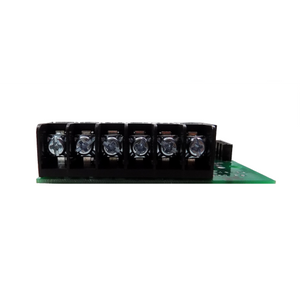

Fire-Lite MP-AT24 24V Alarm and Trouble Form C Relay Module for MP-24 MiniPanel
- Regular price
- $515.00
- Sale price
- $515.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MP-AT24
Description
The Fire-Lite MP-AT24 is a 24 V relay module designed to add dedicated dry-contact alarm and trouble outputs to compatible Fire-Lite MiniPanel fire alarm control panels. Fire-Lite part number MP-AT24 provides one Form C alarm relay and one Form C trouble relay, with each contact rated for switching up to 3 A at 120 VAC or 30 VDC resistive loads.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm & Life Safety |
| Part Number | MP-AT24 |
| Subcategory | Fire Alarm Relay Modules |
| Series | MiniPanel MP-12/MP-24 Series |
| Product Type | Auxiliary Alarm & Trouble Relay Module |
| System Voltage | 24 VDC |
| Compatible Control Panel | Fire-Lite MP-24 MiniPanel |
| Relay Configuration | One Alarm Relay and One Trouble Relay |
| Contact Form | Form C (SPDT) |
| Alarm Contacts | Normally Open / Normally Closed / Common |
| Trouble Contacts | Normally Open / Normally Closed / Common |
| Contact Rating | 3 A at 120 VAC or 30 VDC, Resistive |
| Output Type | Dry Auxiliary Relay Contacts |
| Alarm Activation | Activated by Panel Alarm Condition |
| Installation Type | Internal Control Panel Optional Module |
| Application | Auxiliary Alarm and Trouble Status Switching |
| UPC | 783008101060 |
| Weight | Approx. 0.2 lb |
Information About MP-AT24
The MP-AT24 is an optional auxiliary relay module developed for the Fire-Lite MiniPanel MP-24 conventional fire alarm control panel. It operates within the panel's 24 V system and provides separate Form C dry contacts for alarm and system trouble conditions, allowing external equipment to respond to changes in panel status. Each relay provides normally open, normally closed, and common connections, supporting interfaces with compatible annunciation, monitoring, control, and building-system equipment. The module installs through the MP-24 optional-module interface and is particularly useful for maintaining or servicing legacy Fire-Lite MiniPanel installations requiring auxiliary alarm and trouble outputs.
Key Features:
- 24 V System Compatibility: Designed specifically for use with the 24 V Fire-Lite MP-24 MiniPanel fire alarm control panel.
- Dual Status Outputs: Provides separate auxiliary relay outputs for system alarm and trouble conditions.
- Form C Alarm Relay: Supplies normally open, normally closed, and common contacts for external alarm signaling.
- Form C Trouble Relay: Provides an independent changeover contact for external indication of panel trouble conditions.
- 3 A Contact Rating: Alarm and trouble contacts are each rated for 3 A at 120 VAC or 30 VDC with resistive loads.
- Dry Contact Interface: Allows compatible external equipment to monitor panel conditions without requiring a powered signaling output.
- Panel-Mounted Design: Connects internally through the compatible MiniPanel optional-module interface.
- External Equipment Integration: Suitable for interfacing auxiliary annunciators, monitoring equipment, building controls, and other compatible devices.
- Alarm Activation: Alarm relay operation follows an alarm condition generated by the compatible control panel.
- Trouble Monitoring: Dedicated trouble contacts provide an external indication when the panel enters a system trouble state.
- Power-Limited Installation Support: Relay circuits can be configured according to applicable power-limited wiring requirements when installed as specified by the panel documentation.
- Legacy System Service: Provides a replacement or service component for existing Fire-Lite MP-24 MiniPanel installations.
The MP-AT24 delivers the reliability and precision required for auxiliary alarm and trouble relay signaling in compatible Fire-Lite conventional fire alarm systems.
