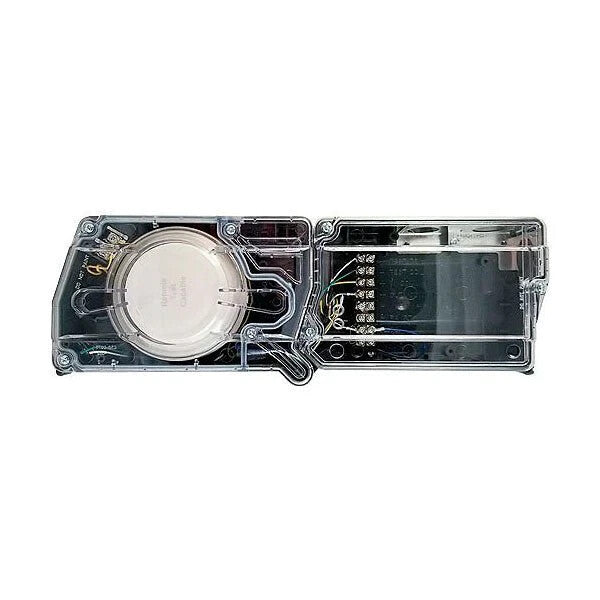

Fire-Lite D365PL InnovairFlex Photoelectric Duct Smoke Detector
- Regular price
- $415.00
- Sale price
- $415.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D365PL
Description
Fire-Lite D365PL is an InnovairFlex photoelectric duct smoke detector designed to detect smoke within HVAC ductwork and provide early warning through compatible fire alarm systems. It uses wired connectivity and operates across a wide airflow range for dependable smoke monitoring in commercial HVAC applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm Systems |
| Part Number | D365PL |
| Subcategory | Duct Smoke Detectors |
| Product Line | InnovairFlex |
| Product Type | Duct Smoke Detector |
| Sensing Technology | Photoelectric |
| Detectable Medium | Smoke |
| Connectivity Technology | Wired |
| Operating Voltage | 15–32 VDC |
| Standby Current | 200 µA at 24 VDC |
| Maximum Alarm Current | 6.2 mA at 24 VDC |
| Operating Temperature | -4°F to 158°F (-20°C to 70°C) |
| Operating Temperature with Module Installed | 32°F to 120°F (0°C to 49°C) |
| Storage Temperature | -22°F to 158°F (-30°C to 70°C) |
| Humidity Range | 0% to 93% RH, Non-Condensing |
| Air Velocity Range | 100–4,000 ft/min (0.5–20.3 m/s) |
| Rectangular Footprint Dimensions | 14.38 × 5 × 2.5 in |
| Square Footprint Dimensions | 7.75 × 9 × 2.5 in |
| Weight | 1.8 lb (0.82 kg) |
Information About D365PL
The D365PL is a Fire-Lite InnovairFlex duct smoke detector designed around photoelectric smoke-sensing technology. Its housing is engineered for installation on HVAC ductwork where air samples can be monitored for smoke produced within or transported through the ventilation system. The detector operates from 15 to 32 VDC and supports supervised communication with compatible fire alarm equipment while maintaining low standby current. Its broad airflow and environmental operating ranges allow installation across a variety of commercial and institutional HVAC configurations.
Key Features:
-
Photoelectric Detection: Uses photoelectric sensing technology to detect smoke within HVAC air-handling systems.
-
InnovairFlex Platform: Part of the InnovairFlex product line designed for duct smoke detection applications.
-
Wide Airflow Range: Supports air velocities from 100 to 4,000 ft/min for varied HVAC duct configurations.
-
Low Standby Current: Draws approximately 200 µA at 24 VDC under specified communication conditions.
-
Wide Voltage Range: Operates from a 15 to 32 VDC power supply.
-
Status Indication: Provides visual status indication for convenient detector monitoring.
-
HVAC Application: Designed to monitor air moving through heating, ventilation, and air-conditioning ductwork.
-
Broad Environmental Range: Housing supports operating temperatures from -4°F to 158°F (-20°C to 70°C), subject to installed-module limitations.
The D365PL delivers the reliability and precision required for photoelectric smoke detection and HVAC duct monitoring in compatible fire alarm systems.
