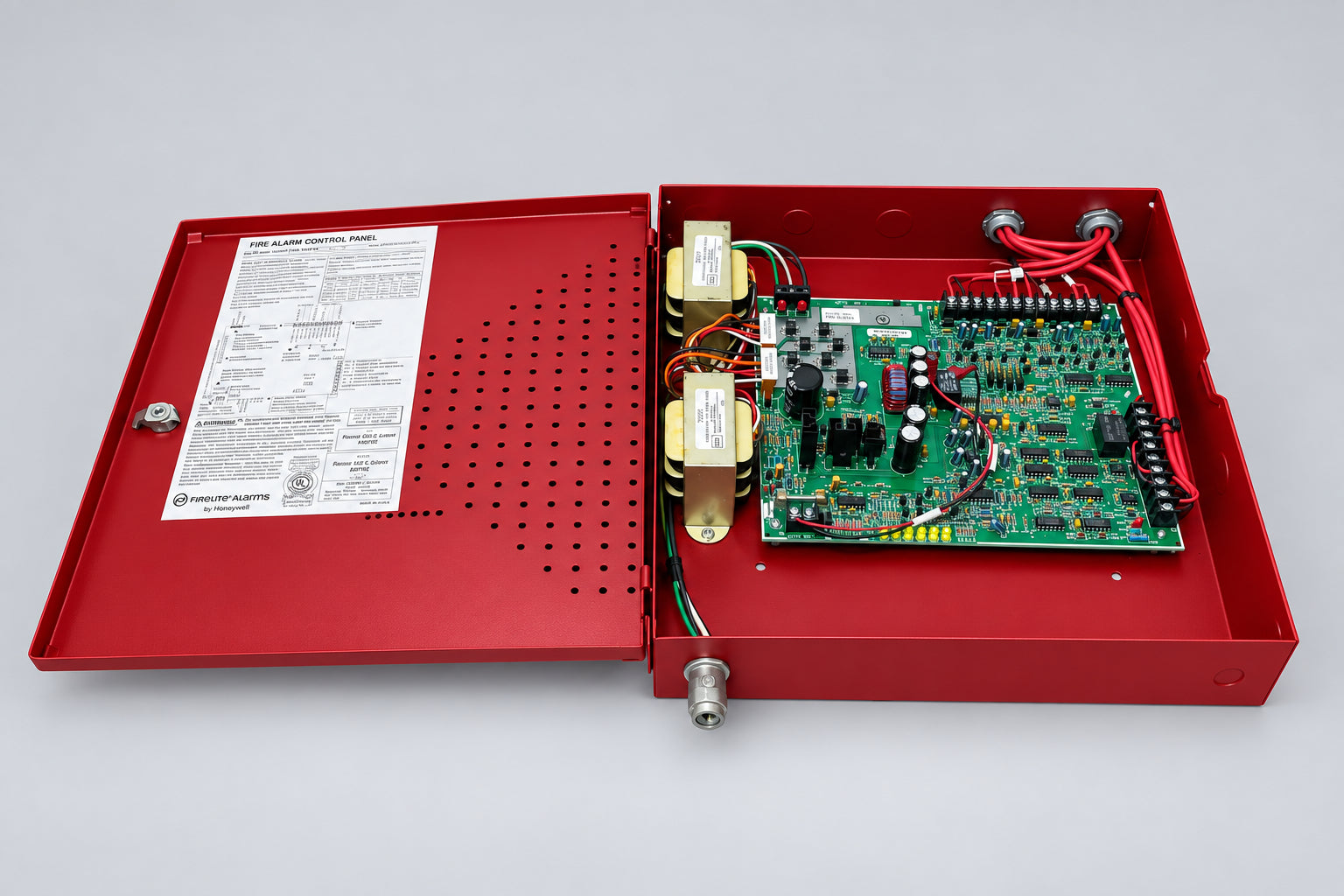

Fire-Lite FCPS-24F 24V 6 Amp Fire Alarm Remote Power Supply & Battery Charger
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FCPS-24F
Description
The Fire-Lite FCPS-24F is a remote fire alarm power supply and battery charger designed to expand Notification Appliance Circuit capacity or provide regulated auxiliary power for fire alarm system devices. Fire-Lite part number FCPS-24F provides filtered 24 VDC output with up to 6 amps of short-term NAC power and supports four configurable output circuits for notification appliances or powered peripherals.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm & Life Safety |
| Part Number | FCPS-24F |
| Subcategory | Fire Alarm Power Supplies |
| Series | FCPS Series |
| Product Type | Field Charger / Remote Power Supply |
| Primary Input Power | 120 VAC, 50/60 Hz |
| Maximum AC Input Current | 2.0 A |
| Output Voltage | 24 VDC, Filtered |
| Maximum NAC Expander Output | 6.0 A Total Short-Term |
| Maximum Standalone Output | 4.0 A Continuous |
| Maximum Output Per Circuit | 3.0 A |
| Number of Output Circuits | 4 |
| NAC Configuration | Four Class B (Style Y), or Two Class A (Style Z) and Two Class B (Style Y) |
| Control Inputs | 2 Fully Isolated Input/Control Circuits |
| Trigger Input Voltage | 9–32 VDC |
| Auxiliary Power Configuration | Resettable or Non-Resettable 24 VDC |
| Battery Charger | Integral Supervised Lead-Acid Battery Charger |
| Maximum Battery Capacity | 7.0 Ah |
| Maximum Charger Current | 250 mA |
| Trouble Output | Normally Closed Trouble Contact |
| Supervision | Power Supply, Battery, Charger, and NAC Circuits |
| Earth-Fault Detection | Selectable |
| AC Failure Reporting | Selectable Immediate, 8-Hour, or 16-Hour Delay |
| Field Wiring Capacity | Up to 12 AWG |
| Enclosure | Self-Contained Lockable Cabinet |
| Dimensions | 15 in H × 14.5 in W × 2.75 in D |
| Standards / Listings | NFPA 72; UL 864; UL 1481 |
| Weight | Approx. 13 lb with Cabinet, Excluding Batteries |
Information About FCPS-24F
The FCPS-24F is an FCPS Series field charger/power supply housed in a compact lockable enclosure for remote installation with compatible fire alarm control panels. It accepts 120 VAC primary power and can interface with virtually any compatible 12 V or 24 V FACP using industry-standard reverse-polarity notification circuits. Four output circuits can be configured as up to four Class B (Style Y) NACs, or as two Class A (Style Z) and two Class B circuits, while alternative configurations provide resettable or non-resettable 24 VDC auxiliary power. The unit incorporates two optically isolated control inputs, supervised battery charging for batteries up to 7.0 Ah, power-limited circuitry, selectable earth-fault detection, and supervision of the power supply, battery, and notification circuits.
Key Features:
- 24 VDC Power Supply: Provides fully filtered and regulated 24 VDC output for fire alarm notification and auxiliary devices.
- 6 Amp NAC Capacity: Supplies up to 6.0 A total short-term output in NAC expander applications.
- Four Output Circuits: Supports four configurable circuits for notification appliances or auxiliary 24 VDC loads.
- Class A/B Configuration: Supports up to four Class B circuits or two Class A plus two Class B circuits.
- Standalone Operation: Provides up to 4.0 A continuous output when configured as a standalone auxiliary power supply.
- Dual Control Inputs: Two fully isolated input/control circuits allow activation from compatible FACP notification circuits.
- Wide Trigger Range: Accepts control trigger voltage from 9 to 32 VDC for compatibility with 12 V and 24 V fire alarm systems.
- Integrated Battery Charger: Includes a supervised charger capable of maintaining lead-acid batteries up to 7.0 Ah.
- Configurable Auxiliary Power: Output circuits can operate as resettable or non-resettable power for four-wire smoke detectors and other peripherals.
- Circuit Supervision: Supervises AC power, battery condition, charger operation, and NAC field wiring for system faults.
- Earth-Fault Detection: Selectable earth-fault monitoring provides additional wiring-fault supervision.
- Trouble Reporting: Includes a normally closed trouble contact and selectable AC-loss reporting delay.
The FCPS-24F delivers the reliability and precision required for fire alarm NAC expansion, auxiliary device power, and supervised life-safety power distribution.
