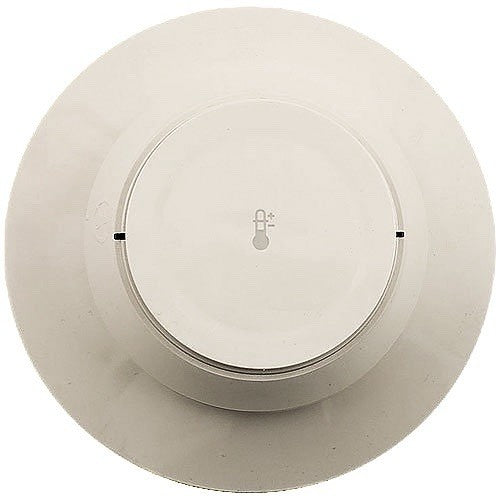

Fire-Lite H365R-IV Intelligent Addressable Rate-of-Rise Heat Detector 135°F
- Regular price
- $269.00
- Sale price
- $269.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: H365R-IV
Description
The Fire-Lite H365R-IV is a low-profile intelligent addressable heat detector designed for fixed-temperature and rate-of-rise thermal detection on compatible Fire-Lite fire alarm systems. Fire-Lite part number H365R-IV uses thermistor-based sensing, CLIP/LiteSpeed communication, and a 135°F fixed-temperature threshold with 15°F-per-minute rate-of-rise detection for areas where smoke sensing may be unsuitable.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm & Life Safety |
| Part Number | H365R-IV |
| Subcategory | Addressable Heat Detectors |
| Series | H365 Series |
| Product Type | Intelligent Addressable Rate-of-Rise Heat Detector |
| Detection Technology | Electronic Thermistor |
| Detection Functions | Fixed Temperature and Rate-of-Rise |
| Fixed Temperature Rating | 135°F (57°C) |
| Rate-of-Rise Threshold | 15°F/min (8.3°C/min) |
| Communication Protocol | CLIP / LiteSpeed |
| Circuit Interface | Addressable SLC |
| Operating Voltage Range | 15–32 VDC Peak |
| Standby Current | 200 µA Maximum Average at 24 VDC |
| Maximum Current | 4.5 mA at 24 VDC |
| Addressing Method | Rotary Decimal Switches |
| Status Indicators | Two Integral LEDs |
| Testing | Panel Remote Test and Magnetic Functional Test |
| Operating Temperature | -4°F to 100°F (-20°C to 38°C) |
| Operating Humidity | 10–93% RH, Non-Condensing |
| Color | Ivory |
| Compatible Base | B300-6-IV 6-Inch Flanged Base |
| Base Diameter | 6.1 in (155 mm) with B300-6-IV |
| Detector Height | Approx. 2.0 in (51 mm) Installed |
| Listings / Approvals | UL Listed, ULC Listed, FM Approved |
| Weight | 0.21 lb |
Information About H365R-IV
The H365R-IV is an ivory H365 Series intelligent plug-in thermal detector designed for compatible Fire-Lite addressable signaling line circuits. It combines a 135°F (57°C) fixed-temperature threshold with rate-of-rise detection that responds when temperature increases approximately 15°F (8.3°C) per minute, providing two thermal detection methods in one device. The ivory -IV version supports both CLIP and LiteSpeed communication protocols and incorporates rotary decimal addressing, automatic device-type identification, dual status LEDs, magnetic functional testing, and panel-initiated remote testing. Its low-profile construction installs on compatible detector bases, including the B300-6-IV flanged base, and is intended for locations where dust, airborne particles, or other environmental conditions can make conventional smoke detection less appropriate.
Key Features:
- Dual Thermal Detection: Combines 135°F (57°C) fixed-temperature operation with rate-of-rise heat detection.
- Rate-of-Rise Response: Activates when temperature increases approximately 15°F (8.3°C) per minute.
- Thermistor Technology: Uses electronic thermal sensing for rapid and repeatable temperature response.
- Intelligent Addressability: Provides individual point identification and communication with compatible Fire-Lite addressable panels.
- CLIP and LiteSpeed Support: Ivory -IV configuration operates with both Fire-Lite CLIP and LiteSpeed protocols.
- Rotary Decimal Addressing: Allows straightforward device address selection during installation and commissioning.
- Low-Current SLC Operation: Operates directly from the signaling line circuit over a 15–32 VDC peak voltage range.
- Dual LED Indicators: Two LEDs provide visible local operating and alarm status indication from multiple viewing angles.
- Automatic Device Identification: Built-in device-type identification allows compatible control panels to recognize the detector type.
- Functional Testing: Supports magnetic functional testing and remote testing from compatible fire alarm control equipment.
- Tamper-Resistant Capability: Built-in provisions help prevent unauthorized detector removal when configured with a compatible base.
- Low-Profile Construction: Compact contemporary housing is designed for unobtrusive installation in commercial and institutional spaces.
The H365R-IV delivers the reliability and precision required for intelligent fixed-temperature and rate-of-rise fire detection in addressable life-safety systems.
