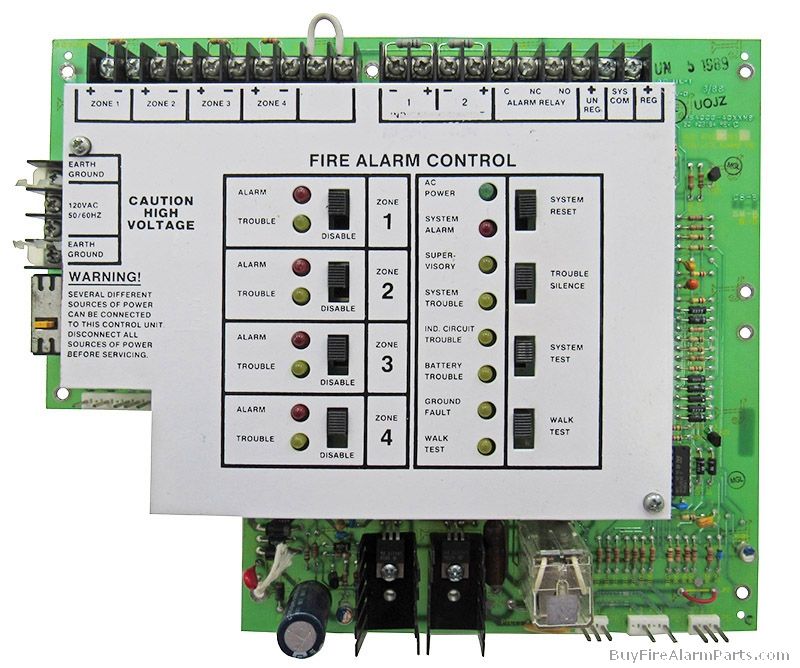

Fire-Lite MS-4012 12V 4-Zone Conventional Fire Alarm Control Panel
- Regular price
- $2,252.00
- Sale price
- $2,252.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-4012
Description
The Fire-Lite MS-4012 is a conventional four-zone fire alarm control panel designed for 12-volt notification and detection systems in commercial, industrial, and institutional facilities. Fire-Lite part number MS-4012 supervises initiating and notification circuits while providing alarm annunciation, auxiliary relay control, municipal-box signaling, and remote-station connection capabilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm & Life Safety |
| Part Number | MS-4012 |
| Subcategory | Conventional Fire Alarm Control Panels |
| Series | MS-4000 Series |
| Product Type | Conventional Fire Alarm Control Panel |
| Number of Initiating Zones | 4 |
| System Voltage | 12 VDC Nominal |
| Detection Type | Conventional Zoned Detection |
| Compatible Initiating Devices | Two-Wire Smoke Detectors and Normally Open Contact Devices |
| Typical Initiating Devices | Smoke Detectors, Heat Detectors, Manual Pull Stations |
| Notification Devices | Compatible 12 VDC Bells, Horns, and Other Alarm Appliances |
| Alarm Annunciation | Individual Fire Zone Indication |
| Auxiliary Control | Supplementary Relay Outputs |
| Remote Signaling | Remote Station / Municipal Box Capability |
| Primary Power | 120 VAC, 60 Hz |
| Secondary Power | Rechargeable Standby Batteries |
| System Supervision | Initiating Circuits, Notification Circuits, AC Power, and Battery |
| Installation Type | Wall-Mounted Fire Alarm Control Panel |
| Typical Applications | Commercial, Industrial, and Institutional Buildings |
| Plate Included | No |
| Weight | Approx. 1 lb |
Information About MS-4012
The MS-4012 is a four-zone conventional fire alarm control panel from Fire-Lite's MS-4000 family, with the MS-4012 configured for nominal 12 VDC system devices and the related MS-4024 designed for 24 VDC equipment. It accepts compatible two-wire smoke detectors and normally open initiating devices such as manual pull stations, heat detectors, and other dry-contact alarm devices on its supervised initiating circuits. When an alarm condition is detected, the panel can activate notification appliances, identify the affected zone, operate supplementary relays, and provide outputs for municipal-box or remote-station signaling where configured. The panel is intended for complete supervised fire alarm installations and incorporates primary AC operation, standby battery support, visual system indicators, audible trouble indication, and front-panel controls for system operation and testing.
Key Features:
- Four Detection Zones: Provides four conventional initiating device circuits for independent fire alarm zone monitoring.
- 12-Volt System Design: Configured for nominal 12 VDC compatible detection and notification equipment.
- Two-Wire Detector Support: Accepts compatible conventional two-wire smoke detectors on supervised initiating circuits.
- Dry-Contact Compatibility: Supports normally open initiating devices including heat detectors and manual pull stations.
- Supervised Alarm Circuits: Monitors initiating and notification wiring for applicable open-circuit and trouble conditions.
- Notification Control: Activates compatible horns, bells, and other notification appliances following an alarm event.
- Zone Annunciation: Identifies the initiating fire alarm zone to assist with rapid event location.
- Auxiliary Relay Functions: Provides supplementary relay operation for compatible external equipment and control functions.
- Remote Signaling Capability: Supports connection arrangements for remote-station and municipal fire alarm signaling.
- Standby Battery Operation: Uses rechargeable standby batteries to maintain system functionality during loss of primary AC power.
- Front-Panel Controls: Provides accessible controls and indicators for alarm, trouble, reset, silence, and system testing functions.
- Commercial Fire Protection: Designed for conventional life-safety installations in commercial, industrial, and institutional buildings.
The MS-4012 delivers the reliability and precision required for conventional four-zone fire detection, notification control, and supervised life-safety system operation.
