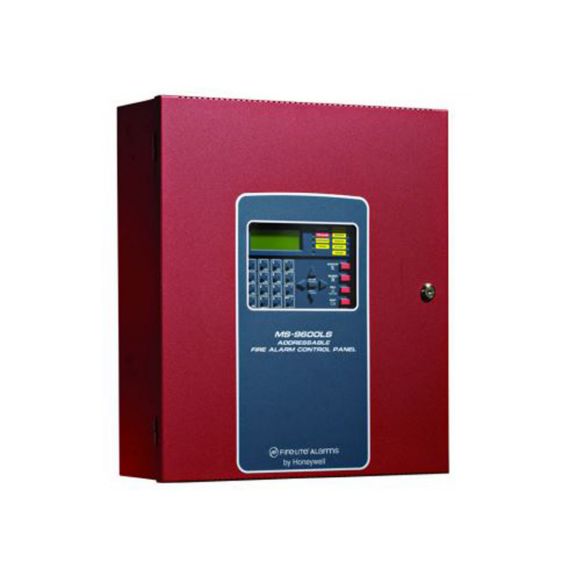

Fire-Lite MS-9600LS Intelligent Addressable Fire Alarm Control Panel with Expandable Capacity
- Regular price
- $2,299.00
- Sale price
- $2,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-9600LS
Description
The Fire-Lite MS-9600LS is an intelligent addressable Fire Alarm Control Panel designed to monitor and control large-scale fire detection and notification systems. It supports up to 318 addressable devices on one Signaling Line Circuit and can be expanded to 636 addressable points, providing centralized control for commercial and institutional fire protection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Safety |
| Part Number | MS-9600LS |
| Subcategory | Fire Alarm Control Panels |
| Product Type | Intelligent Addressable Fire Alarm Control Panel (FACP) |
| Addressable Capacity | Up to 318 devices standard; expandable to 636 points |
| SLC Capacity | 1 SLC standard; optional second SLC with SLC-2LS |
| Modules per SLC | Up to 159 control or monitor modules |
| Communication Protocol | LiteSpeed |
| LiteSpeed Polling | Polls up to 10 devices at a time |
| Maximum SLC Wiring Distance | Up to 10,000 ft per loop |
| Wiring Type | Standard twisted, unshielded wire |
| Power Supply | 7 Amp switching power supply |
| Notification Appliance Circuits | 4 NAC circuits |
| Detector Management | Sensitivity testing and automatic drift compensation |
| Programming Software | PS-Tools |
| Auto Programming | Supported |
| Optional Communicator | Compatible with optional DACT-UD2 Digital Alarm Communicator/Transmitter |
| Certifications | FM Approved to UL ANSI 864; CSFM; MEA; applicable IBC and CBC seismic listings |
| Weight | 27.3 lbs |
Information About MS-9600LS
The MS-9600LS is a Fire-Lite intelligent addressable FACP that uses LiteSpeed communication technology to poll multiple devices efficiently and detect changes in system status. Each SLC supports up to 159 addressable detectors and 159 addressable control or monitor modules, with an optional SLC-2LS expansion module providing a second loop. The panel operates on standard twisted, unshielded wiring and supports wiring distances of up to 10,000 feet per SLC loop. Its Advanced Fire Technology includes functions such as detector sensitivity testing and automatic drift compensation for connected addressable detection devices.
Key Features:
- Addressable Capacity: Supports up to 318 addressable devices per panel with one SLC loop.
- Expandable Architecture: Supports up to 636 addressable points with the optional SLC-2LS expansion module.
- LiteSpeed Protocol: Polls up to 10 devices simultaneously to improve communication and event reporting speed.
- Fast Event Response: A fully loaded configuration can report an incident and activate notification circuits in under 10 seconds.
- Detector Support: Supports up to 159 addressable detectors per SLC, including smoke, heat, beam, duct, and combination detector types.
- Module Compatibility: Supports up to 159 addressable monitor, control, multi-monitor, dual-monitor, and relay modules per SLC.
- 7 Amp Power Supply: Includes a 7 amp switching power supply distributed across four NAC circuits.
- Advanced Fire Technology: Provides detector sensitivity testing and automatic drift compensation.
The MS-9600LS delivers the reliability and precision required for intelligent addressable fire detection, monitoring, and notification control systems.
Description
The Fire-Lite MS-9600LS is an intelligent addressable Fire Alarm Control Panel designed to monitor and control large-scale fire detection and notification systems. It supports up to 318 addressable devices on one Signaling Line Circuit and can be expanded to 636 addressable points, providing centralized control for commercial and institutional fire protection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Safety |
| Part Number | MS-9600LS |
| Subcategory | Fire Alarm Control Panels |
| Product Type | Intelligent Addressable Fire Alarm Control Panel (FACP) |
| Addressable Capacity | Up to 318 devices standard; expandable to 636 points |
| SLC Capacity | 1 SLC standard; optional second SLC with SLC-2LS |
| Modules per SLC | Up to 159 control or monitor modules |
| Communication Protocol | LiteSpeed |
| LiteSpeed Polling | Polls up to 10 devices at a time |
| Maximum SLC Wiring Distance | Up to 10,000 ft per loop |
| Wiring Type | Standard twisted, unshielded wire |
| Power Supply | 7 Amp switching power supply |
| Notification Appliance Circuits | 4 NAC circuits |
| Detector Management | Sensitivity testing and automatic drift compensation |
| Programming Software | PS-Tools |
| Auto Programming | Supported |
| Optional Communicator | Compatible with optional DACT-UD2 Digital Alarm Communicator/Transmitter |
| Certifications | FM Approved to UL ANSI 864; CSFM; MEA; applicable IBC and CBC seismic listings |
| Weight | 27.3 lbs |
Information About MS-9600LS
The MS-9600LS is a Fire-Lite intelligent addressable FACP that uses LiteSpeed communication technology to poll multiple devices efficiently and detect changes in system status. Each SLC supports up to 159 addressable detectors and 159 addressable control or monitor modules, with an optional SLC-2LS expansion module providing a second loop. The panel operates on standard twisted, unshielded wiring and supports wiring distances of up to 10,000 feet per SLC loop. Its Advanced Fire Technology includes functions such as detector sensitivity testing and automatic drift compensation for connected addressable detection devices.
Key Features:
- Addressable Capacity: Supports up to 318 addressable devices per panel with one SLC loop.
- Expandable Architecture: Supports up to 636 addressable points with the optional SLC-2LS expansion module.
- LiteSpeed Protocol: Polls up to 10 devices simultaneously to improve communication and event reporting speed.
- Fast Event Response: A fully loaded configuration can report an incident and activate notification circuits in under 10 seconds.
- Detector Support: Supports up to 159 addressable detectors per SLC, including smoke, heat, beam, duct, and combination detector types.
- Module Compatibility: Supports up to 159 addressable monitor, control, multi-monitor, dual-monitor, and relay modules per SLC.
- 7 Amp Power Supply: Includes a 7 amp switching power supply distributed across four NAC circuits.
- Advanced Fire Technology: Provides detector sensitivity testing and automatic drift compensation.
The MS-9600LS delivers the reliability and precision required for intelligent addressable fire detection, monitoring, and notification control systems.
