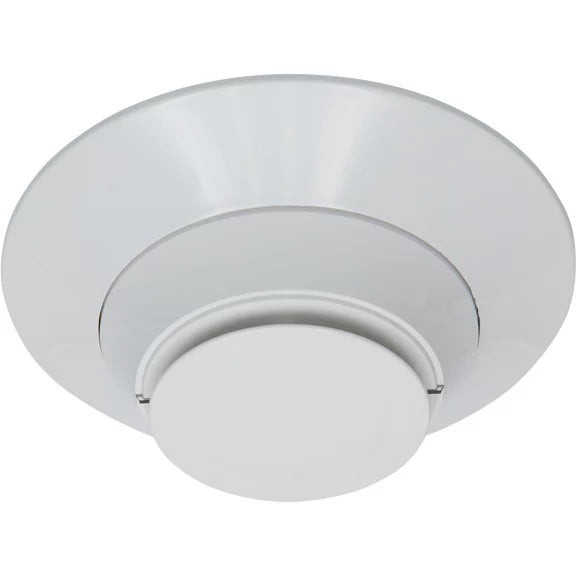

Fire-Lite SD365T-IV Addressable Photoelectric Smoke and Heat Detector
- Regular price
- $419.00
- Sale price
- $419.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SD365T-IV
Description
Fire-Lite SD365T-IV is an addressable photoelectric smoke detector with an integrated 135°F (57°C) fixed-temperature thermal sensor for combined smoke and heat detection. Designed for compatible Fire-Lite addressable fire alarm control panels, it supports LiteSpeed and CLIP communication protocols with analog signaling and individually selectable addressing.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm Systems |
| Part Number | SD365T-IV |
| Subcategory | Addressable Smoke and Heat Detectors |
| Product Series | SD365 |
| Product Type | Addressable Photoelectric Smoke and Heat Detector |
| Sensing Technology | Photoelectric Smoke / Fixed-Temperature Thermal |
| Thermal Rating | 135°F (57°C) |
| Communication Protocols | LiteSpeed / CLIP |
| Communication Type | Analog |
| Operating Voltage | 15–32 VDC |
| Standby Current | Less Than 250 µA |
| Alarm Current | Typically 6 mA |
| Address Setting | Rotary Decimal Address Switches |
| Status Indicators | Dual LEDs with 360° Visibility |
| Operating Temperature | 32°F to 100°F (0°C to 38°C) |
| Humidity Range | 10% to 93% RH, Non-Condensing |
| Dimensions | 6.0 in Diameter × 2.0 in Height |
| Mounting | Ceiling / Surface / Compatible Electrical Box |
| Color | Ivory |
| Weight | 3.4 oz (95 g / 0.21 lb) |
Information About SD365T-IV
The SD365T-IV is a Fire-Lite SD365 Series intelligent detector designed as a direct-generation replacement for compatible SD355 Series applications. It combines an enhanced photoelectric sensing chamber with fixed-temperature thermal detection to identify smoke and elevated temperature conditions from a single addressable device. Compatibility with LiteSpeed and CLIP communication enables integration with supported Fire-Lite addressable control panels, while rotary decimal switches provide individual point addressing. The detector incorporates dual LEDs for 360-degree visual status indication and uses a separate mounting base arrangement that supports installation and detector interchangeability.
Key Features:
-
Dual-Sensor Detection: Combines photoelectric smoke sensing with a 135°F (57°C) fixed-temperature thermal sensor.
-
Addressable Operation: Provides an individually identifiable detection point for compatible Fire-Lite addressable systems.
-
LiteSpeed and CLIP Support: Communicates using supported Fire-Lite LiteSpeed and CLIP protocols.
-
Analog Communication: Transmits detector information to the associated fire alarm control panel for system processing.
-
Rotary Address Switches: Allows straightforward decimal address configuration during installation and servicing.
-
Dual Status LEDs: Provides 360-degree visible local indication of detector status.
-
Low Standby Current: Draws less than 250 µA during normal standby operation.
-
Back-Pressure Protection: Sealed construction helps limit airflow effects through the detector and electrical box.
The SD365T-IV delivers the reliability and precision required for addressable smoke and fixed-temperature heat detection in compatible fire alarm systems.
