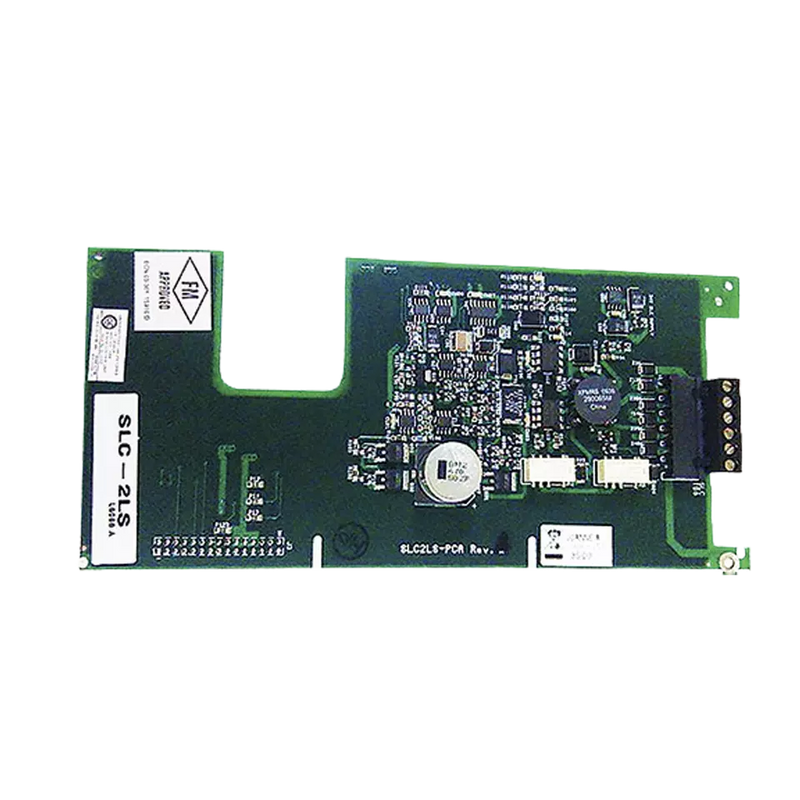

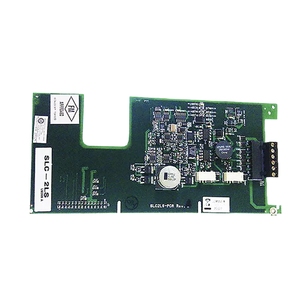

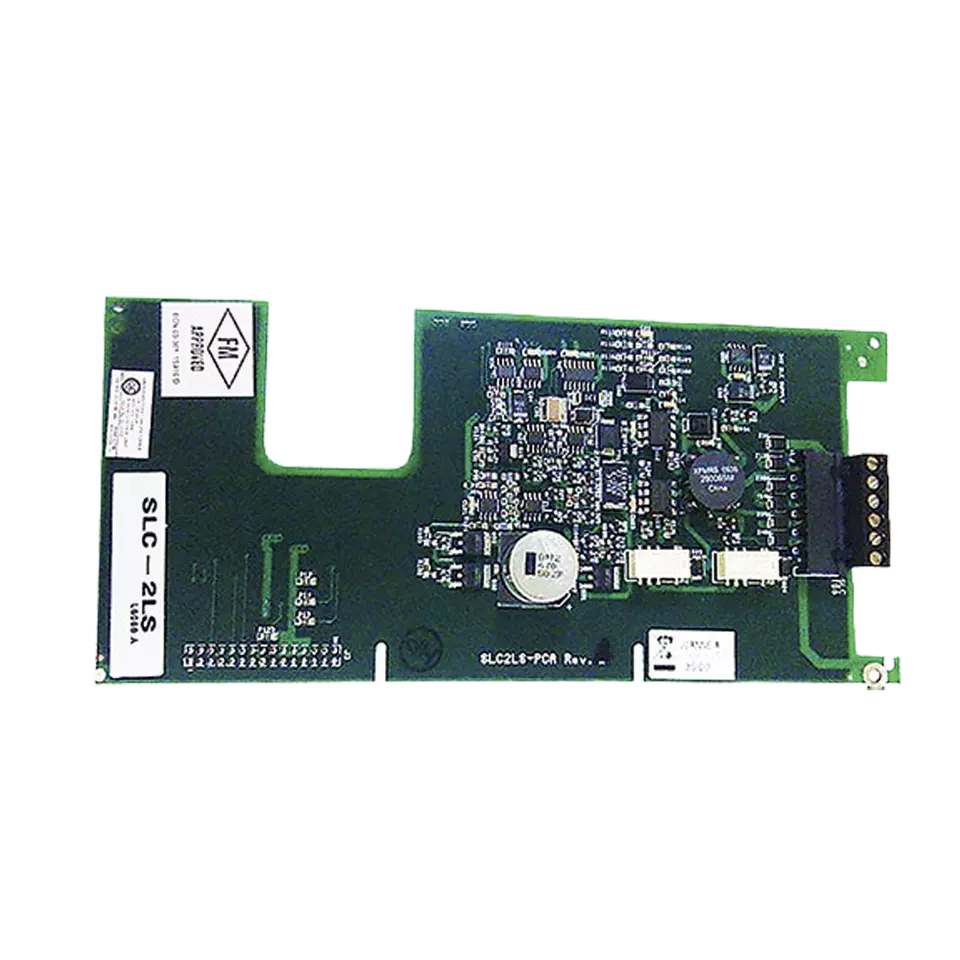

Fire-Lite SLC-2LS Addressable SLC Loop Expander Module
- Regular price
- $477.00
- Sale price
- $477.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SLC-2LS
Description
The Fire-Lite SLC-2LS is an optional Signaling Line Circuit expander module designed to add a second intelligent addressable loop to compatible MS-9600LS(E) and MS-9600UDLS(E) fire alarm control panels. It expands system capacity from 318 to 636 addressable points while maintaining LiteSpeed communication performance and flexible Class A or Class B wiring configurations. The module is used for larger fire alarm installations requiring additional device capacity without replacing the existing control panel.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm Systems |
| Part Number | SLC-2LS |
| Subcategory | SLC Loop Expander Module |
| Product Type | Signaling Line Circuit Expansion Module |
| Compatible Panels | MS-9600LS(E), MS-9600UDLS(E) |
| Added Circuits | 1 additional SLC loop |
| Total Panel Capacity After Expansion | Up to 636 intelligent addressable points |
| Communication Protocol | LiteSpeed Protocol |
| Detector Capacity per SLC | Up to 159 detectors |
| Module Capacity per SLC | Up to 159 monitor, control, or relay modules |
| Wiring Styles | NFPA Style 4, Style 6, Style 7 |
| Loop Type | Intelligent Addressable SLC |
| Installation Type | Internal control panel expansion module |
| Application | Addressable fire alarm system expansion |
| Supported Devices | Fire-Lite intelligent detectors and addressable modules |
| Communication Method | Digital polling communication |
| Operating Environment | Commercial fire alarm installations |
| Weight | Approximately 0.50 lbs |
Information About SLC-2LS
The SLC-2LS is part of the Fire-Lite addressable system expansion module family, developed to increase the loop capacity of MS-9600LS(E) and MS-9600UDLS(E) fire alarm control panels. The module adds a second Signaling Line Circuit that supports intelligent detectors, monitor modules, control modules, and relay modules using the same LiteSpeed protocol as the primary loop. It allows each SLC to support up to 159 detectors and 159 addressable modules while maintaining compatibility with NFPA Style 4, Style 6, and Style 7 configurations. The SLC-2LS provides a cost-effective expansion solution for commercial fire alarm systems requiring additional coverage and device integration.
Key Features:
- Second SLC Expansion: Adds an additional Signaling Line Circuit to compatible Fire-Lite fire alarm control panels.
- MS-9600LS Compatibility: Designed specifically for MS-9600LS(E) and MS-9600UDLS(E) addressable control panels.
- Increased System Capacity: Expands panel capability from 318 to 636 intelligent addressable points.
- LiteSpeed Protocol Support: Uses the same high-speed communication protocol as the panel’s primary SLC loop.
- Detector Capacity: Supports up to 159 intelligent detectors on each SLC.
- Module Capacity: Supports up to 159 monitor, control, or relay modules per SLC.
- Flexible Wiring Configurations: Supports NFPA Style 4, Style 6, and Style 7 SLC operation.
- High-Speed Device Polling: Enables efficient communication by polling multiple devices simultaneously.
- Large System Expansion: Allows larger facilities to use one expanded fire alarm control panel instead of multiple panels.
- Addressable Device Integration: Supports Fire-Lite intelligent detectors and addressable modules.
- Plug-In Expansion Design: Provides straightforward installation within compatible control panel assemblies.
- Commercial Fire Protection Support: Designed for schools, offices, healthcare facilities, and industrial applications.
The SLC-2LS delivers the reliability and precision required for intelligent fire alarm loop expansion and large-scale addressable system integration.
