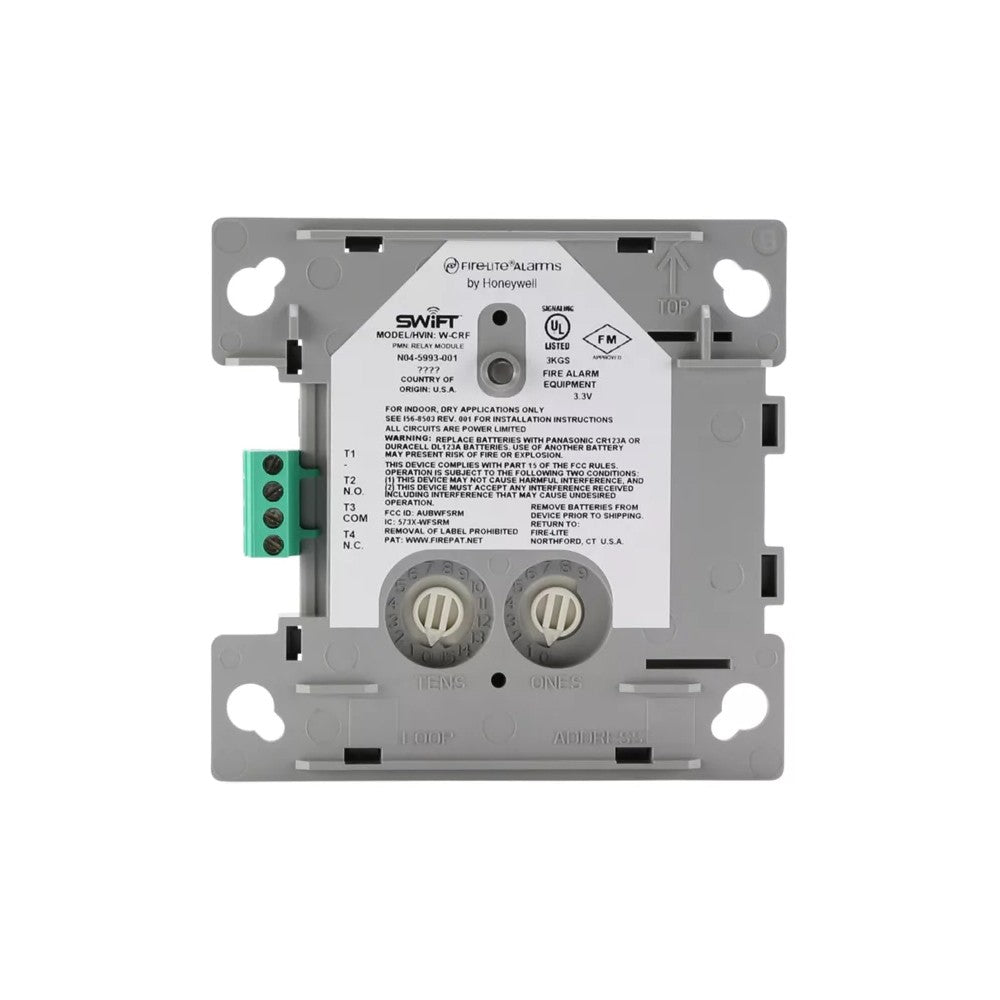

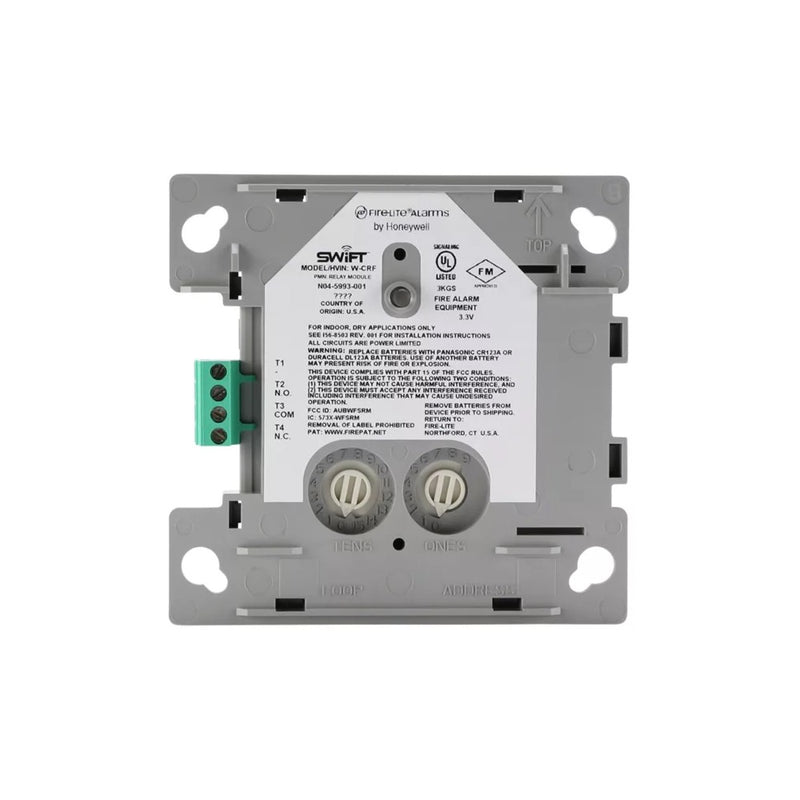

Fire-Lite W-CRF SWIFT Wireless Addressable Form C Relay Module 902–928 MHz
- Regular price
- $497.00
- Sale price
- $497.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: W-CRF
Description
The Fire-Lite W-CRF is a SWIFT wireless addressable relay module designed to provide remotely controlled switching functions within compatible Fire-Lite fire alarm systems. Fire-Lite part number W-CRF uses a secure 902–928 MHz Class A wireless mesh network and provides an isolated Form C SPDT relay for functions such as elevator recall, door-holder release, fan shutdown, and auxiliary equipment control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm & Life Safety |
| Part Number | W-CRF |
| Subcategory | Wireless Relay Modules |
| Series | SWIFT |
| Product Type | Wireless Addressable Relay Module |
| Relay Type | Isolated Form C / SPDT |
| Relay Contacts | Normally Open, Normally Closed, Common |
| Relay Contact Rating | 2 A @ 30 VDC Resistive; 0.5 A @ 30 VAC Resistive |
| Wireless Frequency | 902–928 MHz |
| Network Type | Class A Wireless Mesh Network |
| Communication | Bidirectional Wireless |
| Addressing | Rotary Address Code Wheels |
| Power Source | 4 × CR123A Lithium Batteries |
| Battery Voltage | 3 VDC per Battery |
| Status Indication | Panel-Controlled LED |
| Typical Applications | Elevator Recall, Door Holders, Fan Shutdown, Remote Power Supply Control |
| Compatible Systems | Selected Fire-Lite FACPs using a compatible SWIFT Wireless Gateway |
| Compatible Panel Families | ES-200X, ES-50X, MS-9600 Series, MS-9200 Series in Supported Configurations |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Operating Humidity | 10–93% RH, Non-Condensing |
| Listings / Approvals | UL Listed, FM Approved, CSFM Listed |
| UL Listing | S2424 |
| FCC ID | AUBWFSRM |
| Weight | Approx. 0.5 lb |
Information About W-CRF
The W-CRF is a SWIFT Series intelligent wireless control relay module that integrates auxiliary switching functions into compatible Fire-Lite addressable fire alarm systems without requiring a conventional wired SLC connection to the module location. It communicates bidirectionally through a cascading Class A mesh network, where compatible SWIFT devices can participate in extending the wireless communication path between field devices and the system gateway. The module contains one isolated Form C relay with normally open, normally closed, and common contacts, while addressable code wheels provide individual device identification and a panel-controlled LED indicates operating status. Powered by four CR123A lithium batteries, the W-CRF is particularly suited to installations where new wiring is difficult, disruptive, expensive, or undesirable.
Key Features:
- Wireless Relay Control: Allows a compatible fire alarm control panel to operate an isolated relay through wireless code commands.
- Form C Relay: Provides an isolated SPDT contact set with normally open, normally closed, and common terminals.
- SWIFT Technology: Integrates with Fire-Lite SWIFT wireless fire alarm devices and compatible system gateways.
- Class A Mesh Network: Uses redundant wireless communication paths to provide reliable bidirectional device connectivity.
- 902–928 MHz Operation: Communicates within the SWIFT frequency band for commercial fire alarm applications.
- Cascading Mesh Architecture: Compatible wireless devices can participate in relaying communications through the mesh network.
- Addressable Operation: Rotary code wheels provide individual address selection and point identification at the control panel.
- Battery Powered: Operates from four CR123A lithium batteries, eliminating the need for local module power wiring.
- Panel-Controlled LED: Integral LED provides visual indication under control of the compatible fire alarm panel.
- Auxiliary Equipment Control: Suitable for elevator recall, door holders, fan shutdown, remote power-supply activation, and similar control functions.
- Wired/Wireless Integration: Allows wireless devices to operate alongside conventional wired devices on supported fire alarm systems.
- Flexible Installation: Reduces wiring requirements in finished buildings, concrete construction, historic structures, and other difficult retrofit environments.
The W-CRF delivers the reliability and precision required for wireless auxiliary equipment switching and addressable control in commercial fire alarm systems.
