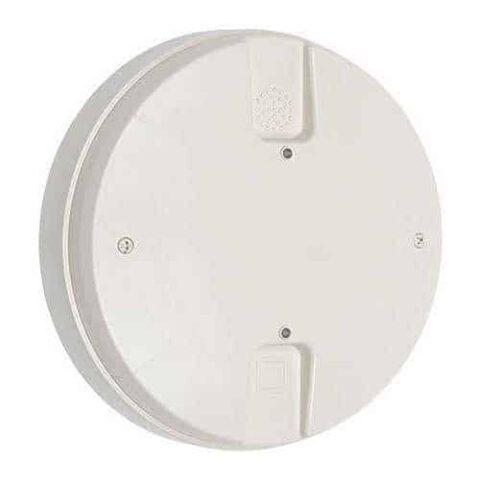

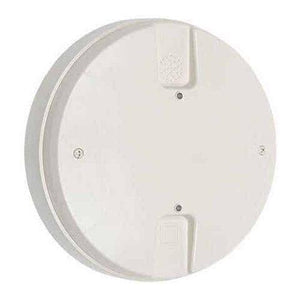

Fire-Lite WSGSLCV3.0 W-GATE SWIFT Wireless Fire Alarm Gateway 902–928 MHz
- Regular price
- $549.00
- Sale price
- $549.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WSGSLCV3.0.
Description
The Fire-Lite WSGSLCV3.0 is a SWIFT wireless gateway used to connect compatible Fire-Lite addressable fire alarm control panels with SWIFT wireless detectors and modules. Fire-Lite part number WSGSLCV3.0 provides bidirectional 902–928 MHz mesh communication, SLC integration, and supervised wireless device connectivity for applications where conventional field wiring is difficult or impractical.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm & Life Safety |
| Part Number | WSGSLCV3.0 |
| Subcategory | Wireless Fire Alarm Gateways |
| Product Model | W-GATE |
| Series | SWIFT |
| Product Type | Wireless Fire Alarm Gateway |
| Panel Interface | LiteSpeed SLC |
| External Supply Voltage | 18–30 VDC |
| SLC Voltage Range | 15–30 VDC |
| Maximum Current — External Supply | 40 mA |
| Maximum Current — SLC Power | 24 mA |
| Maximum SLC Resistance | 50 ohms |
| Wireless Frequency Range | 902–928 MHz |
| Maximum RF Output Power | +17 dBm |
| Network Architecture | Class A Wireless Mesh |
| Communication Type | Bidirectional |
| Wireless Device Capacity | Up to 48 SWIFT Detectors or Modules |
| Display Support | One Compatible Display Driver per Mesh, if Required |
| Network Quantity | Up to 4 Overlapping Wireless Networks in Supported Installations |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Operating Humidity | 10–93% RH, Non-Condensing |
| Dimensions | 1.875 in H × 7.875 in Diameter |
| Listings / Approvals | UL Listed, ULC Listed, FM Approved, CSFM Listed |
| UL Listing | S2424 |
| FCC ID | PV3WFSGW |
| Weight | 0.2 lb |
Information About WSGSLCV3.0.
The WSGSLCV3.0 is a Fire-Lite W-GATE SWIFT gateway that serves as the bridge between a compatible LiteSpeed SLC loop and a SWIFT wireless fire alarm mesh network. It can be powered directly from the SLC or from an external regulated 24 VDC source and communicates with supported panels using LiteSpeed protocol while using a proprietary wireless protocol for field devices. One gateway is used for each wireless mesh and supports up to 48 SWIFT detectors or modules plus one compatible display driver where required. The gateway is intended for commercial fire alarm systems, retrofit projects, historic buildings, concrete structures, and other installations where adding conventional wiring would be costly, disruptive, or difficult.
Key Features:
- SWIFT Wireless Gateway: Bridges compatible Fire-Lite fire alarm control panels and SWIFT wireless field devices.
- 902–928 MHz Operation: Uses the lower ISM frequency band for supervised commercial fire alarm communication.
- Class A Mesh Networking: Provides redundant communication paths between compatible wireless devices.
- LiteSpeed SLC Interface: Connects directly to a compatible Fire-Lite signaling line circuit using LiteSpeed communication.
- Large Device Capacity: Supports up to 48 SWIFT detectors or modules plus one display driver per wireless mesh.
- Dual Power Options: Can operate from the SLC circuit or an external regulated 24 VDC power source.
- Bidirectional Communication: Transfers alarms, troubles, supervisory conditions, commands, and device status between the FACP and wireless network.
- Cascading Mesh Technology: Wireless devices can communicate through neighboring devices to maintain reliable network paths.
- Network Supervision: Continuously monitors wireless communication integrity and reports applicable trouble conditions.
- Site Survey Support: Works with SWIFT Tools for pre-installation RF evaluation, configuration, and network diagnostics.
- Multiple Network Capability: Supports installations with multiple overlapping SWIFT wireless meshes when properly configured.
- Retrofit-Friendly Design: Reduces wiring requirements in finished, inaccessible, or architecturally sensitive areas.
The WSGSLCV3.0 delivers the reliability and precision required for supervised wireless fire alarm networking, SLC integration, and addressable device communication.
