FIRERAY 5000-103 Reflective Auto-Align Beam Smoke Detector System
- Regular price
- $1,019.00
- Sale price
- $1,019.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5000-103
Description
FIRERAY 5000-103 is a reflective auto-aligning optical beam smoke detector system designed for wide-area fire detection where conventional point detectors are impractical. The system includes a detector head, system controller, and one reflector, with a detection range of 26.2 to 330 ft (8 to 100 m).
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | FIRERAY |
| Category | Fire Safety |
| Part Number | 5000-103 |
| Subcategory | Beam Smoke Detectors |
| Product Type | Reflective Optical Beam Smoke Detector System |
| Detection Range | 26.2–330 ft (8–100 m) |

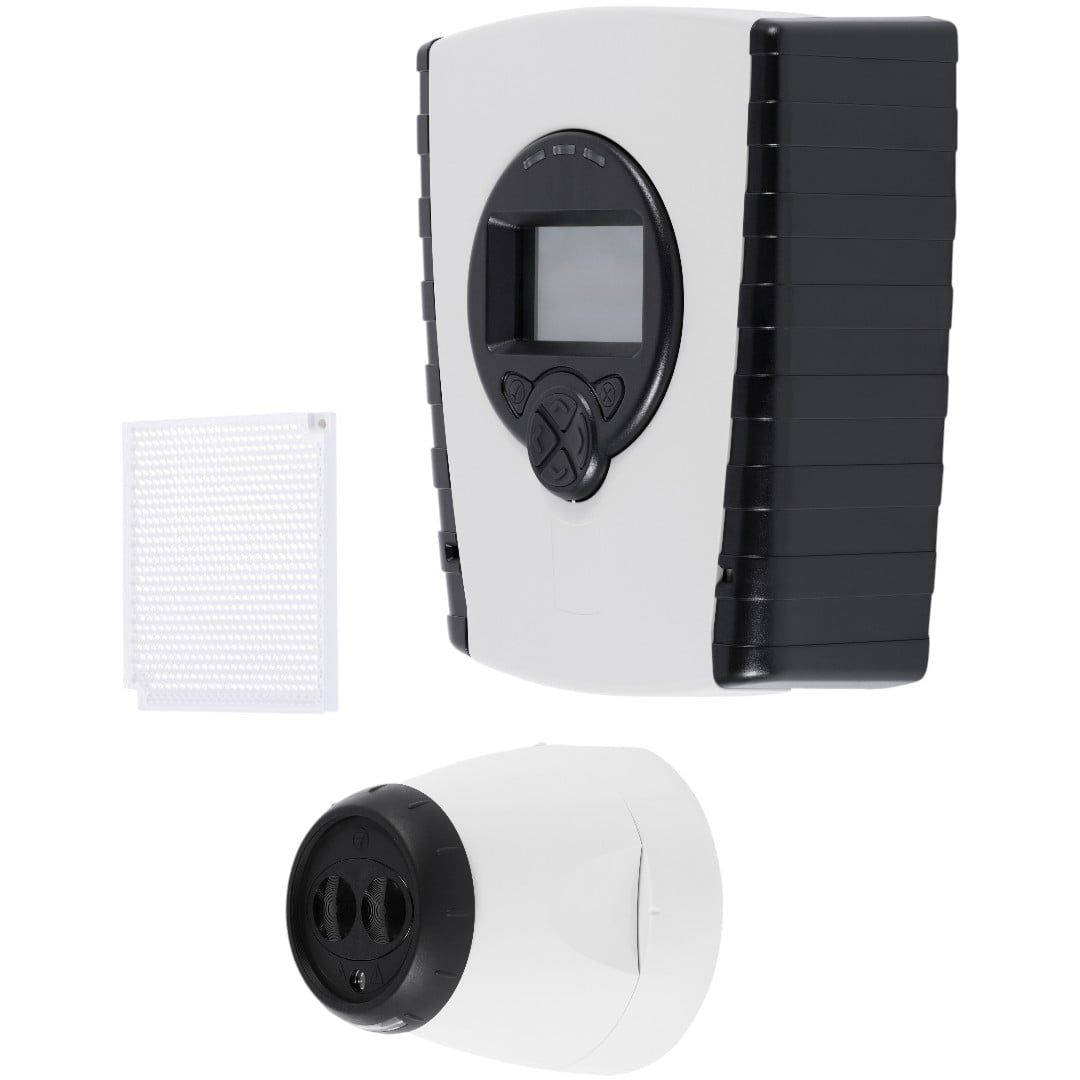

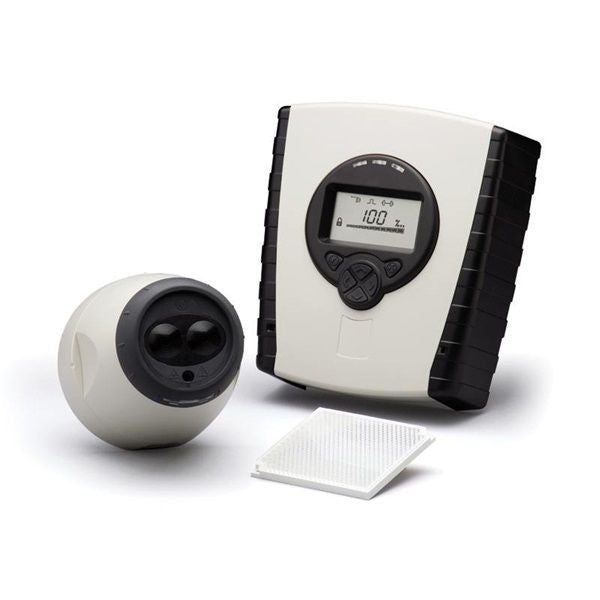

| System Components | 1 detector head, 1 system controller, 1 prism/reflector |

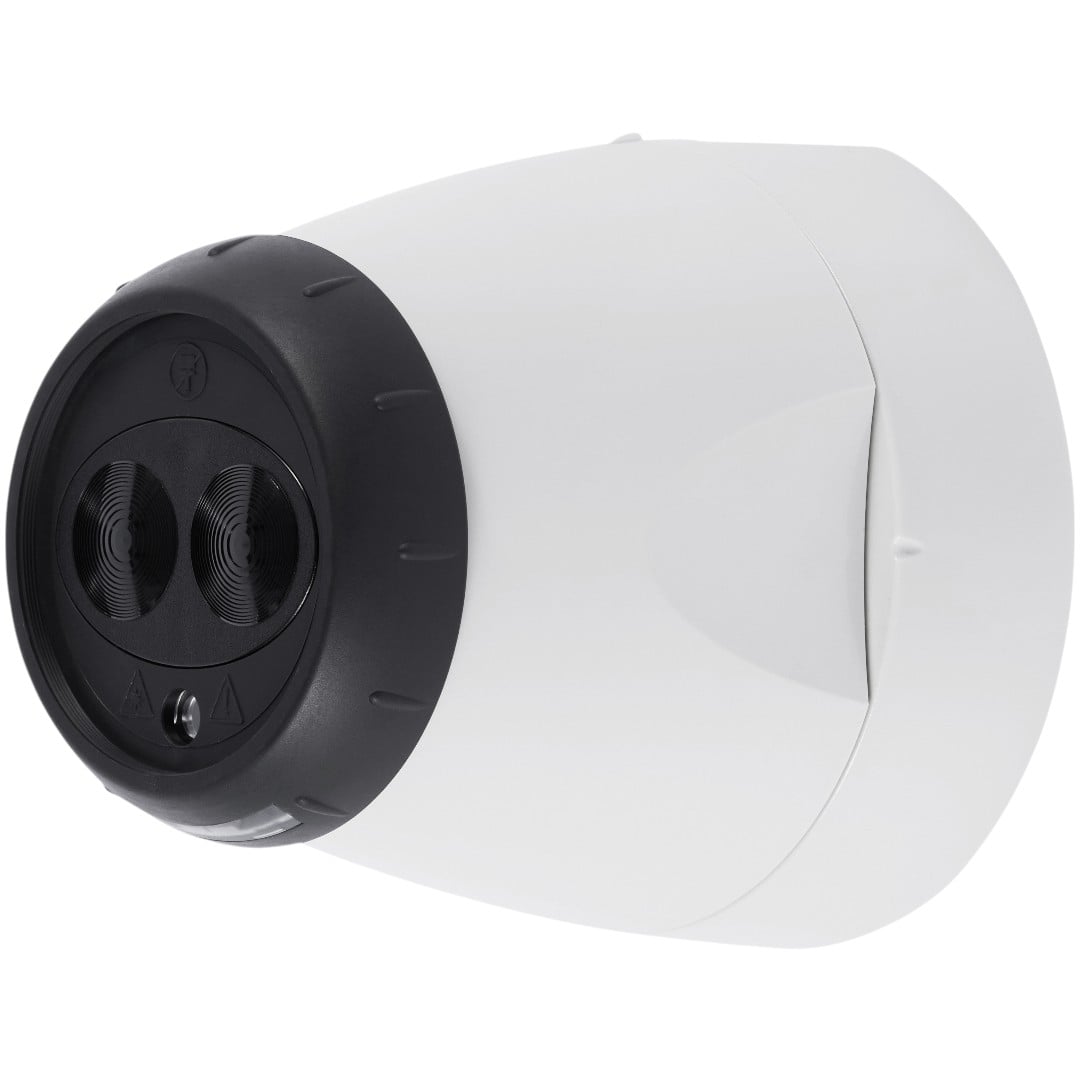

| Detector Head Dimensions | 5.27 × 5.15 × 5.27 in (134 × 131 × 134 mm) |

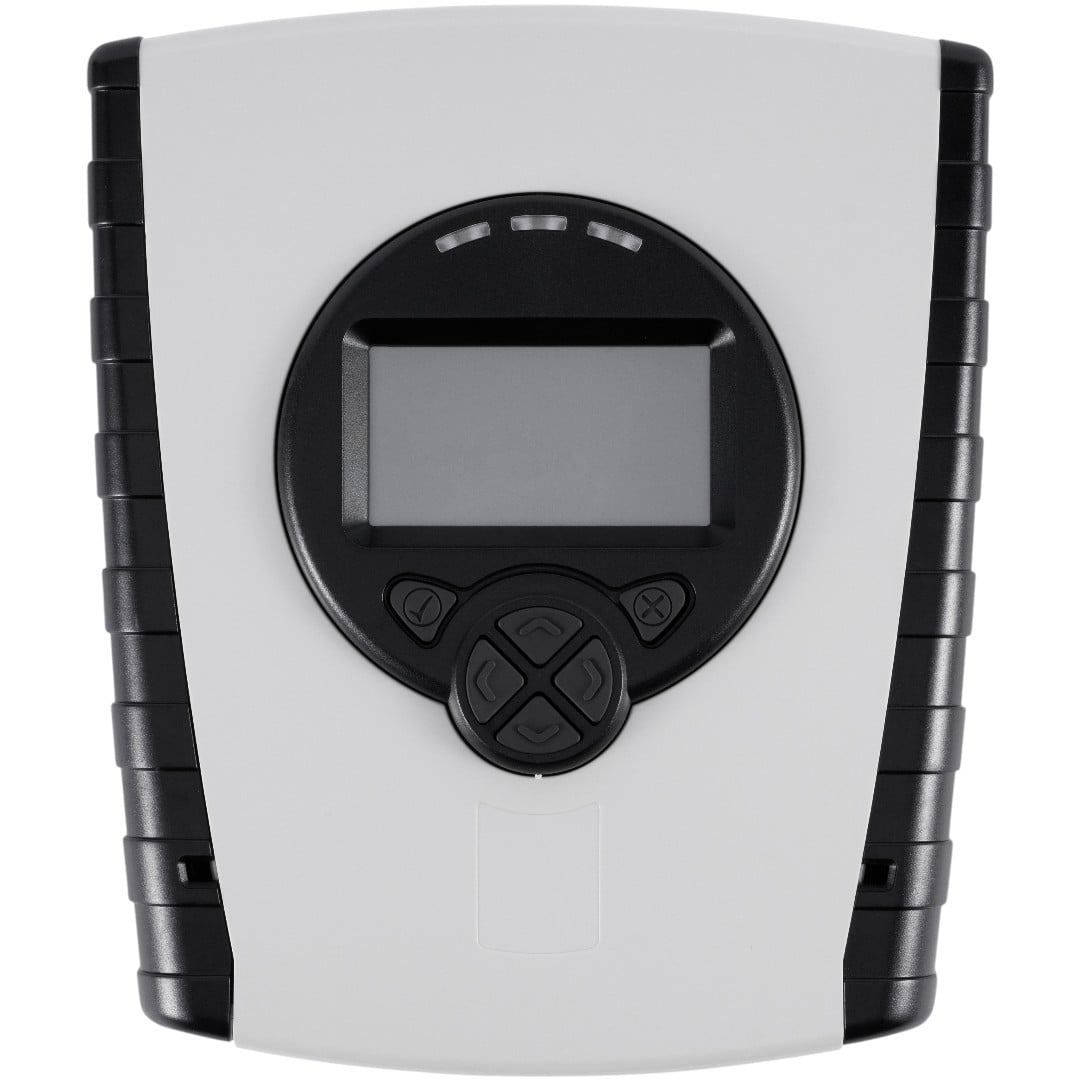

| Controller Dimensions | 7.95 × 9 × 3.42 in (202 × 230 × 87 mm) |
| Reflector Dimensions | 7.87 × 7.87 × 0.39 in (200 × 200 × 10 mm) |
| Operating Voltage | 10.2–30 VAC/DC |
| Detection Type | Reflective beam |
| Alignment | Automatic motorized alignment |
| Weight | 4.6 lb |
Information About 5000-103
The 5000-103 is part of the FIRERAY 5000 series of motorized reflective beam smoke detection systems. It uses an infrared optical beam between the detector head and reflector to identify smoke obscuration across large open spaces. Automatic alignment and contamination compensation help maintain detector operation as environmental conditions change. The system can accommodate up to two detector heads per controller and is suitable for applications such as warehouses, atriums, and other large-volume areas.
Key Features:
- Reflective Beam Detection: Uses an optical beam to detect smoke across large open areas.
- Auto Alignment: Motorized alignment simplifies initial beam positioning and system setup.
- Extended Detection Range: Covers distances from 26.2 to 330 ft (8 to 100 m).
- Integrated Controller: Provides centralized configuration and monitoring for the beam detector.
- Contamination Compensation: Helps maintain reliable operation as optical surfaces become contaminated.
- Single Reflector System: 5000-103 includes one reflector for the specified detection arrangement.
- Expandable Configuration: Supports up to two detector heads per system controller.
- Low Current Operation: Designed for efficient operation in fire detection installations.
The 5000-103 delivers long-range optical smoke detection and automated alignment for dependable fire protection in large-area applications.
