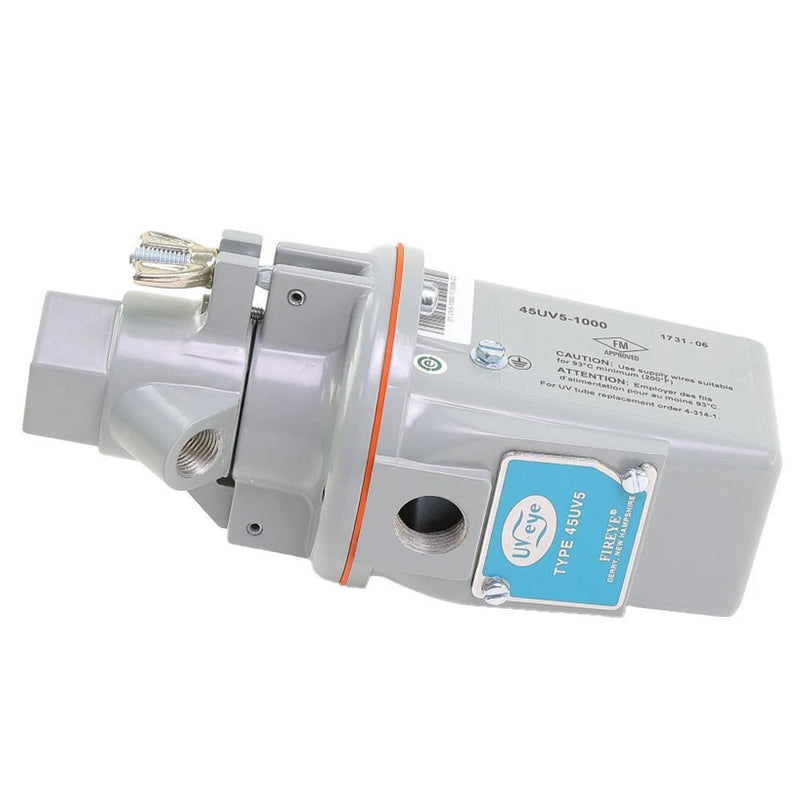

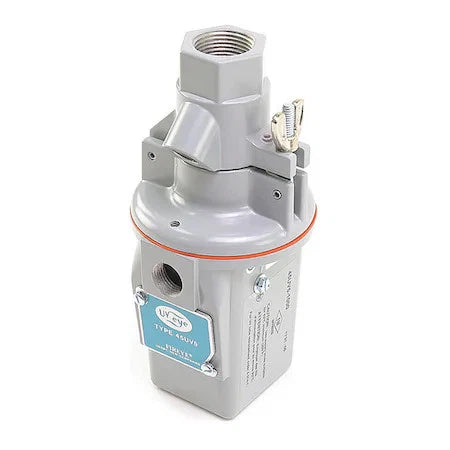

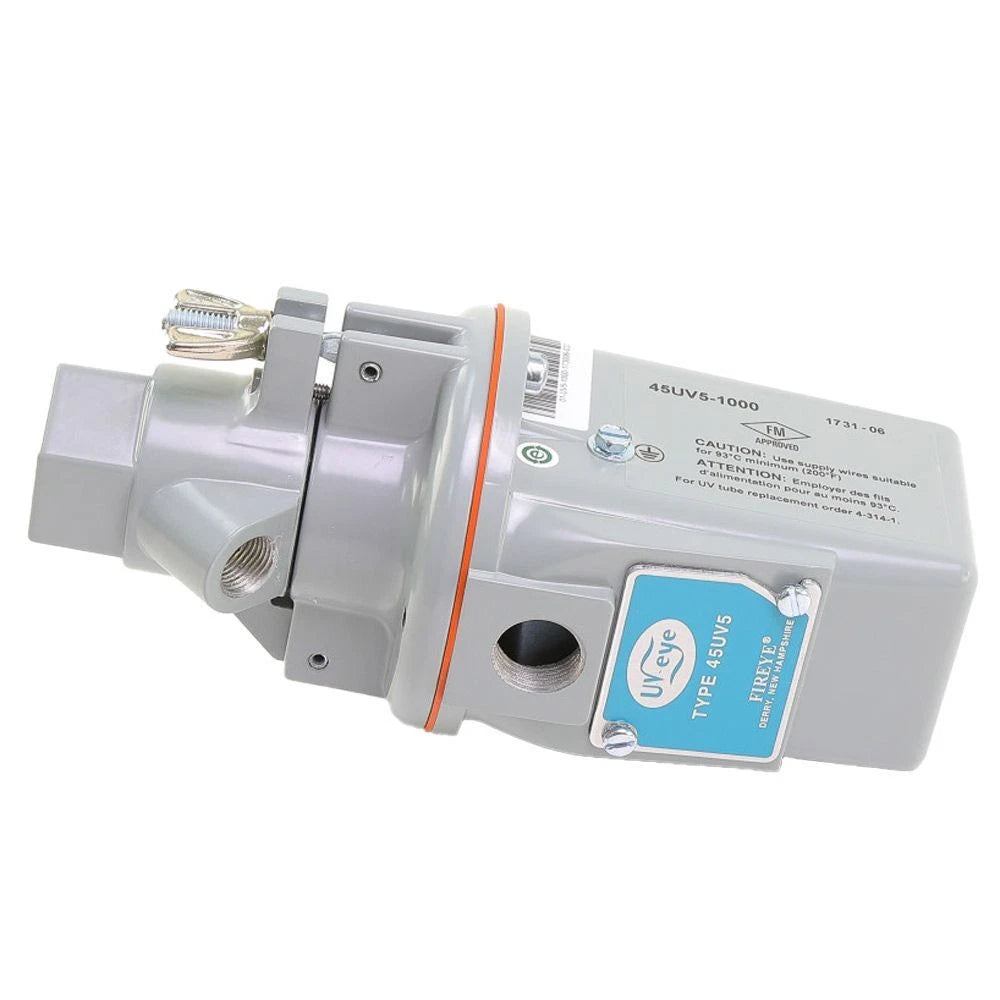

Fireye 45UV5-1000 Self-Checking UV Flame Scanner 120 VAC 60 Hz 1-Inch NPT
- Regular price
- $1,087.00
- Sale price
- $1,087.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 45UV5-1000
Description
The Fireye 45UV5-1000 is a self-checking ultraviolet flame scanner designed for continuous flame supervision on industrial gas and oil-fired combustion equipment. Fireye part number 45UV5-1000 operates at 120 VAC, 60 Hz and incorporates an electromagnetic shutter that allows a compatible Fireye control to continuously verify scanner and flame-signal circuit operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Combustion Controls |
| Part Number | 45UV5-1000 |
| Subcategory | Flame Scanners |
| Series | Fireye 45UV5 Series |
| Product Type | Self-Checking Ultraviolet Flame Scanner |
| Detection Technology | Ultraviolet (UV) |
| Detector Type | Gas-Filled UV-Sensitive Tube |
| Self-Check Method | Electromagnetic Shutter |
| Operating Voltage | 120 VAC |
| Frequency | 60 Hz |
| Electrical Power Requirement | 4 VA AC from Associated Fireye Control |
| Mounting Connection | 1 in Female NPT |
| Purge Air Connection | 3/8 in NPT |
| Purge Air Requirement | Approx. 4 SCFM (113 L/min) Minimum |
| Housing Material | Die-Cast Aluminum |
| Operating Temperature Range | -40°F to 200°F (-40°C to 93°C) |
| Optical Range | 190–250 nm |
| Primary Applications | Boilers, Furnaces, Incinerators, Process Heaters, Industrial Burners |
| Weight | Approx. 3.75 lb (1.7 kg) |
Information About 45UV5-1000
The 45UV5-1000 is a member of the Fireye 45UV5 Series of self-checking ultraviolet flame scanners for single- and multi-burner industrial combustion systems. Its die-cast aluminum housing incorporates a UV-sensitive detector tube, quartz lens, electromagnetic self-check shutter, 1-inch NPT sight-pipe connection, and a separate 3/8-inch NPT purge-air connection. The scanner interfaces with compatible Fireye Flame-Monitor, BurnerLogix, D-Series, FlameWorx, MicroM, 25SU3, and 25SU5 control configurations when paired with the appropriate amplifier or control hardware. It is particularly suited to continuously operating boilers, furnaces, process heaters, and incinerators where periodic verification of the scanner and associated flame-signal circuitry is required.
Key Features:
- Self-Checking UV Detection: Uses an electromagnetic shutter to periodically interrupt incoming ultraviolet radiation and verify proper scanner response.
- UV-Eye Detector Technology: Detects ultraviolet energy produced by natural gas, propane, methane, butane, kerosene, diesel, and light petroleum flames.
- 120 VAC Operation: Configured for compatible 120 VAC Fireye flame safeguard systems.
- 60 Hz Configuration: Scanner operating frequency is designed for 60 Hz control and power systems.
- 1-Inch NPT Mounting: Female threaded connection provides secure installation on a compatible burner sight pipe.
- Purge Air Connection: Includes a 3/8-inch NPT inlet for clean cooling and lens-purge air.
- Quartz Optical System: Uses a quartz lens to transmit ultraviolet radiation effectively to the detector.
- UV-Selective Response: Optical detection is insensitive to visible light and infrared radiation within the scanner's specified response characteristics.
- Individual Burner Monitoring: Can be sighted to discriminate the monitored burner flame from adjacent burners and background flame radiation.
- Continuous-Duty Capability: Self-checking operation supports burners that operate continuously or for extended firing periods.
- Industrial Housing: Die-cast aluminum construction provides a durable enclosure for demanding burner-front environments.
- Serviceable Construction: Hinged mounting arrangement facilitates scanner removal and access for inspection and lens cleaning.
The 45UV5-1000 delivers the reliability and precision required for continuous flame supervision and flame-failure protection in industrial burner management systems.
