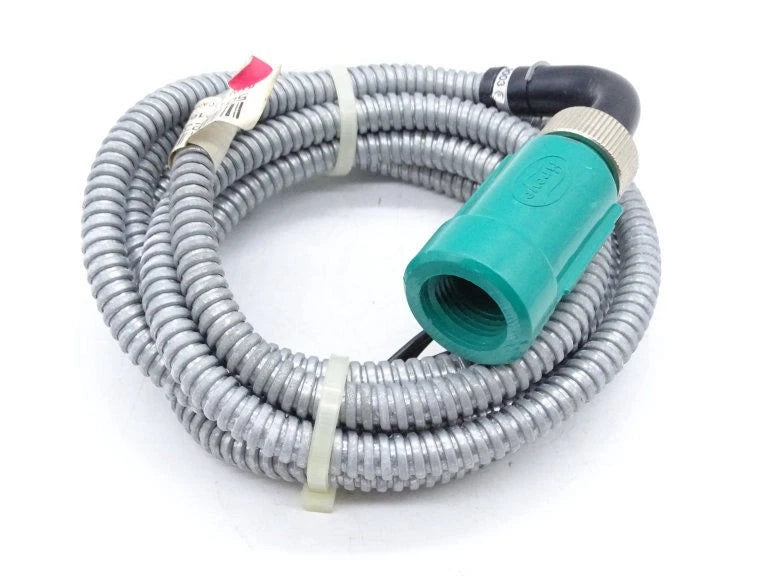

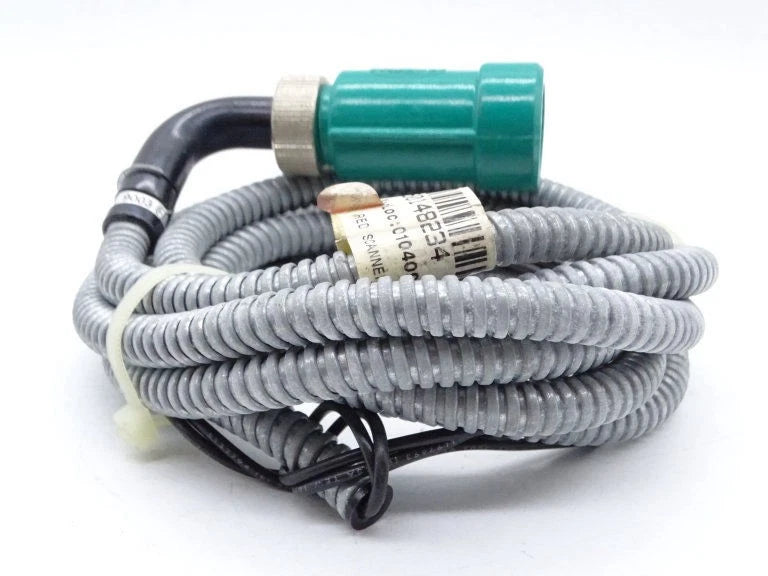

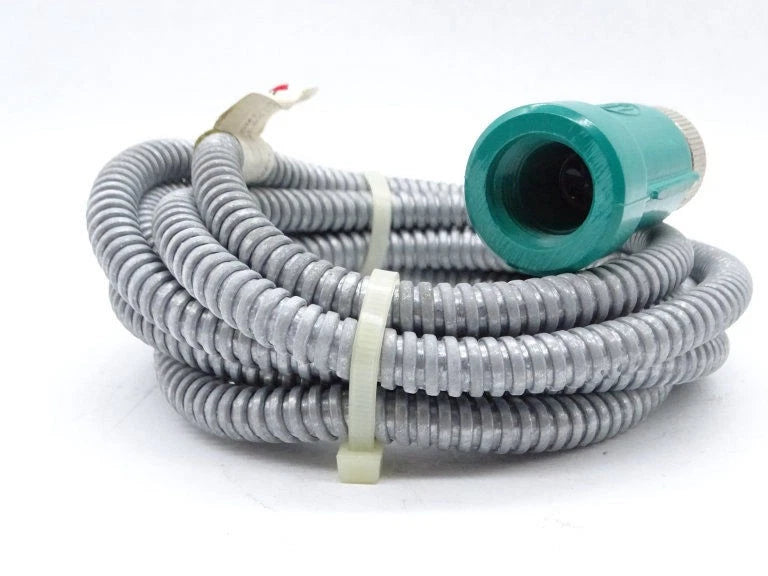

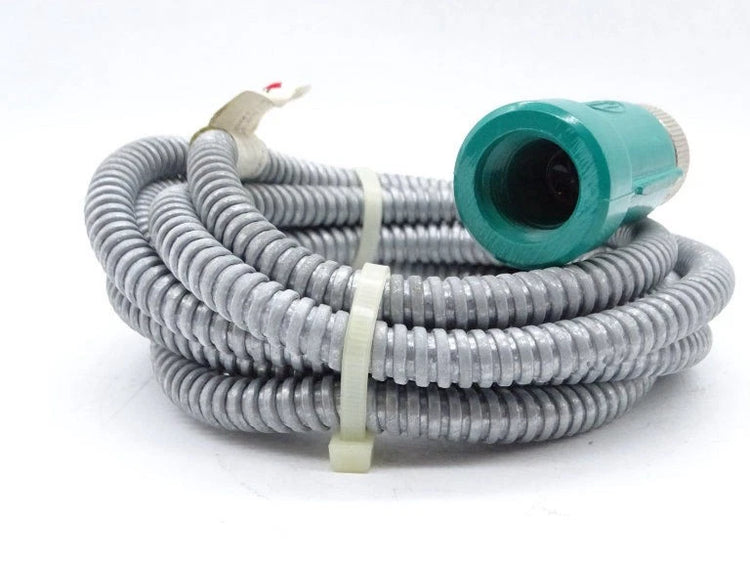

Fireye 48PT2-9003 90-Degree Infrared Flame Scanner 8-Foot TC-ER Cable 1/2-Inch Mount
- Regular price
- $412.00
- Sale price
- $412.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 48PT2-9003
Description
The Fireye 48PT2-9003 is an infrared flame scanner designed to detect and supervise flames on gas, oil, and coal-fired burner systems. Fireye part number 48PT2-9003 combines a space-saving 90-degree angled head, 1/2-inch mounting connection, and 8-foot TC-ER tray-rated cable for integration with compatible Fireye flame safeguard controls.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Combustion Controls |
| Part Number | 48PT2-9003 |
| Subcategory | Flame Scanners |
| Series | Fireye 48PT2 Series |
| Product Type | Infrared Flame Scanner |
| Detection Technology | Infrared (IR) |
| Scanner Configuration | 90° Angled Head |
| Mounting Connection | 1/2 in |
| Cable Length | 8 ft / 96 in (2438 mm) |
| Cable Rating | Tray Cable – Exposed Run (TC-ER) |
| Typical Fuel Applications | Gas / Oil / Coal |
| Operating Temperature Range | -40°F to 140°F (-40°C to 60°C) |
| Compatible Control Families | BurnerLogix, Flame-Monitor / E-Series, MicroM, FlameWorx, D-Series |
| Compatible Flame-Monitor Amplifiers | E1R1 / Applicable E1R Series Configurations |
| Replacement Photo Detector | Fireye 4-263-1 |
| Primary Application | Burner Flame Detection and Flame Safeguard Systems |
| Approvals | cULus Listed / FM Approved / CE Certified |
| Weight | Approx. 0.6 lb (0.27 kg) |
Information About 48PT2-9003
The 48PT2-9003 is part of the Fireye 48PT2 Series of infrared flame scanners used with commercial and industrial combustion safety systems. Its angled construction positions the infrared detector at 90 degrees to the mounting axis, making the scanner suitable for burner installations where clearance prevents convenient use of a straight-head detector. The scanner is used with compatible Fireye BurnerLogix, Flame-Monitor/E-Series, MicroM, FlameWorx, and legacy D-Series configurations when paired with the appropriate infrared flame-sensing circuitry. An integral 96-inch (2438 mm) TC-ER cable provides additional wiring reach while the infrared detector supplies flame-presence information used by the associated safeguard control for burner supervision.
Key Features:
- Infrared Flame Detection: Detects infrared radiation produced by gas, oil, and coal burner flames.
- 90-Degree Scanner Head: Angled configuration simplifies installation where space around the burner sighting location is restricted.
- 1/2-Inch Mounting Connection: Provides a compact threaded mounting interface for compatible burner sighting arrangements.
- 8-Foot Integral Cable: Includes 96 inches (2438 mm) of cable for convenient connection to associated control equipment.
- TC-ER Cable Rating: Tray Cable – Exposed Run construction supports suitable industrial cable-routing installations.
- BurnerLogix Compatibility: Supports applicable Fireye BurnerLogix configurations equipped for 48PT2 infrared flame detection.
- Flame-Monitor Compatibility: Can be used with appropriate E-Series Flame-Monitor infrared amplifier configurations.
- MicroM Compatibility: Supports compatible Fireye MicroM burner safeguard systems configured for infrared detection.
- Multiple Fuel Capability: Suitable for flame supervision on compatible gas, oil, and coal-fired combustion equipment.
- Replaceable Detector Element: The 48PT2 scanner family uses Fireye 4-263-1 as the replacement photo detector.
- Industrial Temperature Range: Designed for scanner ambient temperatures from -40°F to 140°F (-40°C to 60°C).
- Safety Approvals: Applicable configurations carry cULus, FM, and CE approvals.
The 48PT2-9003 delivers the reliability and precision required for infrared flame detection and burner safety supervision in industrial and commercial combustion systems.
