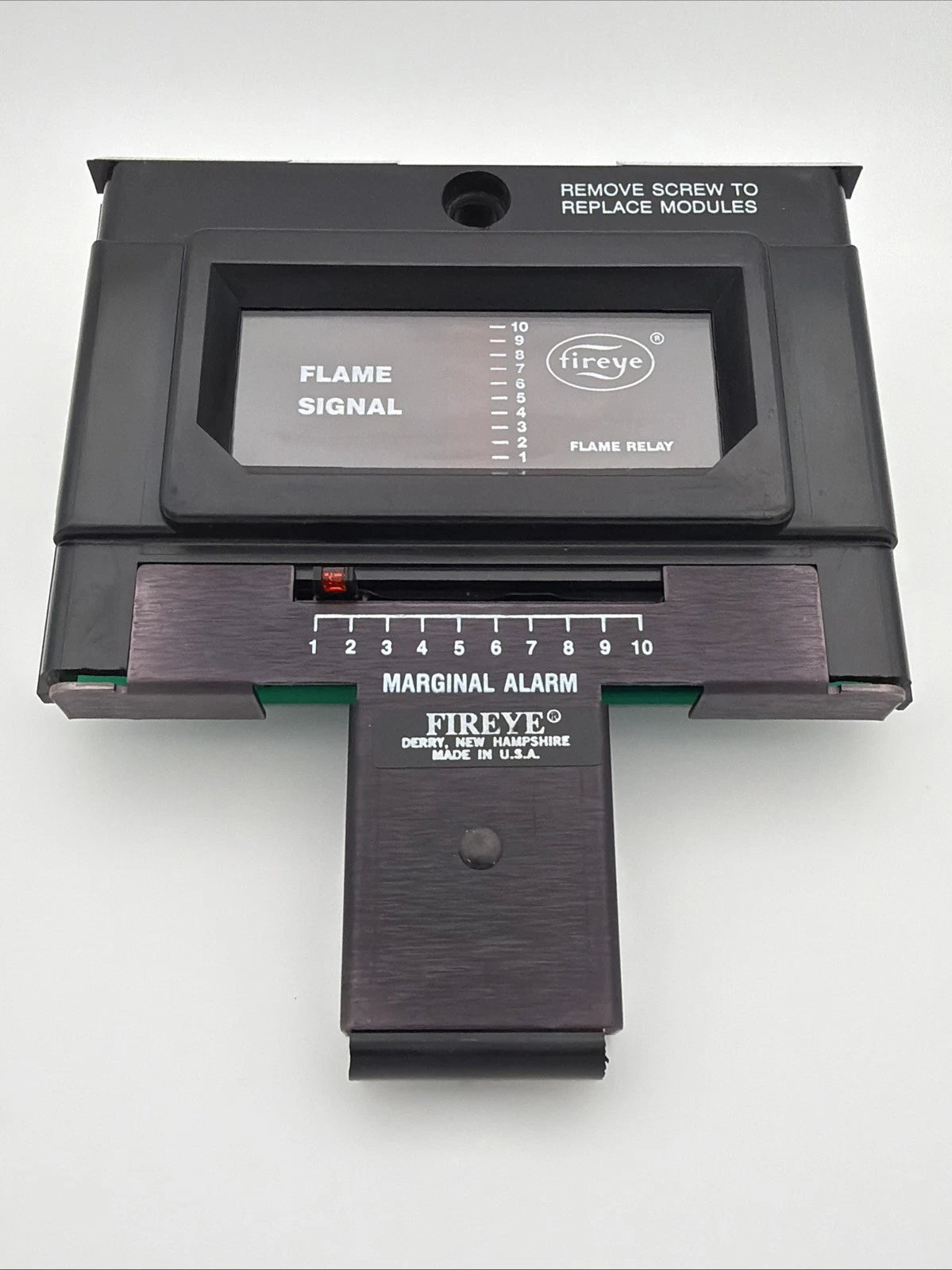

Fireye 60-2205 Bar Graph Display Module for 25SU5 and 25SU3 Flame Safeguard Controls
- Regular price
- $1,502.00
- Sale price
- $1,502.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 60-2205
Description
The Fireye 60-2205 is an optional bar graph display module designed to provide visual flame-signal monitoring and alarm indication for compatible Fireye 25SU5 and 25SU3 flame safeguard controls. Fireye part number 60-2205 uses a 10-LED vertical flame-strength display together with flame relay and marginal alarm indicators to give operators immediate feedback on combustion flame conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Combustion Controls |
| Part Number | 60-2205 |
| Subcategory | Display Modules |
| Product Type | Bar Graph Display Module |
| Display Type | Vertical LED Bar Graph |
| Number of Bar Graph LEDs | 10 |
| LED Scale | 1 through 10 |
| Flame Signal Range Indication | Approx. 0.3 to 3.0 VDC |
| Flame Relay Indication | Dedicated LED |
| Marginal Alarm Indication | Dedicated LED |
| Marginal Alarm Adjustment | Front-Panel Setpoint Potentiometer |
| Analog Output Support | 0-20 mA DC through compatible control system |
| Compatible 25SU5 Controls | 25SU5-5011, 25SU5-5012, 25SU5-5013 |
| Compatible 25SU3 Controls | 25SU3-5166, 25SU3-5168 |
| Primary Function | Flame Signal Display and Marginal Flame Monitoring |
| Typical Application | Burner Management and Flame Safeguard Systems |
| Installation Type | Control-Mounted Optional Display Module |
| Weight | Approx. 1 lb |
Information About 60-2205

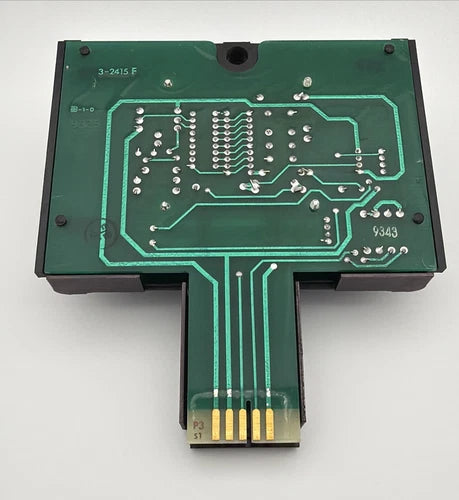

The 60-2205 is a display and monitoring module developed for selected Fireye 25SU5 and 25SU3 burner flame safeguard systems. Its front-panel interface incorporates a ten-segment LED bar graph, flame relay status LED, marginal alarm LED, and an adjustable marginal alarm setpoint potentiometer. The module is compatible with Fireye 25SU5-5011, 25SU5-5012, 25SU5-5013, 25SU3-5166, and 25SU3-5168 control configurations. Installed as part of the flame safeguard assembly, it allows operators and service technicians to observe relative flame-signal strength and identify marginal combustion conditions without relying solely on external test equipment.
Key Features:
- 10-LED Bar Graph Display: Provides a visual indication of flame-signal intensity across ten numbered LED levels.
- Progressive Signal Indication: Each successive illuminated LED represents an increasing flame-signal level for quick evaluation of flame strength.
- Flame Relay Indicator: Dedicated LED provides visual indication of flame relay status.
- Marginal Alarm Indicator: Separate LED alerts operators when the monitored flame signal reaches the configured marginal condition.
- Adjustable Alarm Setpoint: Front-accessible potentiometer allows the marginal alarm threshold to be adjusted for the application.
- 0-20 mA DC Capability: Compatible control configurations provide a 0-20 mA DC signal for connection to a remote meter or recorder.
- Multiple Control Compatibility: Designed for selected Fireye 25SU5 and 25SU3 flame safeguard control models.
- Real-Time Flame Monitoring: Gives operators continuous visual feedback regarding detected flame intensity during burner operation.
- Diagnostic Support: Helps technicians evaluate scanner alignment, flame stability, and changes in detected flame strength.
- Burner Management Application: Suitable for industrial burner, boiler, furnace, and process-heating flame safeguard systems.
- Panel-Mounted Integration: Designed as an optional display component installed directly with the compatible Fireye control assembly.
The 60-2205 delivers the reliability and precision required for visual flame-signal monitoring, marginal flame detection, and combustion system diagnostics.
