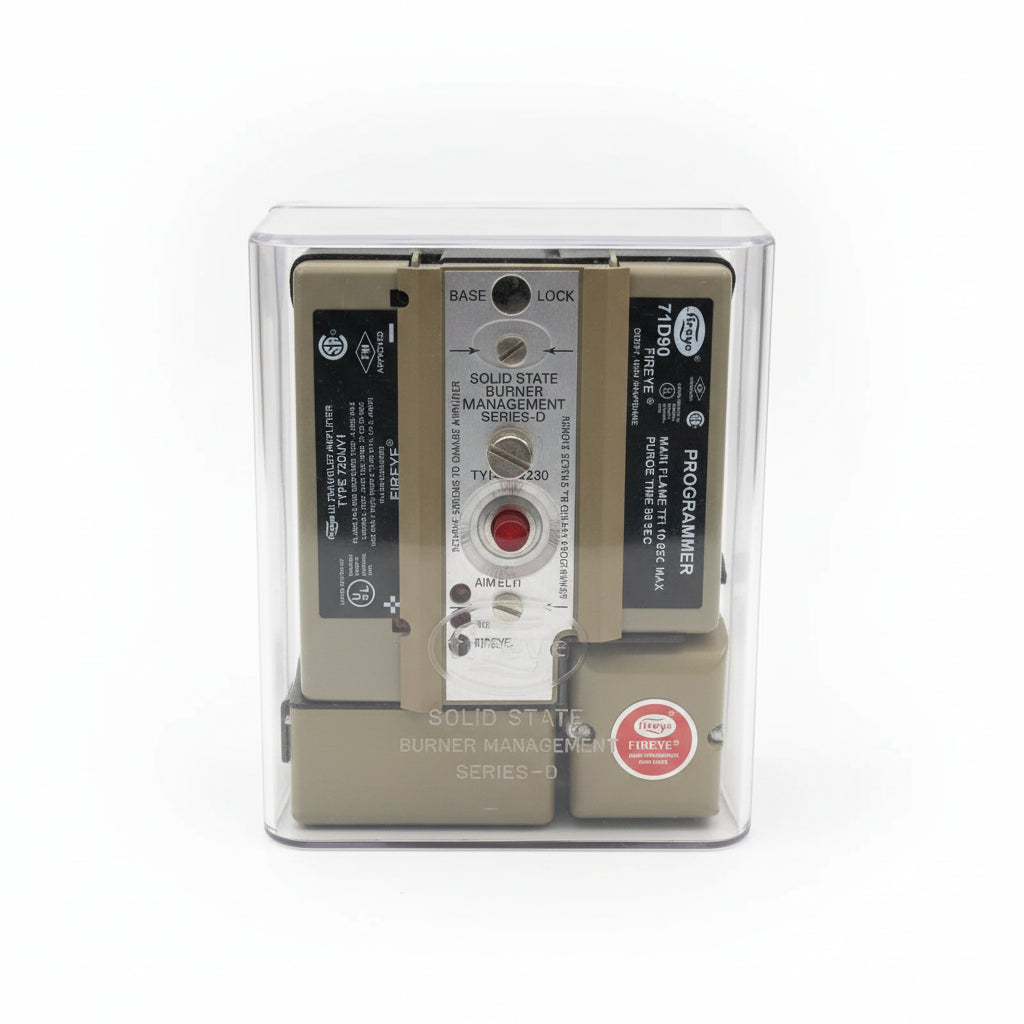

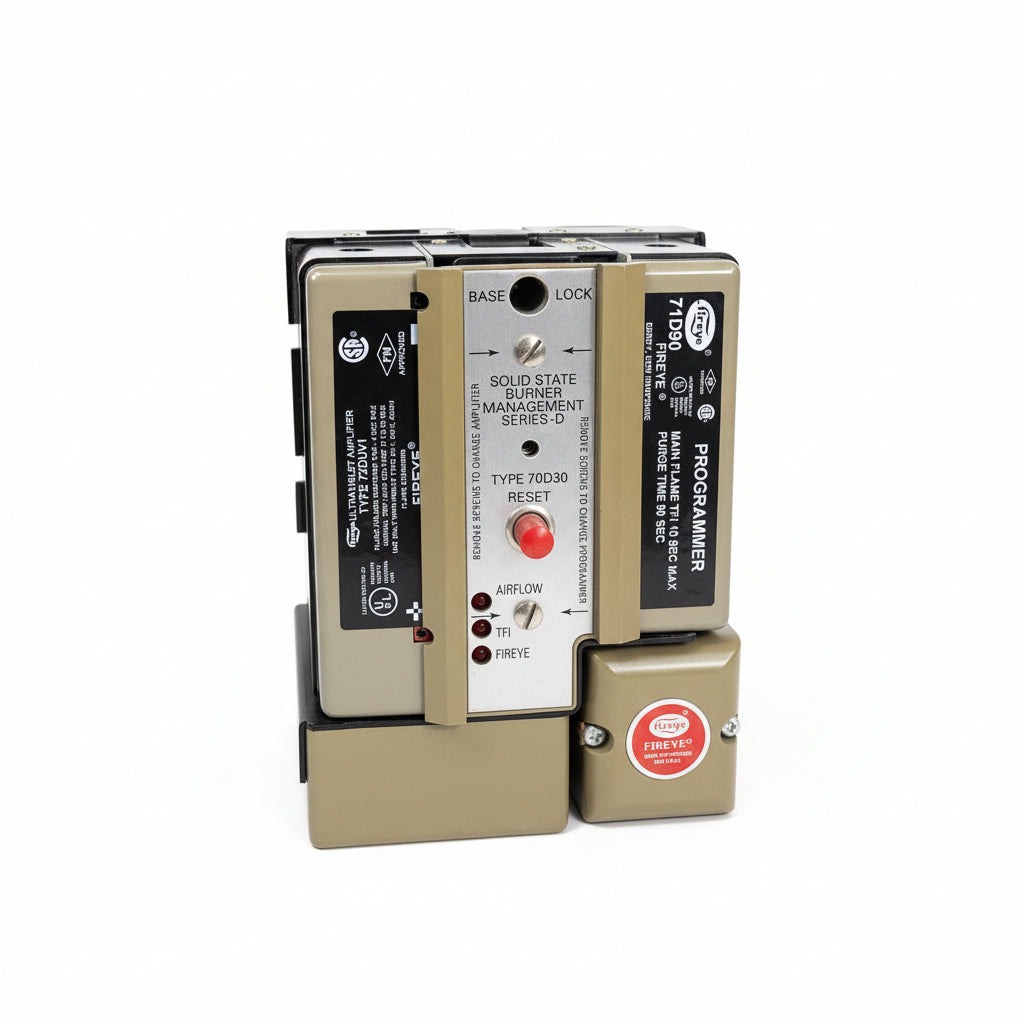

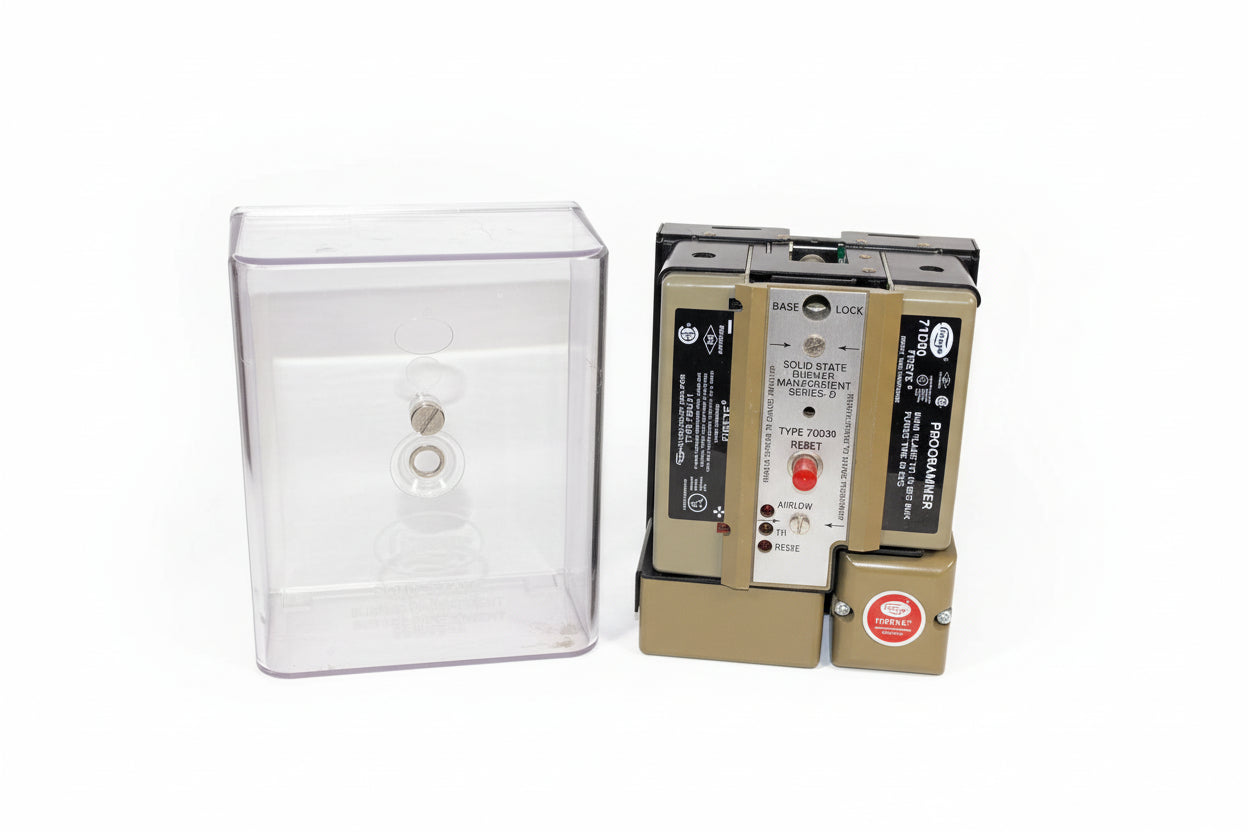

Fireye 70D30 D-Series Solid-State Flame Safeguard Control Chassis for Oil and Gas Burners
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 70D30
Description
The Fireye 70D30 is a solid-state D-Series flame safeguard control chassis designed to provide burner sequencing, ignition supervision, and main flame failure protection for automatically ignited oil and gas burners. Fireye part number 70D30 uses a modular programmer and flame amplifier architecture and is configured as a recycling control without modulation terminals or high-purge-position supervision.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Combustion Controls |
| Part Number | 70D30 |
| Subcategory | Flame Safeguard Controls |
| Series | Fireye D-Series |
| Product Type | Solid-State Flame Safeguard Control Chassis |
| Control Configuration | Recycling / Non-Modulating |
| Modulation Terminals | No |
| High Purge Position Supervision | No |
| Compatible Programmer Modules | 71D80, 71D81, 71D90 |
| Compatible Amplifier Series | Fireye 72D Series |
| Flame Detection Options | UV, Self-Check UV, AUTOCHECK IR, Flame Rectification |
| Compatible UV Amplifier | 72DUV1 |
| Compatible Self-Check UV Amplifier | 72DUVS4 |
| Compatible IR Amplifiers | 72D1R1, 72D1R3 |
| Compatible Rectification Amplifier | 72DRT1 |
| Status Indicators | Airflow, TFI, Fireye / Flame Detected |
| Compatible Wiring Bases | 60-1386-2 Closed Base / 60-1466-2 Open Base |
| Primary Application | Automatic Oil and Gas Burner Management |
| Weight | Approx. 3 lb |
Information About 70D30
The 70D30 is a Fireye D-Series solid-state burner management chassis developed for non-modulating burner applications requiring automatic flame safeguard control. Its modular construction accepts compatible 71D-series programmer modules and 72D-series flame amplifier modules, allowing the flame detection method to be selected according to the burner and scanner configuration. Compatible amplifier options support ultraviolet, self-check ultraviolet, AUTOCHECK infrared, and flame-rectification detection technologies, while compatible 71D80, 71D81, and 71D90 programmers determine purge and ignition timing. The chassis provides recycling operation, safe-start supervision, status indication, and burner shutdown response when required operating or flame conditions are not satisfied.
Key Features:
- Solid-State Burner Control: Provides electronic sequencing and flame safeguard functions for automatically ignited burners.
- Recycling Operation: Configured to recycle the burner sequence when operating conditions call for another start.
- Non-Modulating Configuration: Designed without firing-rate modulation terminals for compatible fixed-fire burner applications.
- Modular Programmer Design: Accepts compatible 71D-series plug-in programmer modules to establish purge and ignition sequencing.
- Multiple Flame Detection Methods: Supports UV, self-check UV, AUTOCHECK infrared, and flame-rectification technologies with the appropriate amplifier and scanner.
- Plug-In Amplifier Support: Uses interchangeable 72D-series amplifier modules matched to the selected flame detector.
- Safe-Start Check: Prevents normal burner startup when an improper flame signal is detected during the starting sequence.
- Three Status Indicators: Chassis LEDs indicate Airflow, Trial for Ignition (TFI), and detected flame status.
- Diagnostic Test Points: Chassis test points assist qualified technicians with voltage measurements during system troubleshooting.
- Flame Failure Protection: Works with the selected amplifier to initiate the required safety response following loss of an established flame.
- Oil and Gas Burner Application: Intended for automatically ignited industrial and commercial oil or gas burner systems.
- Modular Serviceability: Separate chassis, programmer, amplifier, and wiring base components simplify configuration and component replacement.
The 70D30 delivers the reliability and precision required for burner sequencing, ignition supervision, and flame failure protection in industrial and commercial combustion systems.
