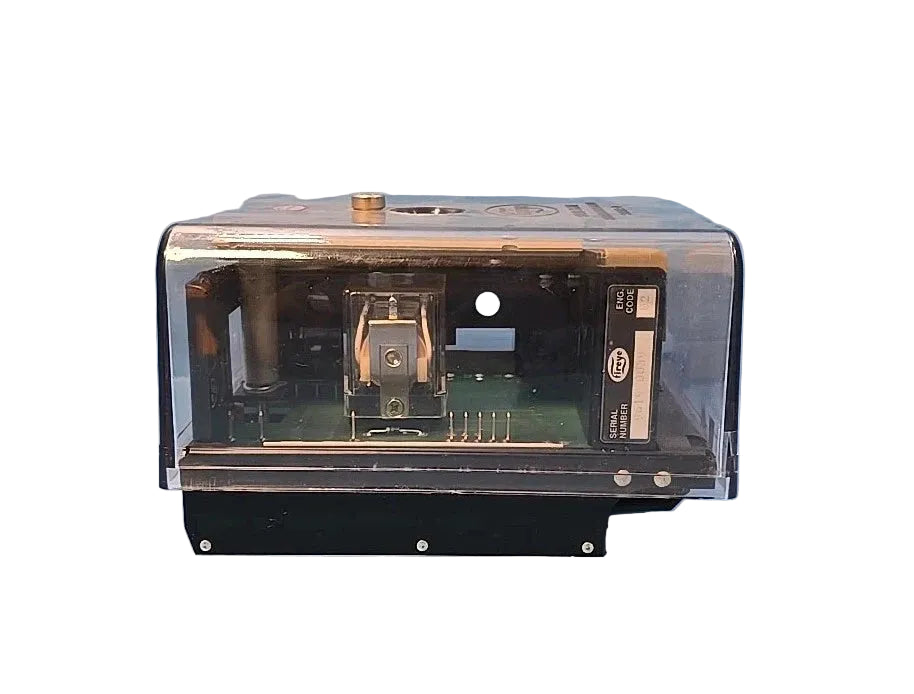

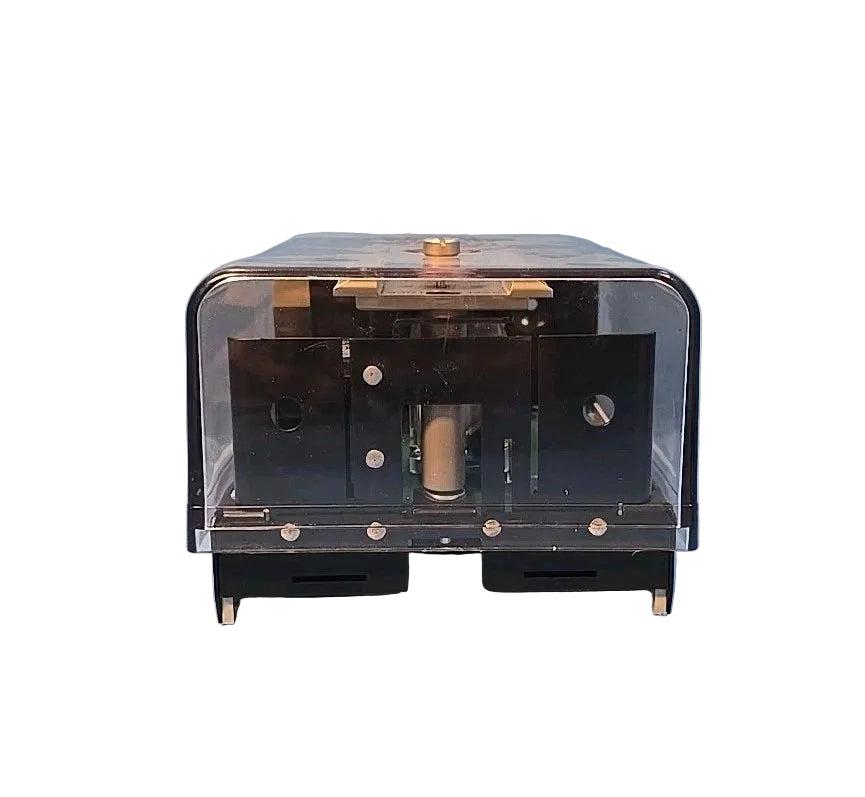

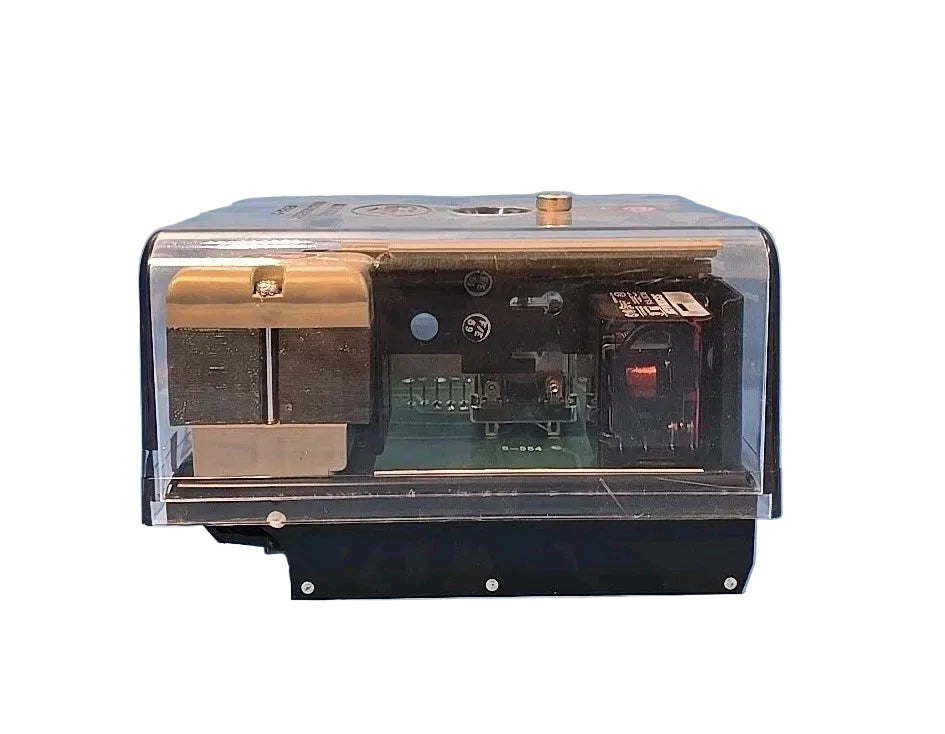

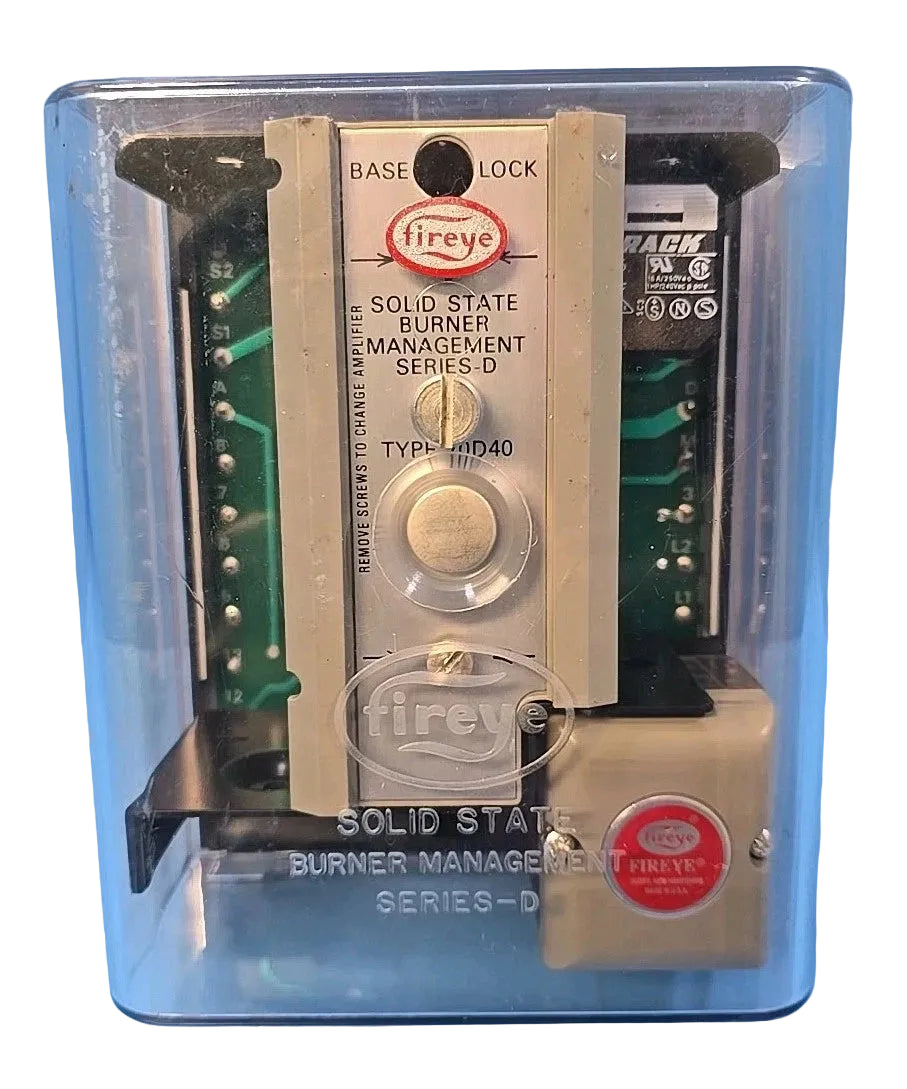

Fireye 70D40 Semi-Automatic Solid State Burner Control Module 120V
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 70D40
Description
The Fireye 70D40 is a semi-automatic solid-state burner control module designed for manually started oil or gas burners. It provides burner ignition control, safe-start protection, and flame-failure protection through compatible plug-in flame amplifier modules. The 120 VAC control operates at 50/60 Hz and includes multiple load-switch outputs for external loads and starting circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Combustion Controls |
| Part Number | 70D40 |
| Subcategory | Burner/Boiler Controls |
| Control Type | Semi-Automatic Solid State |
| Supply Voltage | 120 VAC |
| Voltage Range | 102–132 VAC |
| Frequency | 50/60 Hz |
| Burner Fuel | Natural Gas, Oil |
| Flame Detection | UV, Self-Check UV, Infrared Autocheck, Rectification |
| Flame Failure Response Time | 4 seconds max.; 1 second max. with T-suffix amplifiers |
| Load Switches | Three SPDT and one SPNO |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Standards | c-ULus, FM |
| Weight | 5.4 lb |
Information About 70D40
The 70D40 is part of the Fireye D40-41 series of solid-state burner management controls and is supplied as a control chassis with cover without a programmer. It accepts plug-in amplifier modules for ultraviolet, self-check ultraviolet, infrared autocheck, or flame-rectification detection methods. The control incorporates a safe-start check that prevents burner startup when a flame signal is detected before the firing cycle begins. Standard compatible amplifier configurations provide a maximum flame-failure response time of 4 seconds, while T-suffix amplifiers can reduce this to 1 second.
Key Features:
- Control Type: Semi-automatic solid-state burner control module.
- Burner Application: Designed for manually started oil or gas burners.
- Supply Voltage: 120 VAC with 50/60 Hz operation.
- Flame Protection: Provides safe-start and flame-failure protection through compatible amplifier modules.
- Amplifier Compatibility: Supports UV, self-check UV, infrared autocheck, and rectification amplifier technologies.
- Load Switching: Provides three SPDT and one SPNO load switches for external loads and starting circuits.
- Response Time: Up to 4 seconds with standard amplifiers and up to 1 second with T-suffix amplifiers.
- Operating Temperature: Rated for -40°F to 140°F (-40°C to 60°C).
The 70D40 delivers the reliability and precision required for burner ignition control and flame monitoring applications.
