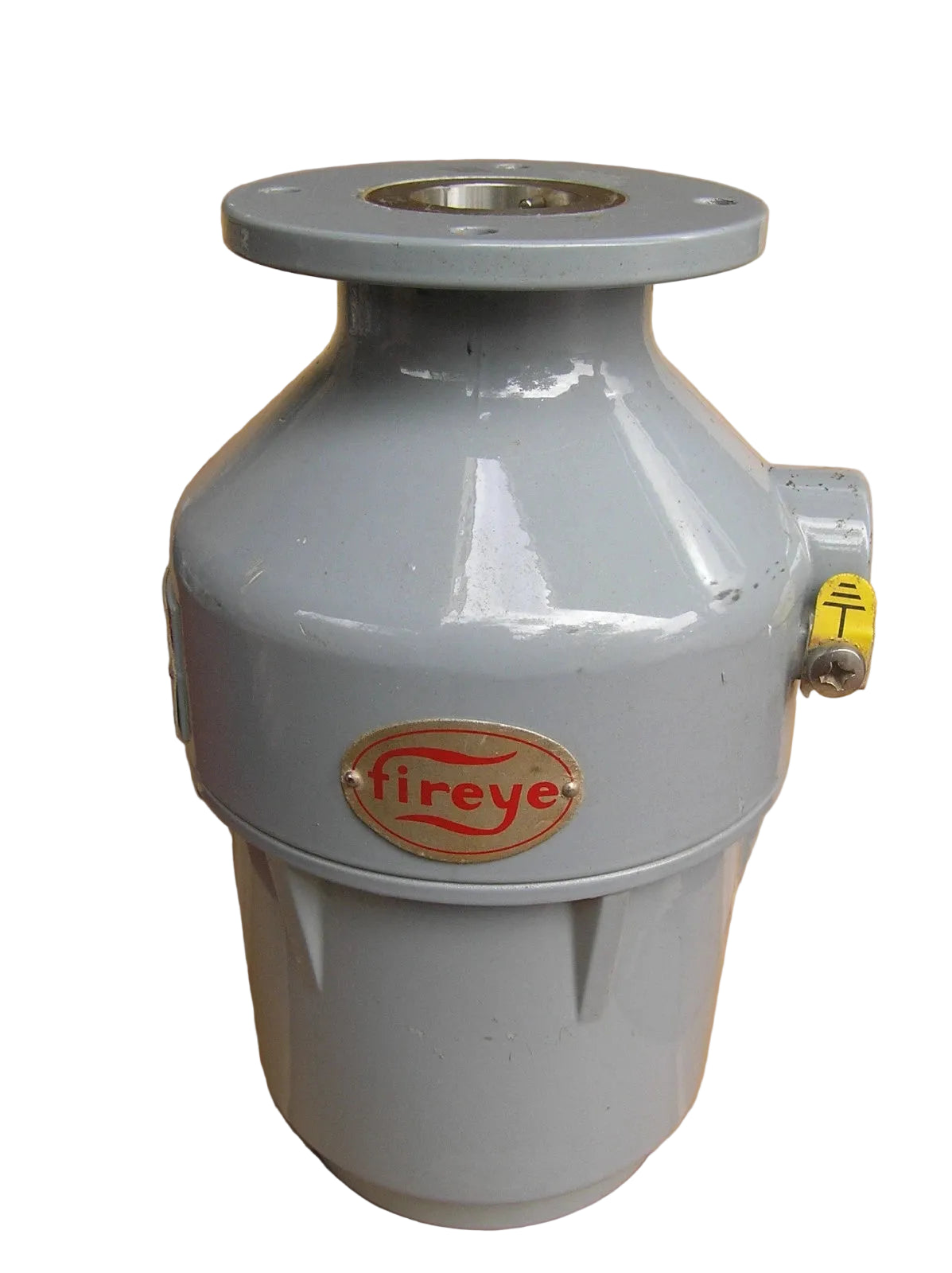

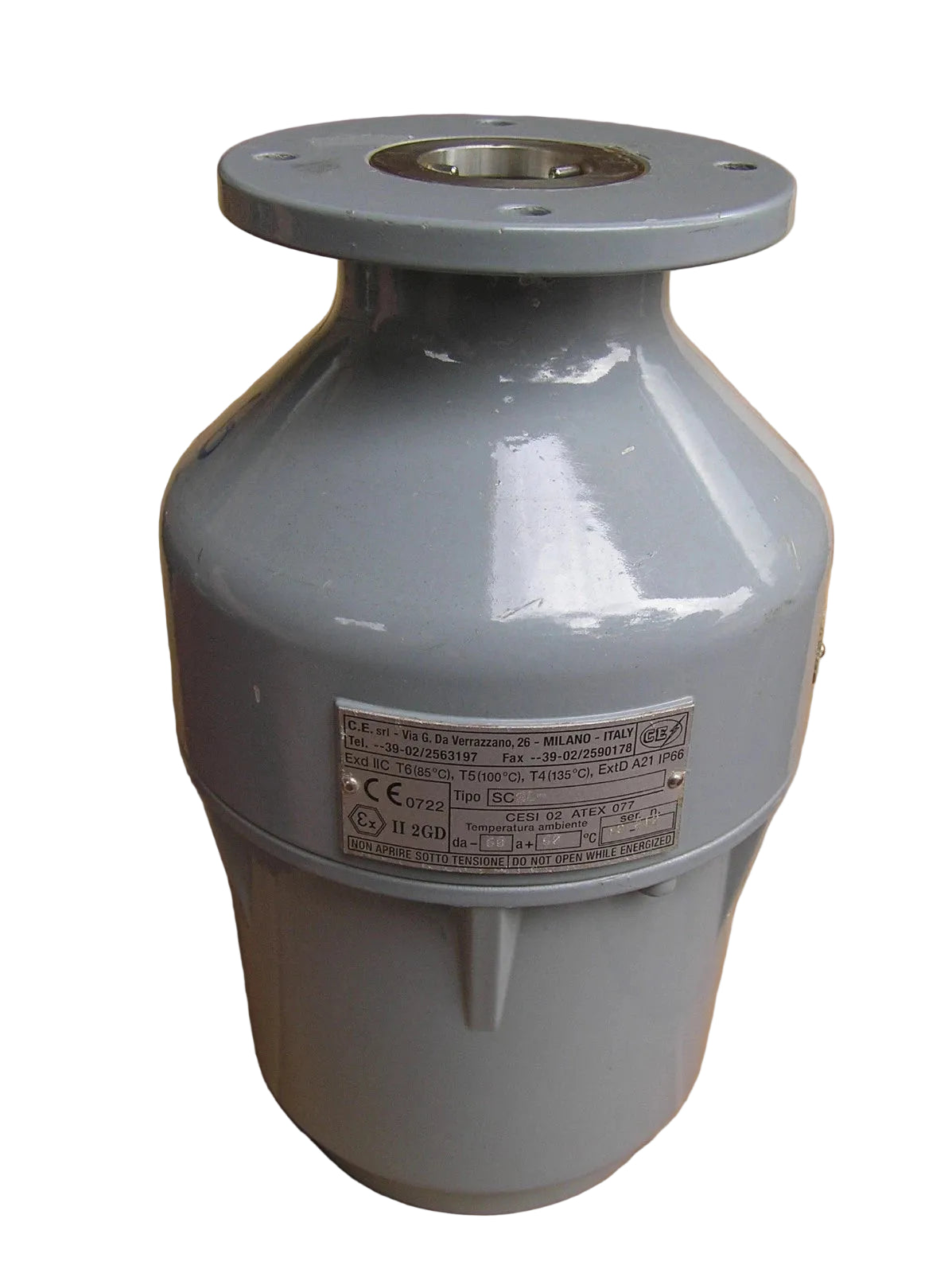

Fireye 85UVF1-1CEX Phoenix Series 2 ATEX UV Flame Scanner 24VDC
- Regular price
- $9,999.00
- Sale price
- $9,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 85UVF1-1CEX
Description
The Fireye 85UVF1-1CEX is an ATEX-certified integrated flame scanner designed for flame detection in hazardous-area burner and combustion applications. It combines a solid-state UV flame sensor with an internal flame relay, automatic flame signal setup, self-diagnostics, and electronic self-checking. The scanner operates on 24 VDC and provides a standard 4–20 mA analog flame-strength output.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Control Panels, Modules |
| Part Number | 85UVF1-1CEX |
| Subcategory | Flame Scanners |
| Series | Phoenix Series 2 |
| Detection Type | Ultraviolet (UV) |
| Power Supply | 24 VDC |
| Analog Output | 4–20 mA Flame Strength |
| Electrical Connection | 8-Pin Quick-Disconnect |
| Housing Material | Aluminum, Painted Finish |
| Housing Certification | Cenelec EExd IIC T6, ATEX |
| Hazardous Area Rating | Ex II 2 G/D |
| Approvals | ATEX, CE |
| Mounting Flange | Ordered Separately |
| Weight | 4.3 kg |
Information About 85UVF1-1CEX
The 85UVF1-1CEX is part of the Fireye Phoenix Series 2 family of microprocessor-based flame scanners. Its Ex II 2 G/D aluminum housing is Cenelec EExd IIC T6 and ATEX approved for hazardous-area installations. The scanner automatically determines flame ON/OFF thresholds and sensor gain during setup based on the detected target flame. Electrical connection is provided through an 8-pin quick-disconnect, while the mounting flange is ordered separately.
Key Features:
- Integrated Flame Scanner: Combines flame detection and an internal flame relay in one unit.
- UV Detection: Uses a solid-state ultraviolet sensor for flame monitoring.
- ATEX Housing: Features an Ex II 2 G/D rated housing certified for hazardous-area applications.
- Flame Signal Setup: Automatically stores target flame characteristics and establishes ON/OFF criteria.
- Self-Diagnostics: Provides internal diagnostic functions for monitoring scanner operation.
- Electronic Self-Check: Continuously checks the flame detection system for proper operation.
- Power Supply: Operates from a 24 VDC power source.
- Analog Output: Provides a standard 4–20 mA signal proportional to flame strength.
The 85UVF1-1CEX delivers the reliability and precision required for hazardous-area flame detection and industrial burner monitoring applications.
