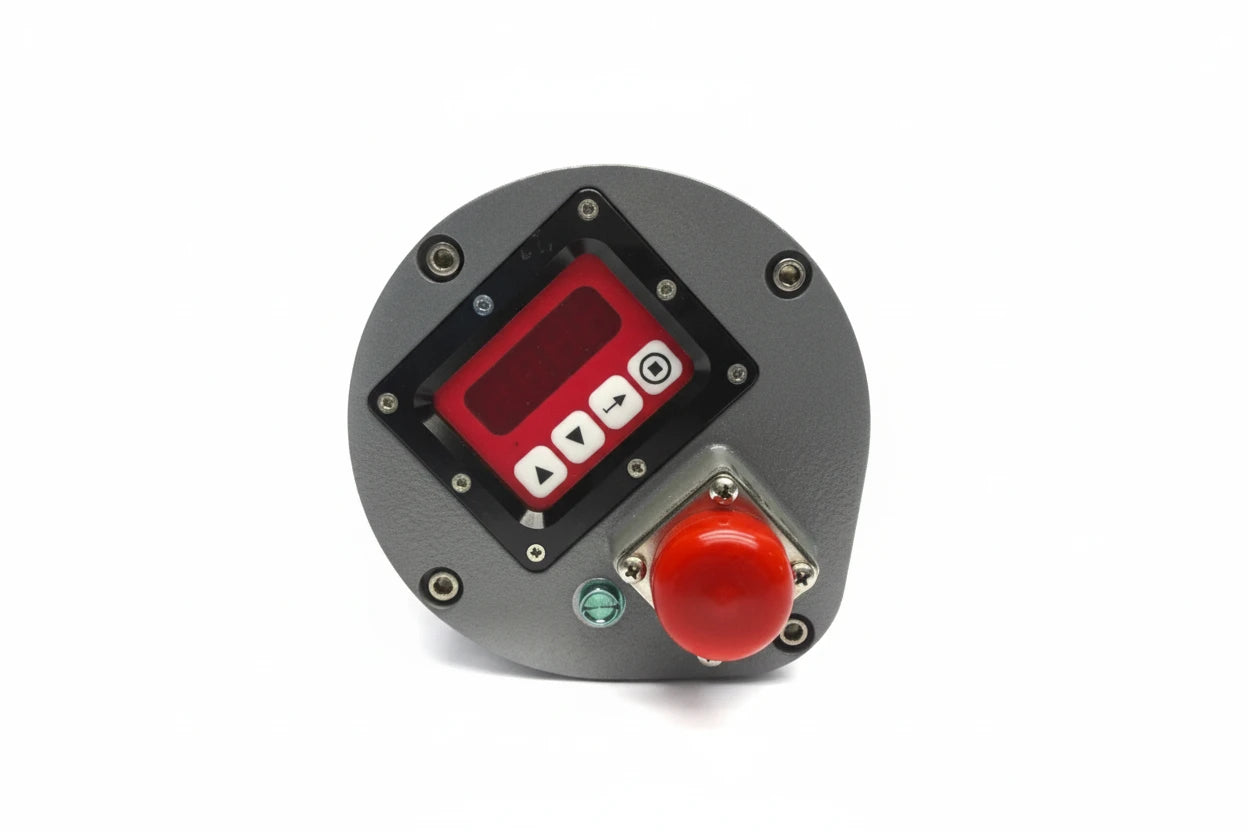

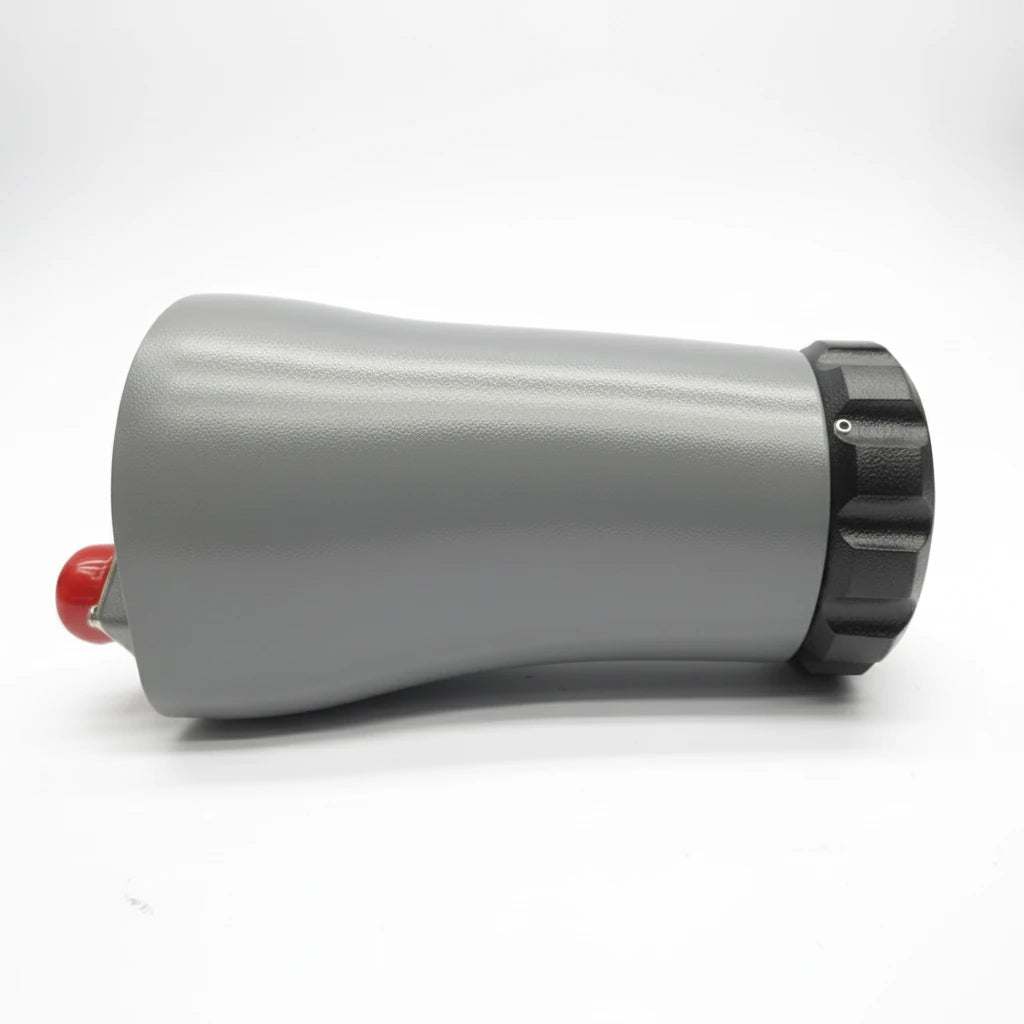

Fireye 95DSS2-1 InSight I Microprocessor-Based Dual IR/UV Flame Scanner
- Regular price
- $5,999.00
- Sale price
- $5,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 95DSS2-1
Description
The Fireye 95DSS2-1 is a microprocessor-based InSight I flame scanner designed for reliable flame detection in industrial combustion systems. It uses dual solid-state infrared (IR) and ultraviolet (UV) sensors, a 24 VDC power supply, and an integrated flame relay for monitoring and control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Flame Monitoring |
| Part Number | 95DSS2-1 |
| Subcategory | Flame Scanners |
| Series | InSight Type 95 |
| Scanner Type | Integrated Flame Scanner |
| Sensor Type | Dual IR and UV |
| UV Detection Range | 295–320 nm |
| IR Detection Range | 700–1700 nm |
| Power Supply | 24 VDC |
| Flame Signal Output | 4–20 mA DC |
| Electrical Connection | 12-Pin Quick Disconnect |
| Contact Rating | 2 A @ 240 VAC |
| Housing Rating | NEMA 4X / IP66 |
| Housing Material | Cast Aluminum with Gray Polyester Powder Coat |
| Display | 8-Character Alphanumeric LED |
| User Interface | 4-Button Keypad |
| Weight | 4.3 lb |
Information About 95DSS2-1
The 95DSS2-1 is part of the Fireye InSight Type 95 series of integrated flame scanners with expanded S2 functionality. Its dual IR and UV sensing system provides flame detection across 295–320 nm UV and 700–1700 nm IR spectral ranges. The scanner uses a 12-pin electrical quick-disconnect connection and is housed in a NEMA 4X/IP66 enclosure suitable for industrial combustion environments. Integrated electronic self-checking, an internal flame relay, an eight-character LED display, and a four-button keypad support local monitoring and configuration without requiring a separate remote flame amplifier.
Key Features:
- Dual-Sensor Detection: Combines solid-state infrared and ultraviolet sensors for flame monitoring.
- Microprocessor-Based Control: Provides digital processing of flame signals and operating parameters.
- 24 VDC Operation: Designed for operation from a 24 VDC power supply.
- 12-Pin Quick Disconnect: Provides a dedicated electrical connection for installation and servicing.
- Integrated Flame Relay: Includes adjustable ON/OFF flame thresholds without requiring a remote flame amplifier.
- Electronic Self-Checking: Continuously verifies scanner operation without a mechanical shutter.
- Local Interface: Eight-character alphanumeric LED display and four-button keypad provide access to operating parameters and setpoints.
- Analog Flame Signal: Provides a 4–20 mA DC output for flame signal strength monitoring.
The 95DSS2-1 delivers the reliability and precision required for industrial flame monitoring and combustion safety applications.
