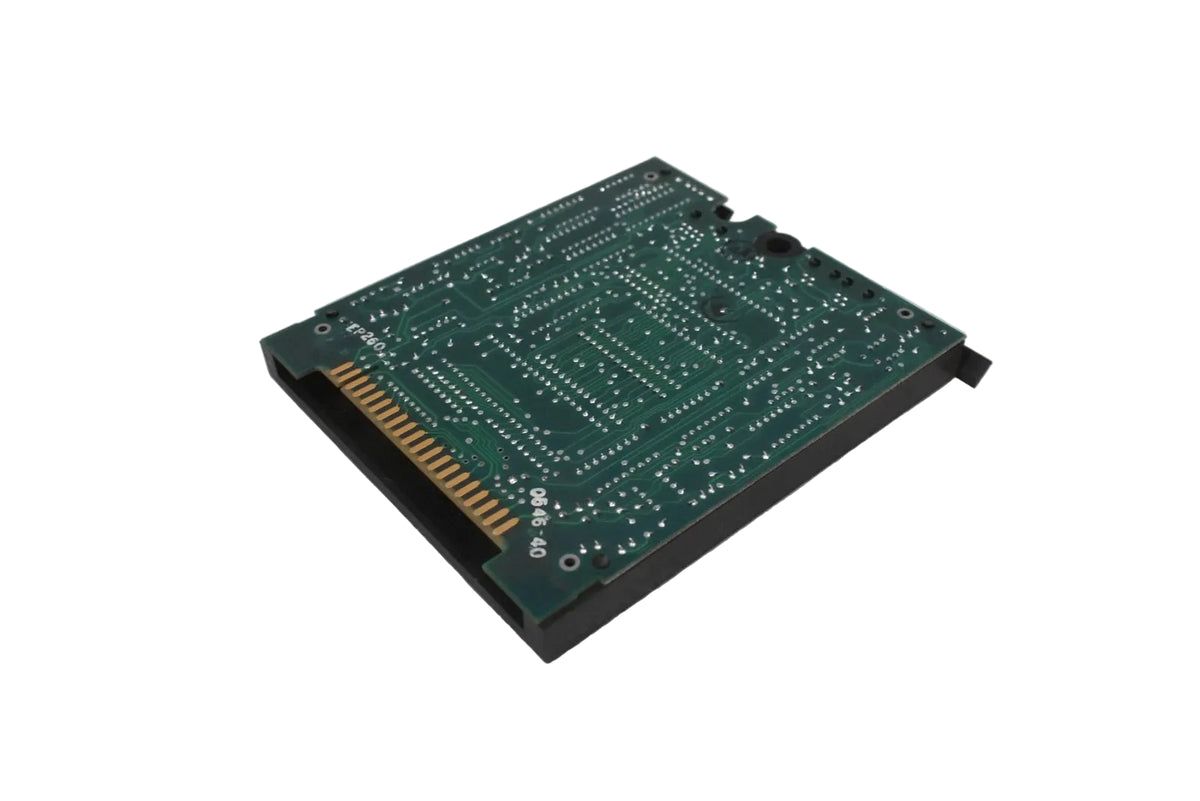

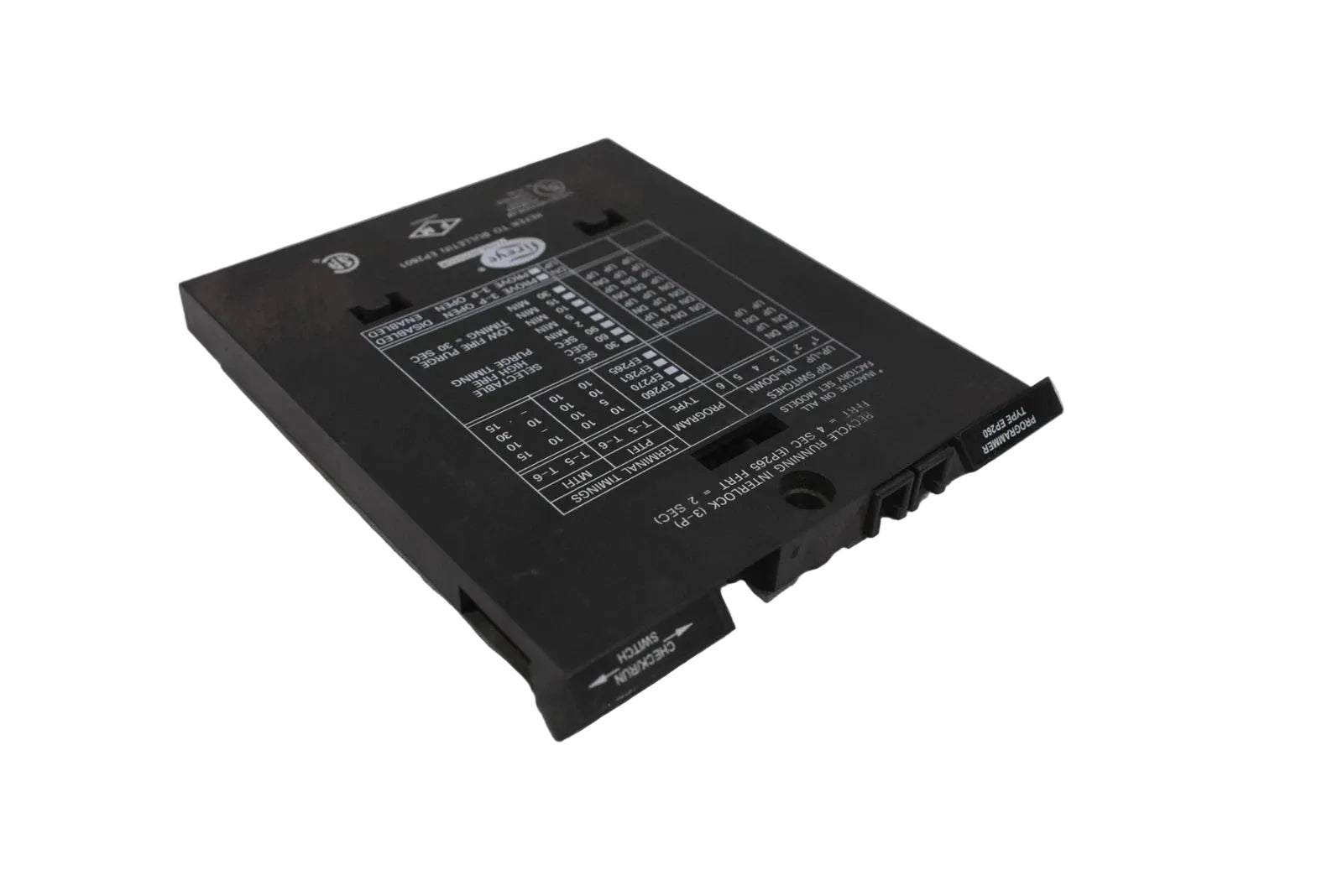

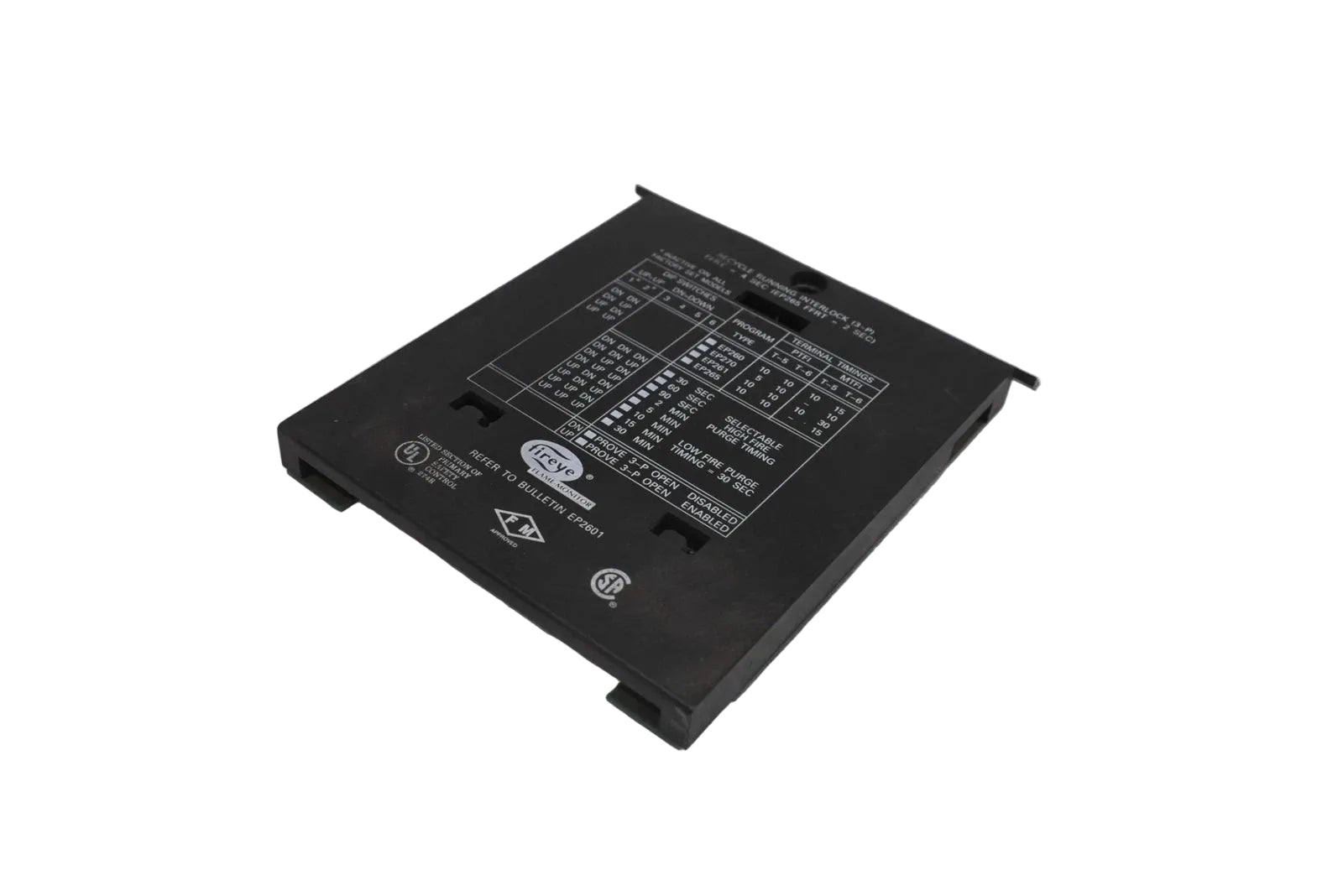

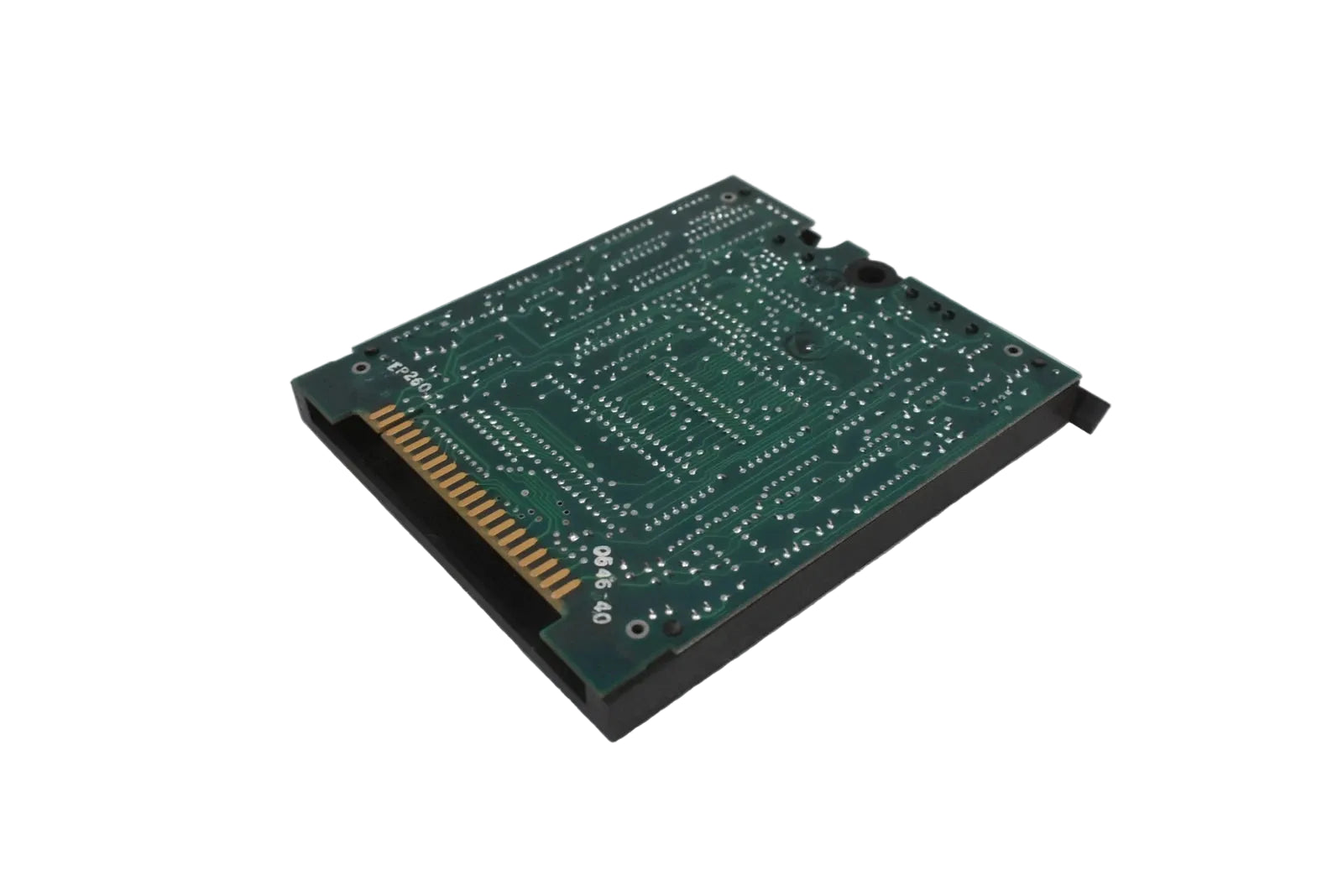

Fireye EP260 Flame-Monitor Programmer Module Adjustable Purge 10/15-Sec TFI Recycle
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EP260
Description
The Fireye EP260 is a Flame-Monitor programmer module designed to control burner startup sequencing, purge, ignition trials, running interlocks, and flame-failure response in compatible Fireye combustion safety systems. Fireye part number EP260 provides adjustable purge timing with a 30-second minimum, 10-second PTFI, selectable 10/15-second MTFI, and recycle operation when the running interlock circuit opens during the firing cycle.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Combustion Controls |
| Part Number | EP260 |
| Subcategory | Programmer Modules |
| Series | Fireye EP Series / Flame-Monitor |
| Product Type | Flame Safeguard Programmer Module |
| Compatible System | Fireye Flame-Monitor / E110 |
| Compatible Chassis | EB700 |
| Display Compatibility | Fireye ED510 |
| Purge Timing | Selectable / Adjustable, 30 Seconds Minimum |
| Pilot Trial for Ignition (PTFI) | 10 Seconds |
| Main Trial for Ignition (MTFI) | 10 or 15 Seconds |
| Flame Failure Response Time (FFRT) | 4 Seconds Maximum |
| Running Interlock Response | Recycle |
| Low-Fire Start Check | Yes |
| Fuel Valve End-Switch Check | Yes |
| Primary Function | Burner Sequencing and Flame Safeguard Programming |
| Installation Type | Plug-In Programmer Module |
| Weight | Approx. 0.5 lb (0.23 kg) |
Information About EP260
The EP260 is part of the Fireye EP Series of microprocessor-based programmer modules used with the Flame-Monitor burner management platform. Its plug-in construction is designed for compatible EB700/E110 Flame-Monitor assemblies and supports the ED510 alphanumeric display for expanded operating status and diagnostic information. The programmer supervises low-fire start position, fuel-valve end-switch conditions, limit switches, combustion-air proving devices, and fuel-pressure switches while controlling the programmed burner sequence. Safe-start checking and continuous running-interlock supervision allow the EP260 to initiate the appropriate recycle or safety-lockout response when monitored conditions occur at an improper point in the operating cycle.
Key Features:
- Flame-Monitor Programming: Controls startup, purge, ignition trials, firing operation, and safety response within a compatible Flame-Monitor system.
- Adjustable Purge Timing: Provides selectable purge duration with a minimum purge period of 30 seconds.
- 10-Second PTFI: Provides a 10-second Pilot Trial for Ignition period for establishing and proving the pilot flame.
- Selectable MTFI: Supports 10- or 15-second Main Trial for Ignition timing according to system configuration.
- 4-Second FFRT: Provides a maximum flame-failure response time of approximately four seconds.
- Recycle Running Interlocks: Recycles the burner sequence when the running interlock circuit at terminals 3-P opens during the firing period.
- Safe-Start Check: Verifies critical burner conditions before permitting the ignition sequence to proceed.
- Low-Fire Position Supervision: Requires proof of the proper low-fire starting position before burner startup can continue.
- Fuel Valve End-Switch Check: Supervises the fuel-valve end-switch circuit as part of the burner safety sequence.
- Continuous Interlock Monitoring: Monitors limit switches, airflow switches, fuel-pressure switches, and other connected running interlocks.
- ED510 Display Support: Compatible with the Fireye ED510 alphanumeric display for operating status, sequence information, and lockout diagnostics.
- Plug-In Construction: Modular installation simplifies programmer replacement and maintenance within compatible Flame-Monitor assemblies.
The EP260 delivers the reliability and precision required for burner sequencing, adjustable purge control, ignition timing, interlock supervision, and flame safety management.
