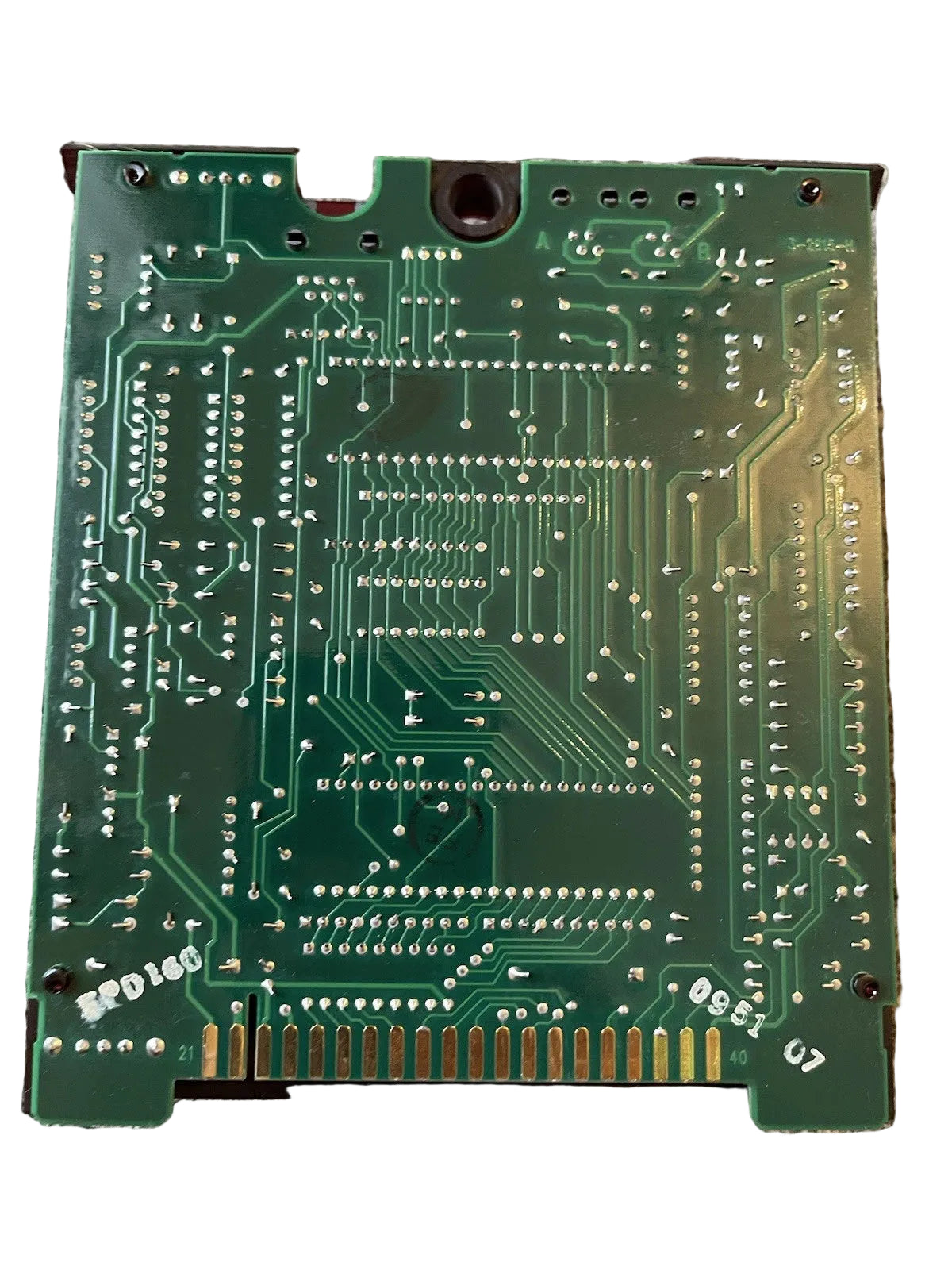

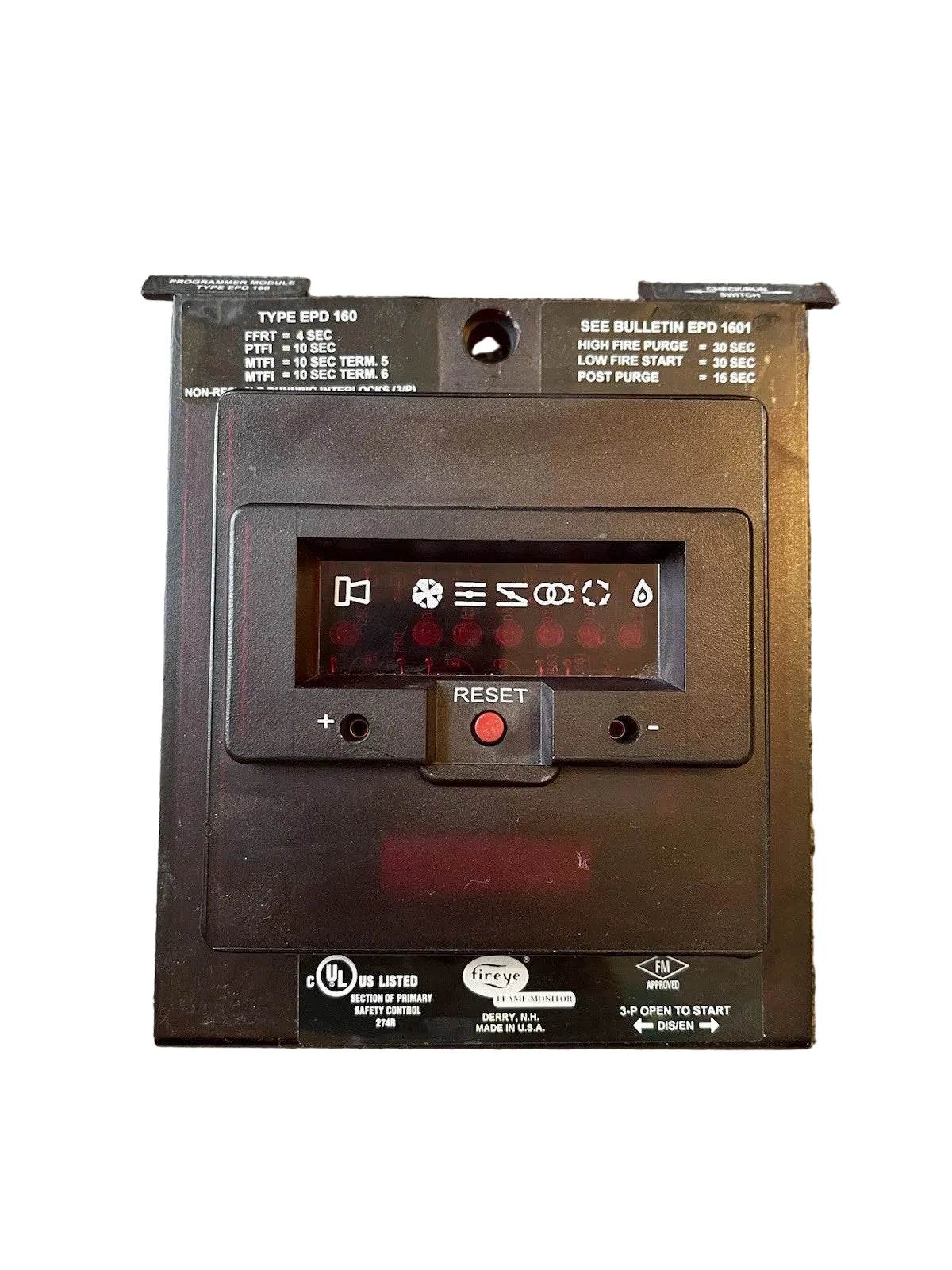

Fireye EPD160 Flame-Monitor Programmer Module 30-Sec Purge 10/15-Sec TFI Non-Recycle
- Regular price
- $2,599.00
- Sale price
- $2,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EPD160
Description
The Fireye EPD160 is a plug-in Flame-Monitor programmer module designed to control burner sequencing, purge timing, ignition trials, and flame-failure response in compatible Fireye E110 systems. Fireye part number EPD160 provides non-recycle operation, modulation control, a 30-second purge sequence, 10-second PTFI, selectable 10/15-second main trial-for-ignition timing, and a built-in seven-LED diagnostic display.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Combustion Controls |
| Part Number | EPD160 |
| Subcategory | Programmer Modules |
| Series | Fireye EPD / Flame-Monitor |
| Product Type | Flame Safeguard Programmer Module |
| Compatible System | Fireye E110 Flame-Monitor |
| Compatible Chassis | EB700 |
| Operating Mode | Non-Recycle / Modulation |
| Purge Time | 30 Seconds |
| Pilot Trial for Ignition (PTFI) | 10 Seconds |
| Main Trial for Ignition (MTFI) | 10 or 15 Seconds |
| Flame Failure Response Time (FFRT) | 4 Seconds Maximum |
| Status Display | 7 Integral LED Indicators |
| Flame Signal Test Output | 0–10 VDC via Front Test Jacks |
| Optional Display Interface | RJ45 for ED510 |
| Communication Interface | Two RJ Connections for E500 |
| Installation Type | Plug-In Programmer Module |
| Weight | Approx. 0.5 lb (0.23 kg) |
Information About EPD160
The EPD160 is part of the Fireye EPD Series of programmer modules developed for the Flame-Monitor burner management platform. Its plug-in electronic construction works with the EB700 chassis used in the E110 Flame-Monitor system and incorporates seven LED indicators that display current operating status and identify the reason for the previous safety lockout. The module provides non-recycle operation with modulation, a 30-second purge sequence, 10-second pilot trial for ignition, selectable main trial timing, and a maximum 4-second flame-failure response time. Communication interfaces include an RJ45 connection for the optional ED510 alphanumeric display and two RJ-style connections for compatible E500 communication equipment, allowing expanded monitoring and diagnostic capability.
Key Features:
- Flame-Monitor Programmer: Determines the operating sequence and timing functions of a compatible Fireye E110 burner management system.
- Non-Recycle Operation: Configured for non-recycle response during applicable running-interlock or flame-failure conditions.
- 30-Second Purge: Provides a defined 30-second purge sequence before the ignition portion of the burner cycle.
- 10-Second PTFI: Provides a 10-second Pilot Trial for Ignition period for establishing and proving pilot flame.
- Selectable Main TFI: Provides 10- or 15-second main trial-for-ignition timing according to the configured terminal sequence.
- 4-Second FFRT: Maximum flame-failure response time is 4 seconds for rapid burner safety response.
- Modulation Control: Supports modulating burner configurations requiring firing-rate control during normal operation.
- Seven-LED Display: Integral LED indicators show current operating status and information related to the last lockout condition.
- Safe Start Check: Performs burner safety checks during startup before permitting the programmed ignition sequence to continue.
- Flame Signal Test Jacks: Front test points provide a 0–10 VDC output corresponding to flame-signal strength for setup and troubleshooting.
- ED510 Interface: RJ45 connection supports an optional remote ED510 2-line × 16-character alphanumeric display on compatible engineering revisions.
- E500 Communication Support: Dual RJ-style connections allow integration with compatible Fireye E500 communication interfaces.
The EPD160 delivers the reliability and precision required for burner sequencing, ignition timing, flame supervision, and diagnostic control in Fireye Flame-Monitor systems.
