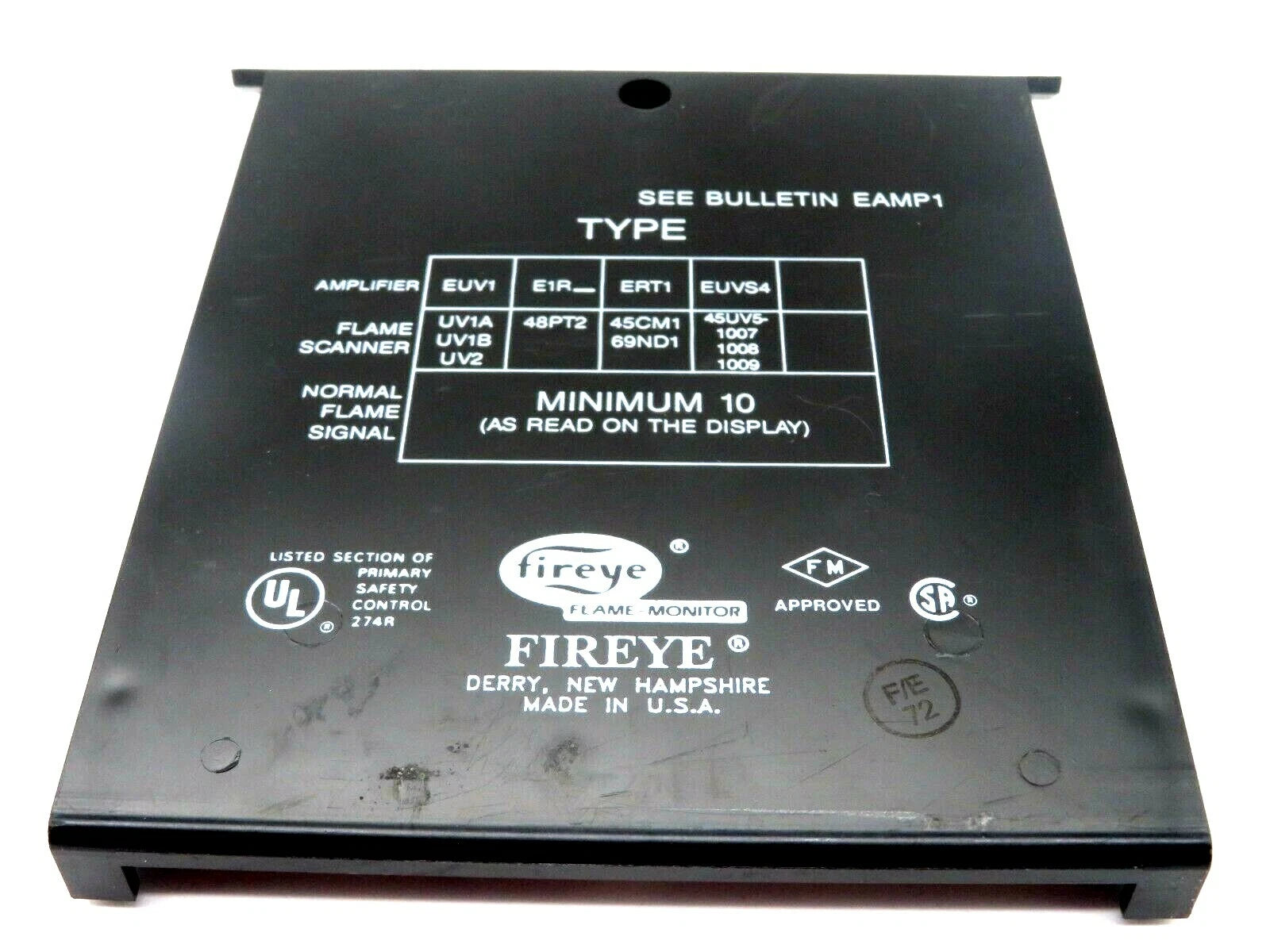

Fireye EUV1 Ultraviolet Flame Amplifier Module for Flame-Monitor Burner Control System
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EUV1
Description
The Fireye EUV1 is a standard ultraviolet flame amplifier module designed for the Fireye Flame-Monitor burner management system. Fireye part number EUV1 processes flame signals from compatible non-self-checking UV scanners to provide dependable flame-presence monitoring for gas, oil, and combination-fuel burner applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Combustion Controls |
| Part Number | EUV1 |
| Subcategory | Flame Amplifier Modules |
| Product Type | Ultraviolet Flame Amplifier |
| System Family | Fireye Flame-Monitor |
| Detection Type | Ultraviolet (UV) |
| Amplifier Type | Standard / Non-Self-Checking |
| Module Configuration | Plug-In Flame Amplifier |
| Compatible Chassis | Fireye Flame-Monitor Chassis, including EB700 configurations |
| Compatible Scanners | UV1A, UV8A, 45UV3, UV90 Series |
| Input Signal Source | Compatible Fireye UV Flame Scanner |
| Primary Function | UV Flame Signal Amplification and Processing |
| Operating Temperature Range | -40°F to 140°F (-40°C to 60°C) |
| Typical Applications | Boilers, Burners, Furnaces, Process Combustion Equipment |
| Recommended Burner Duty | Intermittent / Normally Cycled Burner Operation |
| Installation Location | Dedicated Amplifier Module Position in Flame-Monitor Chassis |
| Weight | Approx. 0.4 lb |
Information About EUV1
The EUV1 is a plug-in ultraviolet amplifier from Fireye’s Flame-Monitor family, intended for use with the appropriate UV flame scanner and compatible Flame-Monitor chassis. Its modular construction allows installation in the dedicated amplifier position of the control chassis, where it receives and processes the electrical flame signal generated by the connected scanner. The module supports Fireye UV1A, UV8A, 45UV3, and UV90-series ultraviolet scanners and is intended for non-self-checking UV flame detection applications. It is primarily suited to burners that cycle normally or intermittently; continuous or extended firing applications generally require an appropriate self-checking scanner and amplifier configuration.
Key Features:
- Ultraviolet Flame Amplification: Processes signals received from compatible Fireye ultraviolet flame scanners.
- Non-Self-Checking Design: Intended for standard UV flame detection applications where continuous self-checking is not required.
- Flame-Monitor Compatibility: Designed specifically for integration with the Fireye Flame-Monitor burner management system.
- Plug-In Module Construction: Installs into the designated amplifier-module guide channels within a compatible Flame-Monitor chassis.
- Multiple Scanner Compatibility: Supports UV1A, UV8A, 45UV3, and UV90-series non-self-checking UV scanners.
- Flame Signal Processing: Converts the scanner input into a usable flame-presence signal for the burner management control.
- Burner Safety Application: Supports flame supervision functions that allow the control system to respond when flame is absent or lost.
- Broad Fuel Application: Suitable for compatible gas, oil, and combination-fuel combustion equipment when paired with the correct scanner.
- Industrial Temperature Capability: Designed for operation across a -40°F to 140°F (-40°C to 60°C) ambient temperature range.
- Modular Service Design: Separate amplifier architecture allows the flame-detection module to be selected according to the scanner technology and application.
- Burner System Integration: Suitable for boilers, furnaces, process burners, and other Flame-Monitor-controlled combustion equipment.
The EUV1 delivers the reliability and precision required for ultraviolet flame signal processing and burner flame supervision in Fireye Flame-Monitor combustion control systems.
