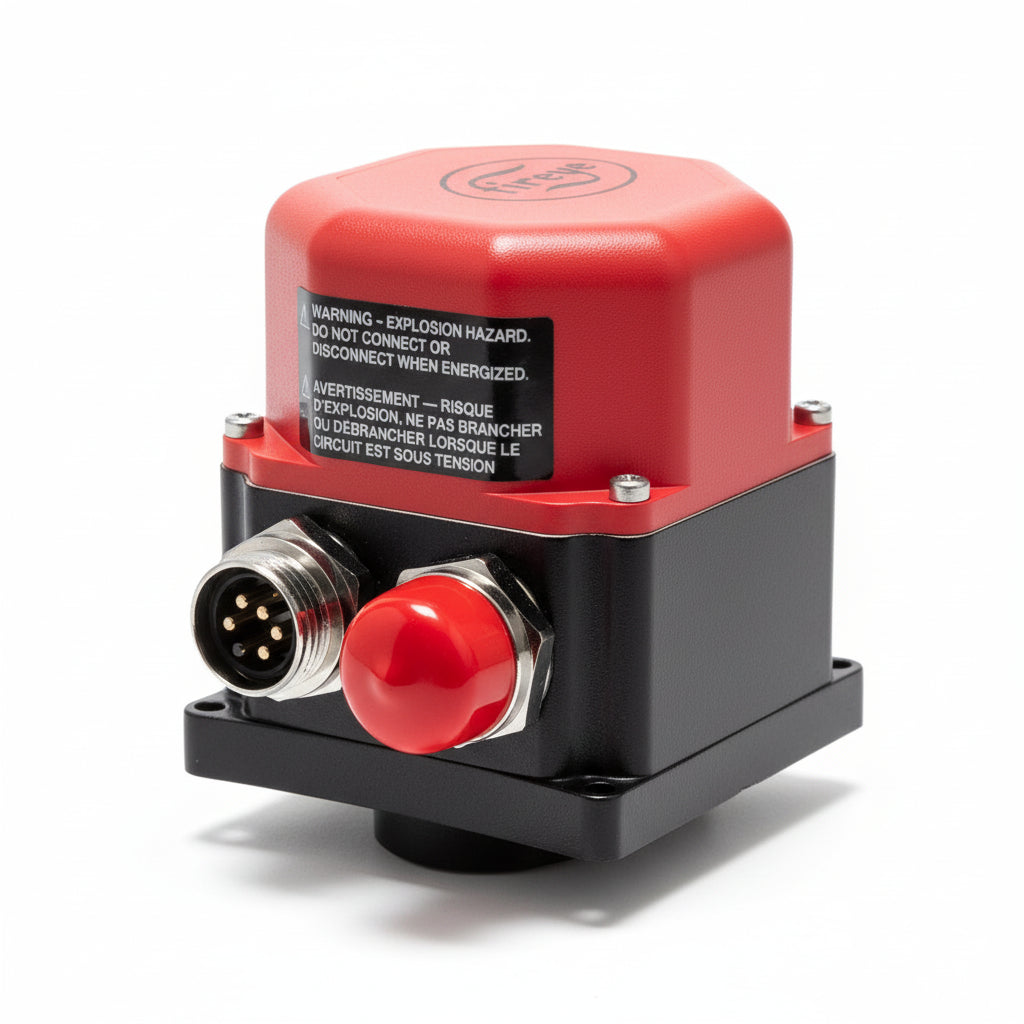

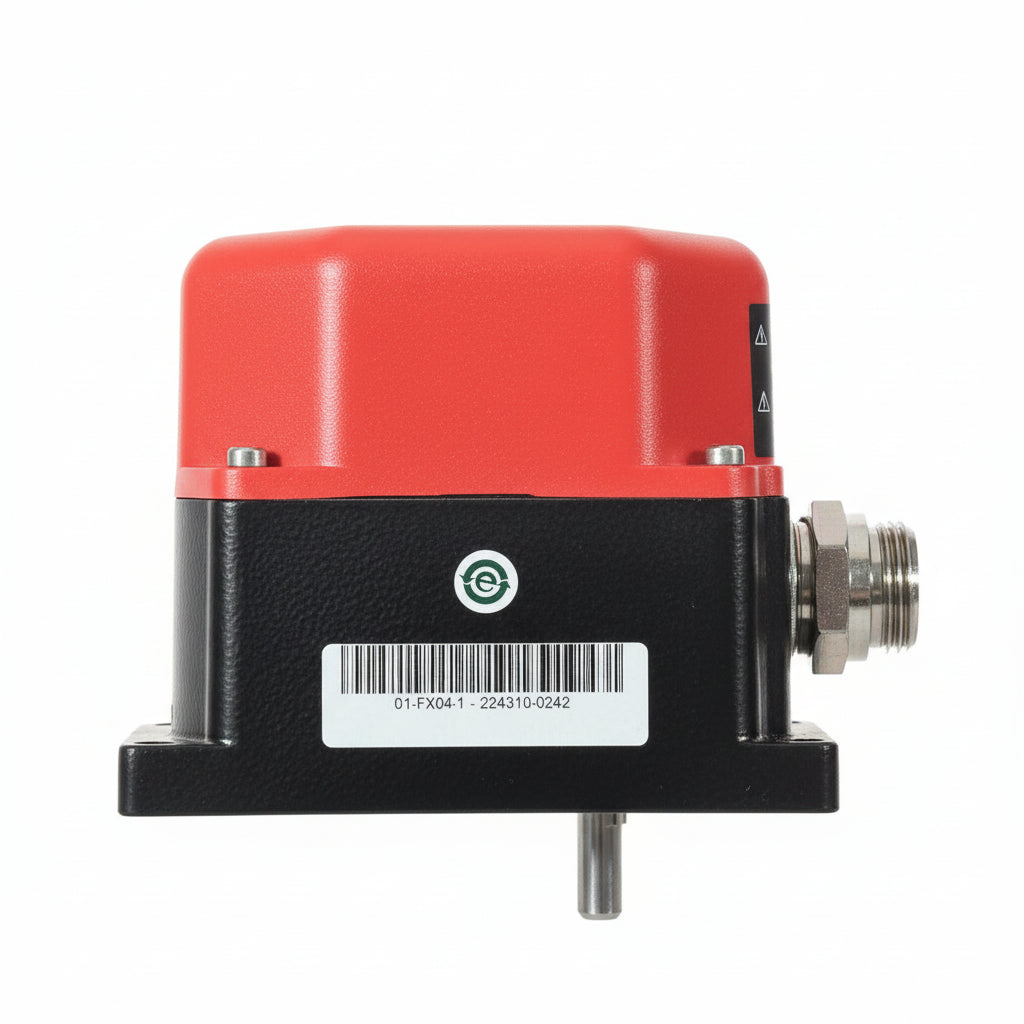

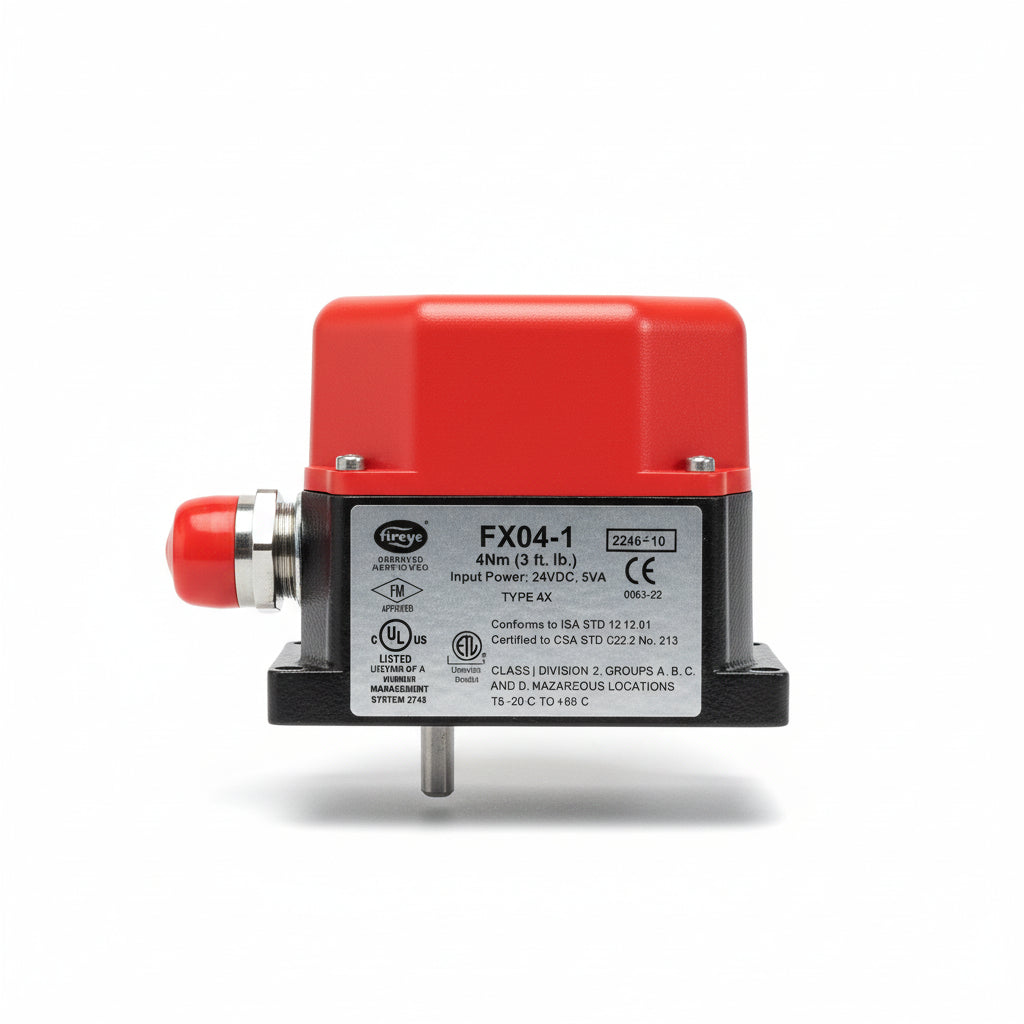

Fireye FX04-1 4 Nm Modbus RTU Servo Motor 24 VDC RS-485 Quick Disconnect Actuator
- Regular price
- $847.00
- Sale price
- $847.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FX04-1
Description
The Fireye FX04-1 is a 4 Nm digital servo motor designed for precise positioning of burner dampers, fuel valves, and other rotary combustion-control devices. Fireye part number FX04-1 operates from 24 VDC and uses Modbus RTU communication over RS-485, allowing direct integration with PLC-based industrial control systems without requiring a dedicated Fireye burner controller.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Combustion Controls |
| Part Number | FX04-1 |
| Subcategory | Servo Motors |
| Series | Fireye FX Series |
| Product Type | Digital Servo Motor / Rotary Actuator |
| Rated Torque | 4 Nm (Approx. 3 ft-lb) |
| Supply Voltage | 24 VDC |
| Communication Protocol | Modbus RTU |
| Communication Interface | RS-485 |
| Control Method | PLC / Modbus Digital Positioning |
| Connection Type | Quick Disconnect |
| Network Capacity | Up to 10 Servos per Compatible Communication Port |
| Primary Application | Burner Damper and Fuel/Air Control Positioning |
| Compatible Controller Type | Modbus RTU-Capable PLC / Industrial Controller |
| Equipment Applications | Boilers, Furnaces, Burners, Process Heating Equipment |
| Actuator Configuration | Rotary Servo Actuator |
| Weight | Approx. 4 lb |
Information About FX04-1
The FX04-1 is part of the Fireye FX Series of programmable digital servo actuators developed for custom industrial positioning and combustion-control applications. Its compact actuator construction combines 4 Nm (approximately 3 ft-lb) output torque with 24 VDC power, Modbus RTU communications, and a quick-disconnect electrical interface for simplified installation and servicing. The servo can communicate directly with a PLC over an RS-485 network, with up to 10 compatible FX-series servos supported on a single communication port in the specified point-to-point wiring configuration. This architecture makes the FX04-1 suitable for burner air dampers, fuel-control mechanisms, industrial valves, and other applications requiring repeatable electronically commanded rotary positioning.
Key Features:
- 4 Nm Output Torque: Provides approximately 3 ft-lb of torque for positioning smaller combustion-control valves and dampers.
- 24 VDC Operation: Uses a standard low-voltage DC supply suitable for PLC and industrial automation installations.
- Modbus RTU Communication: Supports direct digital command and control using the widely implemented Modbus RTU protocol.
- RS-485 Interface: Uses an industrial serial communication interface suitable for reliable actuator networking.
- PLC Integration: Can be controlled directly by a compatible PLC without requiring an NX-series positioning controller.
- Multi-Servo Networking: Supports connection of up to 10 FX-series servos on a single compatible communication port.
- Quick-Disconnect Connection: Electrical quick-disconnect design simplifies actuator installation, replacement, and servicing.
- Precise Rotary Positioning: Provides repeatable electronic positioning for burner dampers, valves, and air/fuel control mechanisms.
- Digital Position Control: Modbus-based architecture allows the supervisory controller to command actuator movement electronically.
- Compact Torque Class: 4 Nm output makes the actuator suitable for combustion devices that do not require larger high-torque servos.
- Custom Control Capability: Designed for integration into custom industrial systems using standard PLC and Modbus architecture.
- Combustion Control Application: Suitable for boilers, furnaces, process burners, industrial heaters, and related combustion equipment.
The FX04-1 delivers the reliability and precision required for PLC-controlled damper, valve, and combustion air/fuel positioning applications.
