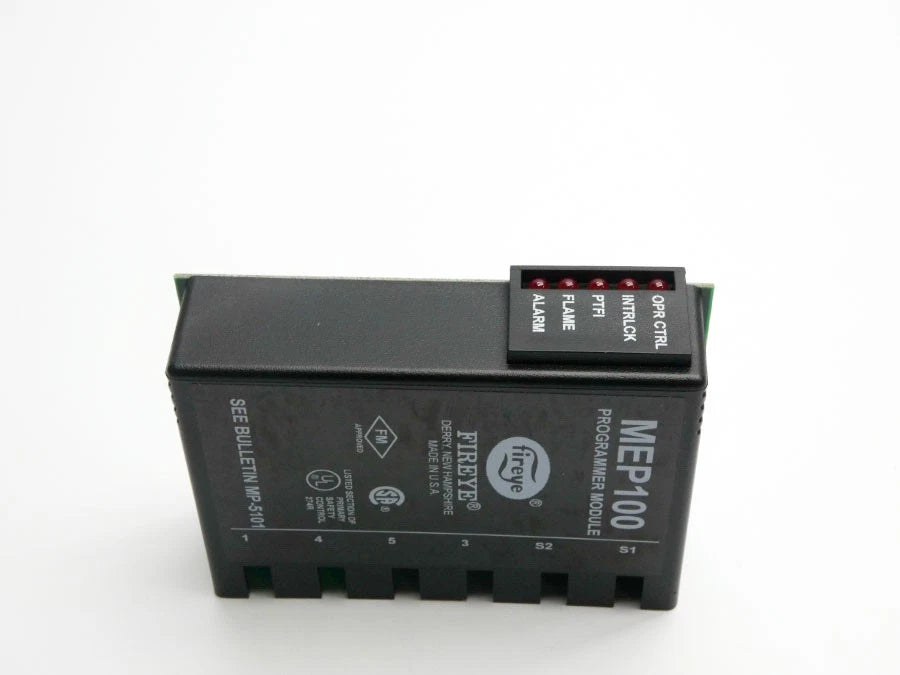

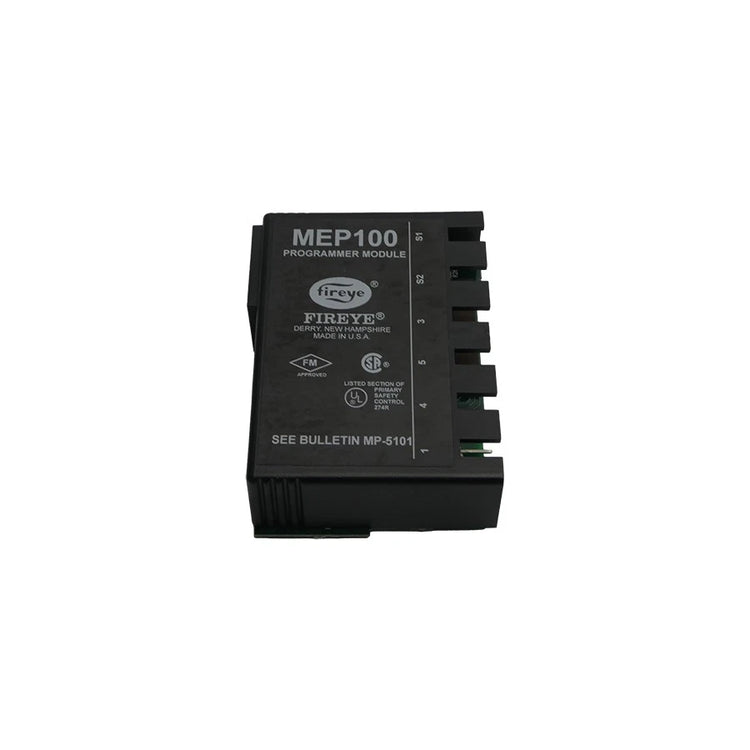

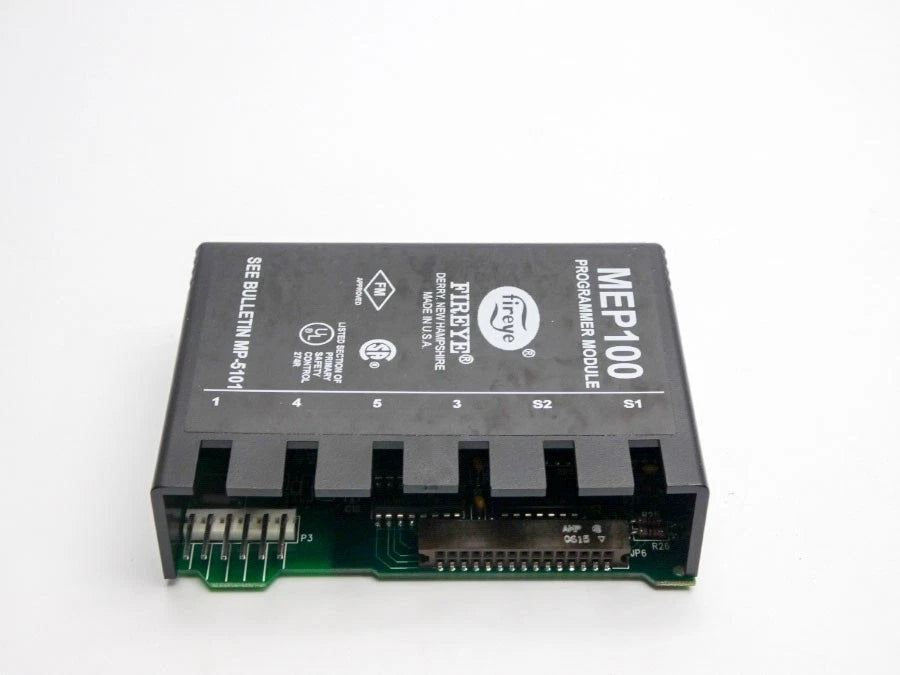

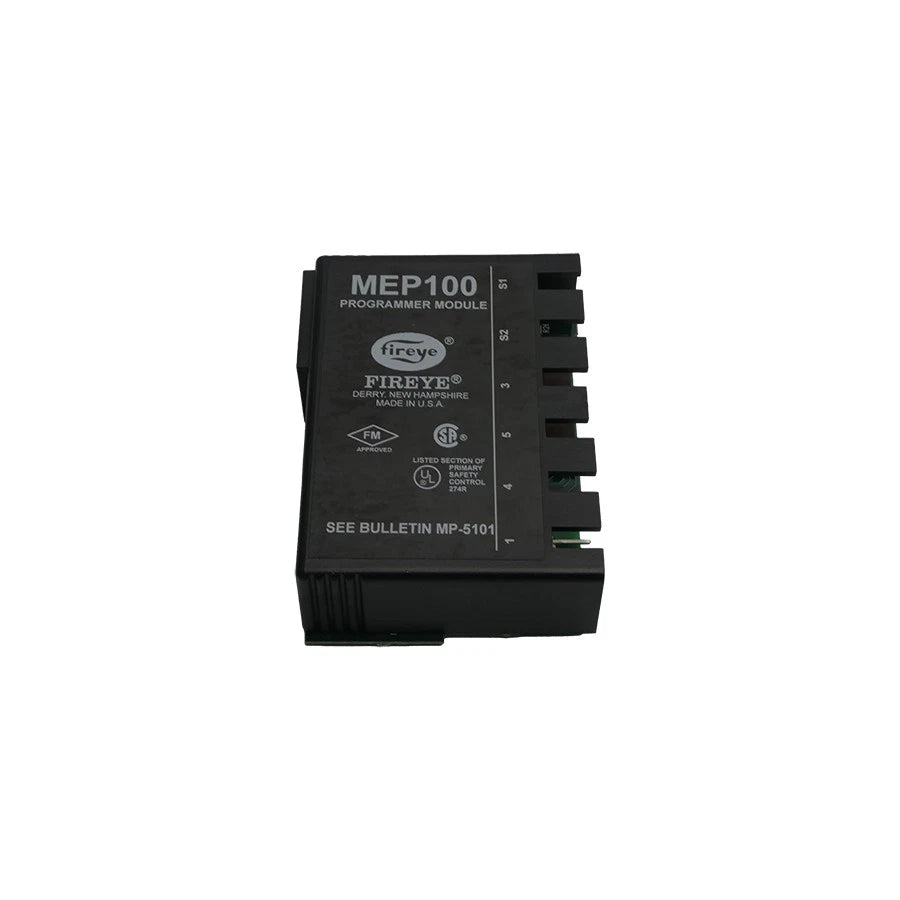

Fireye MEP100 MicroM Programmer Module 10-Second PTFI Relight Flame Safeguard Control
- Regular price
- $305.00
- Sale price
- $305.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MEP100
Description
The Fireye MEP100 is a plug-in programmer module designed for compatible Fireye MicroM flame safeguard controls used on automatically fired burners. Fireye part number MEP100 provides a relight operating sequence with a 10-second Pilot Trial for Ignition (PTFI), coordinating burner startup and automatic ignition retry following specified flame-failure conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Combustion Controls |
| Part Number | MEP100 |
| Subcategory | Programmer Modules |
| Series | Fireye MicroM |
| Product Type | Flame Safeguard Programmer Module |
| Program Function | Relight |
| Pilot Trial for Ignition (PTFI) | 10 Seconds |
| Flame Failure Response | Automatic Relight / Ignition Retry |
| Installation Type | Plug-In Module |
| Compatible System | Fireye MicroM Modular Flame Safeguard |
| System Supply Compatibility | 120 VAC or 230 VAC MicroM Configurations |
| System Frequency | 50/60 Hz |
| Operating Temperature Range | -40°F to 140°F (-40°C to 60°C) |
| Typical Fuel Applications | Gas / Oil / Combination Gas-Oil |
| Primary Function | Burner Sequence and Ignition Timing Control |
| Typical Equipment | Boilers, Furnaces, Ovens, Process Heaters, Packaged Burners |
| Weight | Approx. 0.3 lb (0.14 kg) |
Information About MEP100
The MEP100 is part of the Fireye MicroM modular flame safeguard system, where the programmer module determines burner operating sequence, ignition timing, and flame-failure response. Its plug-in construction allows it to be installed in a compatible MicroM chassis and used with the appropriate flame detector and amplifier configuration for gas, oil, or combination-fuel burner applications. The MEP100 is specifically configured for relight operation and a 10-second PTFI, allowing the control system to initiate another ignition attempt following a qualifying flame failure rather than immediately requiring manual intervention. MicroM system diagnostics provide operating status and lockout information for commissioning and troubleshooting, while the modular architecture simplifies replacement and configuration of burner safeguard components.
Key Features:
- MicroM Programmer Module: Defines the operating sequence and timing functions of a compatible Fireye MicroM flame safeguard system.
- Relight Operation: Configured to initiate an automatic ignition retry following specified flame-loss conditions.
- 10-Second PTFI: Provides a 10-second Pilot Trial for Ignition period for establishing and proving the pilot flame.
- Plug-In Construction: Installs directly into the compatible MicroM control chassis for straightforward replacement and servicing.
- Burner Sequence Control: Coordinates the required ignition and flame-proving stages within the configured MicroM burner sequence.
- Flame Failure Response: Works with the MicroM flame safeguard system to respond to loss of an acceptable flame signal.
- Diagnostic Support: Compatible MicroM system interfaces provide operating status and fault or lockout information for troubleshooting.
- Modular Architecture: Allows the programmer to be combined with appropriate MicroM chassis, flame amplifier, and scanner components.
- Multiple Fuel Applications: Suitable for properly configured gas, oil, and combination gas/oil burner systems.
- Industrial Temperature Capability: Designed for operation from -40°F to 140°F (-40°C to 60°C).
- 50/60 Hz System Compatibility: Supports compatible MicroM installations designed for standard 50 Hz or 60 Hz control power.
- Combustion Equipment Application: Suitable for compatible boilers, furnaces, ovens, process heaters, and packaged burner systems.
The MEP100 delivers the reliability and precision required for timed ignition sequencing, relight operation, and flame safeguard management in compatible Fireye MicroM burner systems.
