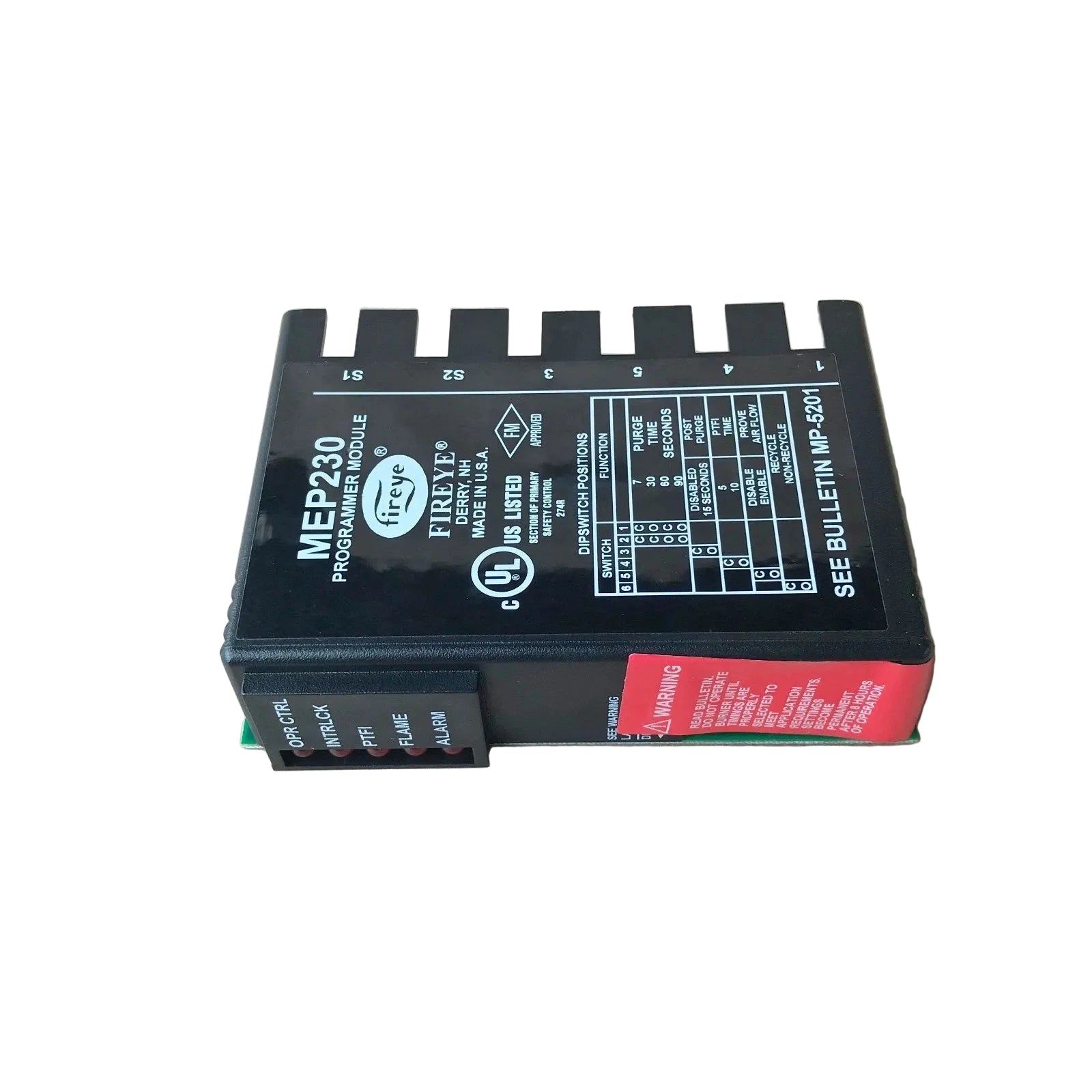

Fireye MEP230 MicroM Programmer Module for Burner Control Systems
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MEP230
Description
Fireye MEP230 is a plug-in programmer module for the Fireye Modular MicroM flame safeguard control. It determines the operating sequence of the control and provides selectable purge, pilot trial for ignition, post-purge, airflow proving, and recycle/non-recycle functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | HVAC |
| Part Number | MEP230 |
| Subcategory | Burner Control Modules |
| Product Type | MicroM Programmer Module |
| Series | 200 Series |
| Compatible Control | Fireye Modular MicroM |
| Compatible Chassis | MEC120 and MEC230 |
| Purge Timing | 7, 30, 60, or 90 seconds selectable |
| PTFI Timing | Selectable |
| Operating Mode | Recycle / Non-Recycle selectable |
| Configuration | 6-position DIP switch |
| Indication | LED status and diagnostic indicators |
| Approvals | UL/CSA Listed and FM Approved |
| Weight | 0.25 lb |
Infоrmation About MEP230

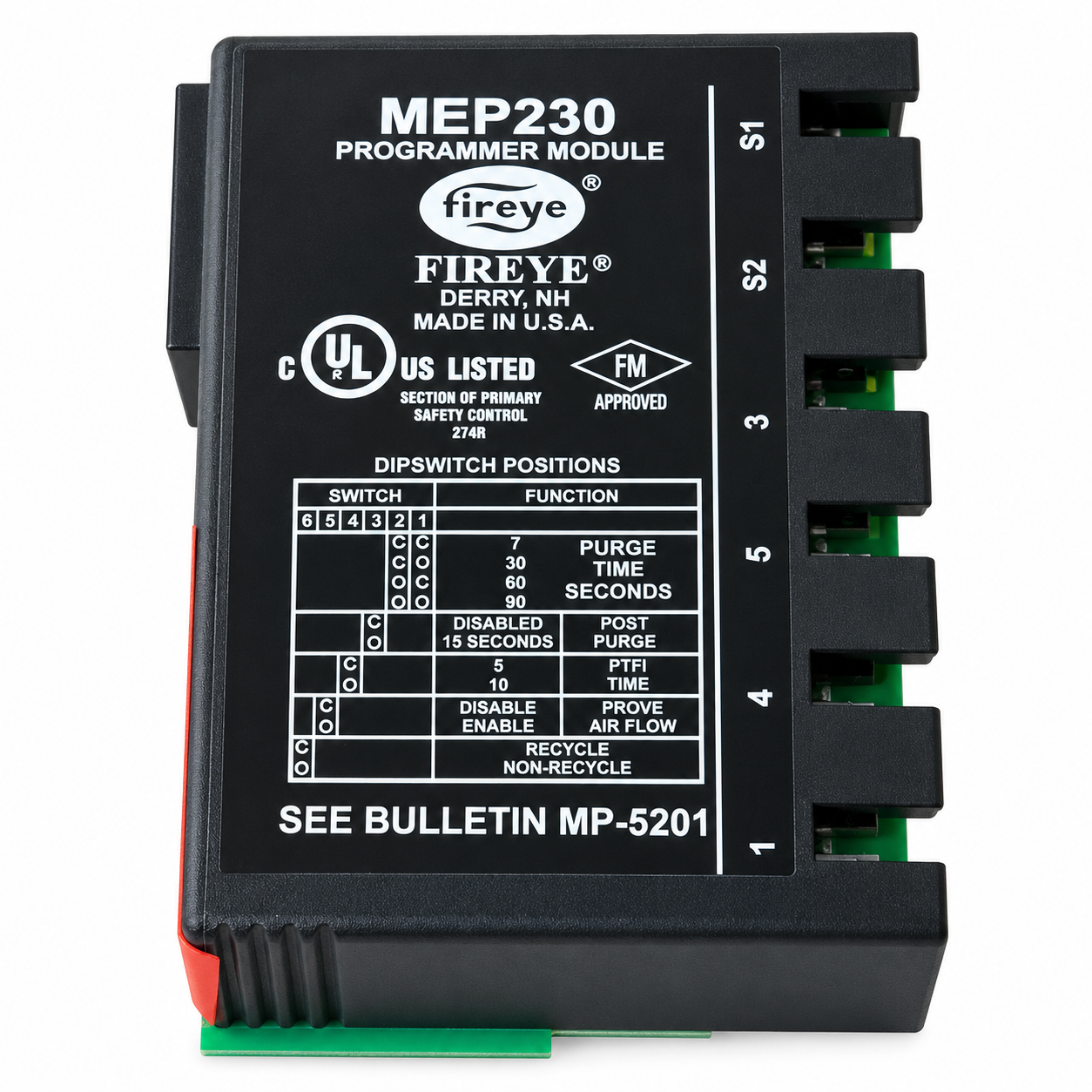

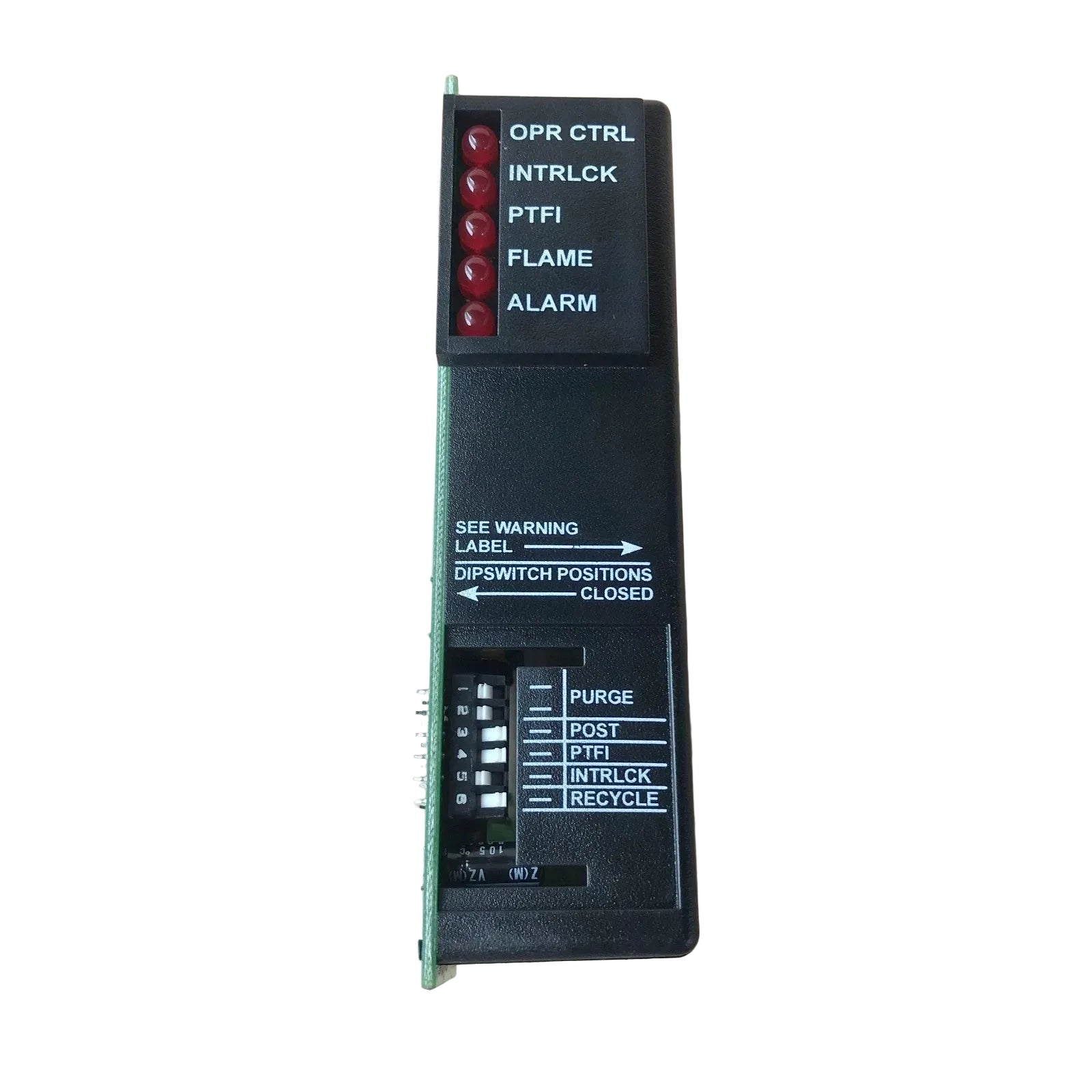

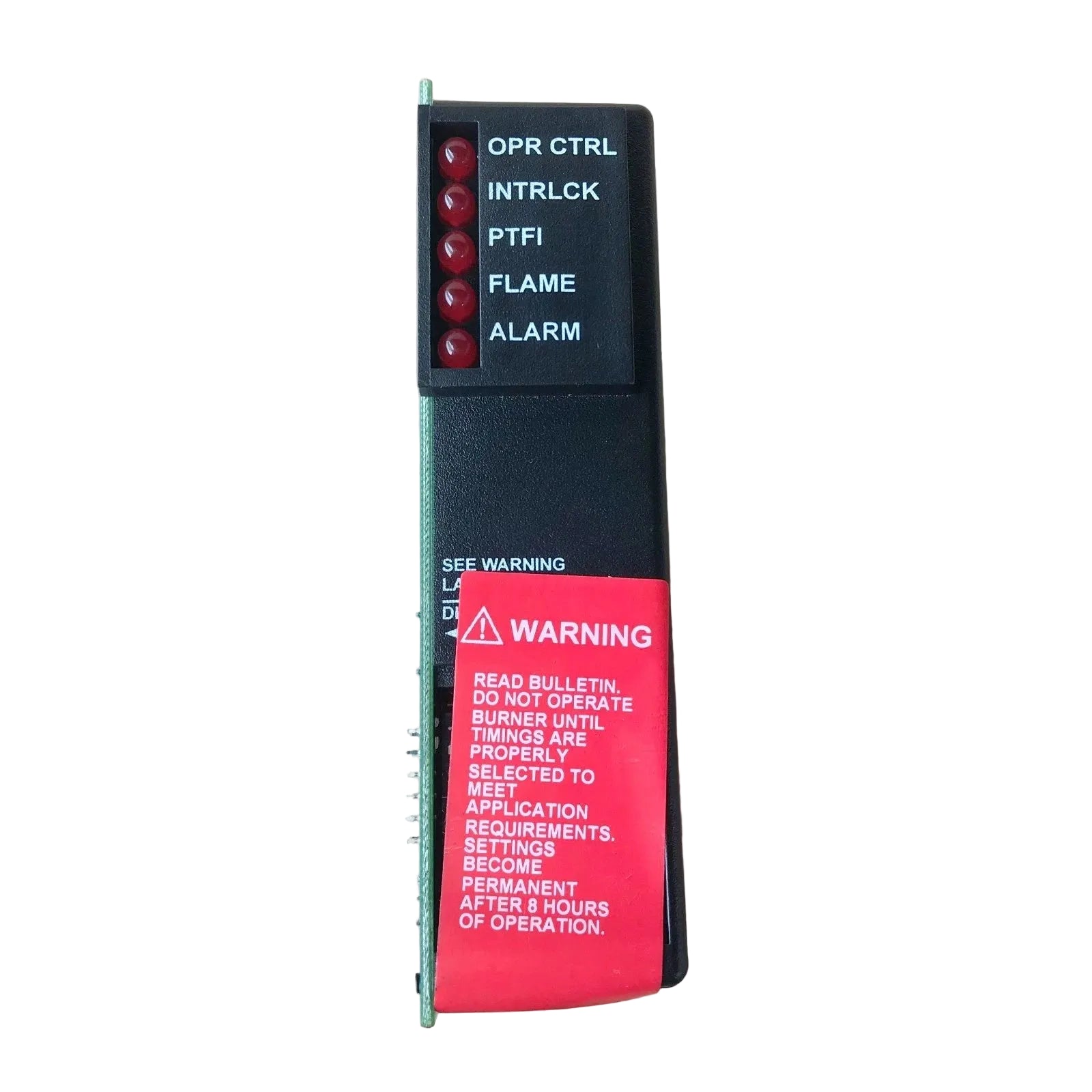

The MEP230 is designed for use with Fireye Modular MicroM controls installed in MEC120 and MEC230 chassis. Its six DIP switches allow selection of purge timing, pilot trial for ignition timing, post-purge operation, airflow proving, and recycle or non-recycle operation. The module uses LED indicators to show operating status and provide diagnostic information during lockout conditions. Its plug-in construction allows installation directly into the designated programmer slot of the compatible chassis.
Key Features:
- MicroM Compatibility: Designed for Fireye Modular MicroM flame safeguard controls.
- Plug-In Design: Installs directly into compatible MEC120 and MEC230 chassis.
- Selectable Purge Timing: Provides selectable purge periods of 7, 30, 60, or 90 seconds.
- PTFI Timing: Allows selection of pilot trial for ignition timing.
- Recycle Selection: Supports selectable recycle or non-recycle operation.
- Airflow Proving: Provides configurable airflow proving and open-at-start functionality.
- Post-Purge Control: Allows post-purge operation to be enabled or disabled.
- LED Diagnostics: Provides operating-status indication and diagnostic codes during lockout.
The MEP230 delivers configurable burner sequencing and flame safeguard control functions for compatible Fireye MicroM combustion systems.
