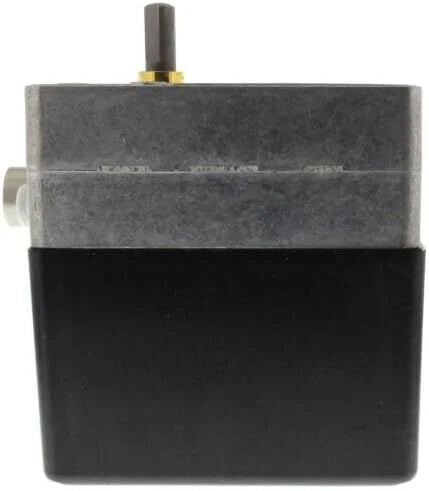

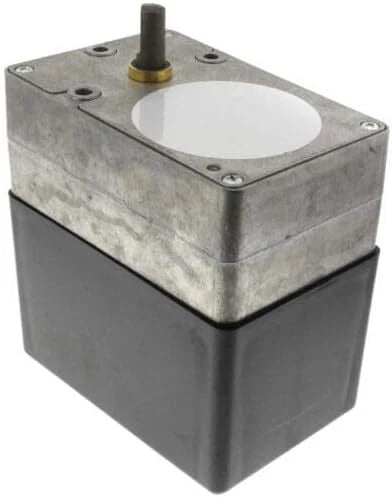

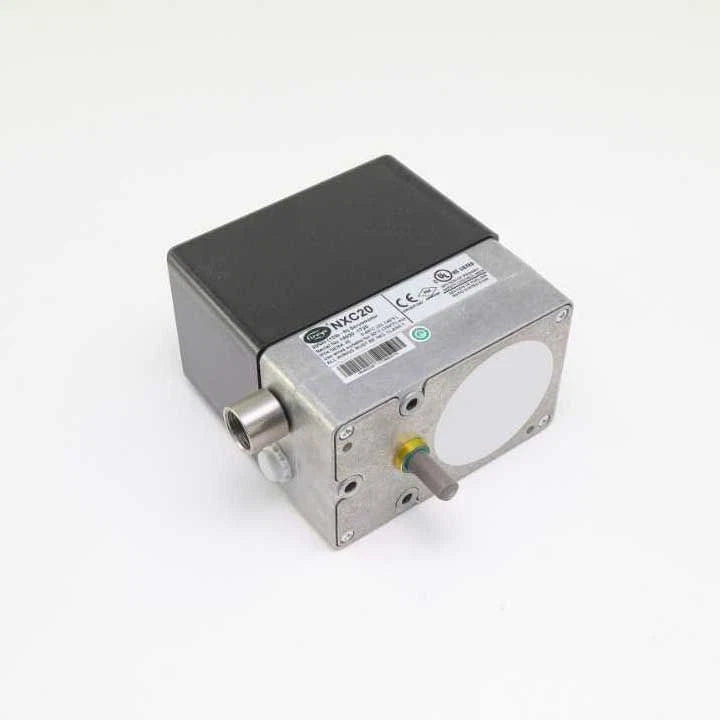

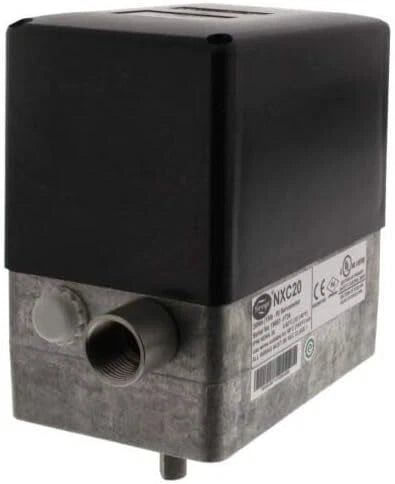

Fireye NXC20 20 Nm 4-Wire CANbus Servo Motor 24-30 VAC for NX6100 Combustion Control
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NXC20
Description
The Fireye NXC20 is a 20 Nm CANbus servo motor designed for precise positioning of fuel and air control devices within Fireye NX-series burner management systems. Fireye part number NXC20 operates from a 24–30 VAC supply provided by the control unit and provides controlled 90-degree rotary movement for combustion valves, dampers, and related burner positioning equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Combustion Controls |
| Part Number | NXC20 |
| Subcategory | Servo Motors |
| Series | Fireye NXC Series |
| Product Type | CANbus Servo Motor / Rotary Actuator |
| Compatible Control System | Fireye NX6100 |
| Communication Interface | CANbus |
| Wiring Configuration | 4-Wire |
| Supply Voltage | 24–30 VAC, Supplied from Control Unit |
| Supply Frequency | 50/60 Hz |
| Driving Torque | 20 Nm (14.7 ft-lb) |
| Holding Torque | 18 Nm (13.3 ft-lb) |
| Rotation Range | 90° |
| 90° Travel Time | Approx. 30 Seconds |
| Enclosure Rating | IP54 / NEMA 3S |
| Operating Temperature Range | 32°F to 140°F (0°C to 60°C) |
| Primary Application | Fuel Valve and Air Damper Positioning |
| Weight | Approx. 5.5 lb |
Information About NXC20
The NXC20 is a Fireye NXC-series digital servo motor engineered to interface with the NX6100 integrated burner management and combustion control platform through a 4-wire CANbus connection. Its enclosed actuator construction provides IP54 and NEMA 3S environmental protection while delivering 20 Nm driving torque and 18 Nm holding torque for reliable positioning of connected combustion-control hardware. The servo receives operating power and digital positioning commands from the associated NX control system, allowing actuator position to be coordinated with burner firing requirements. Typical applications include positioning gas valves, oil valves, air dampers, and other rotary combustion-control devices in industrial boilers, burners, furnaces, and process-heating systems.
Key Features:
- 20 Nm Driving Torque: Provides up to 20 Nm (14.7 ft-lb) of operating torque for combustion-control positioning applications.
- 18 Nm Holding Torque: Maintains connected valve or damper position with 18 Nm of holding torque.
- CANbus Communication: Uses digital CANbus communication for command and position-control integration with compatible Fireye NX systems.
- 4-Wire Interface: Combines actuator power and CANbus communications through a simplified four-wire connection.
- NX6100 Compatibility: Designed to operate as a positioning actuator within the Fireye NX6100 burner management platform.
- 90-Degree Rotation: Provides a controlled quarter-turn operating range suitable for common rotary valves and air dampers.
- 30-Second Travel Time: Completes approximately 90 degrees of rotation in 30 seconds.
- 24–30 VAC Supply: Receives low-voltage operating power directly from the compatible Fireye control system.
- IP54 Protection: Enclosure provides protection against limited dust ingress and water splashing.
- NEMA 3S Enclosure: Suitable for protected industrial installations requiring resistance to weather-related exposure.
- Position Feedback: Digital servo architecture enables the NX control system to supervise commanded actuator positioning.
- Wide Application Range: Suitable for positioning fuel valves, air dampers, and related burner combustion-control components.
The NXC20 delivers the reliability and precision required for coordinated fuel and air positioning in industrial burner management and combustion control systems.
