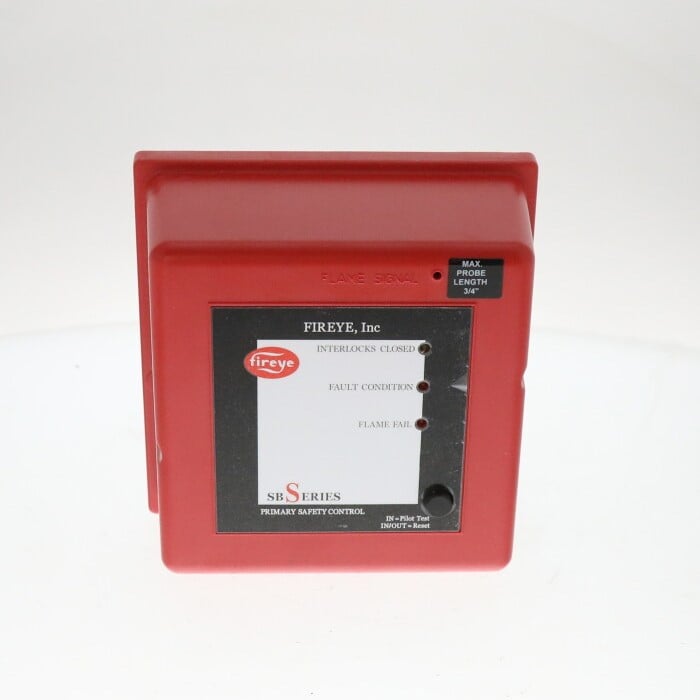

Fireye SB560232AA SB Series UV Flame Safeguard Control 120 VAC No Purge 5/10 Sec TFI
- Regular price
- $1,799.00
- Sale price
- $1,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SB560232AA
Description
The Fireye SB560232AA is a compact microprocessor-based flame safeguard control designed to provide automatic ignition sequencing and continuous UV flame supervision for single gas, oil, or combination gas/oil burners. Fireye part number SB560232AA operates on 120 VAC and combines a no-purge sequence with 5/10-second trial-for-ignition timing for commercial and industrial combustion equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Combustion Controls |
| Part Number | SB560232AA |
| Subcategory | Flame Safeguard Controls |
| Series | Fireye SB Series |
| Product Type | Microprocessor-Based Flame Safeguard Control |
| Operating Voltage | 120 VAC |
| Operating Frequency | 50/60 Hz |
| Flame Detection Method | Ultraviolet (UV) |
| Burner Sequence | No Purge |
| Trial for Ignition (TFI) | 5/10 Seconds |
| Supported Burner Fuels | Gas, Oil, Combination Gas/Oil |
| Burner Configuration | Single Burner |
| Control Architecture | Digital Microprocessor-Based |
| Status Interface | Front LED Indicators |
| Diagnostic Interface | Recessed Front Test Jack |
| External Display Compatibility | Fireye SB20896 Alphanumeric Display |
| Operator Controls | Reset / Check Push Button |
| Subbase Compatibility | Eclipse VeriFlame-Style Wiring Subbase |
| Safety / Approval Standards | EN298 Tested, UL Listed, FM Approved |
| Primary Application | Automatic Ignition and Continuous Flame Supervision |
| Weight | Approx. 1.5 lb |
Information About SB560232AA
The SB560232AA is part of the Fireye SB Series modular burner management family, developed as a compatible control solution for systems using the Eclipse VeriFlame-style wiring subbase. Its microprocessor-based construction incorporates burner sequencing logic, UV flame-signal processing, safety lockout functions, LED operating-status indication, a front test jack, and manual reset/check controls within a compact plug-in module. This configuration is specifically arranged for ultraviolet flame detection, 120 VAC 50/60 Hz operation, a no-purge starting sequence, and 5/10-second trial-for-ignition timing. The control is intended for single-burner boilers, furnaces, ovens, process heaters, and other commercial or industrial combustion equipment requiring automatic ignition and continuous flame monitoring.
Key Features:
- Microprocessor-Based Control: Digital logic manages burner startup, ignition sequencing, flame supervision, and safety shutdown functions.
- UV Flame Detection: Configured for use with an appropriate ultraviolet flame scanner for burner flame monitoring.
- No-Purge Sequence: Provides a predefined operating sequence without an internally controlled pre-purge period.
- 5/10-Second TFI: Provides the specified 5/10-second trial-for-ignition timing configuration for burner startup.
- 120 VAC Operation: Designed for 120 VAC, 50/60 Hz burner control power systems.
- Single-Burner Management: Controls ignition and flame supervision for individual gas, oil, or combination gas/oil burners.
- LED Status Indicators: Front-mounted indicators provide immediate information about burner sequence and operating status.
- Lockout Indication: Provides visual status information when the control enters a safety lockout condition.
- Front Test Jack: Allows real-time flame-signal measurement and connection of compatible diagnostic display equipment.
- Pilot Turndown Test Mode: Check function supports pilot flame adjustment and pilot turndown testing during commissioning and maintenance.
- Manual Reset Function: Front push button provides reset capability following an appropriate lockout condition.
- Plug-In Construction: Modular design simplifies installation, servicing, and control replacement on a compatible wiring subbase.
The SB560232AA delivers the reliability and precision required for automatic burner sequencing, UV flame supervision, and flame-failure protection in commercial and industrial combustion systems.
