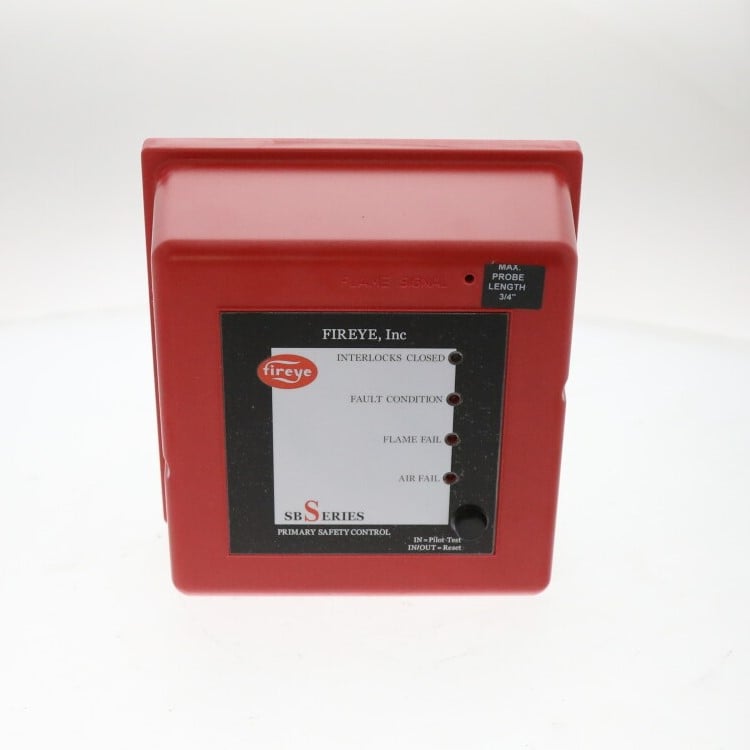

Fireye SB560522AA UV Flame Safeguard Control 120 VAC Purge 10/15 TFI
- Regular price
- $3,699.00
- Sale price
- $3,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SB560522AA
Description
The Fireye SB560522AA is a 120 VAC modular flame safeguard control designed for automatic ignition and continuous flame monitoring of commercial and industrial burners. It is a purge model with UV flame detection and a selectable 10- or 15-second trial-for-ignition period for gas, oil, and combination gas/oil burners.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Control Panels, Modules |
| Part Number | SB560522AA |
| Subcategory | Flame Safeguard Controls |
| Series | SB Series |
| Supply Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Flame Detection | Ultraviolet (UV) |
| Sequence | Purge |
| Trial for Ignition | 10/15 seconds |
| Fuel Compatibility | Gas, Oil, Combination Gas/Oil |
| Test Function | Pilot Flame Adjustment and Turndown Test |
| Standards | EN298, UL Listed, FM Approved |
| Replacement Model | Eclipse VeriFlame VF560522AA |
| Length | 3 in |
| Weight | 2.19 lb |
Information About SB560522AA
The SB560522AA is part of the Fireye SB Series of microprocessor-based burner management controls. It combines digital sequencing and analog flame-sensing circuitry in a plug-in design for burner ignition and flame supervision. This model uses ultraviolet flame detection, a purge sequence, and 10/15-second trial-for-ignition timing. The control operates at 120 VAC and uses the same wiring subbase as the Honeywell Eclipse VeriFlame burner control system.
Key Features:
- Burner Management: Provides automatic ignition sequencing and continuous flame monitoring.
- Supply Voltage: Operates from a 120 VAC power supply.
- Flame Detection: Uses ultraviolet (UV) flame sensing technology.
- Purge Function: Incorporates a purge sequence before ignition.
- Trial for Ignition: Provides selectable 10- or 15-second trial-for-ignition timing.
- Fuel Compatibility: Designed for gas, oil, and combination gas/oil burners.
- Test Mode: Provides a test function for pilot flame adjustment and turndown testing.

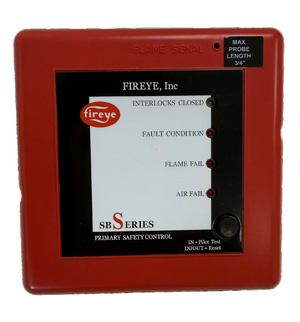

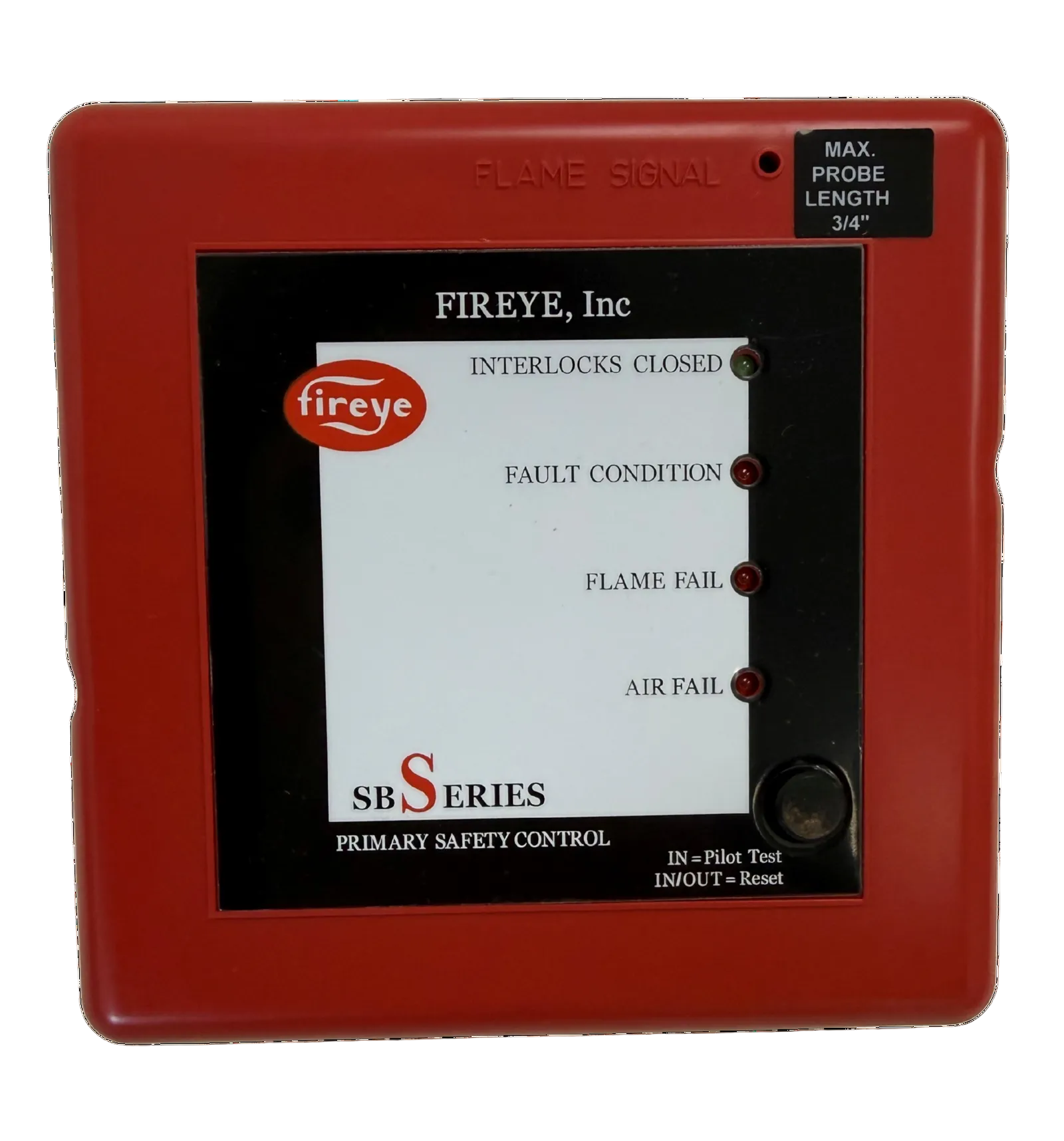

- Status Monitoring: Front-panel LED indicators show burner operating status and lockout conditions.
The SB560522AA delivers the reliability and precision required for automatic burner sequencing and continuous flame monitoring applications.
