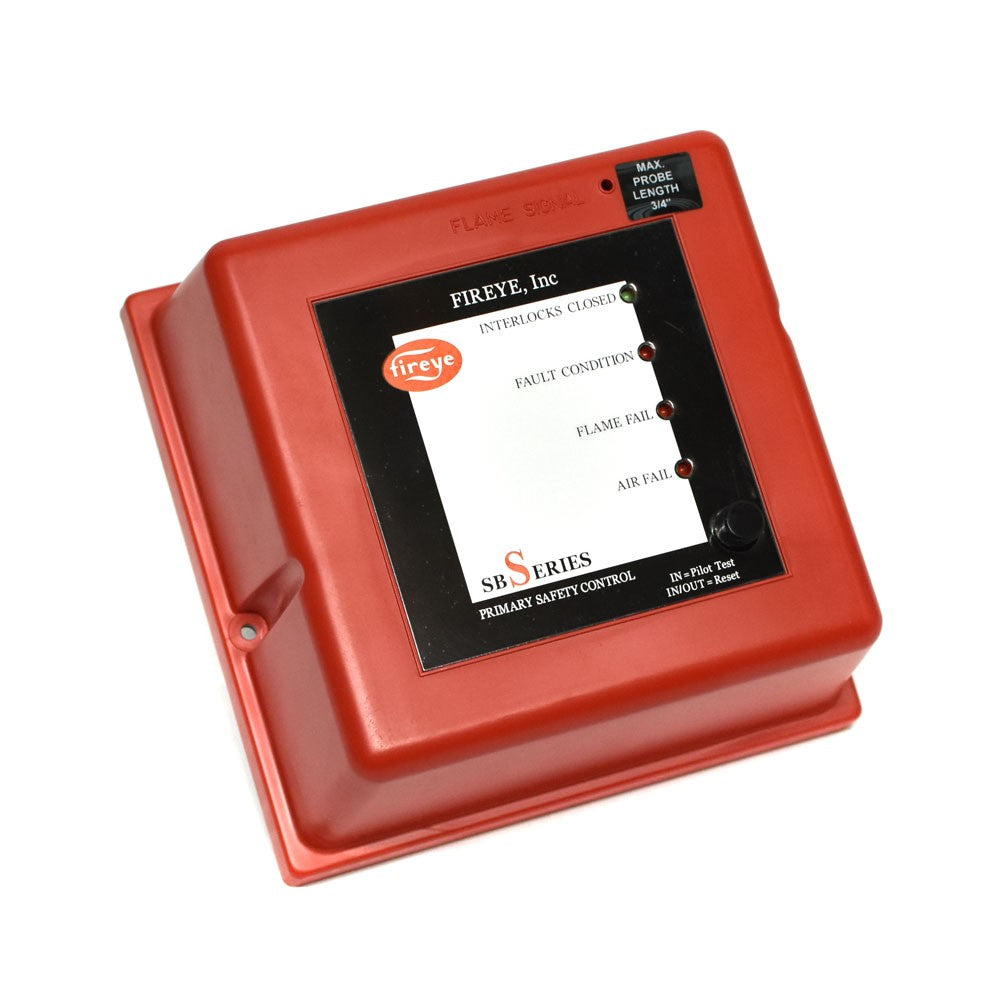

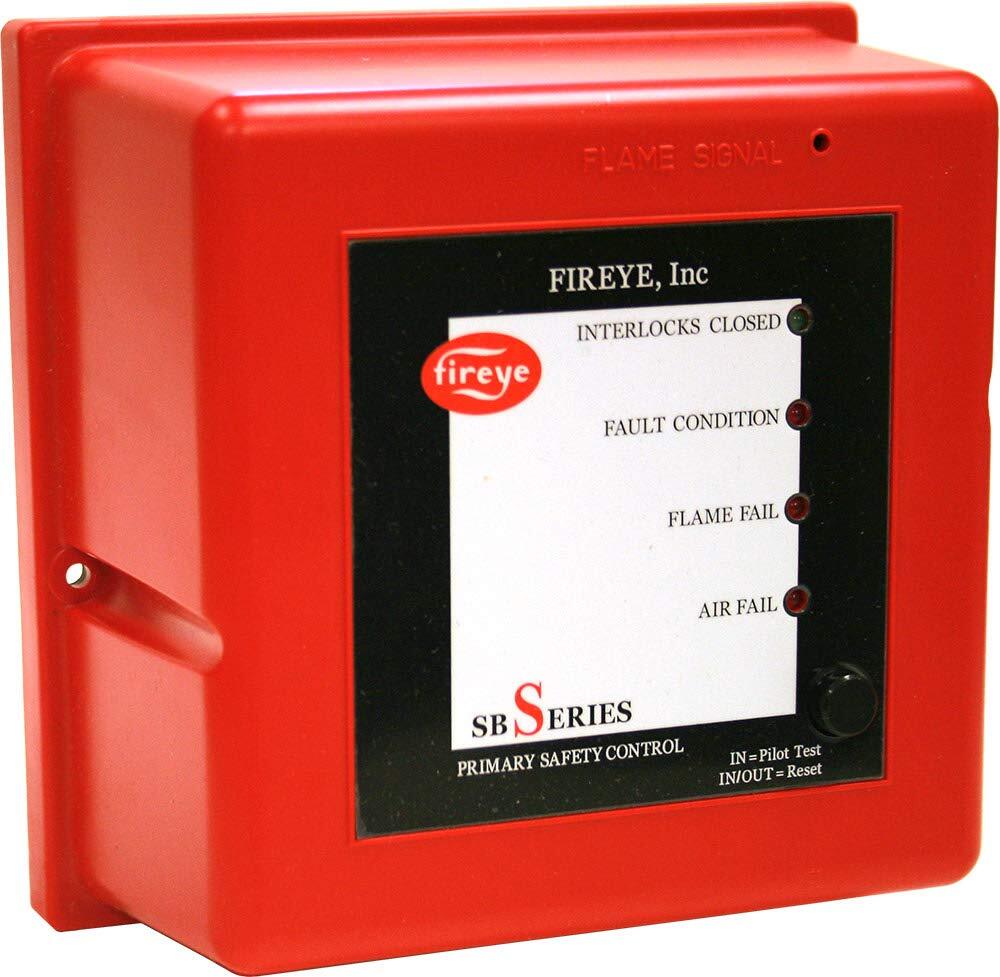

Fireye SB560523AA Flame Safeguard Control 120 VAC Flame Rod Purge
- Regular price
- $3,699.00
- Sale price
- $3,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SB560523AA
Description
The Fireye SB560523AA is a 120 VAC modular flame safeguard control designed for automatic ignition and continuous flame monitoring of gas, oil, and combination gas/oil burners. It uses flame rectification detection, a purge cycle, and selectable 10- or 15-second trial-for-ignition timing for burner management applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Controls & Indicators |
| Part Number | SB560523AA |
| Subcategory | Controls |
| Product Type | Flame Safeguard Control |
| Series | SB Series |
| Power Supply | 120 VAC |
| Frequency | 50/60 Hz |
| Flame Sensor Type | Flame Rod |
| Detection Method | Flame Rectification |
| Sequence | Purge |
| Trial for Ignition | 10 or 15 seconds |
| Reset Function | Auto Reset |
| Fuel Compatibility | Gas, Oil, Combination Gas/Oil |
| Test Function | Pilot Flame Adjustment and Turndown Test |
| Standards | EN298, UL Listed, FM Approved |
| Weight | 2.25 lb |
Information About SB560523AA
The SB560523AA is part of the Fireye SB Series of microprocessor-based burner management controls. It combines digital sequencing and flame-sensing circuitry in a compact plug-in design for commercial and industrial heating and process equipment. This model uses a flame rod sensor with flame rectification, together with a purge sequence and selectable 10/15-second trial-for-ignition timing. The control also provides an auto-reset function and a test mode for pilot flame adjustment and turndown testing.
Key Features:
- Burner Management: Provides automatic ignition sequencing and continuous flame monitoring.
- Supply Voltage: Operates at 120 VAC with 50/60 Hz frequency.
- Flame Detection: Uses flame rod sensing with flame rectification technology.
- Purge Cycle: Provides a purge sequence before burner ignition.
- Trial for Ignition: Offers selectable 10- or 15-second trial-for-ignition timing.
- Auto Reset: Includes an automatic reset function for the control sequence.
- Test Mode: Supports pilot flame adjustment and burner turndown testing.
- Fuel Compatibility: Designed for gas, oil, and combination gas/oil burners.
The SB560523AA delivers the reliability and precision required for automatic burner sequencing and continuous flame monitoring applications.
