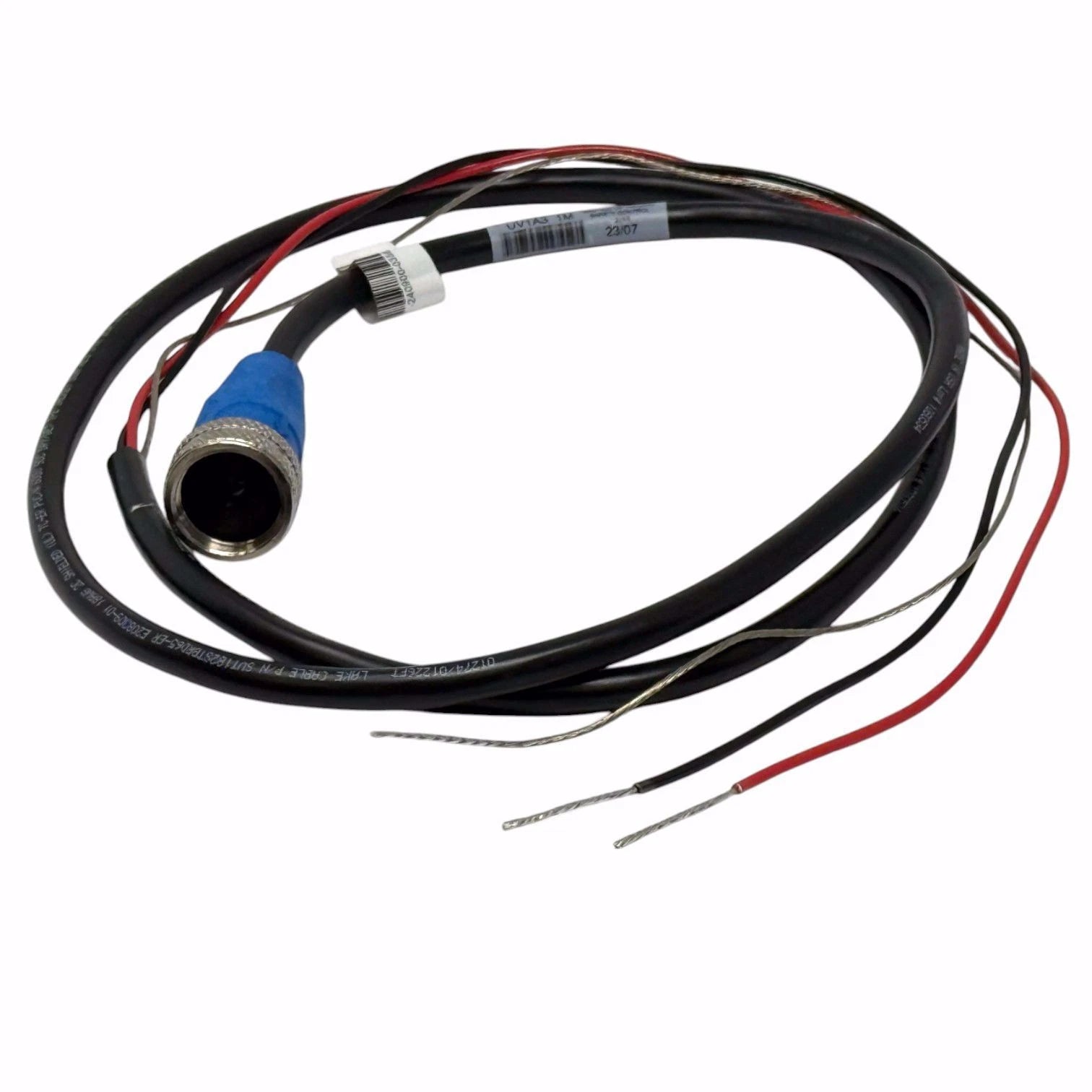

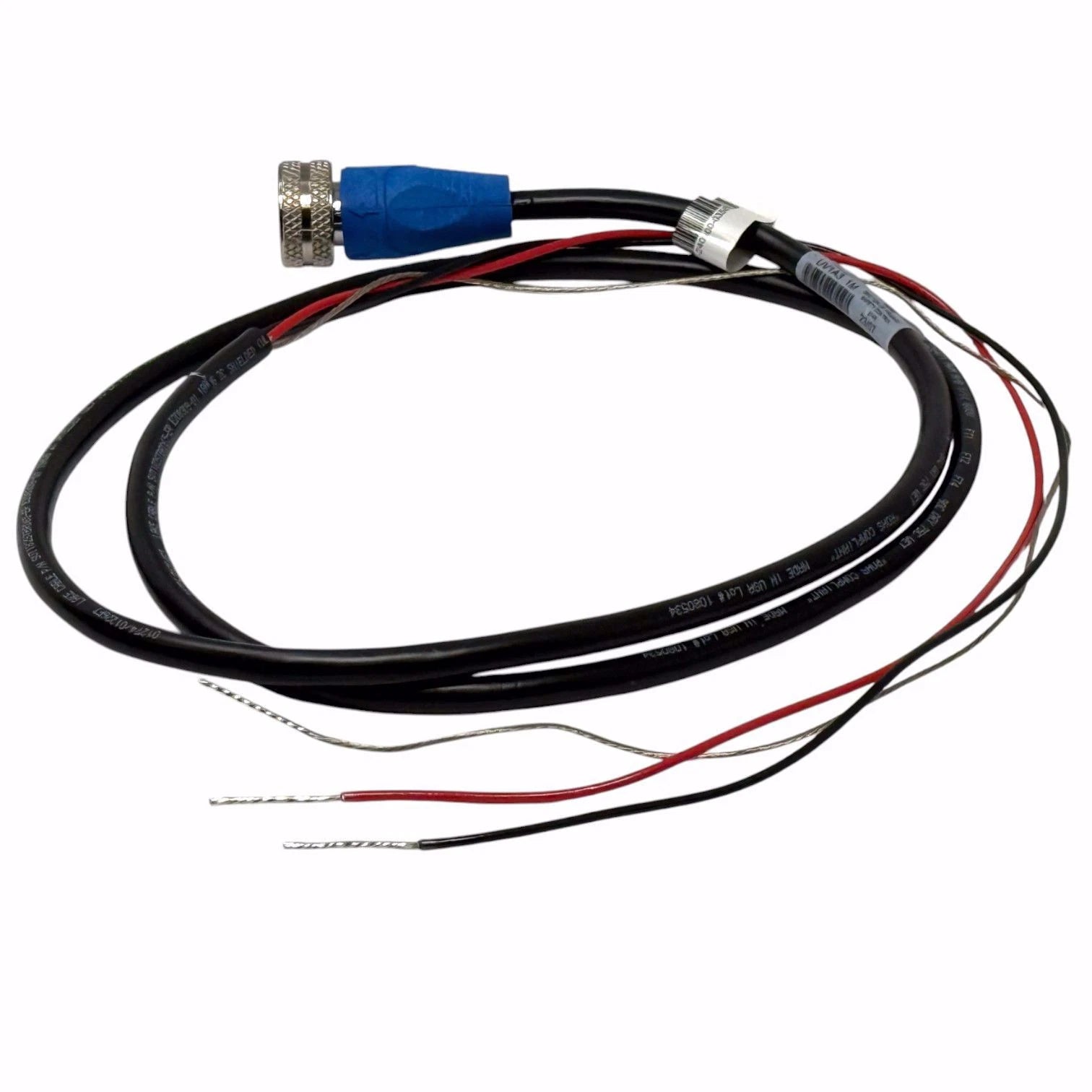

Fireye UV1A3 Ultraviolet Flame Scanner 1/2-Inch NPT with 3-Foot Shielded Cable
- Regular price
- $329.00
- Sale price
- $329.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UV1A3
Description
The Fireye UV1A3 is a compact ultraviolet flame scanner designed to detect flame presence in industrial and commercial burner systems using gas, No. 2 oil, and compatible combustion fuels. Fireye part number UV1A3 features a straight-view configuration, 1/2-inch NPT mounting connection, and 3-foot shielded cable for integration with compatible Fireye flame safeguard controls.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Combustion Controls |
| Part Number | UV1A3 |
| Subcategory | Flame Scanners |
| Series | UV1A Series |
| Product Type | Ultraviolet Flame Scanner |
| Detection Technology | Ultraviolet (UV) |
| Scanner Configuration | Straight View |
| Self-Checking Function | No / Non-Self-Checking |
| Mounting Connection | 1/2 in NPT |
| Cable Length | 3 ft / 36 in (915 mm) |
| Cable Type | Shielded TC-ER Cable |
| Operating Temperature Range | -40°F to 200°F (-40°C to 94°C) |
| Maximum Relative Humidity | 85% RH, Non-Condensing |
| Compatible Fuels | Fuel Gas / No. 2 Oil and Compatible Burner Fuels |
| Compatible Control Families | M-Series, M-Series II, MicroM, FlameWorx, MB-2, D-Series, Flame-Monitor, BurnerLogix, Nexus |
| Primary Application | Burner Flame Detection and Flame Safeguard Systems |
| Weight | Approx. 0.5 lb |
Information About UV1A3
The UV1A3 is a non-self-checking ultraviolet flame scanner from Fireye’s UV1A Series for burner flame supervision and combustion safety systems. Its compact straight-body construction uses a UV-sensitive quartz detector tube and a 1/2-inch NPT threaded connection for installation on a rigid burner sight pipe. The scanner is compatible with multiple Fireye control platforms, including M-Series, M-Series II, MicroM, FlameWorx, MB-2, D-Series, Flame-Monitor, BurnerLogix, and Nexus systems when used with the appropriate UV amplifier or control configuration. During operation, ultraviolet radiation from the flame ionizes the gas within the detector tube, generating electrical pulses that are transmitted to the flame safeguard control for flame-presence evaluation.
Key Features:
- Ultraviolet Flame Detection: Senses UV radiation generated by the monitored burner flame.
- Straight-View Configuration: Provides direct line-of-sight monitoring through the burner sight pipe.
- Non-Self-Checking Design: Designed for applications using compatible Fireye non-self-check UV flame detection circuits.
- 1/2-Inch NPT Connection: Threaded mounting interface supports standard burner sight-pipe installations.
- 3-Foot Cable: Supplied with approximately 36 in (915 mm) shielded TC-ER cable.
- Wide Temperature Range: Rated for ambient operation from -40°F to 200°F (-40°C to 94°C).
- Multiple Control Platforms: Supports compatible M-Series, M-Series II, MicroM, FlameWorx, MB-2, D-Series, Flame-Monitor, BurnerLogix, and Nexus configurations.
- Combustion Equipment Application: Suitable for flame supervision on industrial and commercial burners and boilers.
- UV Detector Tube: Uses a quartz UV tube containing ionizable gas to generate the flame signal.
- Flexible Installation: Can be used with Fireye mounting, swivel, heat-insulating, and quartz-window accessories where application conditions require them.
- Extended Wiring Capability: Scanner wiring can be extended for remote control-panel installations when properly shielded wiring practices are followed.
The UV1A3 delivers the reliability and precision required for flame detection and burner supervision in compatible industrial and commercial combustion systems.
