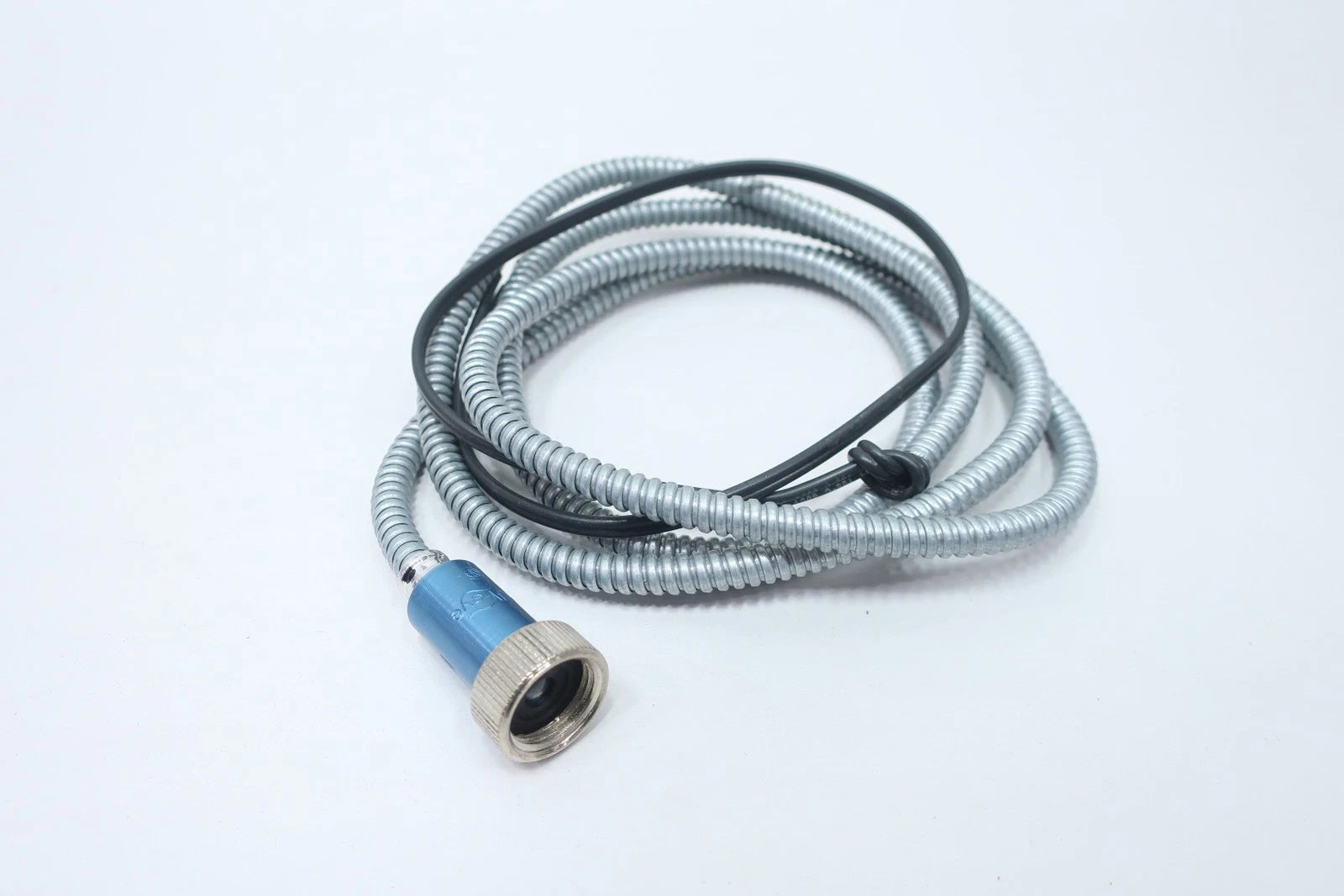

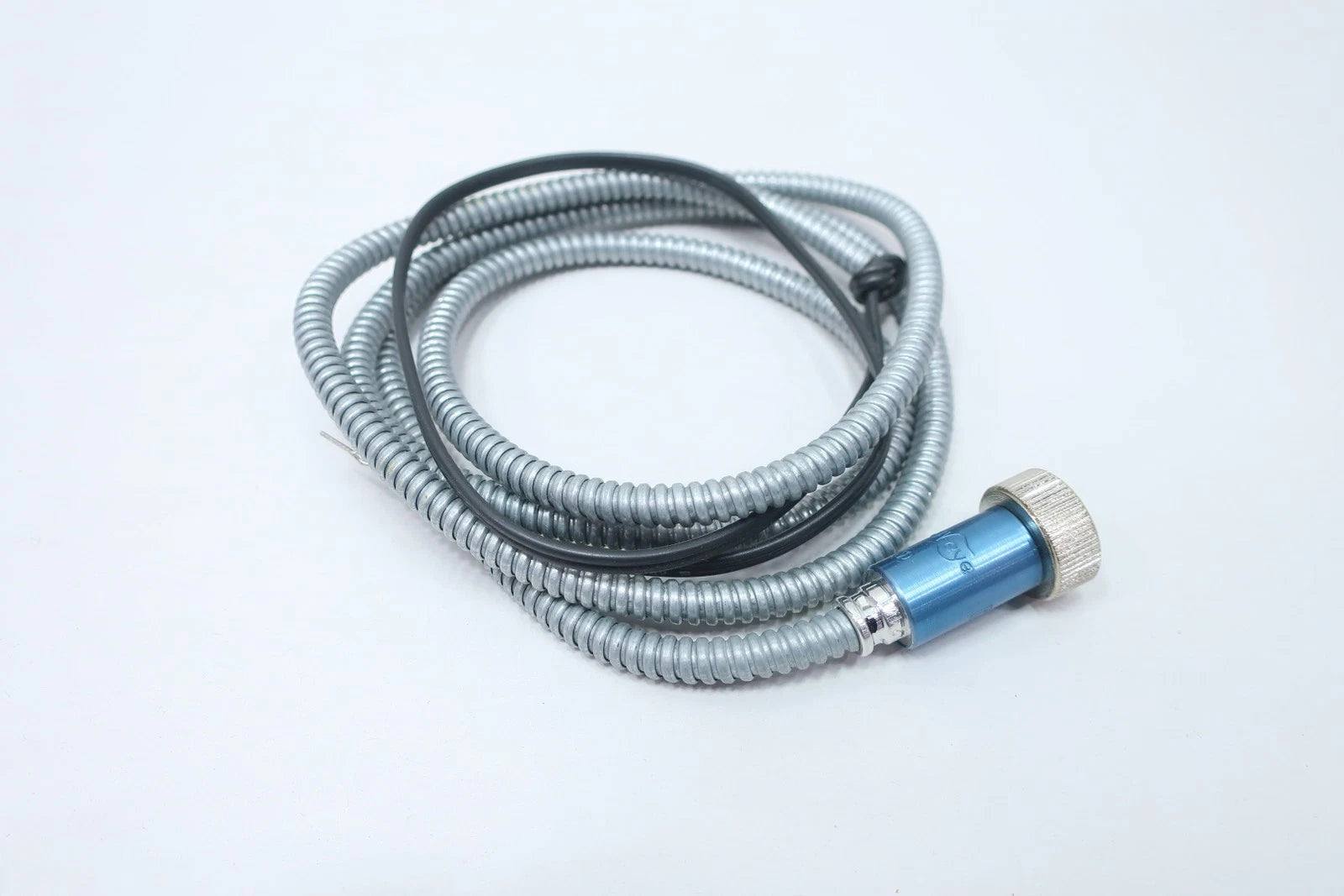

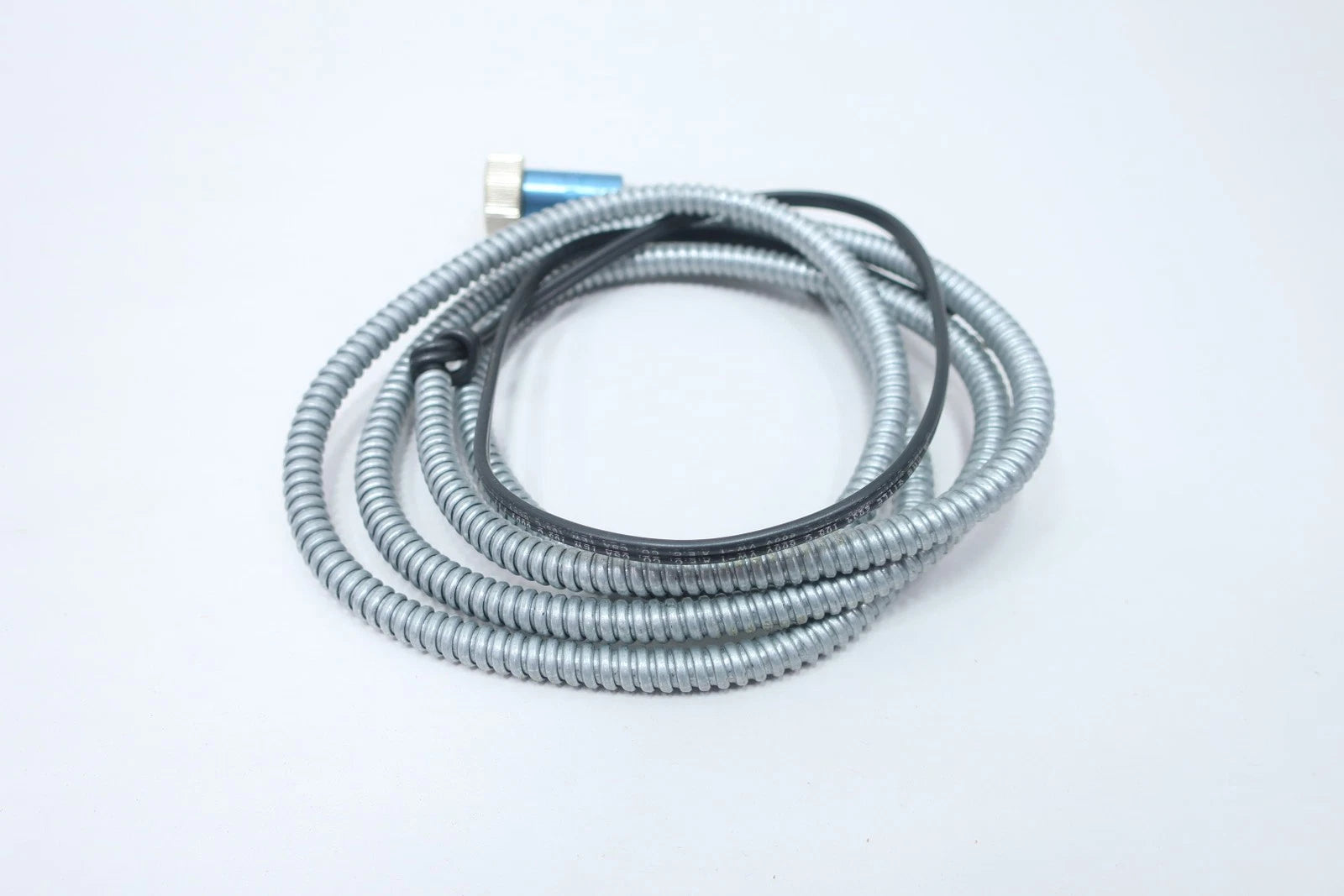

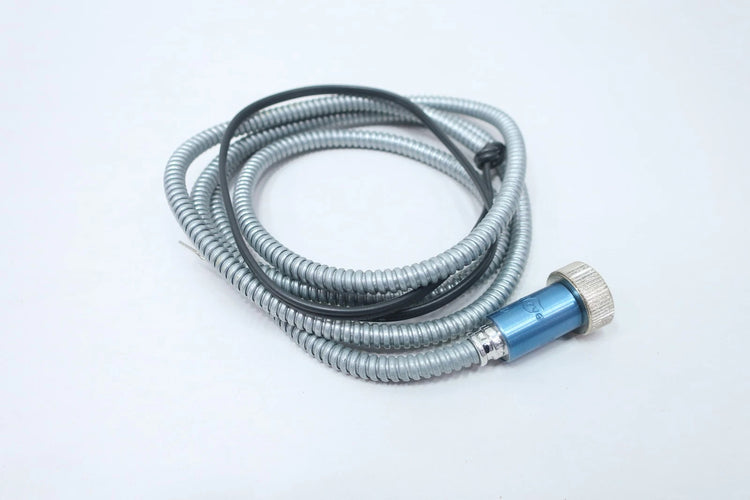

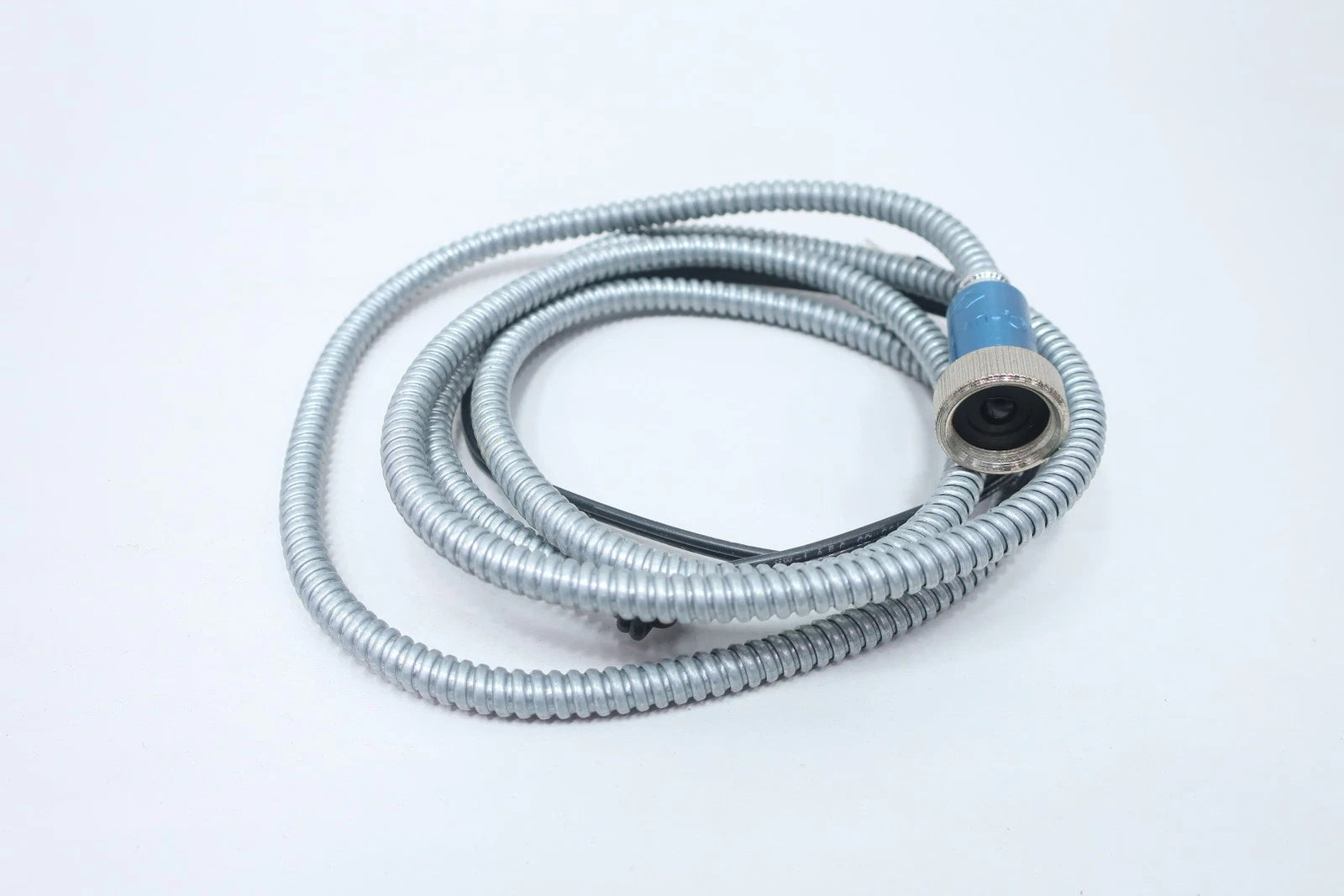

Fireye UV1A6 Non-Self-Check UV Flame Scanner 1/2-Inch NPT with 6-Foot TC-ER Cable
- Regular price
- $392.00
- Sale price
- $392.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UV1A6
Description
The Fireye UV1A6 is a non-self-checking ultraviolet flame scanner designed for reliable flame detection in industrial and commercial burner systems. Fireye part number UV1A6 combines a 1/2-inch NPT mounting connection with a 6-foot TC-ER tray-rated cable, providing additional wiring reach for integration with compatible Fireye flame safeguard controls.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Combustion Controls |
| Part Number | UV1A6 |
| Subcategory | Flame Scanners |
| Series | Fireye UV1A Series |
| Product Type | Ultraviolet Flame Scanner |
| Detection Technology | Ultraviolet (UV) |
| Scanner Configuration | Straight View |
| Self-Checking Function | No / Non-Self-Checking |
| Mounting Connection | 1/2 in NPT |
| Connection Type | Screwed Integral Collar |
| Cable Length | 6 ft / 72 in (1.83 m) |
| Cable Rating | Tray Cable – Exposed Run (TC-ER) |
| Operating Temperature Range | -40°F to 200°F (-40°C to 94°C) |
| Maximum Relative Humidity | 85% RH, Non-Condensing |
| Compatible Control Families | M-Series, M-Series II, MicroM, FlameWorx, MB-2, D-Series, Flame-Monitor, BurnerLogix, Nexus |
| Primary Application | Burner Flame Detection and Flame Safeguard Systems |
| Typical Equipment | Boilers, Furnaces, Burners, Ovens, Process Heating Equipment |
| Weight | Approx. 0.6 lb |
Information About UV1A6
The UV1A6 is part of the Fireye UV1A Series of compact ultraviolet flame scanners used for burner flame supervision and flame-failure protection. Its straight-view construction incorporates a UV-sensitive detector, threaded 1/2-inch NPT mounting connection, and integral 6-foot Tray Cable – Exposed Run (TC-ER) rated cable for installations requiring greater distance between the scanner and associated control equipment. The scanner is designed to operate with compatible Fireye M-Series, M-Series II, MicroM, FlameWorx, MB-2, D-Series, Flame-Monitor, BurnerLogix, and Nexus configurations when connected to the appropriate UV flame amplifier or control circuit. During burner operation, the detector responds to ultraviolet radiation produced by the supervised flame and generates a signal that the associated flame safeguard system evaluates to determine flame presence or loss.
Key Features:
- Ultraviolet Flame Detection: Detects UV radiation generated by compatible burner flames for flame-presence supervision.
- Non-Self-Checking Design: Intended for burner applications where continuous scanner self-checking is not required.
- 1/2-Inch NPT Connection: Integral threaded collar provides direct mounting to compatible burner sight-pipe arrangements.
- 6-Foot Integral Cable: Provides approximately 72 inches of wiring reach between the scanner and associated control equipment.
- TC-ER Cable Rating: Tray Cable – Exposed Run construction supports suitable industrial cable-routing installations.
- Straight-View Configuration: Provides direct optical sighting toward the monitored flame zone.
- Multiple Control Platforms: Compatible with several Fireye burner management and flame safeguard control families when properly configured.
- Broad Fuel Application: Suitable for detecting UV-producing flames from common gaseous and compatible liquid fossil fuels.
- Industrial Temperature Capability: Designed for operation across a wide ambient temperature range around burner equipment.
- Compact Scanner Construction: Small form factor simplifies installation where available space around the burner sight port is limited.
- Extended-Reach Alternative: Provides twice the integral cable length of the 3-foot UV1A3 configuration.
- Combustion Safety Application: Supplies flame-presence information used by compatible controls for burner supervision and flame-failure response.
The UV1A6 delivers the reliability and precision required for ultraviolet flame detection and burner supervision in industrial and commercial combustion systems.
